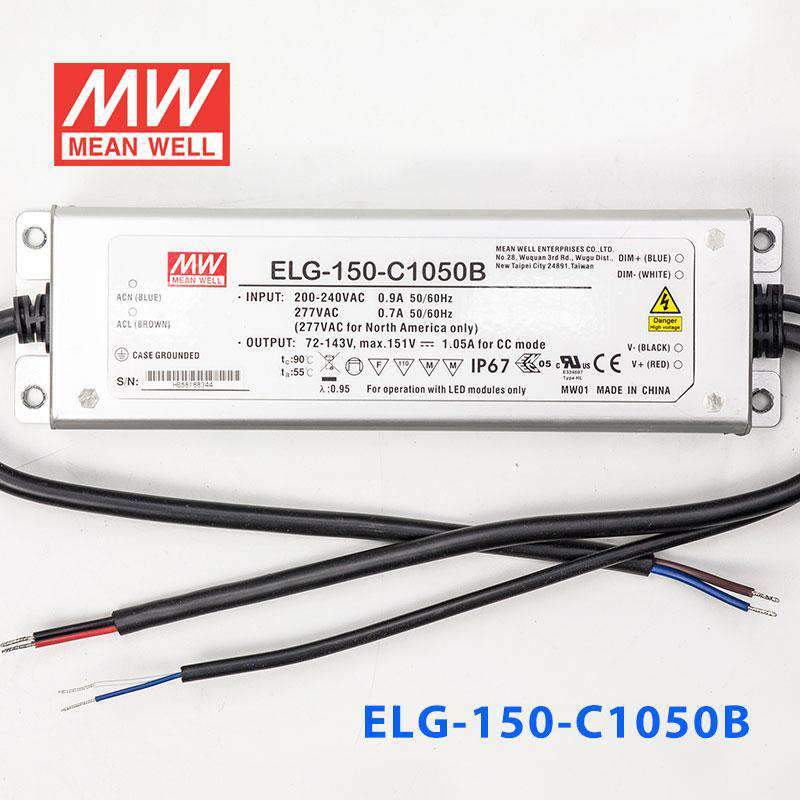

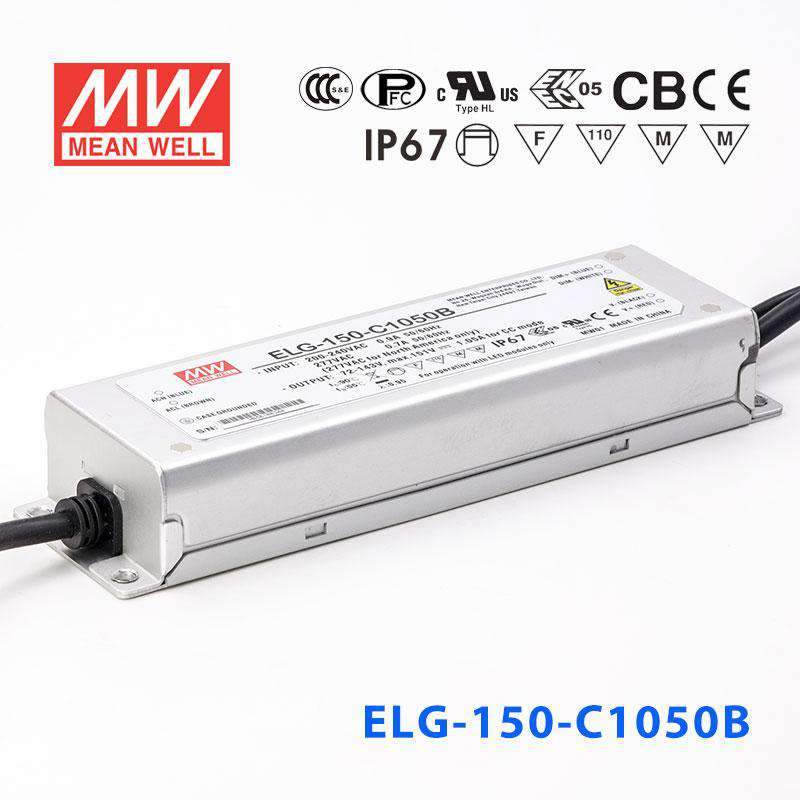

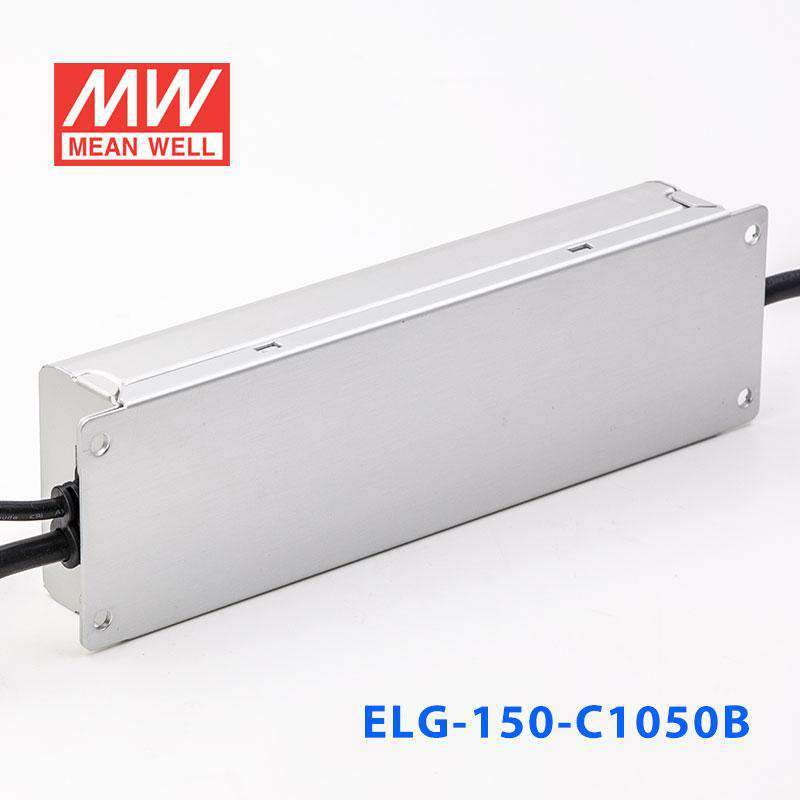

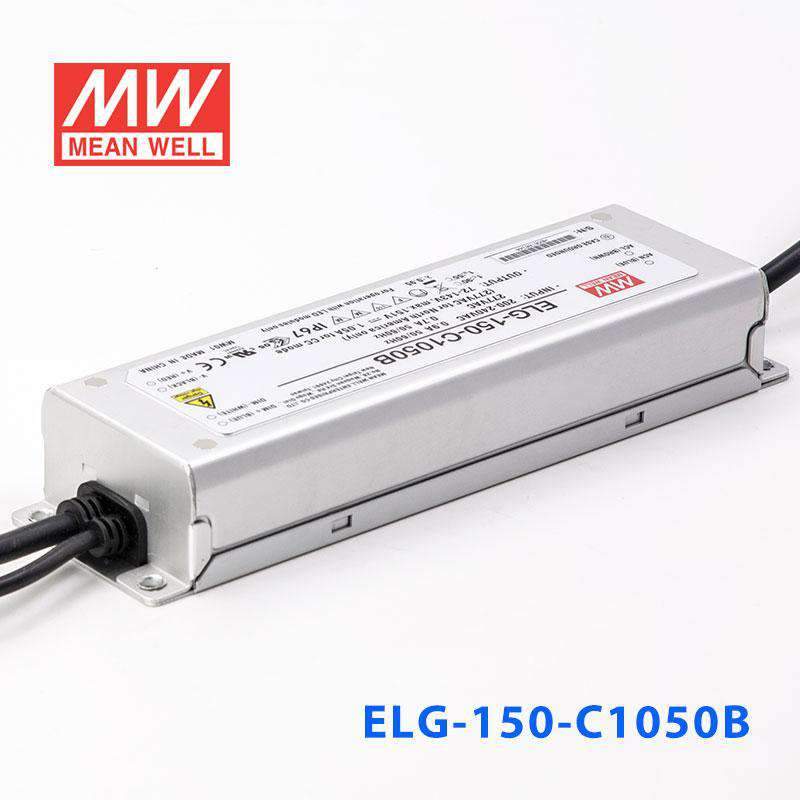

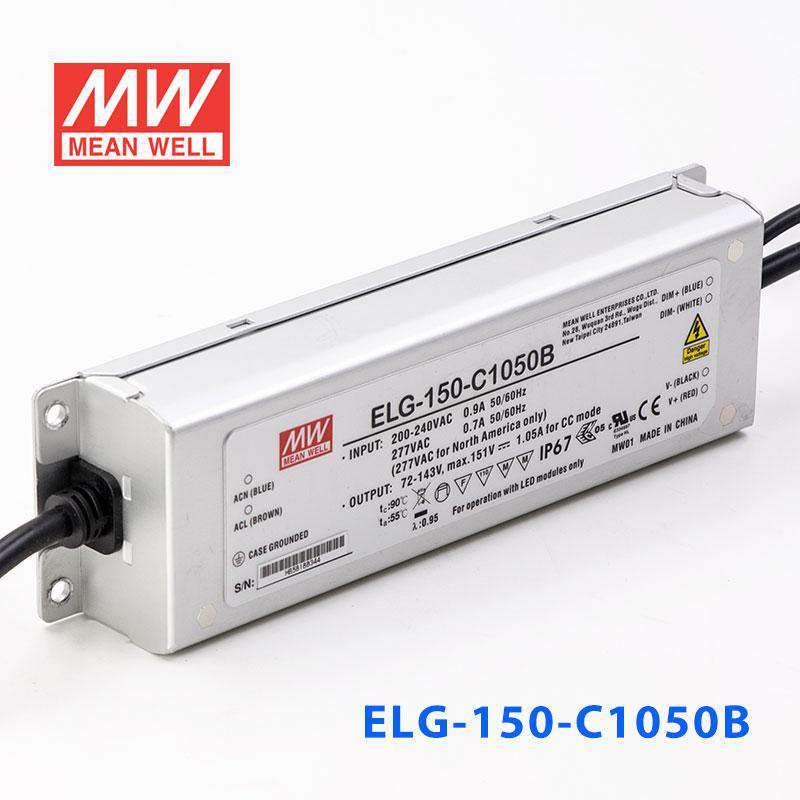

Mean Well ELG-150-C1050B Power Supply 150W 1050mA - Dimmable
The ELG-150 is a 150W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating150.15 Watt
-
Output Voltage151 Volt
-
Rated Current1.05 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
Can the ELG-150-C1050B drive dimmable LED modules in an outdoor waterproof fixture?
Yes. The ELG-150-C1050B has an IP67 waterproof rating and includes a built-in dimming interface, making it suited for dimmable outdoor fixtures exposed to rain or temporary water immersion. It delivers 1050mA constant current with a CC voltage range of 72–143V.
Is the ELG-150-C1050B suitable for dimmable LED downlights in a covered parking garage?
Yes. At 150.15W and 1050mA with dimming capability, this driver handles LED downlight strings with combined forward voltages between 72V and 143V. The IP67 rating is appropriate for damp environments like parking structures where condensation and occasional water exposure occur.
Can this driver be used for dimmable LED modules in outdoor architectural lighting?
The ELG-150-C1050B is well-suited for dimmable outdoor architectural LED applications thanks to its IP67 waterproof rating and dimming interface. The 150.15W, 1050mA constant-current output supports series LED arrays designed to operate within the 72–143V CC range.
What LED string characteristics are compatible with the ELG-150-C1050B?
Compatible LED strings must have a total forward voltage between 72V and 143V when driven at 1050mA. The specific number of LEDs in the string varies by each LED's forward voltage — calculate the required series count based on your LED's Vf to ensure it falls within the operating window.
How does the IP67 rating of the ELG-150-C1050B differ from IP65 variants in the same series?
IP67 provides protection against full dust ingress and temporary submersion in water up to 1 meter for 30 minutes, offering stronger protection than IP65, which covers water jets but not submersion. The ELG-150-C1050B is therefore the better choice for fixtures in flood-prone areas or those requiring immersion protection.
What is the difference between the ELG-150-C1050B and the ELG-150-C1050DA?
Both are 150.15W, 1050mA, 72–143V CC range drivers with IP67 waterproof rating. The ELG-150-C1050B uses an analog or resistor-based dimming interface, while the ELG-150-C1050DA uses DALI (Digital Addressable Lighting Interface), which is suitable for smart building control systems.
