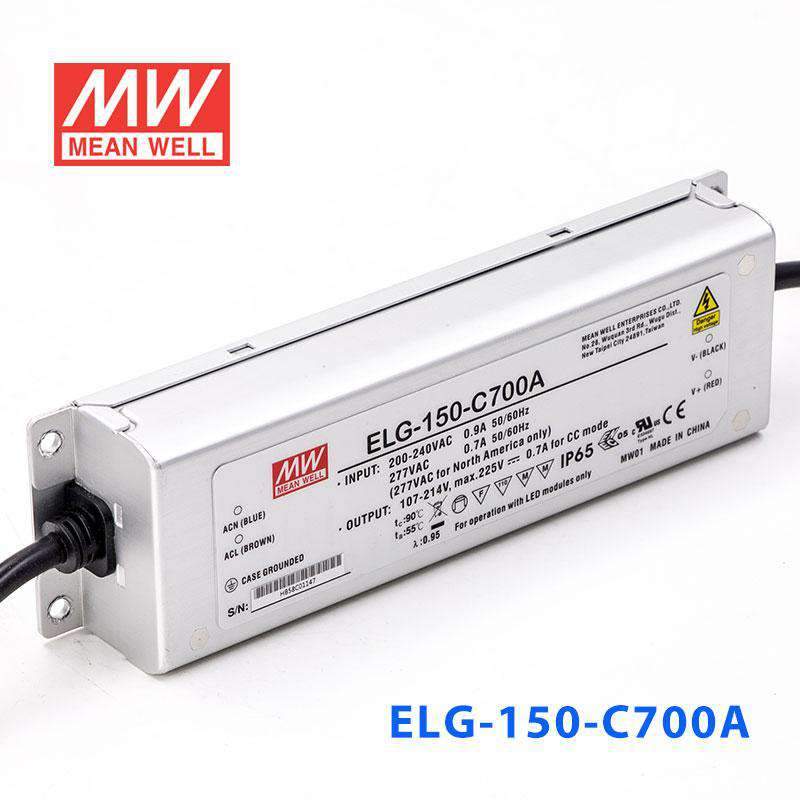

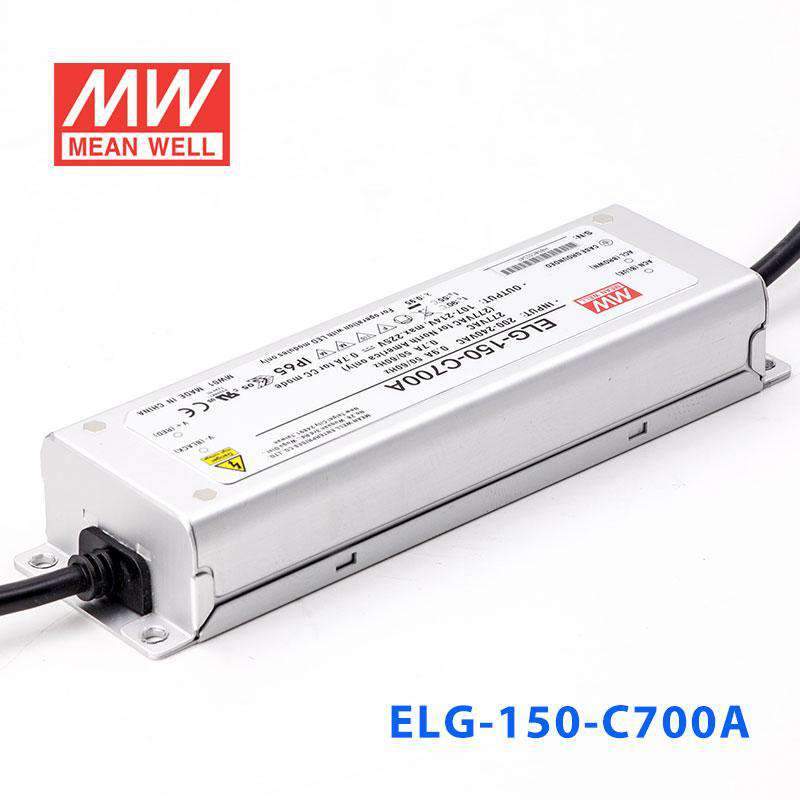

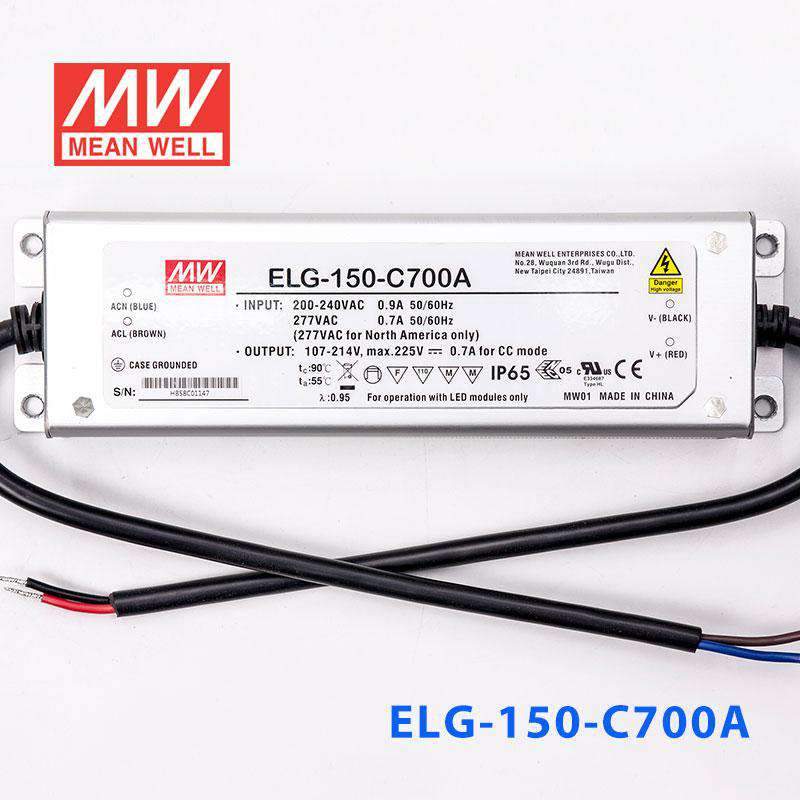

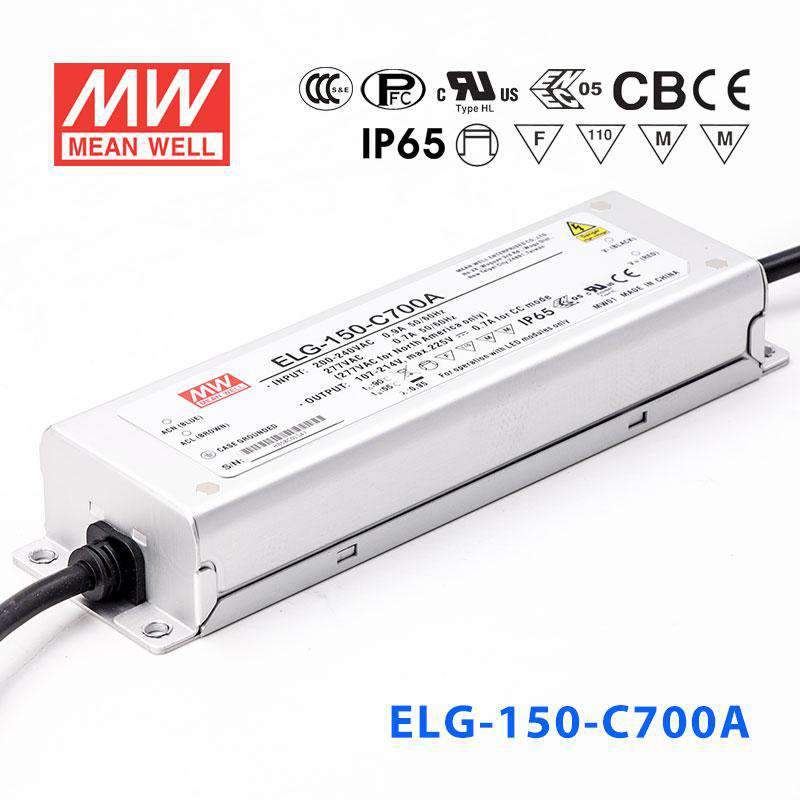

Mean Well ELG-150-C700A Power Supply 150W 700mA - Adjustable
Description
Description
Features
| 100~305VAC wide input range |
| Built-in active PFC |
| Protections: Short circuit / Over voltage/Over temperature |
| No load power consumption <0.5W |
| High efficiency up to 92% |
| Suitable for LED lighting and street lighting applications |
| Cooling by free air convection |
| 100% full load burn-in test |
| 5 years warranty |
General Specification
| AC input voltage range | 100~305VAC;142~431VDC |
| AC inrush current | Cold start, 65 at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Over voltage protection | 110%~140% rated output voltage |
| Setup, rise, hold up time | 500ms |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750 approved |
| EMC standards | EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1 |
| Dimension (LxWxH) | 219x63x35.5 |
| Packing | 16pcs / 16.0kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating149.8 Watt
-
Output Voltage225 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the ELG-150-C700A be used for LED retrofit fixtures in commercial downlight applications?
Yes. The ELG-150-C700A is a constant current driver at 700mA with a CC voltage range of 107–214V, suitable for series-wired LED arrays in commercial downlight retrofits. Its adjustable output allows fine-tuning the current level to match the LED module's requirements.
Is the ELG-150-C700A waterproof enough for outdoor LED signage?
The ELG-150-C700A carries an IP65 water-resistant rating, which protects against low-pressure water jets from any direction. It is suitable for sign cabinet installations in covered outdoor environments but is not rated for temporary water submersion; for fully exposed wet locations the IP67-rated ELG-150-C700 or ELG-150-C700B is a better choice.
Can I use the ELG-150-C700A to power series LED arrays in architectural facade lighting?
Yes. The 149.8W output at 700mA and CC voltage range of 107–214V accommodates high-voltage series LED strings used in facade and architectural accent lighting. The wide input range of 100–305VAC supports both 120V and 277V circuits common in commercial building installations.

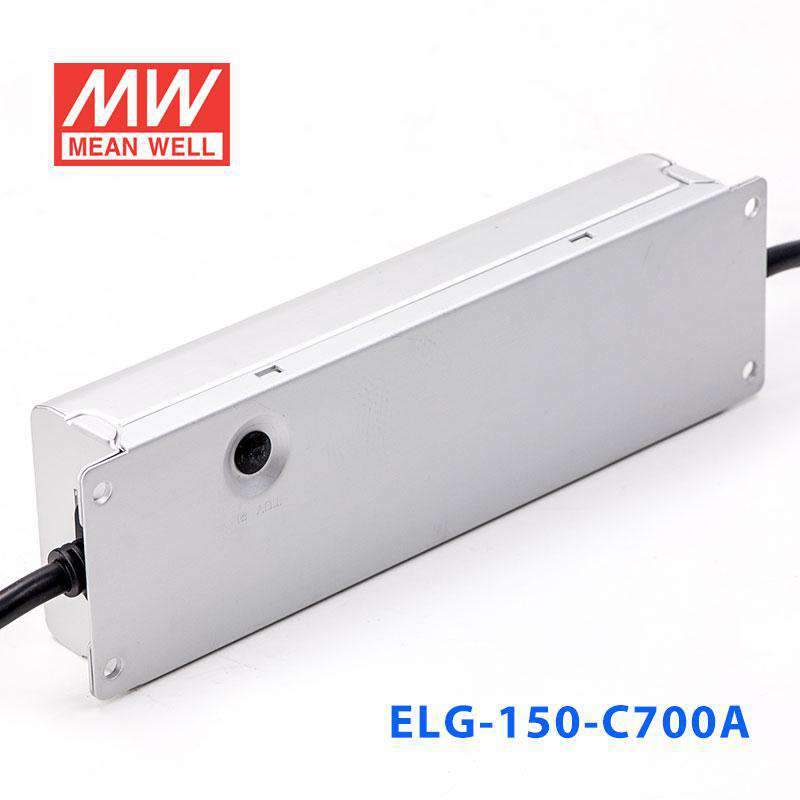

How does the adjustable feature of the ELG-150-C700A work, and what current range can it be set to?
The A suffix denotes an output-adjustable model, which includes a trimmer potentiometer that allows the output current to be set within the driver's adjustment range. Refer to the Mean Well datasheet for the specific trim range; the nominal output is 700mA at up to 225V.
Can the ELG-150-C700A drive LED modules in indoor horticultural grow light fixtures?
Yes. The constant current output at 700mA and the -40°C to +90°C operating temperature range make this driver compatible with indoor horticulture LED modules that operate within the 107–214V CC range. The metal case provides robust thermal management for continuous operation in high-humidity grow environments.
How many LEDs can I string together with the ELG-150-C700A?
The ELG-150-C700A maintains 700mA across a CC voltage range of 107–214V. The number of LEDs in the string depends on each LED's individual forward voltage — series-connect LEDs until the combined forward voltage falls within that operating range. Exceeding 214V total string voltage moves outside the CC regulation window.
