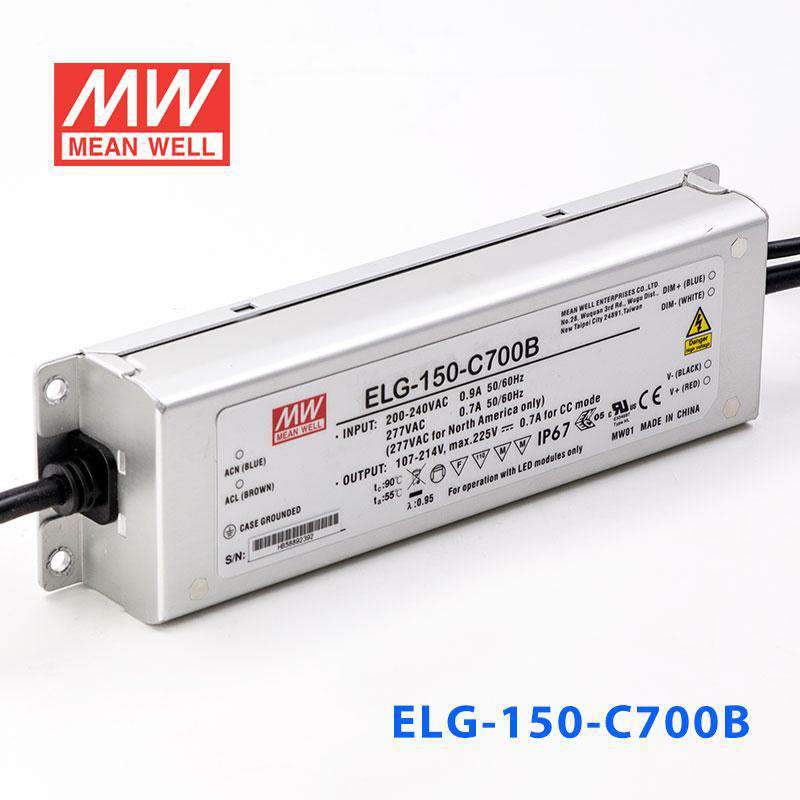

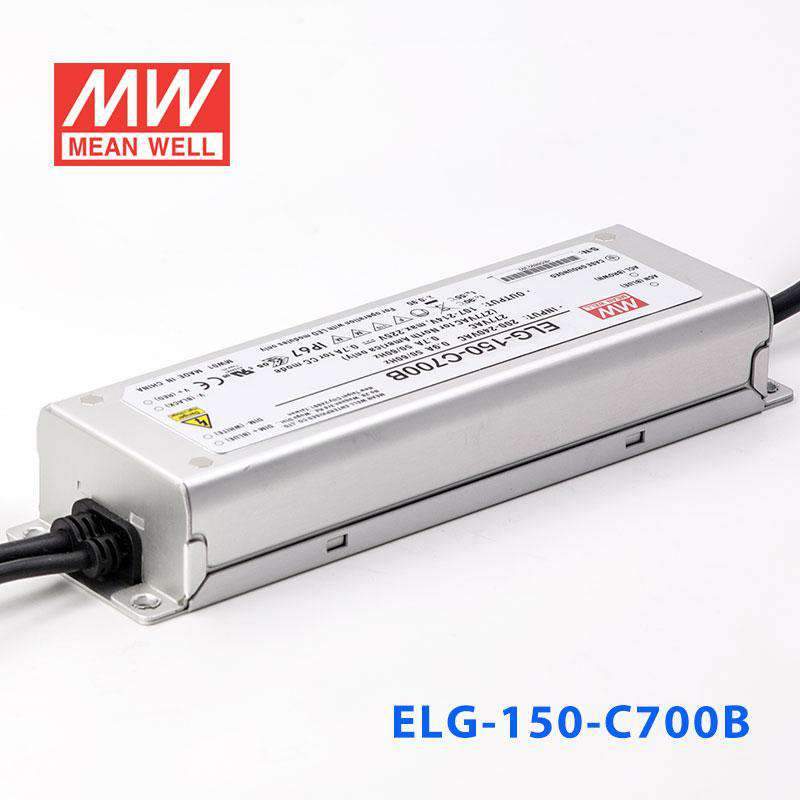

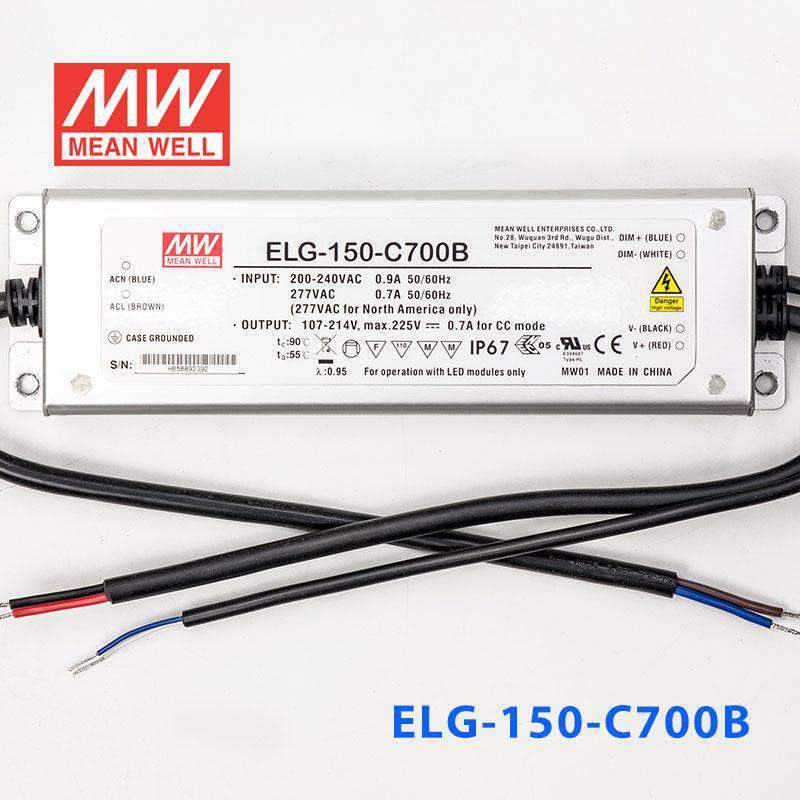

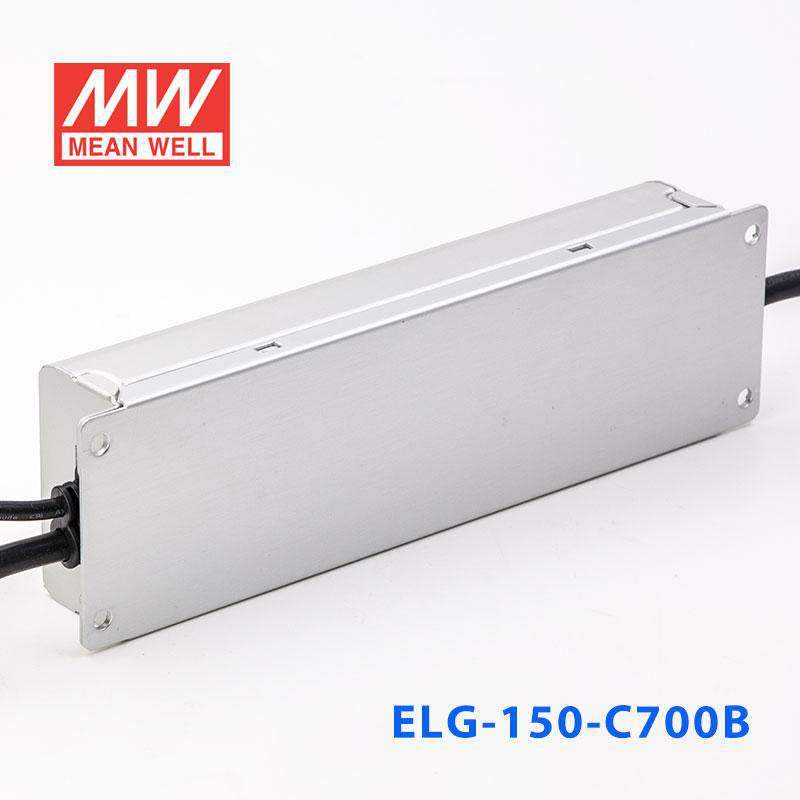

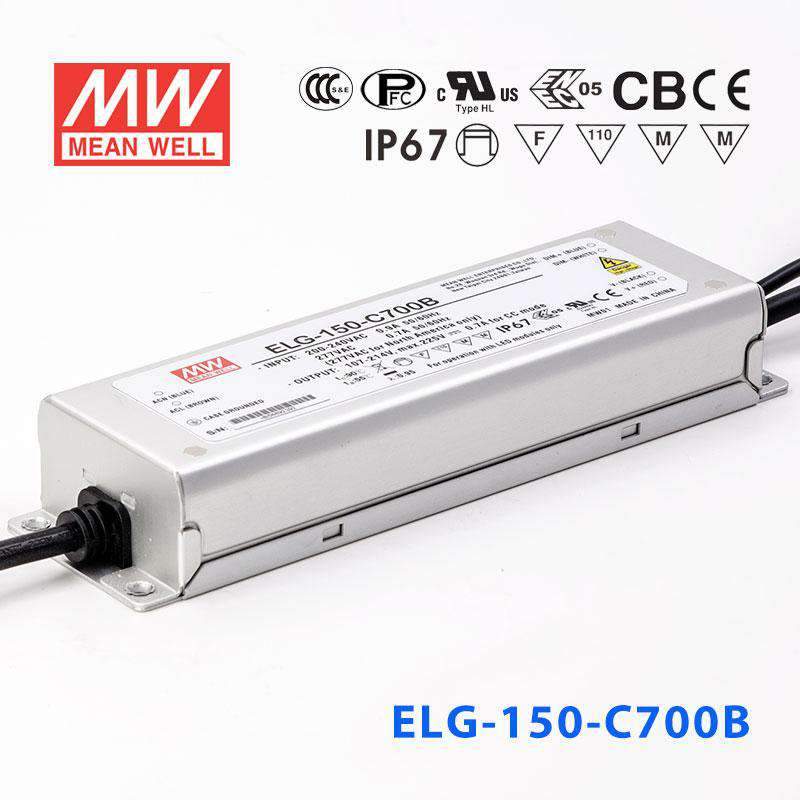

Mean Well ELG-150-C700B Power Supply 150W 700mA - Dimmable
Description
Description
Features
| 100~305VAC wide input range |
| Built-in active PFC |
| Protections: Short circuit / Over voltage/Over temperature |
| No load power consumption <0.5W |
| High efficiency up to 92% |
| Suitable for LED lighting and street lighting applications |
| Cooling by free air convection |
| 100% full load burn-in test |
| 5 years warranty |
General Specification
| AC input voltage range | 100~305VAC;142~431VDC |
| AC inrush current | Cold start, 65 at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Over voltage protection | 110%~140% rated output voltage |
| Setup, rise, hold up time | 500ms |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750 approved |
| EMC standards | EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1 |
| Dimension (LxWxH) | 219x63x35.5 |
| Packing | 16pcs / 16.0kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating149.8 Watt
-
Output Voltage225 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the ELG-150-C700B be used to power dimmable LED street lights?
Yes. The ELG-150-C700B is rated IP67 waterproof and operates from -40°C to +90°C, making it suited to outdoor street lighting applications. Its built-in dimming capability allows integration with smart street lighting control systems that modulate output current.
What dimming control does the ELG-150-C700B support?
The B suffix indicates this driver includes analog dimming capability. Typical ELG-series B models accept 0–10V or PWM dimming signals; consult the Mean Well ELG-150-C700B datasheet for the exact control interface supported. The nominal output is 700mA at up to 225V.
Is the ELG-150-C700B suitable for powering LED modules in outdoor floodlight housings?
Yes. The IP67 waterproof rating and -40°C to +90°C operating temperature range make the ELG-150-C700B appropriate for outdoor floodlight enclosures exposed to rain, condensation, and temperature extremes. The 149.8W output at 700mA supports substantial LED arrays used in floodlight fixtures.
Can I use the ELG-150-C700B to drive series LED arrays in industrial high-bay lighting?
Yes. At 149.8W and 700mA constant current with a CC voltage range of 107–214V, the ELG-150-C700B can drive the high-voltage LED series strings found in industrial high-bay fixtures. The wide input range of 100–305VAC is compatible with industrial 277V and 480V delta single-phase supplies.
How many LEDs can be connected to the ELG-150-C700B in series?
The ELG-150-C700B regulates 700mA over a CC voltage range of 107–214V. The total number of series-connected LEDs depends on each LED's individual forward voltage — the sum of all forward voltages must fall within the 107–214V CC regulation window.
Can the ELG-150-C700B be used for dimmable LED landscape uplighting?
Yes. The IP67 rating protects against water immersion, making the ELG-150-C700B appropriate for in-ground or grade-mounted landscape uplighting where moisture exposure is high. The built-in dimming input allows integration with landscape lighting control systems for scene-based intensity adjustment.
