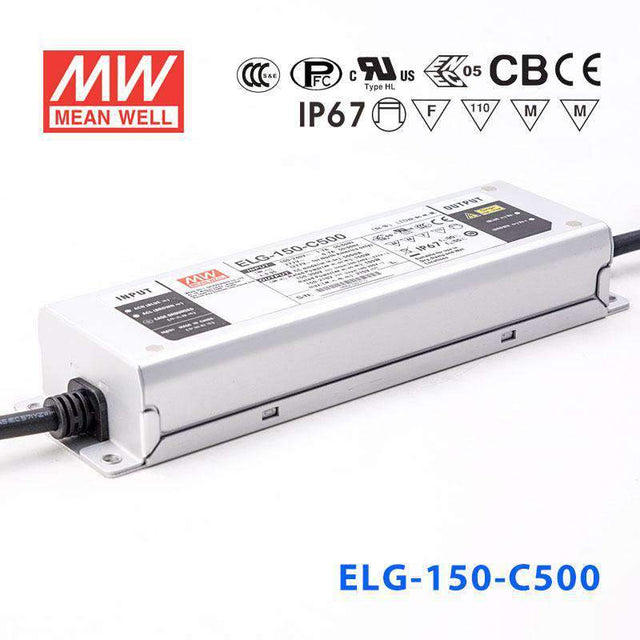

Mean Well ELG-150-C500AB Power Supply 150W 500mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-150-C500AB Power Supply 150W 500mA - Adjustable and D...
The ELG-150 is a 150W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating150 Watt
-
Output Voltage315 Volt
-
Rated Current0.5 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
Can the ELG-150-C500AB support both output current adjustment and external dimming in a commercial LED installation?
Yes. The AB suffix combines the A-type analog adjustment (current trim) with B-type three-in-one dimming (PWM, 0–10V, or resistance). This makes the ELG-150-C500AB suitable for commercial LED downlight or architectural lighting projects where designers need both initial commissioning adjustment and ongoing scene control.
Is the ELG-150-C500AB rated for damp or wet locations?
The ELG-150-C500AB carries an IP65 water-resistant rating, protecting against low-pressure water jets. It is appropriate for enclosed or partially sheltered luminaires in damp locations. For full outdoor exposure or submersion risk, the IP67-rated C500B or C500 models would be more appropriate.
Can this driver be used in a DALI-free building that still needs dimming capability?
Yes. The B-type dimming interface on the ELG-150-C500AB supports 0–10V, PWM, and resistance dimming methods without requiring a DALI bus. This allows integration with most standard dimming controllers found in non-DALI commercial or retail environments.
How does the ELG-150-C500AB differ from the ELG-150-C500B?
Both models deliver 500mA constant current at 150W with a 150–300V compliance range and three-in-one dimming. The AB model adds the A-type output current adjustment trim on top of the B-type dimming, giving more flexibility during commissioning. The C500B is rated IP67 waterproof; the C500AB is rated IP65 water-resistant.
What load can the ELG-150-C500AB drive at 500mA constant current?
The driver delivers 500mA constant current across a compliance voltage range of 150–300V. The number of LEDs that can be driven in series depends on each LED's forward voltage — the combined string voltage must fall within 150–300V, and total power must not exceed 150W.
Does the ELG-150-C500AB operate on worldwide input voltages?
Yes. It accepts 100–305VAC input, covering 120V, 208V, 240V, and 277V circuits without any manual switching. The operating temperature range is -40°C to +90°C.
