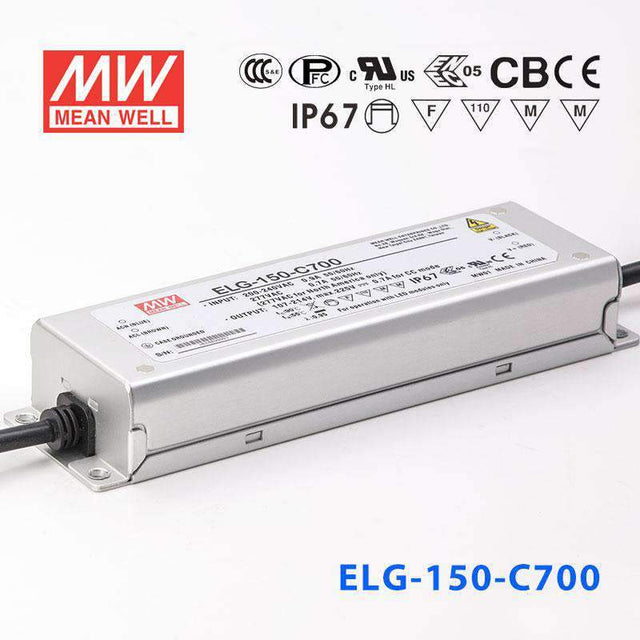

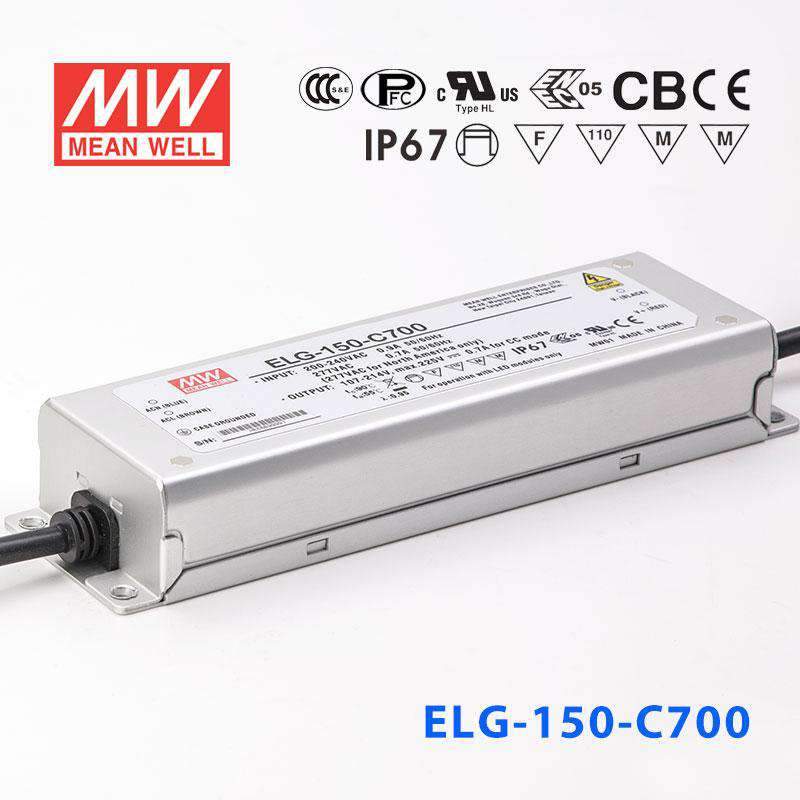

Mean Well ELG-150-C700AB Power Supply 150W 700mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-150-C700AB Power Supply 150W 700mA - Adjustable and D...
The ELG-150 is a 150W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating149.8 Watt
-
Output Voltage225 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
Can the ELG-150-C700AB be used in a dimmable LED linear luminaire for office lighting?
Yes. The AB suffix indicates this driver supports both output adjustment and built-in dimming, making it well suited for dimmable office LED linear fixtures. It delivers 700mA constant current over a CC voltage range of 107–214V and operates from 100–305VAC for compatibility with standard commercial circuits.
What dimming methods does the ELG-150-C700AB support?
The B component of the AB suffix indicates this model includes analog dimming capability. Refer to the Mean Well ELG-150-C700AB datasheet for the specific control signal type (typically 0–10V or PWM). The adjustable output current can also be set via the on-board trimmer.
Is the ELG-150-C700AB suitable for outdoor LED display panels?
The ELG-150-C700AB carries an IP65 water-resistant rating, which protects against water jets from any direction. It is appropriate for covered outdoor display installations; for fully submerged or high-pressure wash environments, an IP67-rated model such as the ELG-150-C700 or ELG-150-C700B would provide a higher level of ingress protection.
Can I use the ELG-150-C700AB to power LED downlights in a retail store with a dimming control system?
Yes. The combination of constant current output at 700mA and the built-in dimming capability makes the ELG-150-C700AB compatible with retail dimming control systems. Its 149.8W rating and 107–214V CC range suit series LED arrays used in commercial downlight fixtures.
How does the ELG-150-C700AB compare to the ELG-150-C700A?
Both the ELG-150-C700AB and ELG-150-C700A have identical core specs: 149.8W, 700mA, CC voltage range 107–214V, IP65 water-resistant rating, and the same dimensions and operating temperature. The ELG-150-C700AB adds built-in dimming control (B feature) on top of the adjustable output (A feature), while the ELG-150-C700A is adjustable-only with no dimming.
Can the ELG-150-C700AB power series LED arrays in museum or gallery accent lighting?
Yes. The adjustable and dimmable output makes the ELG-150-C700AB well suited to gallery and museum accent lighting where precise light level control is required. The 700mA constant current output maintains consistent LED brightness, and the wide input range supports both 120V and 230V mains.
How many LEDs can be connected in series with the ELG-150-C700AB?
The ELG-150-C700AB regulates 700mA over a CC voltage range of 107–214V. The number of series LEDs depends on each individual LED's forward voltage — sum the forward voltages and keep the total within 107–214V for stable constant current regulation.
