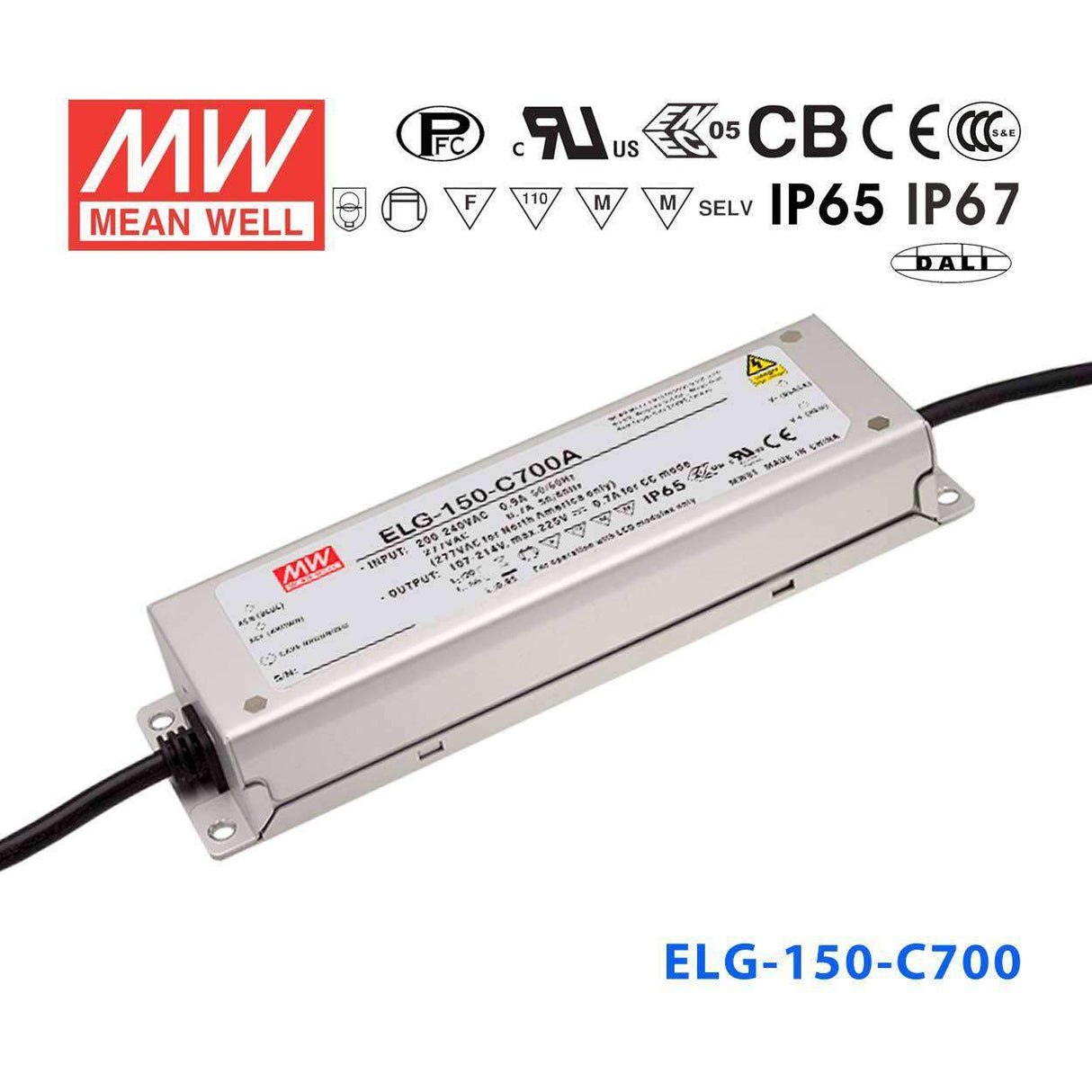

Mean Well ELG-150-C700DA Power Supply 150W 700mA - DALI
The ELG-150 is a 150W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating149.8 Watt
-
Output Voltage225 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
What is the DALI dimming capability of the ELG-150-C700DA and how does it integrate with building controls?
The DA suffix indicates this driver supports DALI (Digital Addressable Lighting Interface) dimming, allowing it to be individually addressed or grouped via a DALI controller on a two-wire bus. It integrates with building management systems and DALI lighting controllers for centralized scene and schedule control.
Can the ELG-150-C700DA power dimmable LED downlights in a hotel or hospitality project?
Yes. The DALI interface enables smooth, scene-based dimming control suitable for hospitality applications. At 149.8W and 700mA constant current over a CC voltage range of 107–214V, it drives the LED arrays in commercial downlight fixtures used throughout hotel corridors, lobbies, and guest rooms.
Is the ELG-150-C700DA suitable for outdoor architectural accent lighting with DALI control?
Yes. The IP67 waterproof rating and -40°C to +90°C operating temperature range make the ELG-150-C700DA appropriate for outdoor architectural installations. Its DALI interface allows integration with building facade lighting control systems for time-scheduled and scene-based dimming.
Can the ELG-150-C700DA be used in a series LED array for high-voltage LED modules?
Yes. The ELG-150-C700DA maintains 700mA constant current over a CC voltage range of 107–214V, accommodating series-connected LED modules that require high operating voltage. The number of LEDs in the string depends on each module's forward voltage.
What certifications does the ELG-150-C700DA hold, and which regions does it cover?
The ELG-150-C700DA is certified to c_bsi, CB, CCC, CE, EAC, ENEC, c_rcm, and UL standards. This covers North America (UL), the EU (CE, ENEC), Australia/New Zealand (c_rcm), China (CCC), and Russia/Eurasia (EAC), supporting multi-market product deployments.
Can I use the ELG-150-C700DA to drive LED modules in stage or theater lighting systems?
Yes. DALI-addressable dimming makes the ELG-150-C700DA suitable for stage and theater lighting control systems where individual fixture dimming and group-scene control are required. The 149.8W constant current output supports the high-power LED modules used in theatrical luminaires.
