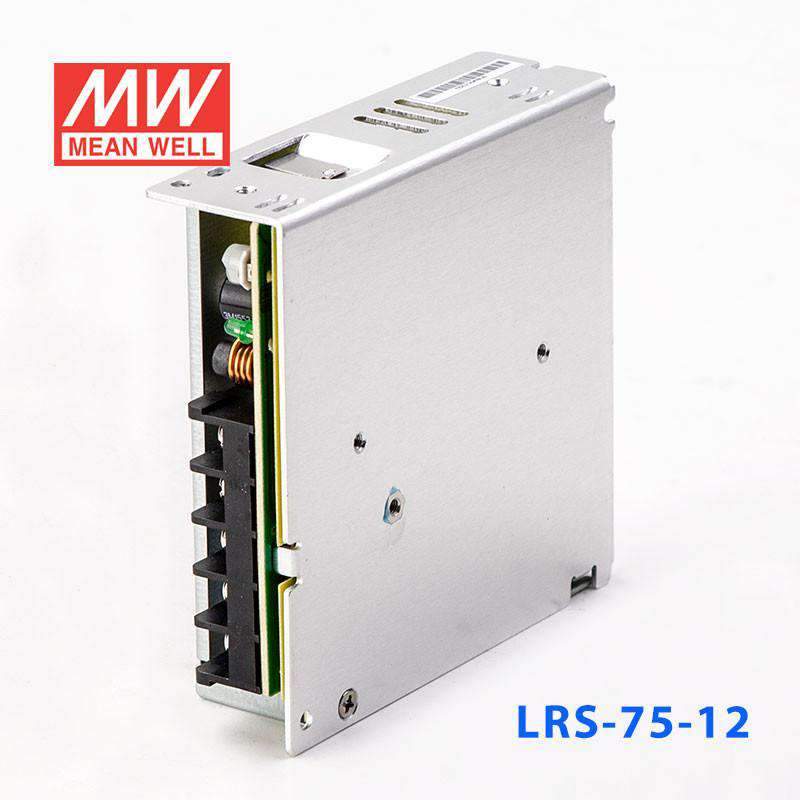

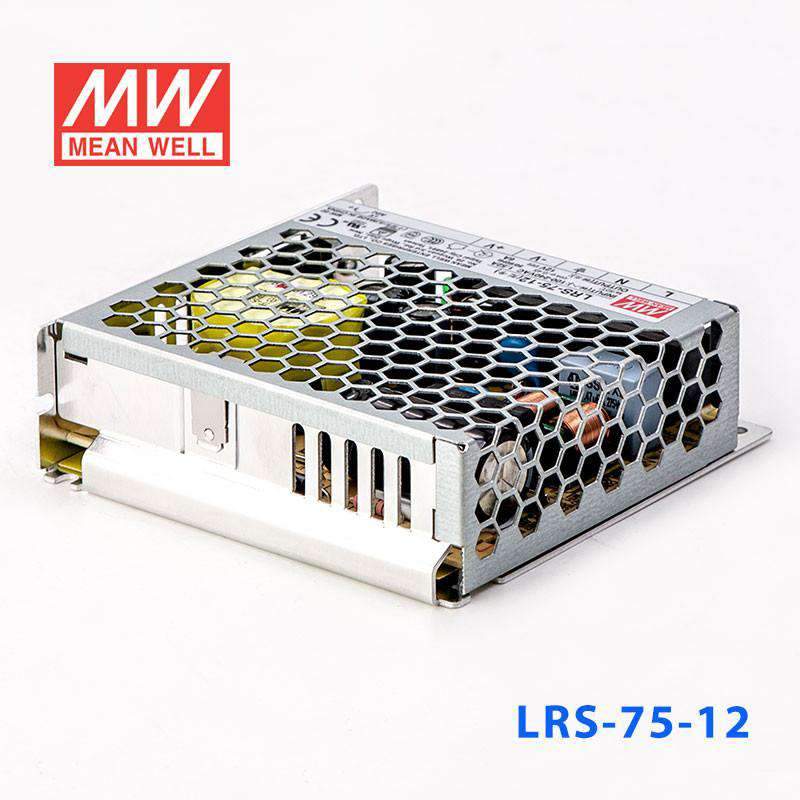

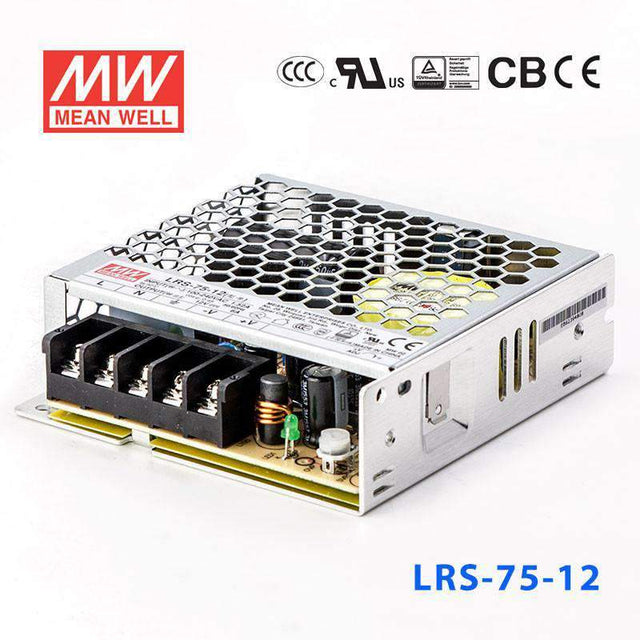

Mean Well LRS-75-12 Power Supply 75W 12V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LRS-75-12 Power Supply 75W 12V
No load power consumption <0.2W for 35W/50W; <0.3W for 75W/100WUniversal AC input / Full rangeWithstand 300VAC surge input for 5 secondsUltra compact and 1U low profileWithstand 5G vibration testHigh operating temperature up to 70oCProtections: Short circuit / Overload / Over voltageCooling by free air convectionCompliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliancesOperating altitude up to 5000 metersHigh efficiency, long life and high reliabilityLED indicator for power onLow cost3 years warranty
Key Features
- ✓85~264VAC; 120~370VDC
- ✓Cold start, 45A at 230VAC
- ✓±10% by potentiometer
- ✓110%~150%
- ✓Hiccup mode, auto-recovery
- ✓115%~135% rated output voltage
- ✓Shut down o/p voltage, re-power on to recover
- ✓3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute
- ✓-30~+70°C (refer to output derating curve)
- ✓UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
- ✓EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254

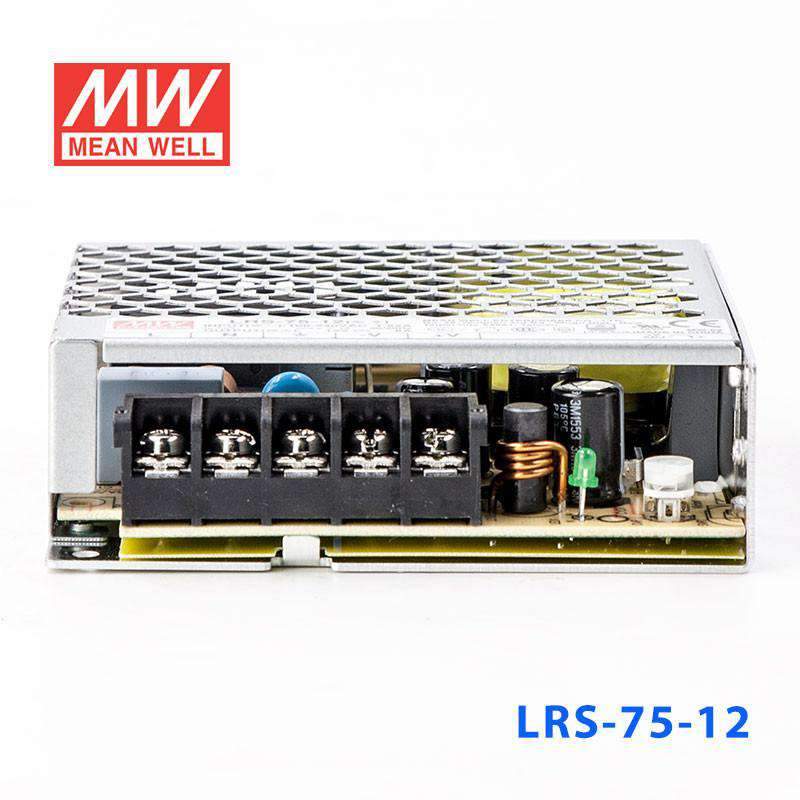

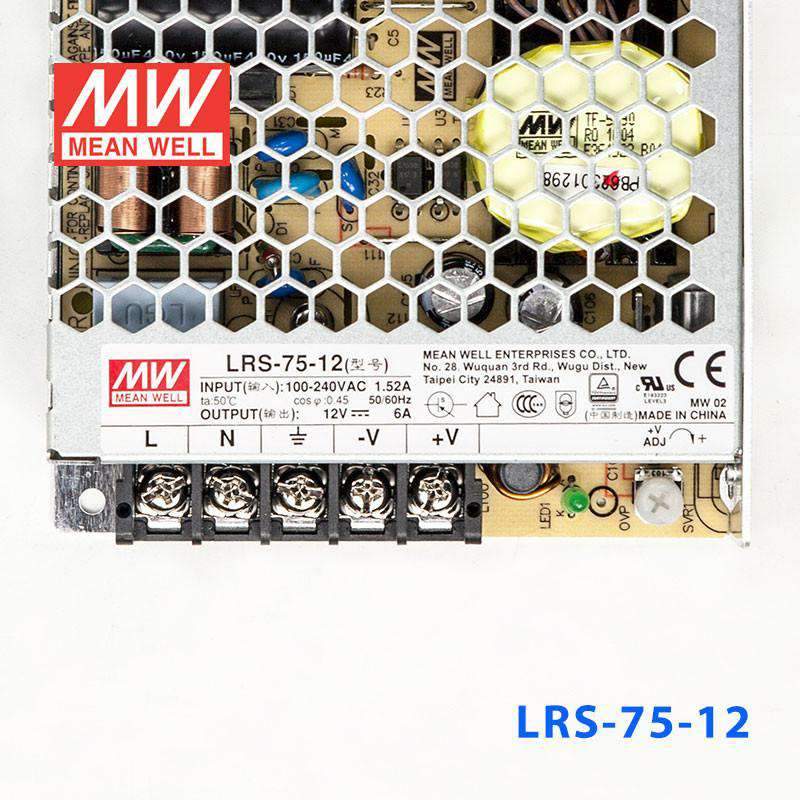

- ✓5P/9.5mm pitch terminal block
- ✓99x 97x 30
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating72 Watt
-
Output Voltage12 Volt
-
Rated Current6 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.9 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.51 lb
::specification::
Frequently Asked Questions
What 12V applications is the LRS-75-12 appropriate for at 72W?
At 12V and 6A (72W), the LRS-75-12 suits powering IP cameras, access control panels, small 12V DC fans and blower arrays, industrial routers, and embedded controllers requiring moderate 12V current. Its 99 × 97 × 30 mm footprint fits in compact control enclosures.
How does the LRS-75-12 compare to the LRS-50-12 and LRS-100-12?
All three accept 85–264VAC. The LRS-50-12 (99 × 82 × 30 mm, 0.21 kg) delivers 50.4W at 4.2A. The LRS-75-12 (99 × 97 × 30 mm, 0.23 kg) delivers 72W at 6A. The LRS-100-12 delivers 102W at 8.5A. The LRS-75-12 fills the middle tier for systems needing more current than the LRS-50-12 provides but not as much as the LRS-100-12.
What is the operating temperature range of the LRS-75-12?
The LRS-75-12 operates from -30°C to +70°C, accommodating cold-start in unheated industrial spaces and continuous full-rated operation in warm enclosures up to +70°C. It also withstands 5G vibration.
What certifications does the LRS-75-12 carry for global market access?
The LRS-75-12 holds BSMI, CB, CCC, CE, EAC, RCM, TÜV, and UL certifications. This covers North America (UL), Europe (CE, TÜV), China (CCC), Taiwan (BSMI), Australia/New Zealand (RCM), and Eurasia (EAC), enabling broad international deployment.
