Mean Well LRS-75-15 Power Supply 75W 15V 5A
Notify me when it's back in stock
Your order will be processed within 24 hours

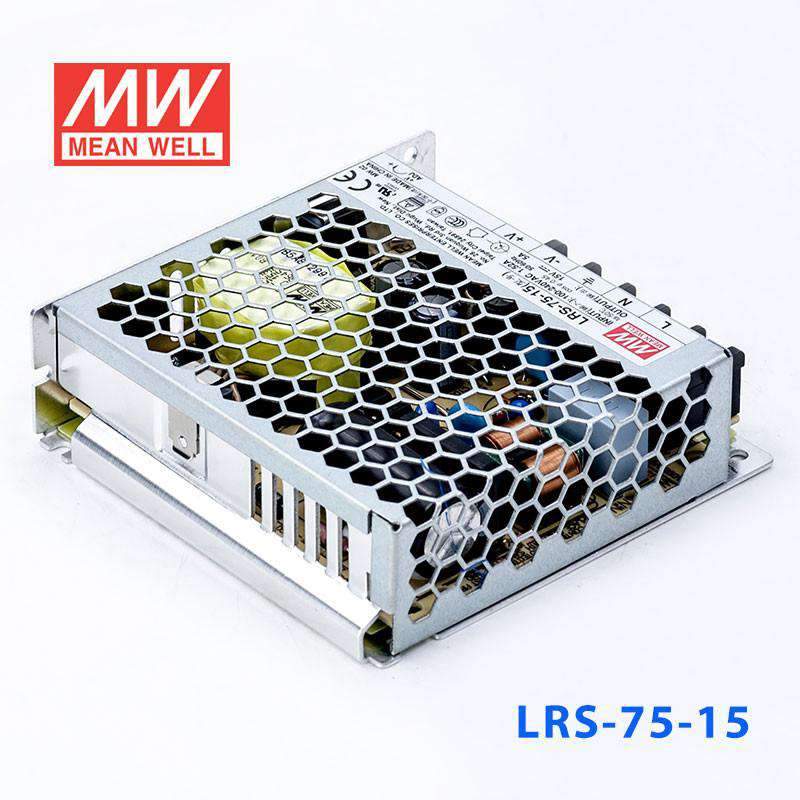

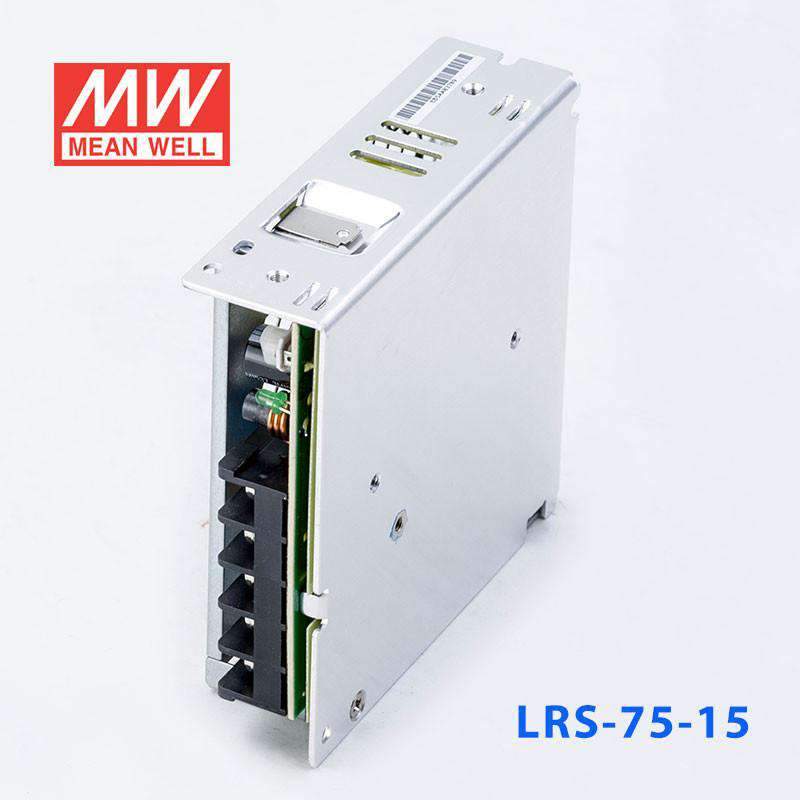

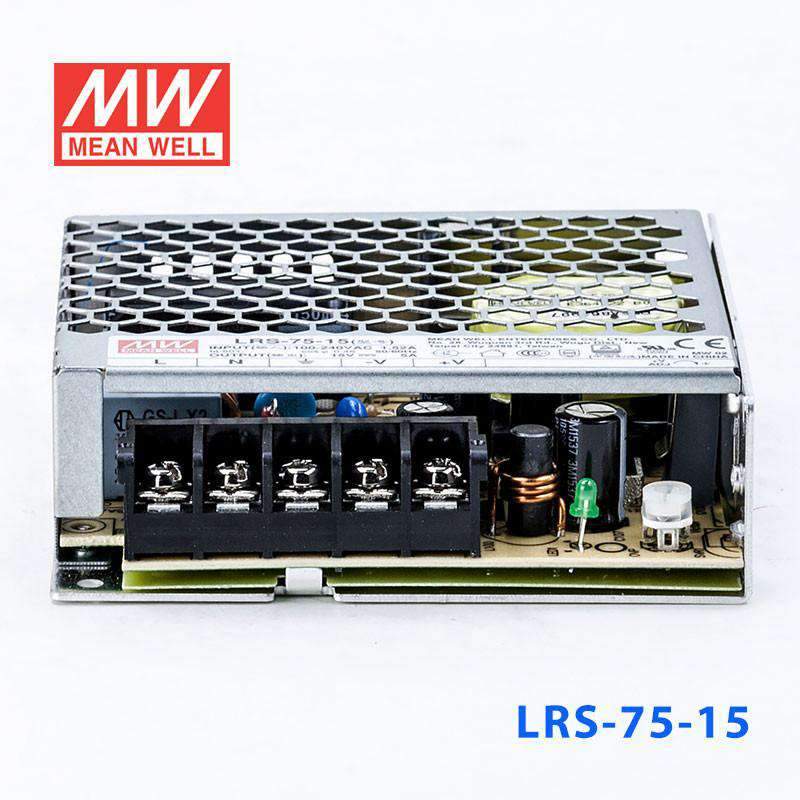

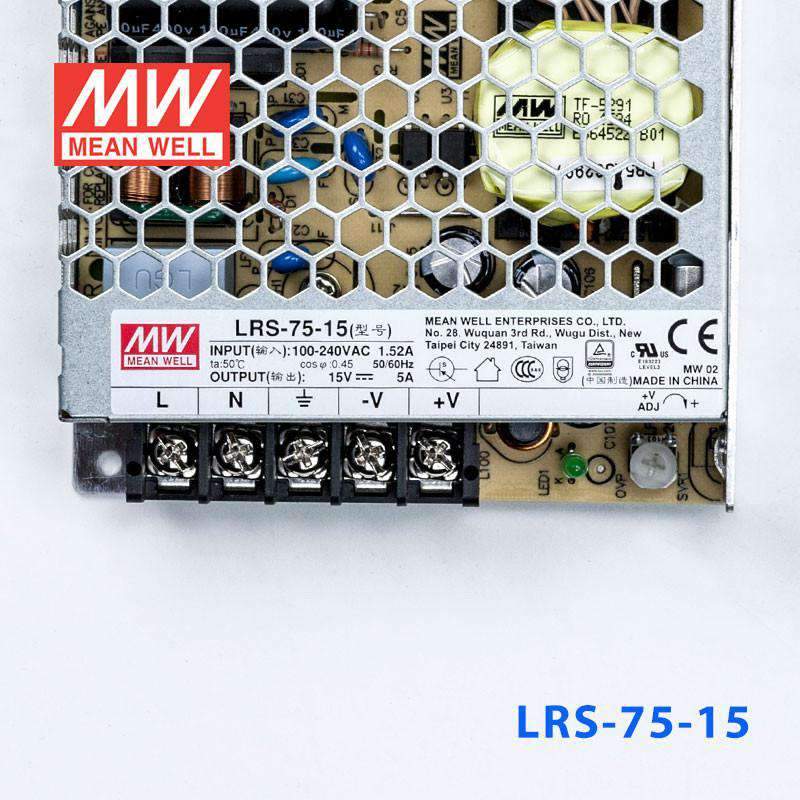

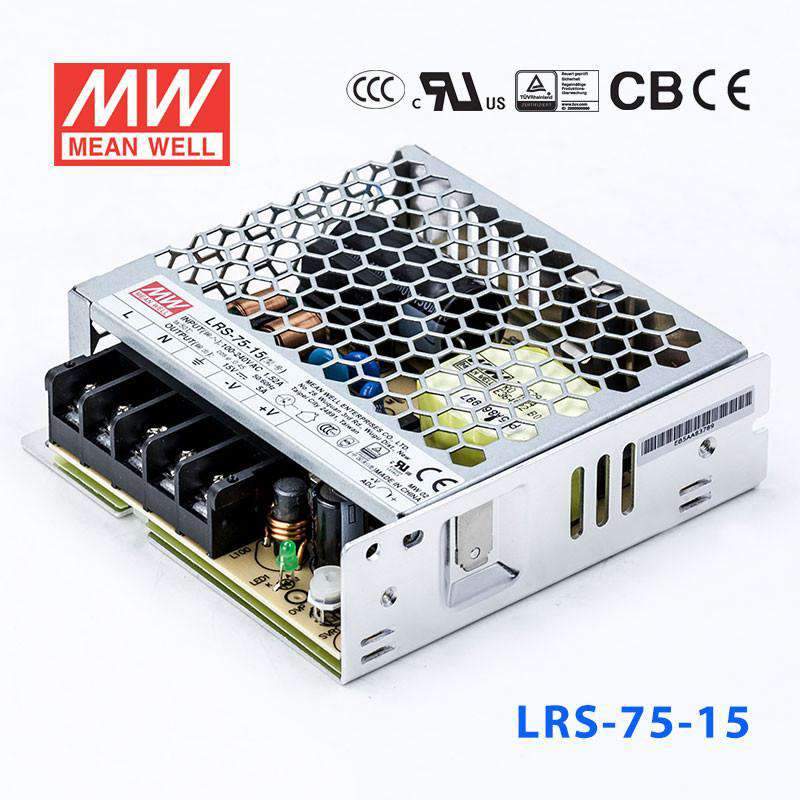

Mean Well LRS-75-15 Power Supply 75W 15V 5A
The LRS-75 is a 75W Mean Well power supply (input: 85~264VAC, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage: 85~264VAC
- ✓ Output voltage (max): 15V
- ✓ Rated output current: 5A
- ✓ Operating temperature: -30~+70°C
- ✓ Safety certifications: BSMI, CB, CCC, CE, EAC, RCM, TÜV, UL
- ✓ 3 year warranty
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating75 Watt
-
Output Voltage15 Volt
-
Rated Current5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.9 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.51 lb
::specification::
Frequently Asked Questions
What are common uses for the LRS-75-15 at 15V and 5A?
The LRS-75-15 provides 15V at 5A (75W), suited for powering analog signal conditioning boards requiring ±15V dual-rail supplies (used alongside a negative rail), instrumentation amplifier power, some CCTV cameras, and embedded systems specifying a 15V input. Its 99 × 97 × 30 mm size suits confined enclosures.
How does the LRS-75-15 compare to the LRS-75-12 and LRS-75-24 in the same family?
All three share the 99 × 97 × 30 mm case, 0.23 kg weight, 85–264VAC input, and -30°C to +70°C operating range. Output: LRS-75-12 (72W, 6A at 12V), LRS-75-15 (75W, 5A at 15V), LRS-75-24 (76.8W, 3.2A at 24V). Wattage is similar across all three; select by the required output voltage.
Is the LRS-75-15 suitable for installation in cold industrial environments?
Yes. The LRS-75-15 is rated for -30°C to +70°C and withstands 5G vibration. The -30°C lower limit allows cold-start in unheated industrial buildings, cold-storage facilities, or outdoor enclosures in temperate climates when installed in a properly rated cabinet.
Does the LRS-75-15 carry UL and CE certifications for equipment installations?
The LRS-75-15 holds BSMI, CB, CCC, CE, EAC, RCM, TÜV, and UL certifications. UL covers North American compliance and CE covers European market requirements, both standard expectations for commercial and industrial equipment power supplies.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LRS-75 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LRS-75-12 Power Supply 75W 12V 6A | 72W | 12V | 6A | Indoor | $16.16 | View |
| Mean Well LRS-75-5 Power Supply 75W 5V 14A | 70W | 5V | 14A | Indoor | $17.18 | View |
| Mean Well LRS-75-24 Power Supply 75W 24V 3.2A | 76.8W | 24V | 3.2A | Indoor | $15.79 | View |
