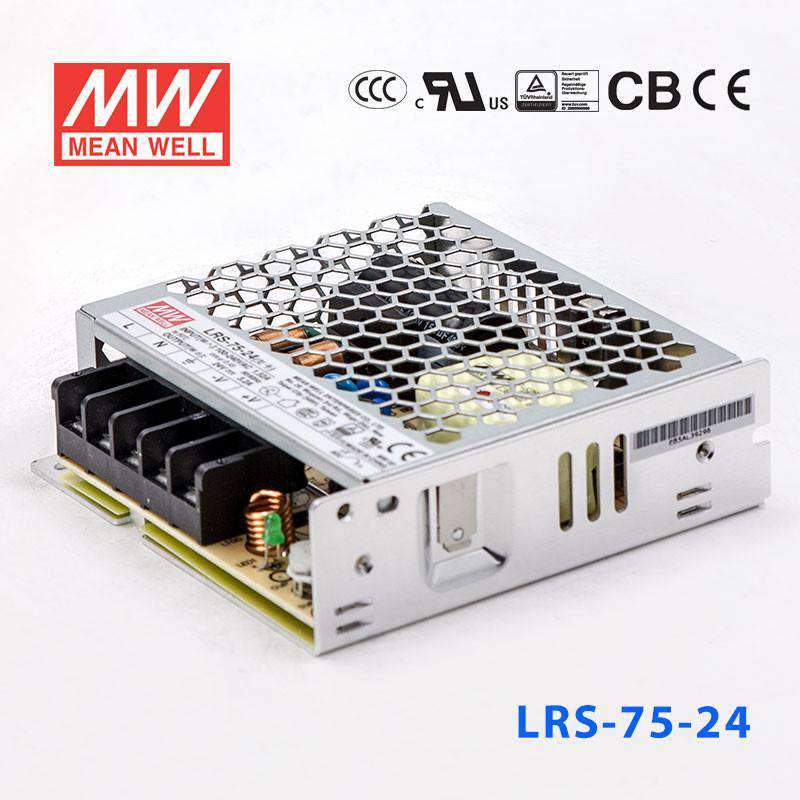

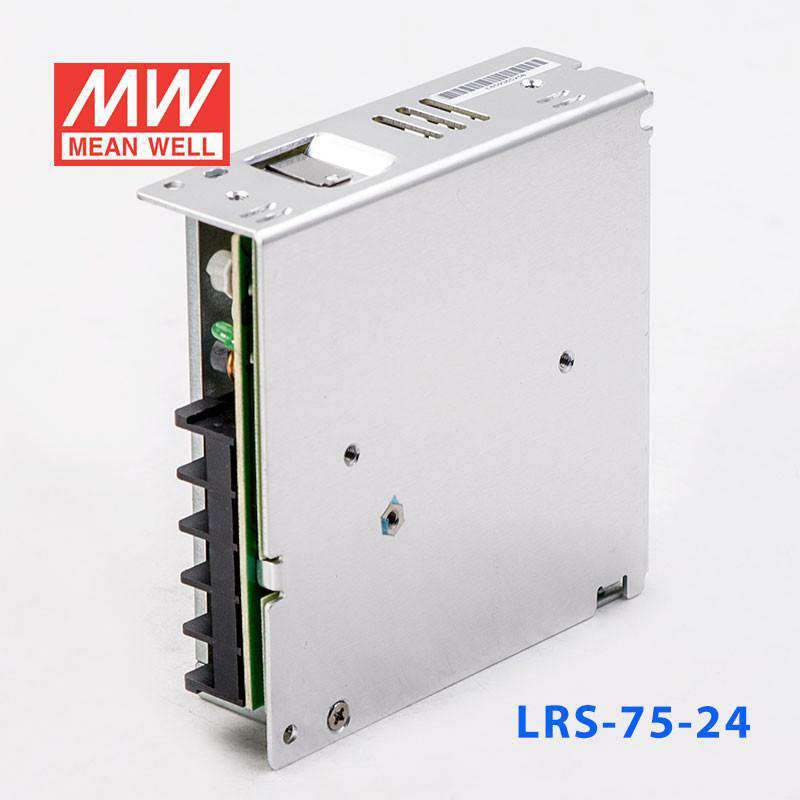

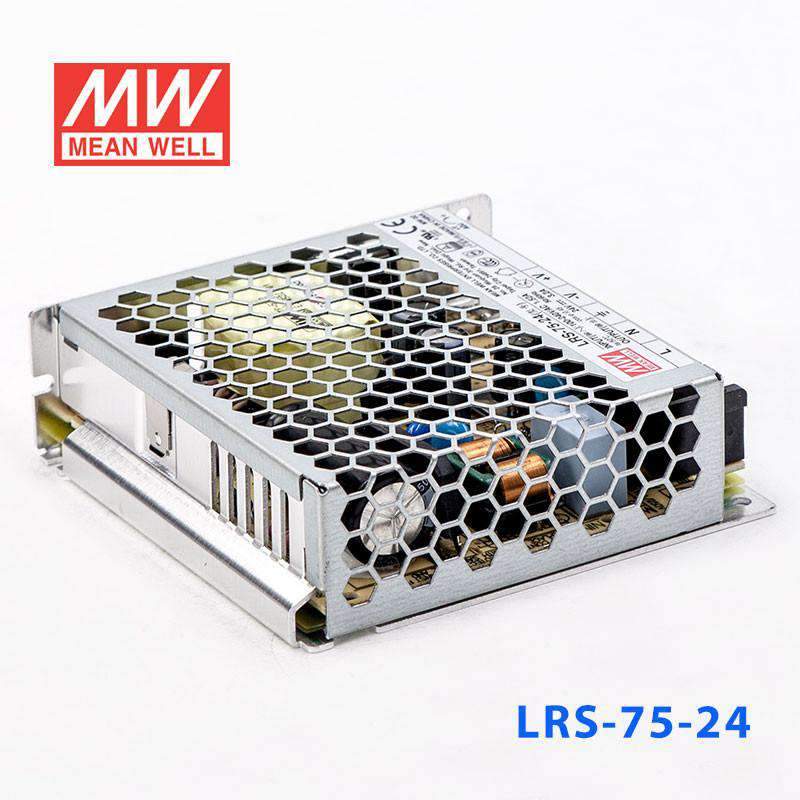

Mean Well LRS-75-24 Power Supply 75W 24V

Name: Mean Well LRS-75-24 Power Supply 75W 24V
Brand: Mean Well
SKU: LRS-75-24
Price: 17.54 USD
Availability: InStock

1946 units in stock

$17.54 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

AC input voltage range	85~264VAC; 120~370VDC
AC inrush current (max.)	Cold start, 45A at 230VAC
DC adjustment range	±10% by potentiometer
Overload protection Range	110%~150%
Overload protection Type	Hiccup mode, auto-recovery
Over voltage protection Range	115%~135% rated output voltage
Over voltage protection Type	Shut down o/p voltage, re-power on to recover
Withstand voltage	3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute
Working temperature	-30~+70°C (refer to output derating curve)
Safety standards	UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
EMC standards	EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254

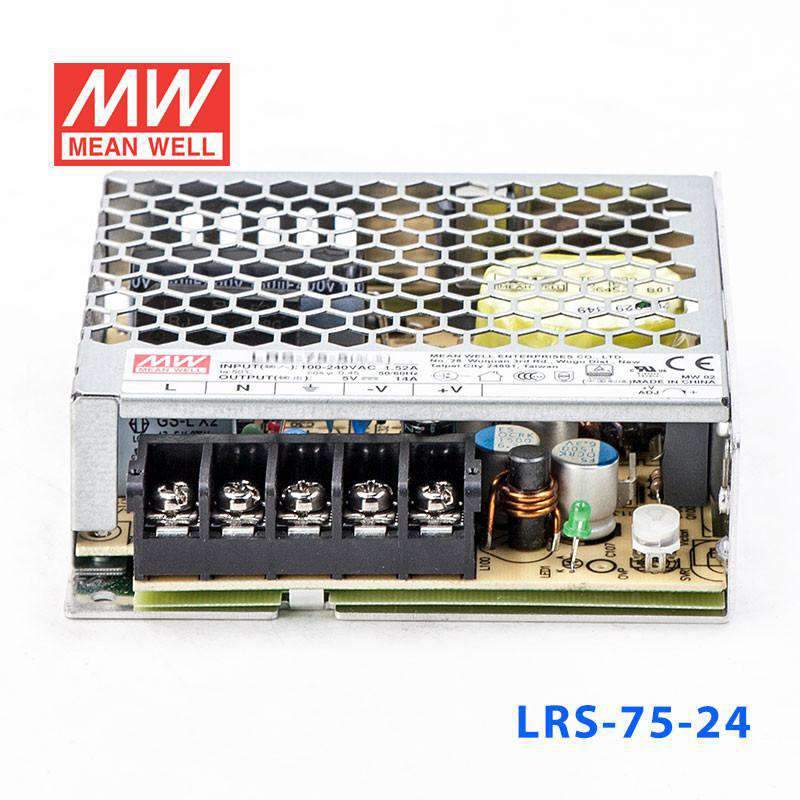

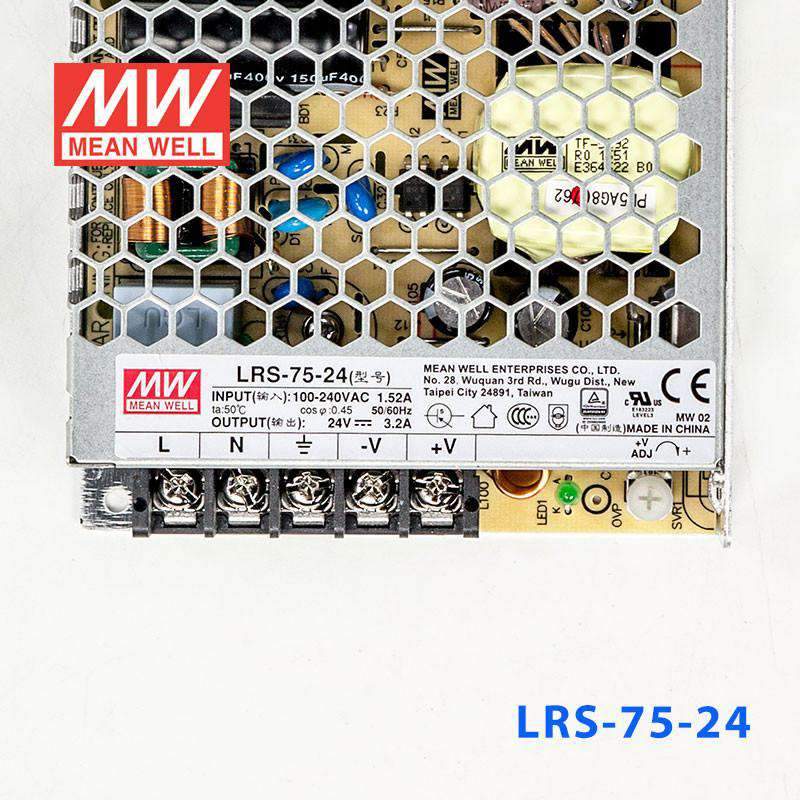

Connection	5P/9.5mm pitch terminal block
Dimension (LxWxH)	99x 97x 30
