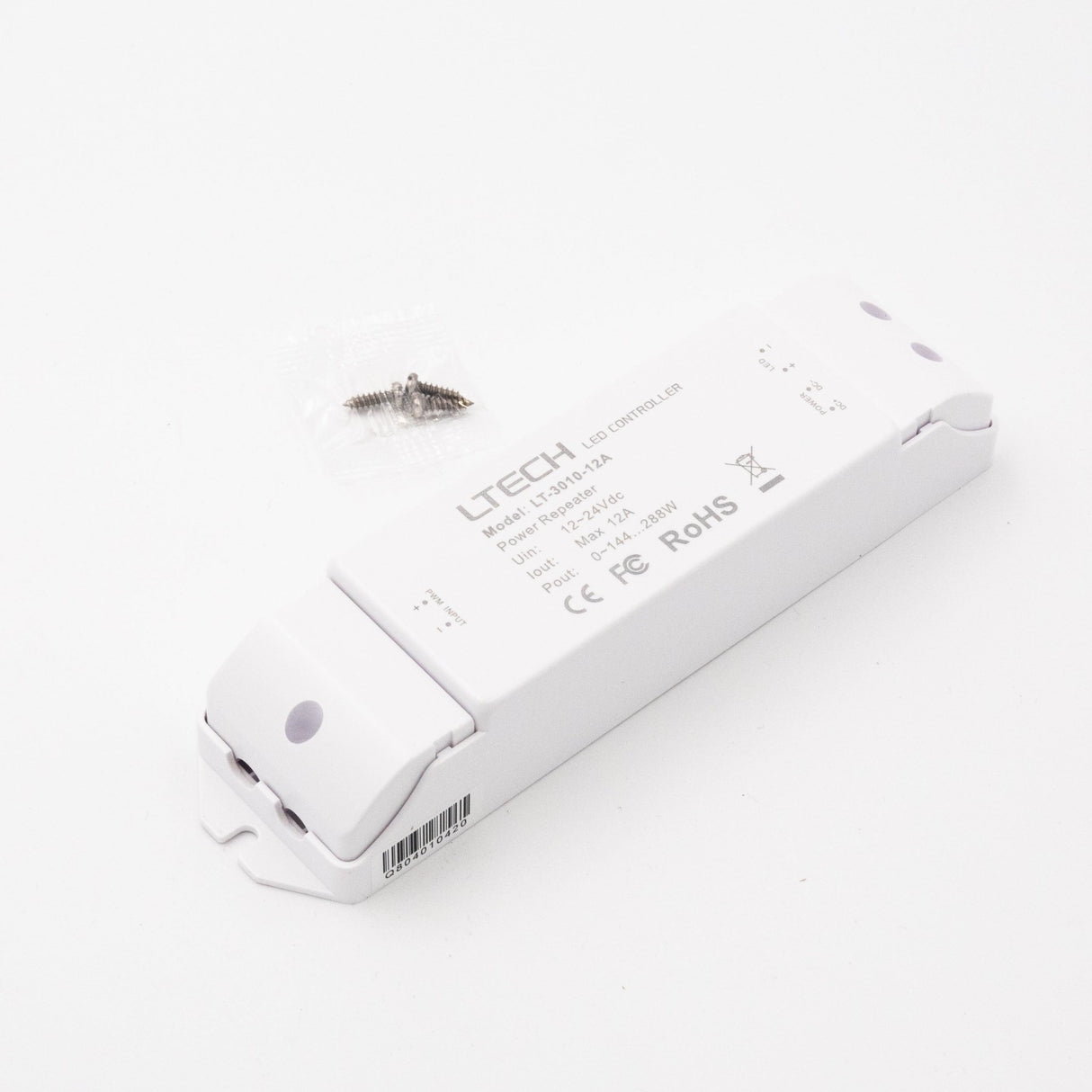

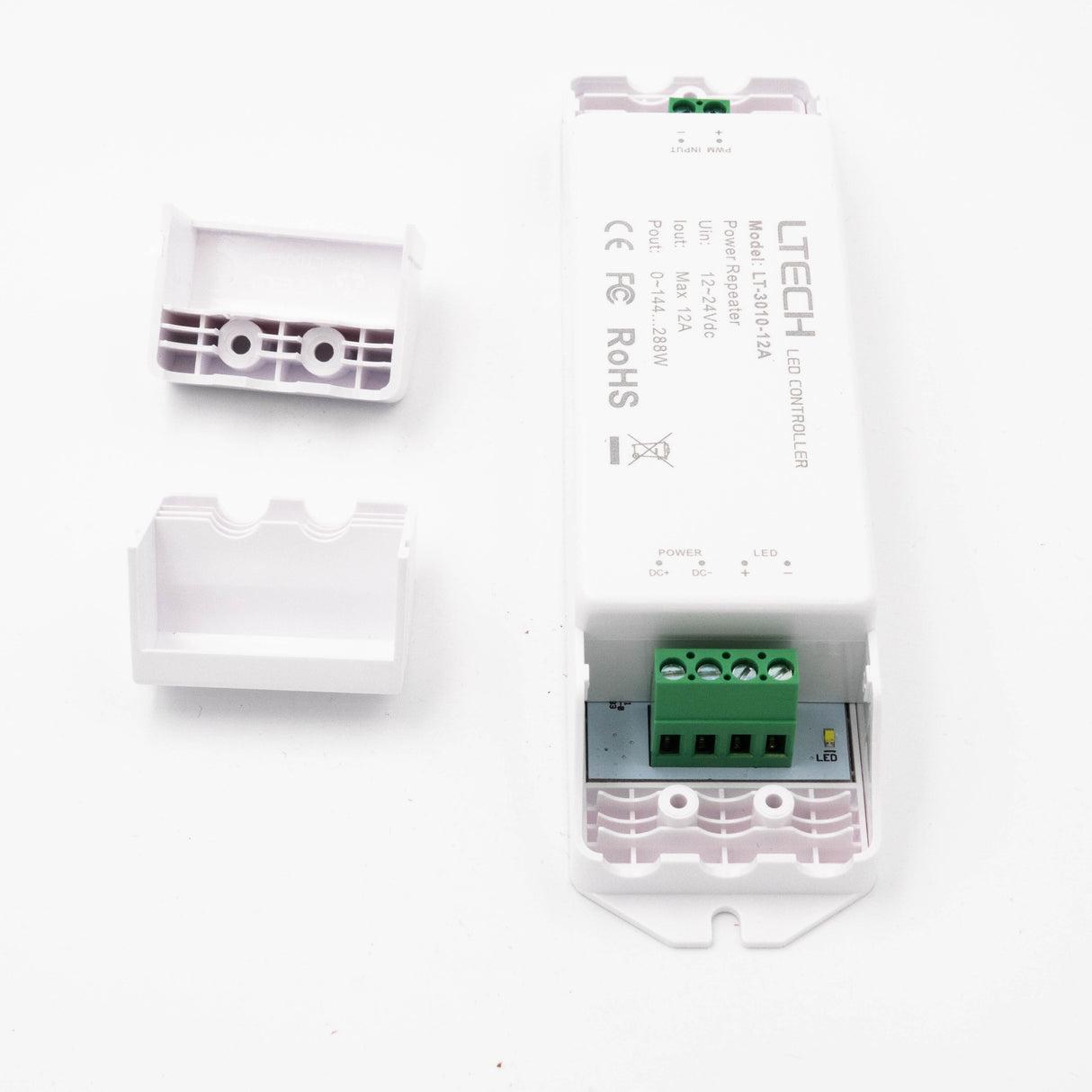

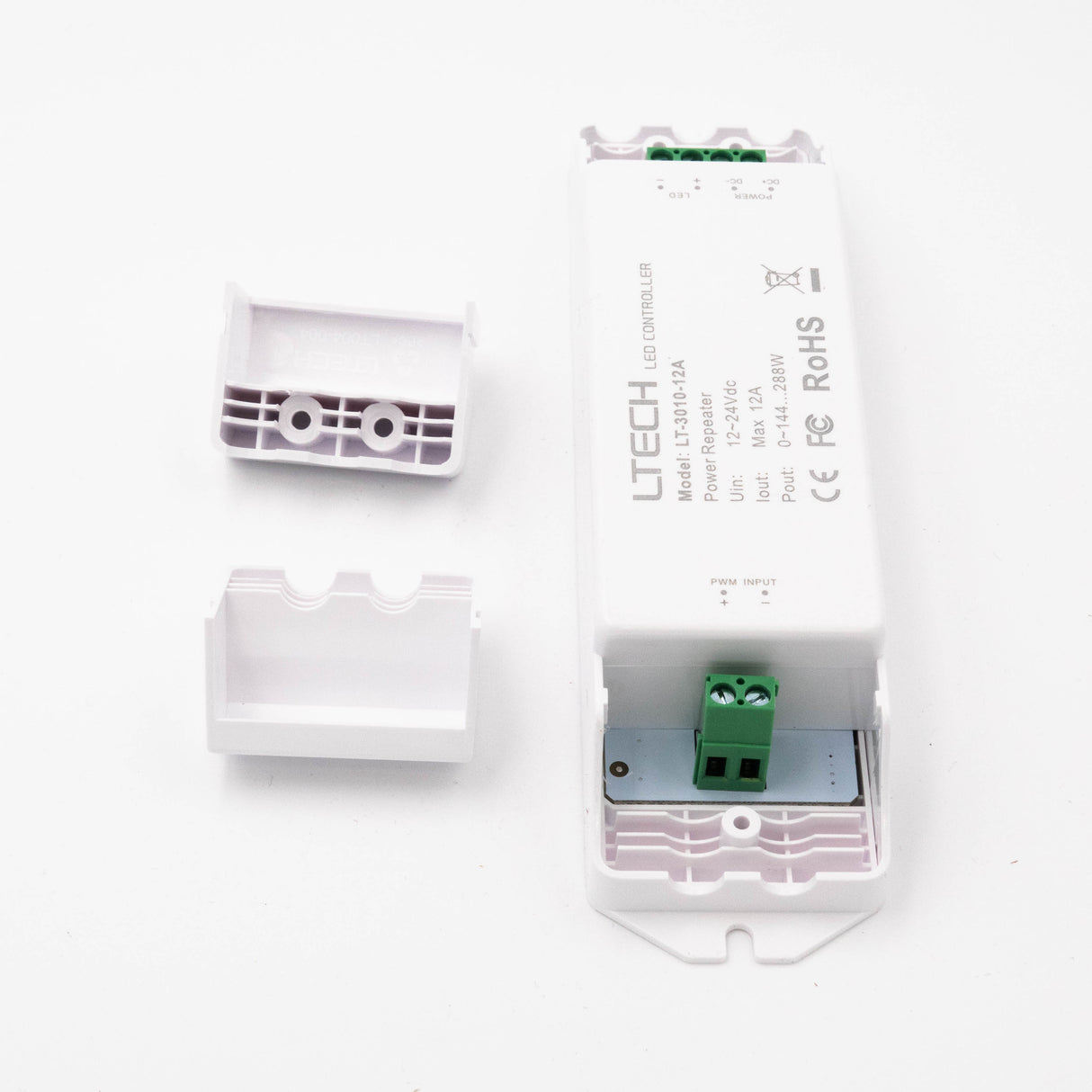

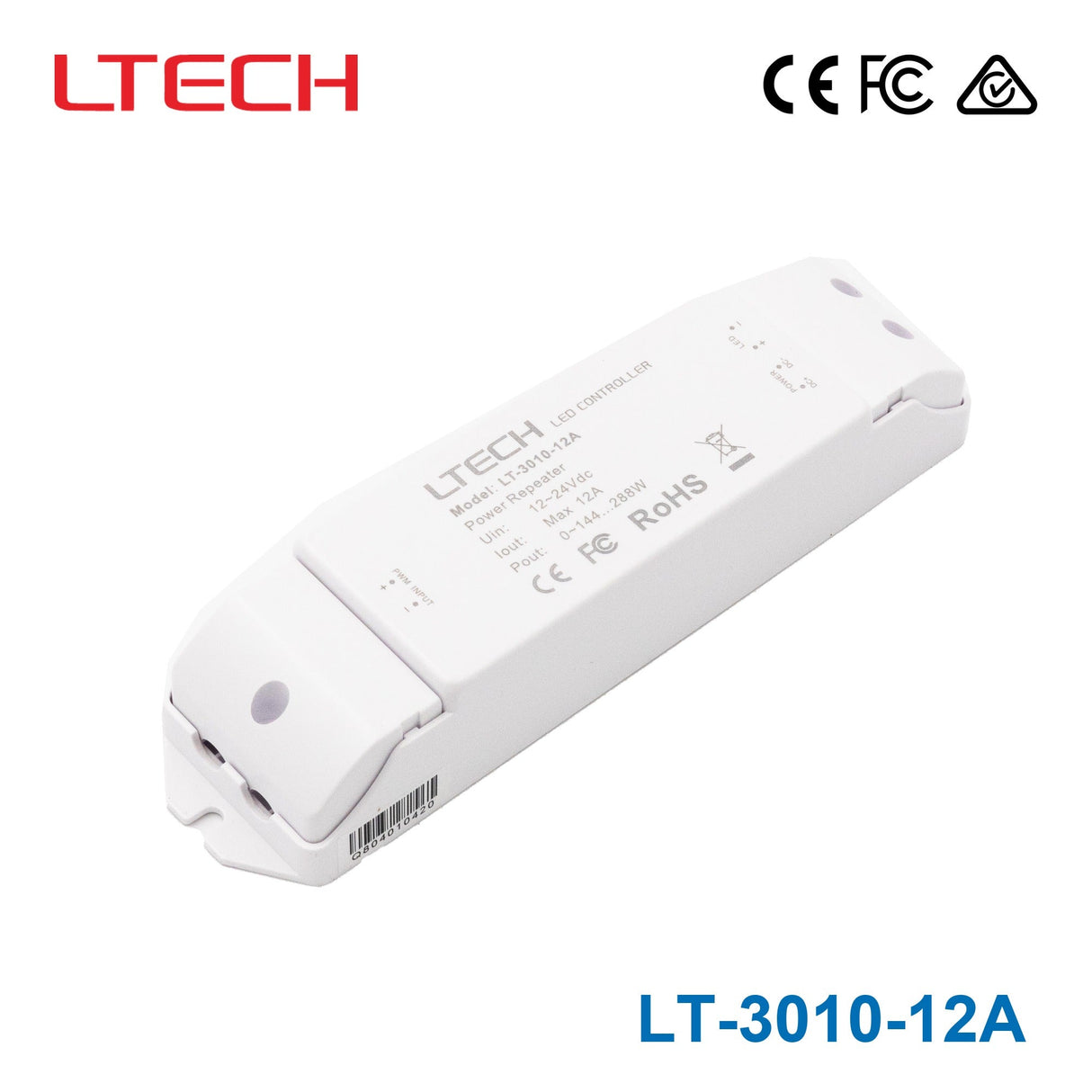

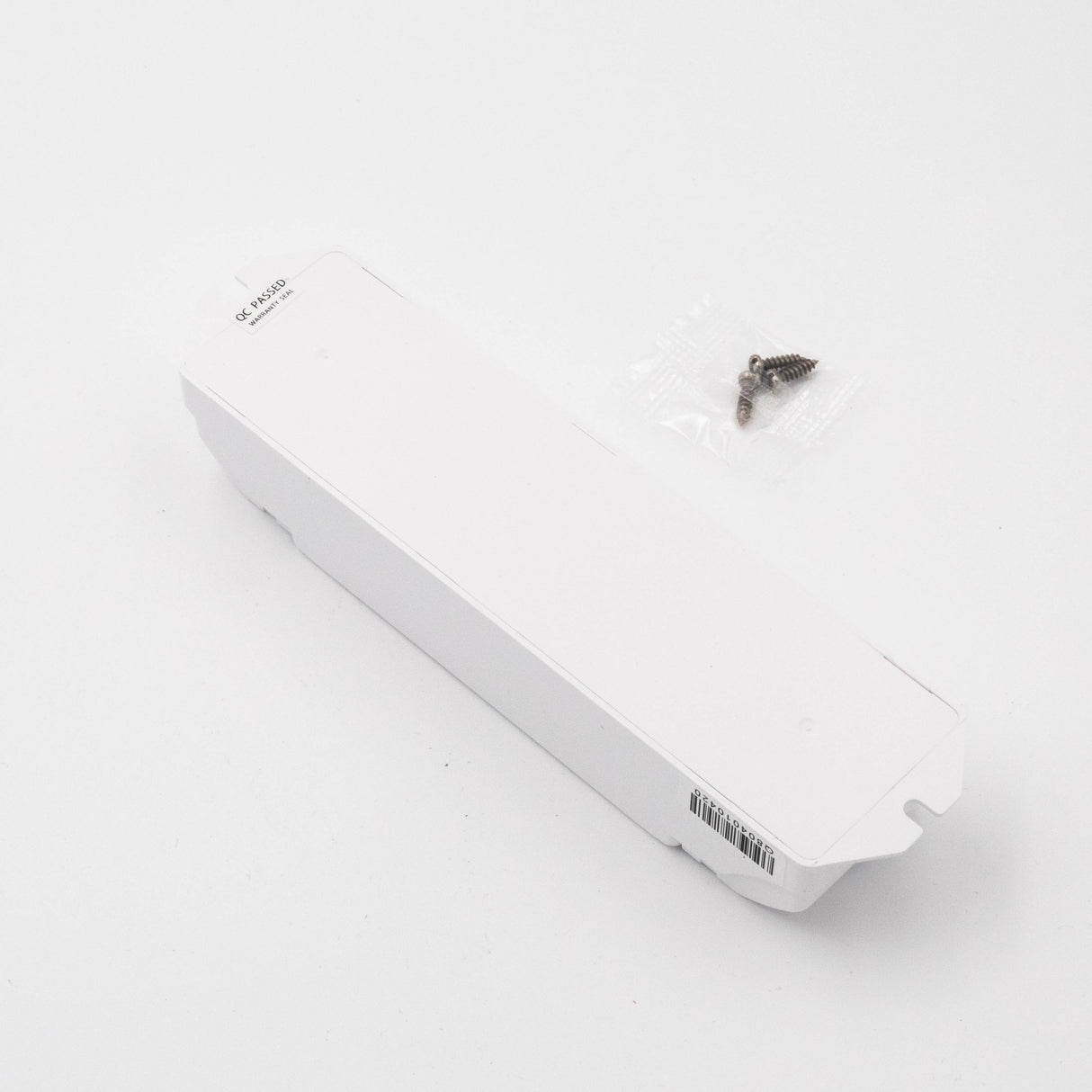

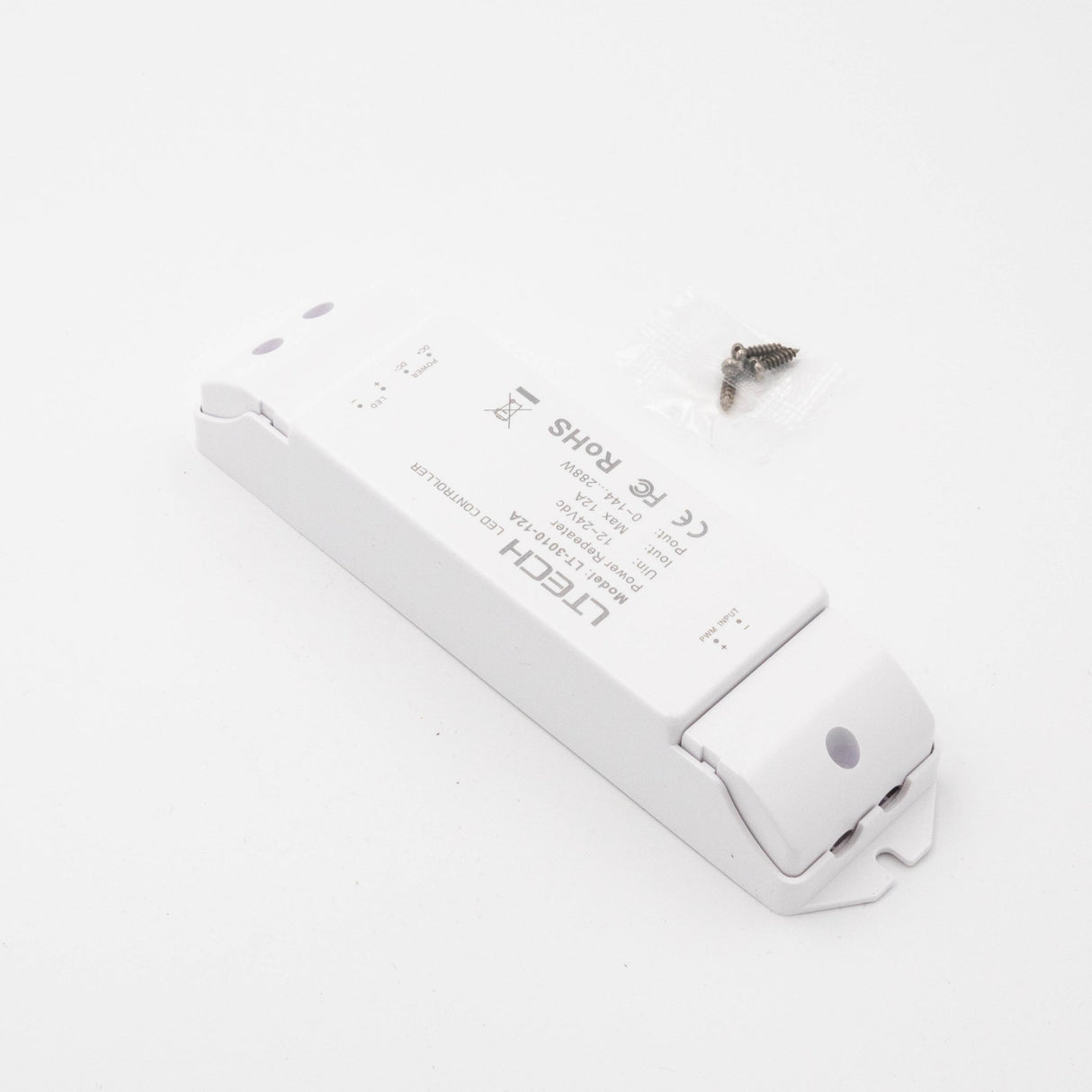

Ltech LT-3010-12A PWM Constant Voltage Repeater - Dimming
- Accept PWM control.
- LED lights would be twice as much by adding one more power repeater.
- Max. current output: 12A.
- Full protective plastic housing.
- Suitable for indoor environments.
-
BrandLtech
-
SeriesLtech Repeater
-
Power Rating288 Watt
-
Output Voltage24 Volt
-
Rated Current12 Ampere
-
Input Voltage12V~24V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.29 lb
::specification::
Frequently Asked Questions
What does the Ltech LT-3010-12A do?
The LT-3010-12A is a PWM constant voltage repeater for dimming applications. It is used to expand output capacity in systems that already use PWM control, allowing additional LED lighting load to be handled without changing the control method.
What are the main electrical ratings of the LT-3010-12A?
This model is rated for 24 V output and a maximum current output of 12 A. Its listed power rating is 288 W, which makes it suitable for higher-load constant voltage LED dimming applications within those published limits.
Is the LT-3010-12A a dimmer by itself?
No. This model accepts PWM control, but it is not identified as a standalone dimming controller in the provided specifications. Its role is to repeat or amplify PWM-controlled constant voltage output capacity.
What kind of LED systems is this repeater intended for?
The LT-3010-12A is intended for constant voltage LED dimming systems that use PWM control. It is a practical fit for applications where the existing controller output needs to be extended to support more lighting load.
Can the LT-3010-12A be used indoors?
Yes. The product is described as suitable for indoor environments and uses a full protective plastic housing. The published operating temperature range is -30°C to 55°C.
What warranty comes with the Ltech LT-3010-12A?
The listed warranty period for this model is 5 years. That makes it a stronger fit for buyers looking for a repeater intended for longer-term commercial or project use.
