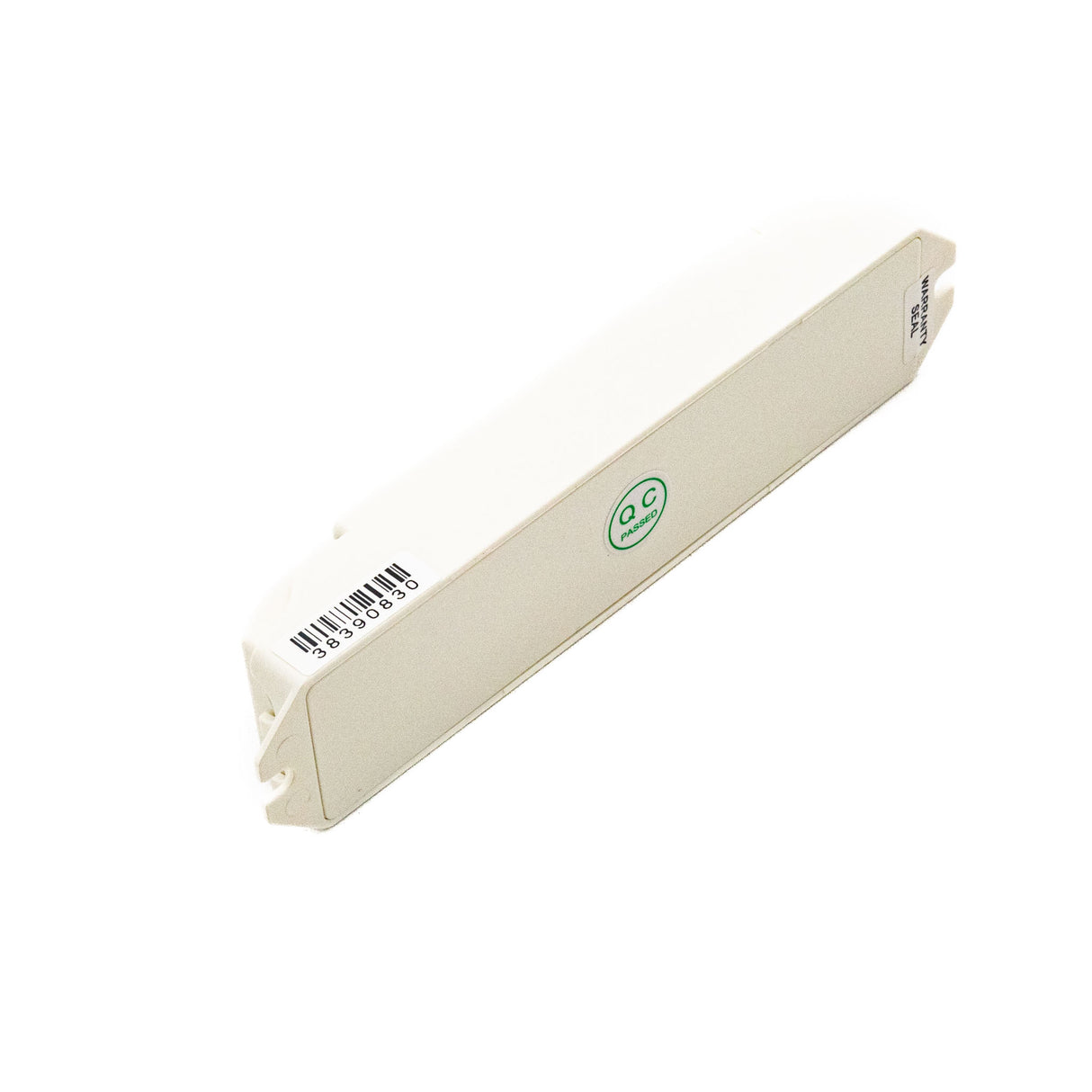

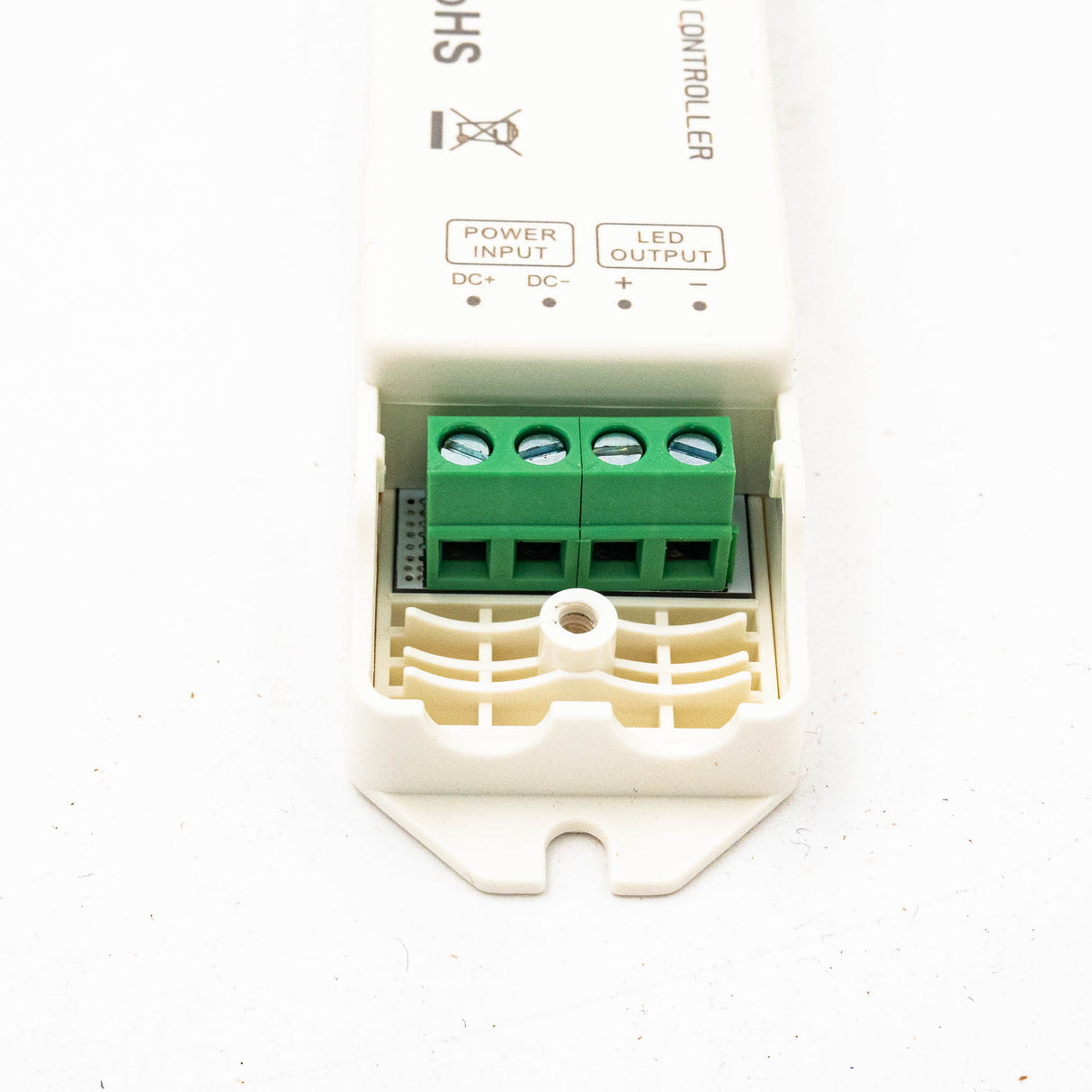

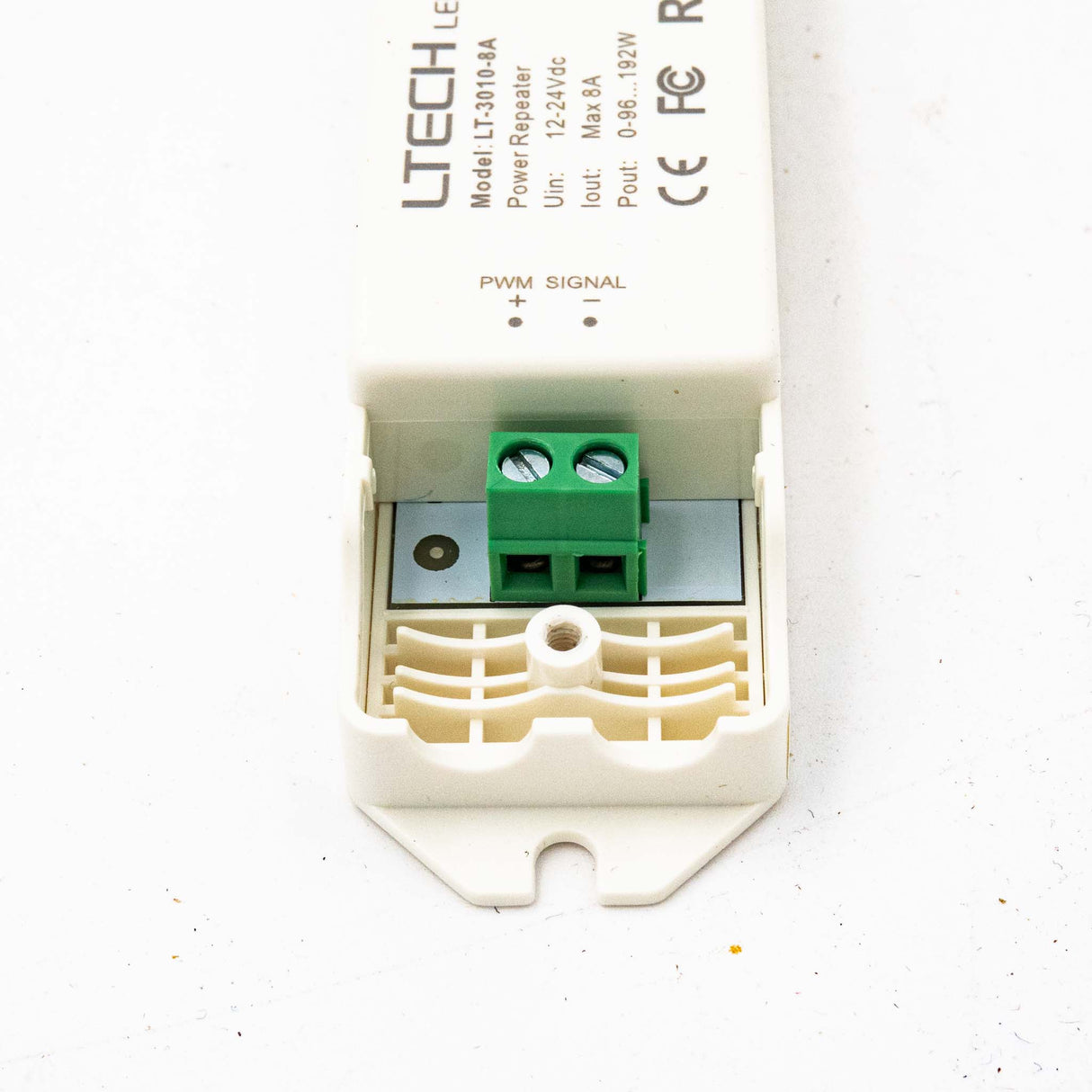

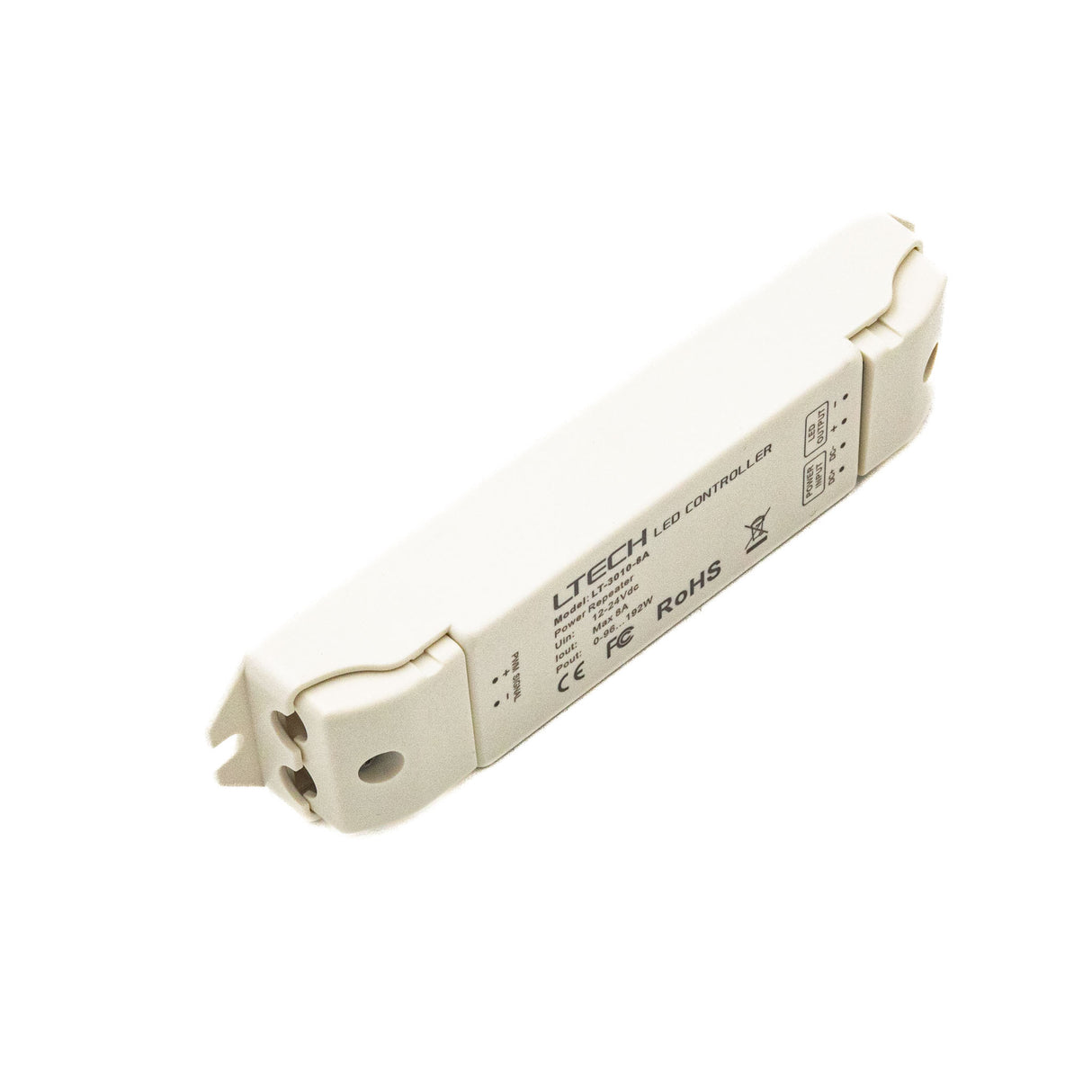

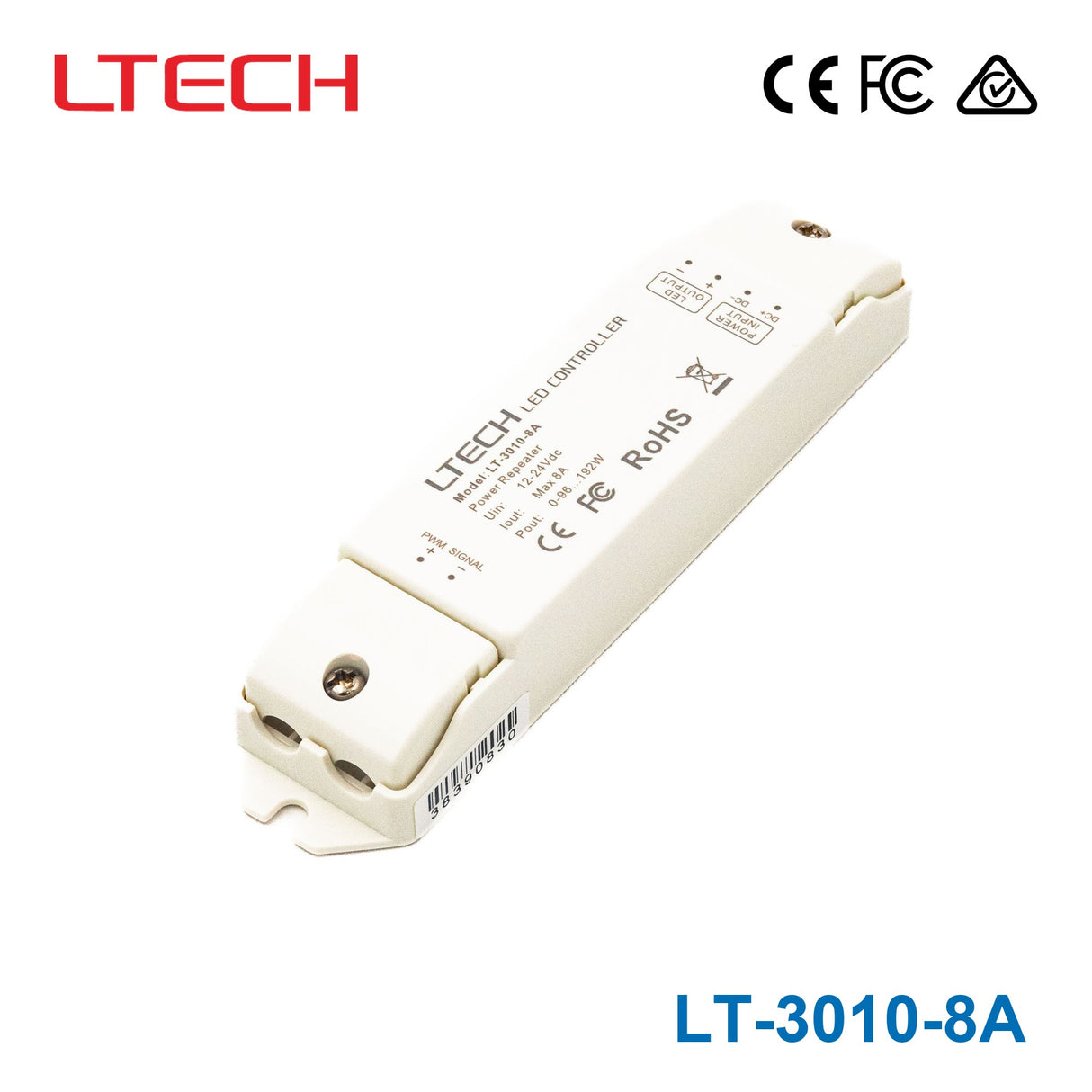

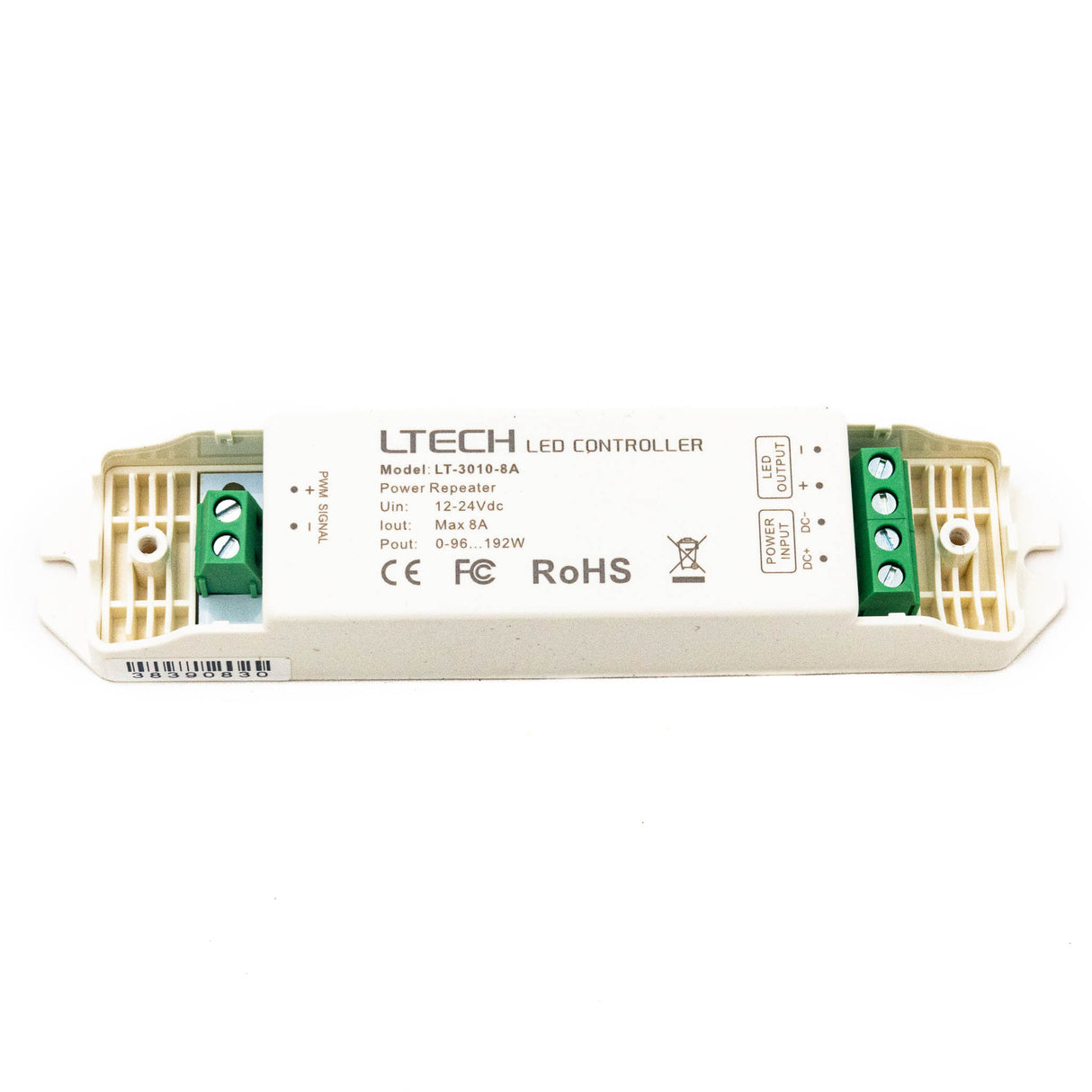

Ltech LT-3010-8A PWM Constant Voltage Repeater - Dimming
The LT-3010-8A is a PWM constant-voltage repeater used to expand the power output capacity of compatible LED control systems. It is intended for dimming applications where additional load handling is needed beyond the original controller's output.
Input 12~24VDC. 1 channels at 8A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 12~24VDC
- ✓Output signal: PWM
- ✓Output channels: 8A - 1 Channel
- ✓Maximum load: 8A per channel
- ✓Maximum total load: 192W
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FCC, RCM
- ✓Dimensions: 135 x 30 x 20mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech Repeater
-
Power Rating192 Watt
-
Output Voltage24 Volt
-
Rated Current8 Ampere
-
Input Voltage12V~24V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length5.32 in
-
Width1.18 in
-
Height0.79 in
-
Weight0.15 lb
::specification::
Frequently Asked Questions
What does the Ltech LT-3010-8A do?
The LT-3010-8A is a PWM constant-voltage repeater used to expand the power output capacity of compatible LED control systems. It is intended for dimming applications where additional load handling is needed beyond the original controller's output.
What are the electrical ratings of the LT-3010-8A?
This model is rated for 24 V output, 8 A current, and 192 W power. Those published ratings make it suitable for constant-voltage LED dimming systems that need higher output capacity.
Is the LT-3010-8A a controller or a repeater?
The LT-3010-8A is a repeater, not a standalone dimming controller. Its role is to repeat PWM control signals and extend output capability within a compatible constant-voltage lighting setup.
What kind of control signal is this model designed for?
According to the product description, the LT-3010-8A accepts PWM control. That makes it appropriate for systems built around PWM-based constant-voltage dimming rather than products that require a different control method.
Can the LT-3010-8A be used in demanding environments?
This repeater is rated for operation from -30 C to 55 C, which supports use across a broad temperature range. The product description also states that the signal input and output include 5 KV photoelectric isolation protection.
What warranty is offered for the LT-3010-8A?
The listed warranty period for the LT-3010-8A is 5 years. That is a comparatively long coverage term for a compact LED control accessory in commercial lighting applications.
