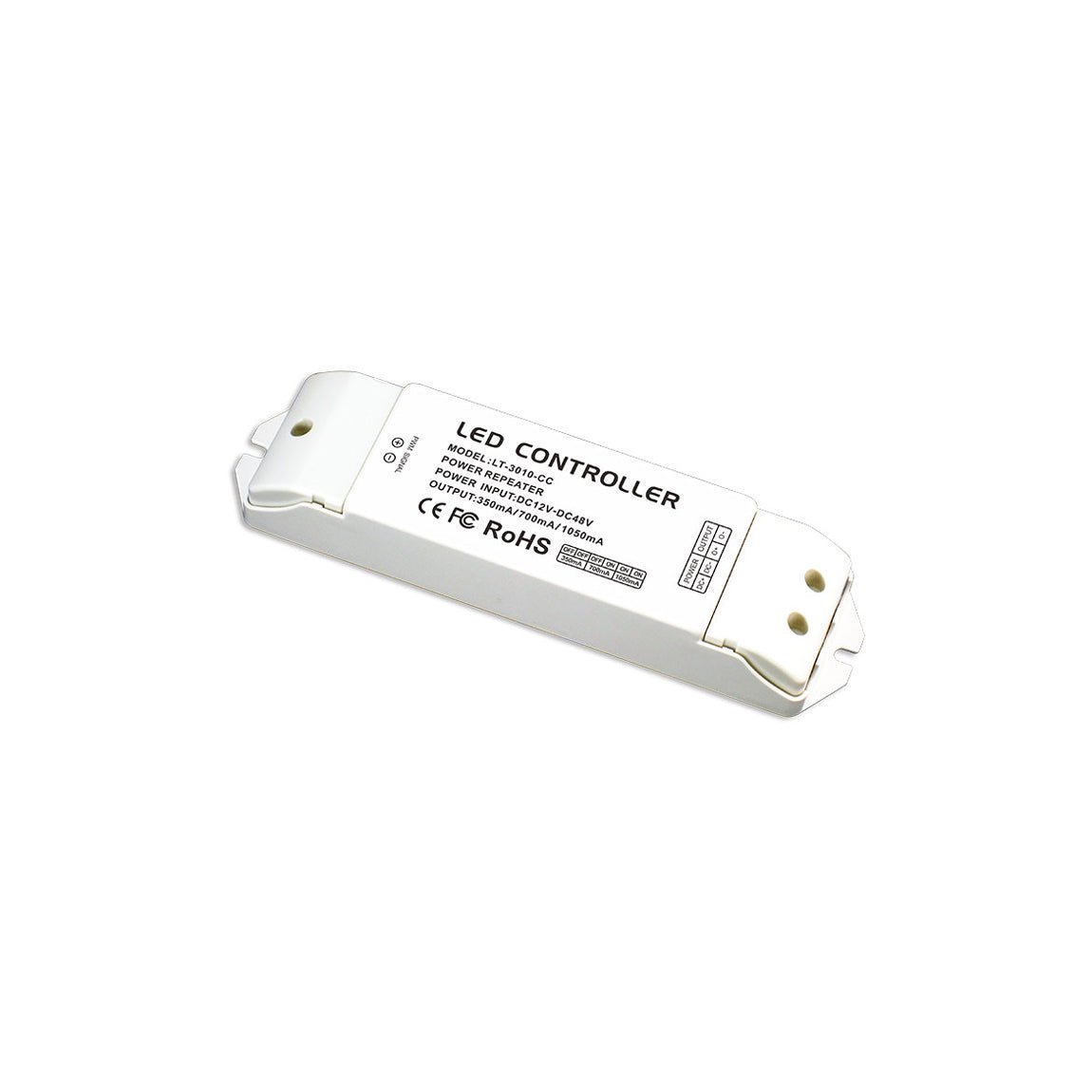

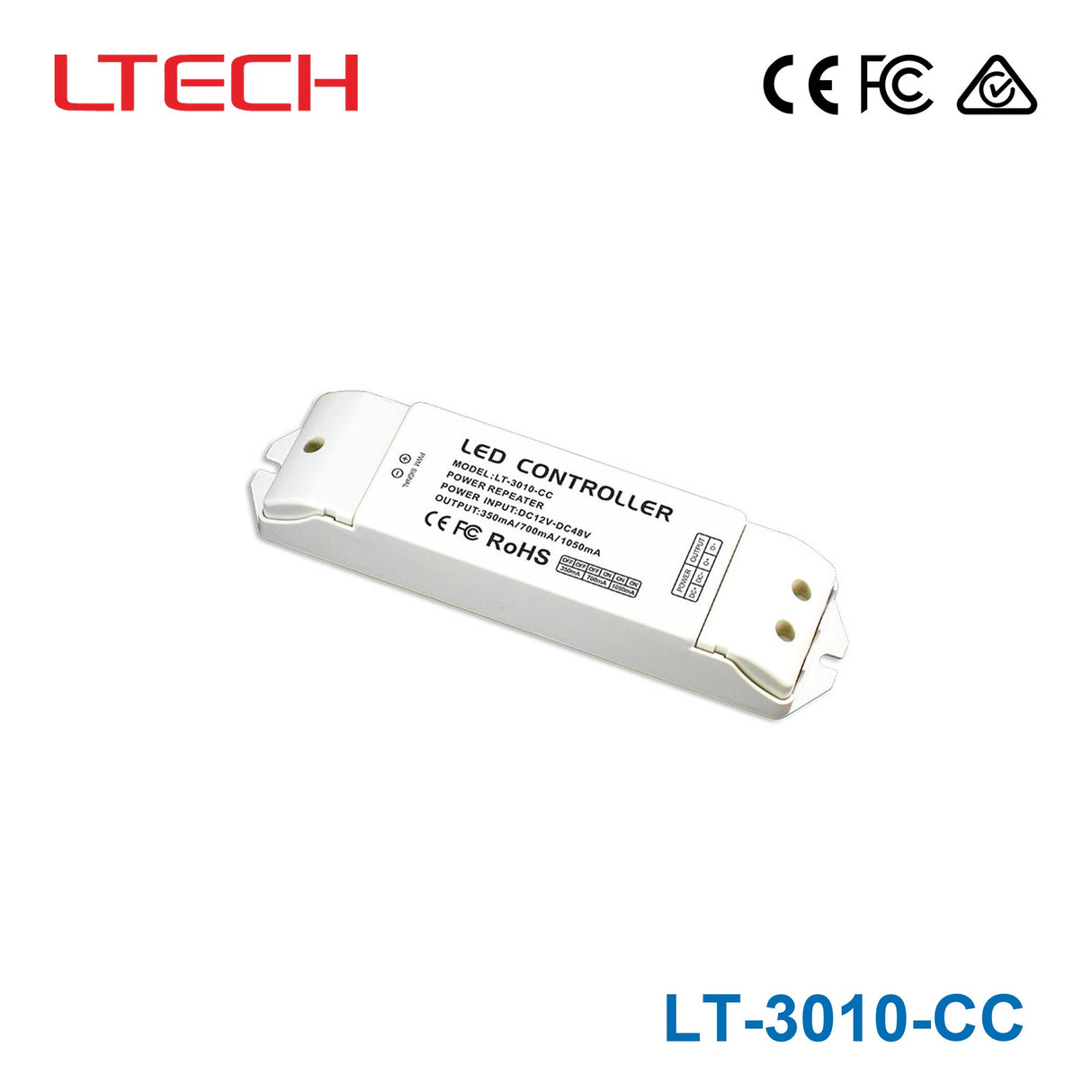

Ltech LT-3010-CC PWM Constant Current Repeater - Dimming
The LT-3010-CC is a PWM constant current repeater used to expand the output capacity of compatible power-output style LED controllers. It accepts a PWM control signal and lets a system handle a larger LED load by adding repeater capacity. the LT-3010-CC is intended for dimming-related power expansion rather than acting as a standalone controller.
Input 12~48VDC. 350mA/700mA/1050mA, 1 Channel. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 12~48VDC
- ✓Output signal: PWM
- ✓Output channels: 350mA/700mA/1050mA - 1 Channel
- ✓Maximum total load: 48.3W
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FCC, RCM
- ✓Dimensions: 175 x 44 x 30mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech Repeater
-
Power Rating48.3 Watt
-
Input Voltage12V~48V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Current
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.26 lb
::specification::
Frequently Asked Questions
What does the Ltech LT-3010-CC do?
The LT-3010-CC is a PWM constant current repeater used to expand the output capacity of compatible power-output style LED controllers. It accepts a PWM control signal and lets a system handle a larger LED load by adding repeater capacity. This model is intended for dimming-related power expansion rather than acting as a standalone controller.
Is the LT-3010-CC a standalone LED controller?
No. The LT-3010-CC is a repeater, so its role is to extend the output capability of a compatible controller rather than replace one. Buyers who need power expansion for an existing PWM-controlled setup are the best fit for this model.
What control type is this repeater designed to work with?
This model accepts PWM control. That makes it suitable for systems where a compatible controller sends a PWM signal and additional output capacity is needed. It is not described here as a self-contained dimming control device.
What is the power rating of the Ltech LT-3010-CC?
The listed power rating for the LT-3010-CC is 48.3 W. For product selection, that gives buyers a concrete reference point when comparing this repeater against higher- or lower-capacity expansion options. It is best evaluated alongside the requirements of the controller and LED load in the system.
What environments is the LT-3010-CC rated for?
The stated operating temperature range is -30 degrees C to 55 degrees C. That gives it a relatively broad environmental range for commercial and industrial lighting applications where temperature conditions matter. Buyers should still confirm the surrounding enclosure and overall system conditions separately.
How long is the warranty period for this model?
The LT-3010-CC includes a 5-year warranty period. That is a useful indicator for buyers who want a repeater intended for longer-term use in professional lighting systems. It also helps distinguish this model from shorter-warranty alternatives.
