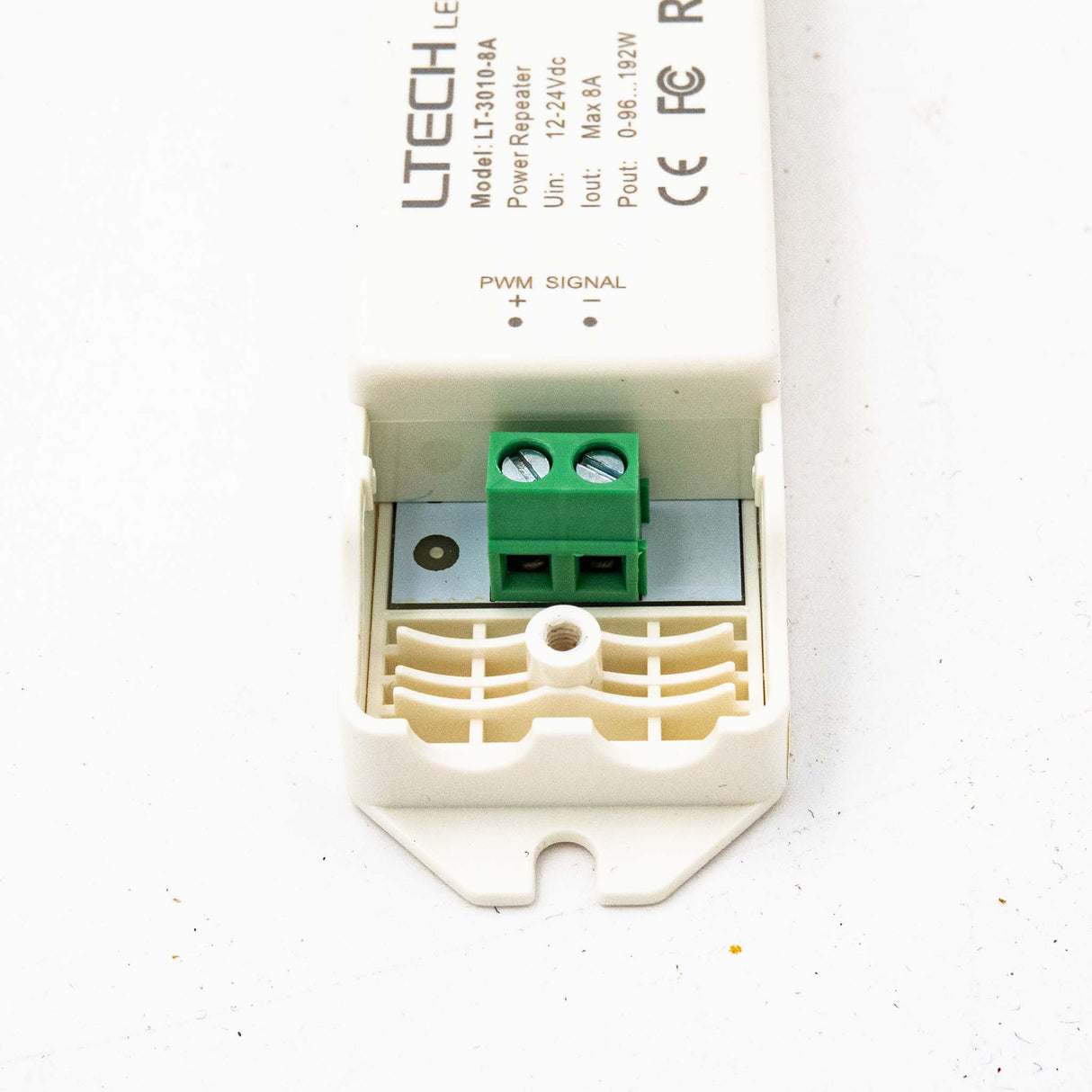

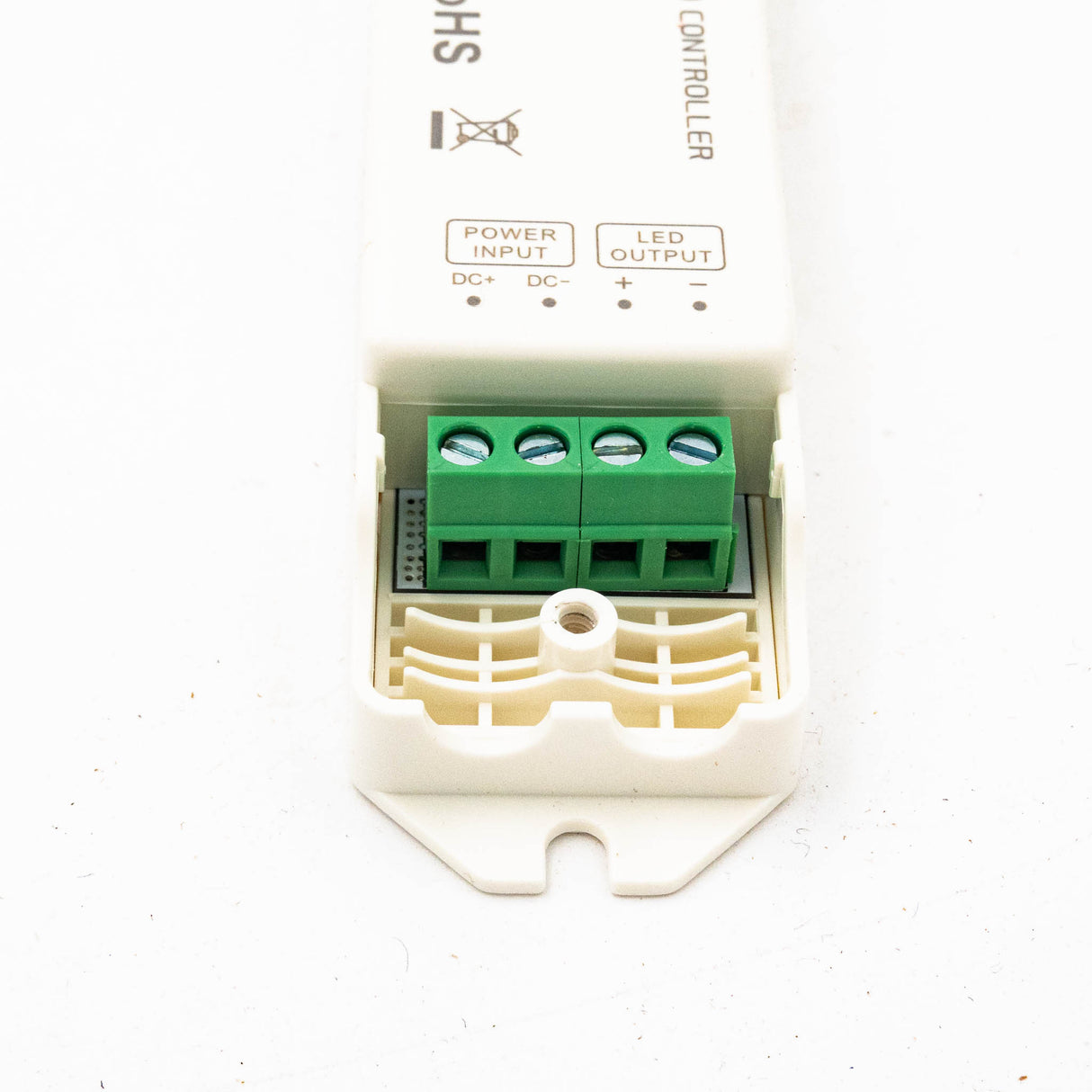

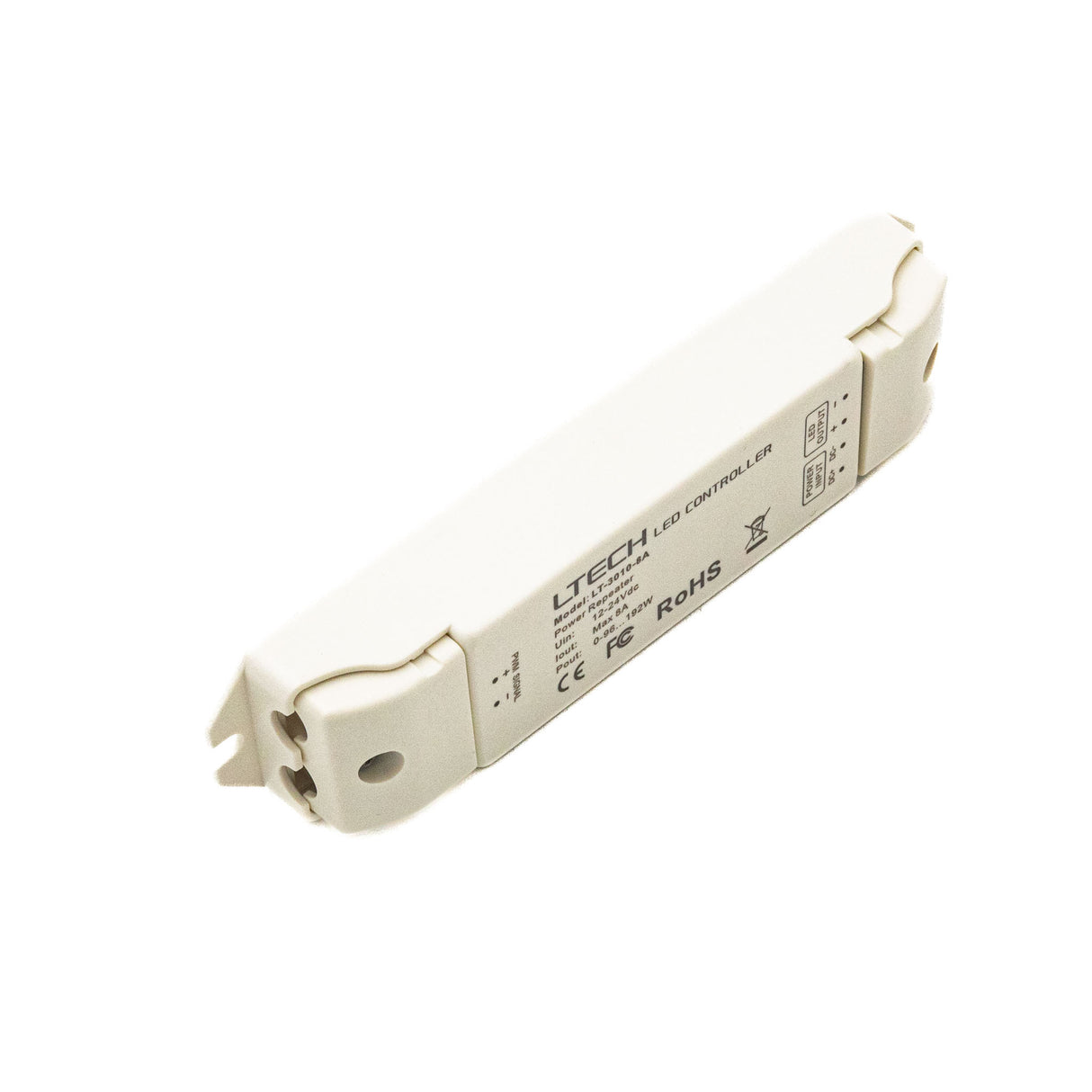

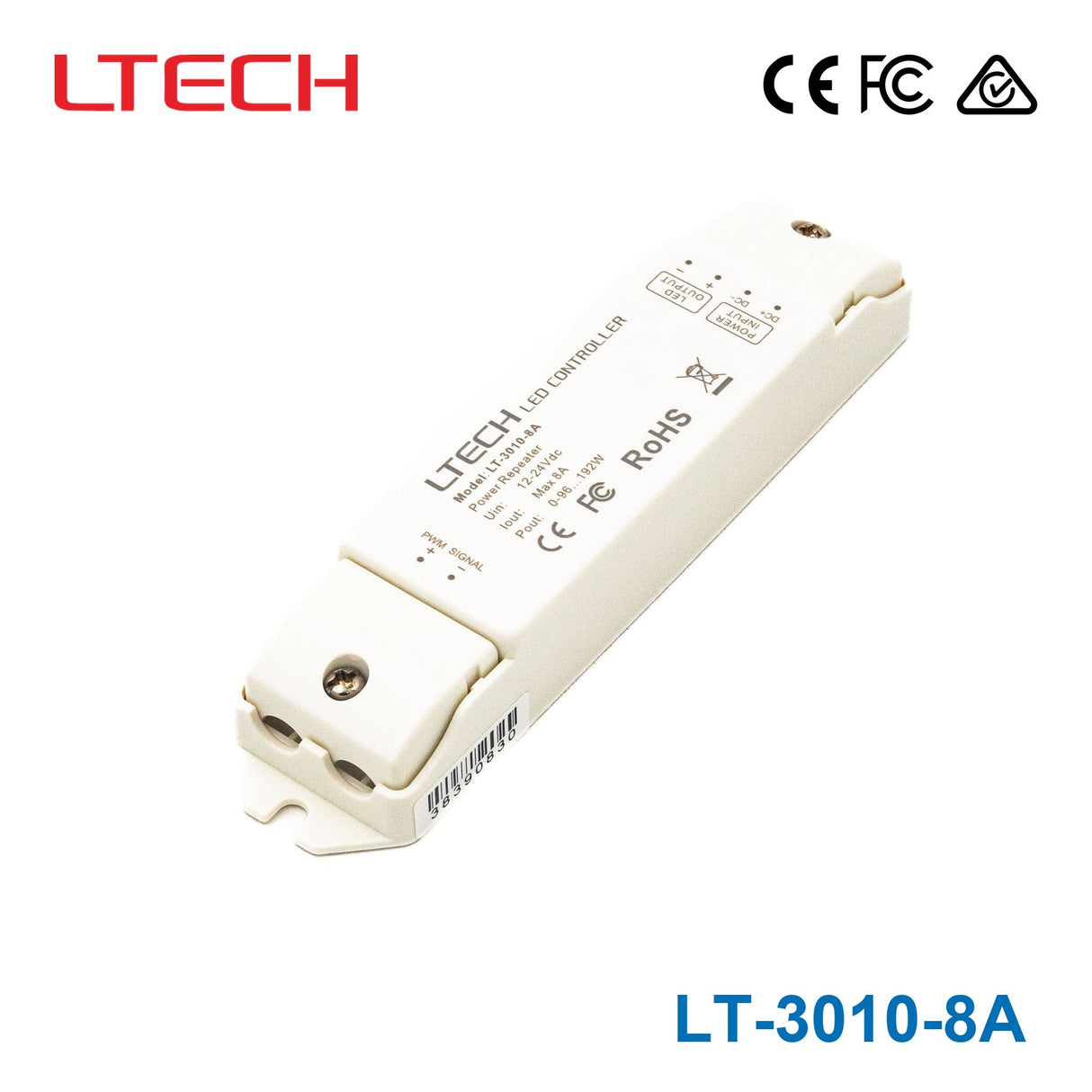

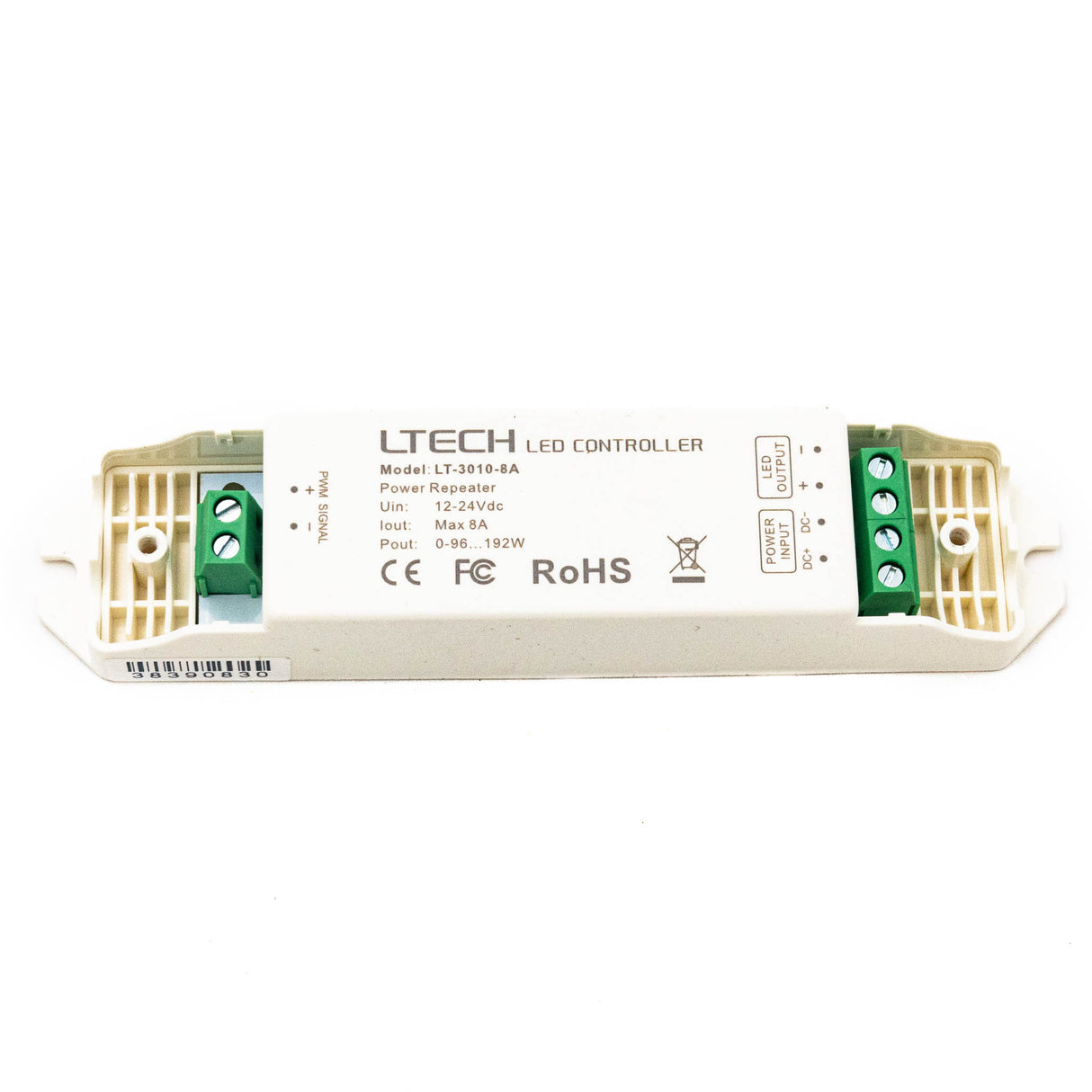

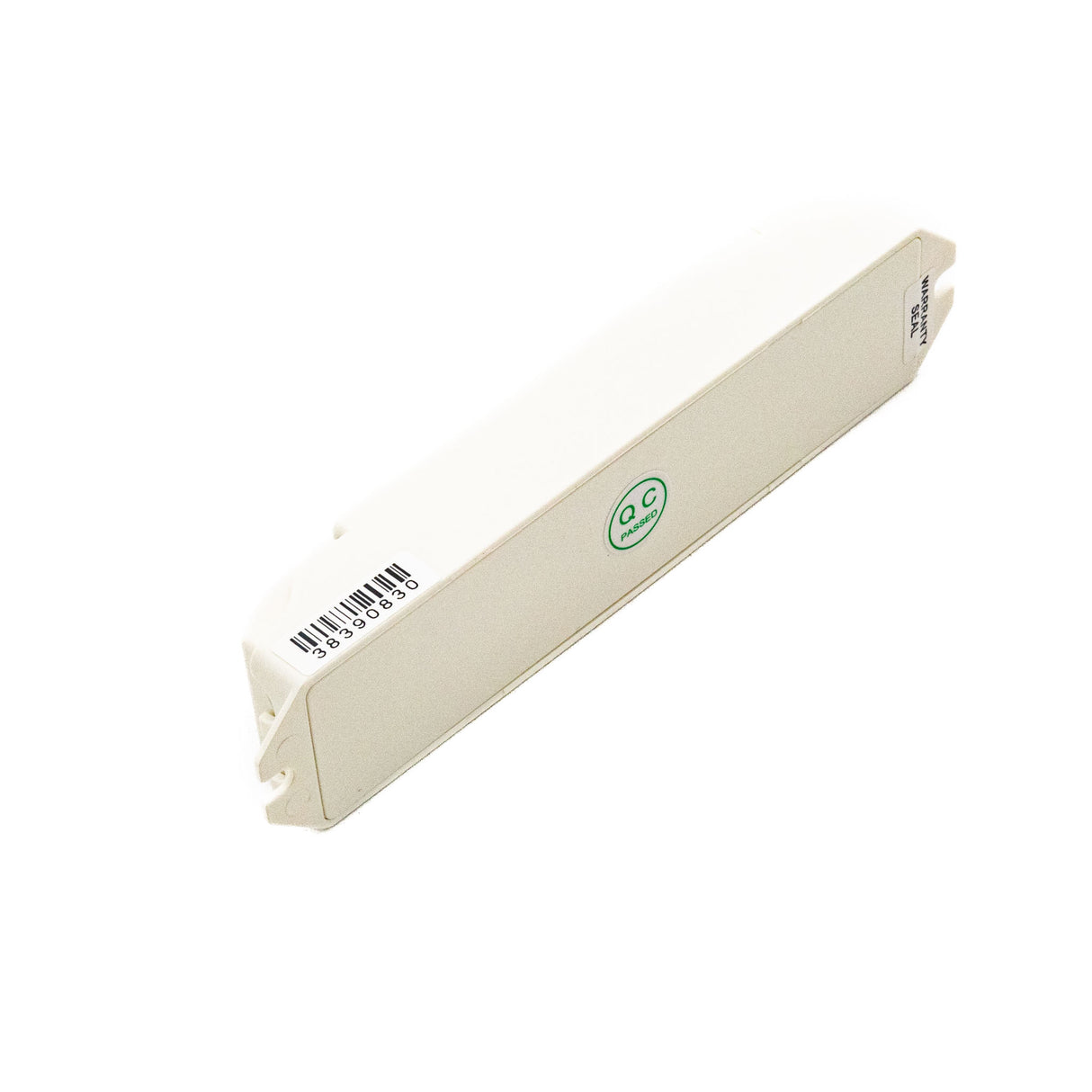

Ltech LT-3010-8A PWM Constant Voltage Repeater - Dimming
The LT-3010-8A is a PWM constant-voltage repeater used to expand the power output capacity of compatible LED control systems. It is intended for dimming applications where additional load handling is needed beyond the original controller's output.
Input 12~24VDC. 1 channels at 8A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 12~24VDC
- ✓Output signal: PWM
- ✓Output channels: 8A - 1 Channel
- ✓Maximum load: 8A per channel
- ✓Maximum total load: 192W
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FCC, RCM
- ✓Dimensions: 135 x 30 x 20mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech Repeater
-
Power Rating192 Watt
-
Output Voltage24 Volt
-
Rated Current8 Ampere
-
Input Voltage12V~24V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length5.32 in
-
Width1.18 in
-
Height0.79 in
-
Weight0.15 lb
