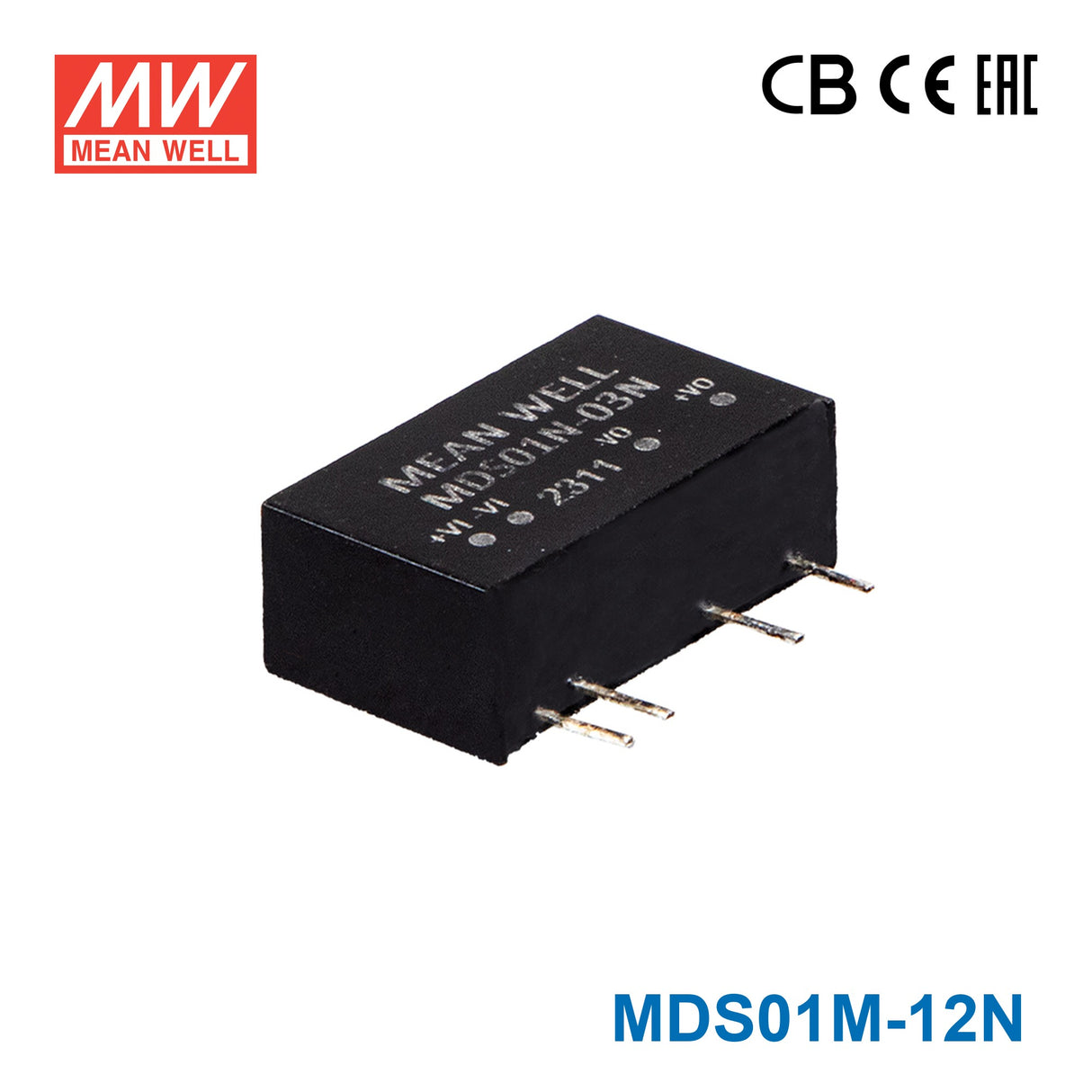

Mean Well MDS01M-12N SIP Package DC-DC Converter- 1W - 12V Out 83mA
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MDS01M-12N SIP Package DC-DC Converter- 1W - 12V Out 83mA
The Mean Well MDS01M-12N is a 1W isolated DC-DC converter in a compact SIP package, providing a single 12V DC output at up to 15mA. It is a medical-grade unregulated part, intended for board-level isolation in patient-connected and instrumentation designs.
Operating from a 10.8~13.2VDC input over a -40°C to 95°C temperature range, it needs no external components for basic operation and carries CB, CE and EAC approvals. Backed by a 3-year warranty.
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating1 Watt
-
Output Voltage12 Volt
-
Rated Current0.01 Ampere
-
Input Voltage10.8V~13.2V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length0.78 in
-
Width0.28 in
-
Height0.45 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
What is the Mean Well MDS01M-12N designed for?
The MDS01M-12N is a 1W SIP-package DC-DC converter intended for compact embedded and industrial electronics that need a regulated 12V DC output. Its reinforced 6KVDC input-to-output isolation and medical safety approvals also make it relevant for equipment where isolation and low leakage current matter.
What are the key electrical specifications of the MDS01M-12N?
This model provides a single 12V DC output with a 1W power rating and a rated output current of 15mA. The product family supports several nominal input ranges, and the 12V-input version is specified for 10.8 to 13.2V DC input.
Is the MDS01M-12N suitable for medical or safety-sensitive equipment?
Yes. The product description states compliance with IEC/UL 62368-1 and LVD IEC60601-1, and it is medical safety approved to 1xMOPP/2xMOOP according to IEC60601-1. It also specifies low patient leakage current below 2uA, which is important in medical-related applications.
How does the MDS01M-12N perform in harsh temperature conditions?
The MDS01M-12N is rated for operation from -40C to +95C. That wide operating range makes it a practical option for equipment exposed to demanding industrial or enclosed-environment temperatures.
What protection and isolation features does this converter include?
This model includes continuous short-circuit protection and overload protection that shuts down the output when rated power reaches 102% or more, then automatically recovers. It also provides 6KVDC input-to-output isolation with reinforced insulation for applications that require strong electrical separation.
Why would a buyer choose the MDS01M-12N over a larger power converter?
The MDS01M-12N is optimized for low-power applications where compact size, isolation, and compliance matter more than higher output wattage. Its small 19.7 x 7.1 x 11.5 mm SIP7 form factor, 1W output, and medical-oriented safety credentials differentiate it from larger general-purpose DC-DC converters.
