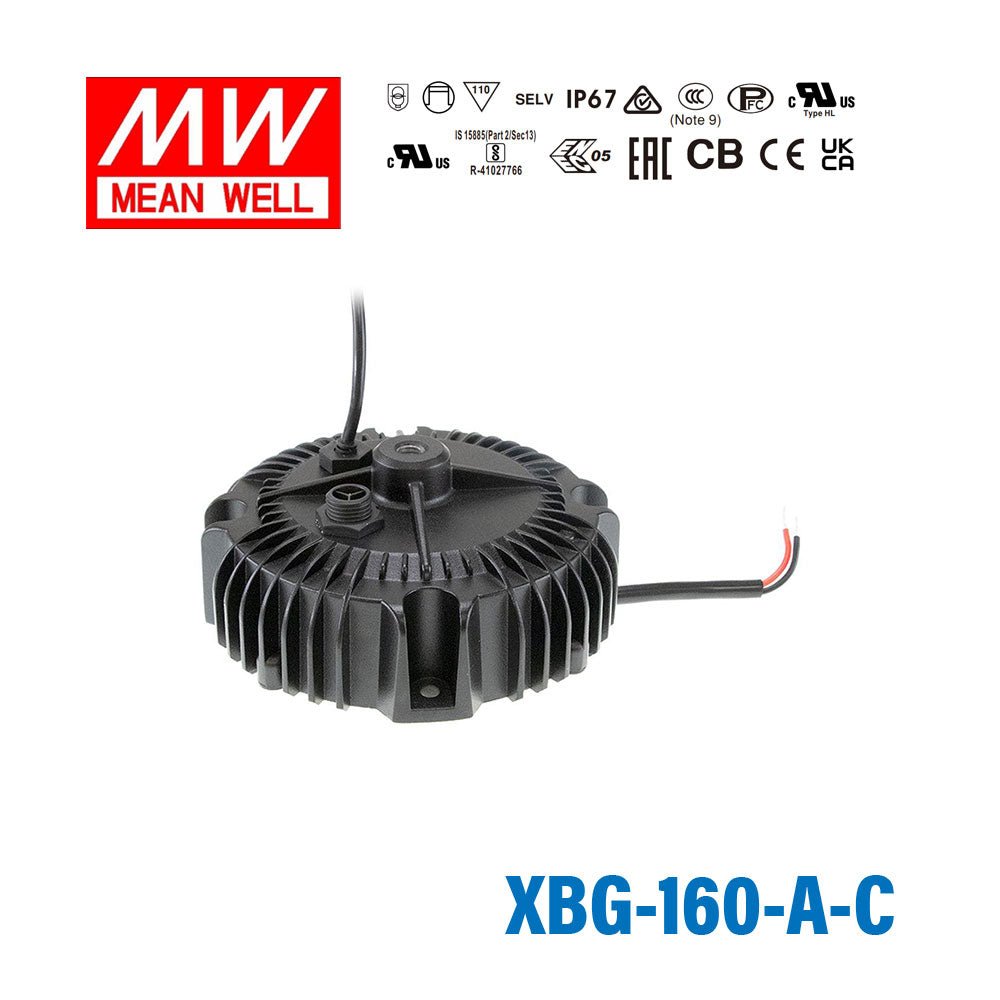

Mean Well XBG-160-A-C Power Supply 160W - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XBG-160-A-C Power Supply 160W - Adjustable
The XBG-160-A is a 160W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMeanWell XBG Seroes
-
Power Rating160 Watt
-
Output Voltage60 Volt
-
Rated Current3.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length5.96 in
-
Width5.96 in
-
Height2.36 in
-
Weight2.76 lb
::specification::
Frequently Asked Questions
Can the XBG-160-A-C be used for constant current LED downlight arrays?
Yes, if the downlight array is built for 3300mA constant current operation and its total forward voltage is within 34-56V. This 160W driver is for constant current loads, not constant voltage LED products.
Is this driver appropriate for signage modules with a higher current requirement?
It can be appropriate for signage modules that require 3300mA constant current and fit inside the 34-56V CC output range. That makes it more suitable for higher-current LED loads than the 2100mA XBG-100 versions.
Can I use the XBG-160-A-C for a sealed outdoor small LED array?
Yes, provided the array is a constant current load at 3300mA and its total LED forward voltage remains within 34-56V. The IP67 waterproof rating and -40°C to +90°C operating range support use in exposed or demanding environments.
How do I size an LED load for the XBG-160-A-C?
Match the driver to LED loads that need 3300mA constant current and have a total forward voltage between 34V and 56V. The number of LEDs depends on the forward voltage of each LED, so there is no single fixed LED count for this model.
Is the XBG-160-A-C suitable for wet or high-temperature locations?
Yes, it is rated IP67 for waterproof use and has an operating temperature range of -40°C to +90°C. Those specs make it suitable for applications that need environmental sealing and wide temperature tolerance.
What are the main differences between the XBG-160-A-C and the other XBG siblings listed?
The XBG-100-A, XBG-100-A-C, XBG-100-AB, and XBG-100-AB-C are 100W, 2100mA models with a 27-56V CC range. The XBG-160-A, XBG-160-AB, and XBG-160-AB-C share this model's 160W, 3300mA, and 34-56V specs, while the XBG-240-A, XBG-240-A-C, XBG-240-AB, and XBG-240-AB-C are 240W, 4900mA models with a 30-60V CC range.
