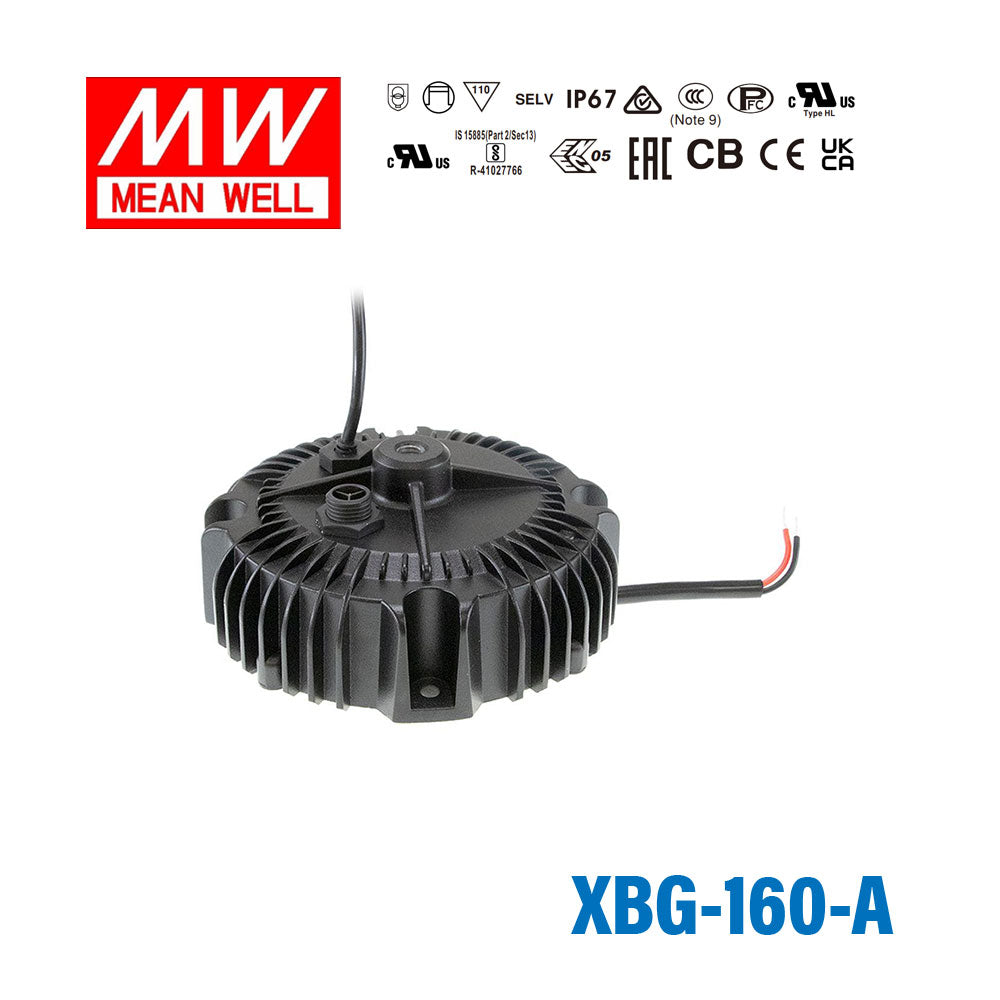

Mean Well XBG-160-A Power Supply 160W - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XBG-160-A Power Supply 160W - Adjustable
The XBG-160 is a 160W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMeanWell XBG Seroes
-
Power Rating160 Watt
-
Output Voltage60 Volt
-
Rated Current3.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length5.96 in
-
Width5.96 in
-
Height2.36 in
-
Weight2.76 lb
::specification::
Frequently Asked Questions
Can I use the XBG-160-A for higher-power LED downlights?
Yes, if the downlight load is designed for constant current operation at 3300mA and its total LED forward voltage falls within 34-56V. With 160W output, this model fits higher-power constant current fixtures better than lower-power drivers in the same series.
Is the XBG-160-A a good fit for larger signage modules or denser small LED arrays?
It can be a good fit when the signage module or LED array requires 3300mA constant current and operates within the 34-56V CC range. Because this is a constant current driver, it should not be used in place of a constant voltage power supply for LED products designed around fixed voltage output.
Can this model be used for outdoor LED assemblies exposed to weather?
Yes, the XBG-160-A has an IP67 waterproof rating and is built to operate from -40°C to +90°C. That makes it appropriate for outdoor or industrial LED assemblies that need a sealed constant current driver.
What should I check before pairing the XBG-160-A with an LED load?
Check that the LED load is specified for 3300mA constant current and that the combined forward voltage stays within 34-56V. The number of LEDs depends on the forward voltage of each LED, so compatibility is based on current and total voltage, not on a fixed quantity of LEDs.
What environments is the XBG-160-A built for?
This driver is rated IP67 and has a -40°C to +90°C operating temperature range, so it is intended for harsh indoor or outdoor conditions. It also supports a wide 90-305VAC input range for installations with varying AC supply conditions.
How does the XBG-160-A compare with the other XBG series options listed here?
The XBG-100-A, XBG-100-A-C, XBG-100-AB, and XBG-100-AB-C are all 100W, 2100mA models with a 27-56V CC range. The XBG-160-A-C, XBG-160-AB, and XBG-160-AB-C match this unit at 160W, 3300mA, and 34-56V, while the XBG-240-A, XBG-240-A-C, XBG-240-AB, and XBG-240-AB-C step up to 240W, 4900mA, and 30-60V.
