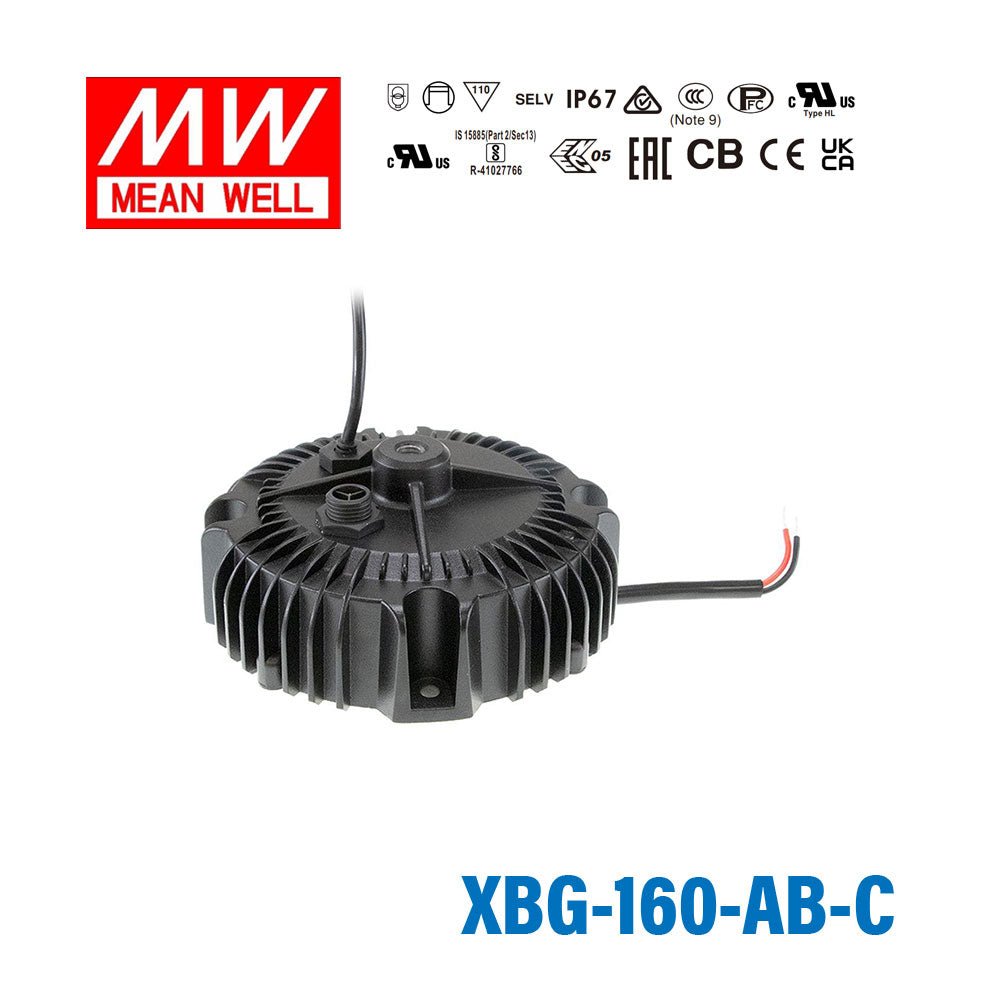

Mean Well XBG-160-AB-C Power Supply 160W - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XBG-160-AB-C Power Supply 160W - Adjustable
The XBG-160-AB is a 160W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMeanWell XBG Seroes
-
Power Rating160 Watt
-
Output Voltage60 Volt
-
Rated Current3.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length5.96 in
-
Width5.96 in
-
Height2.36 in
-
Weight2.76 lb
::specification::
Frequently Asked Questions
Can the XBG-160-AB-C be used with constant current LED downlight assemblies?
Yes, if the downlight assembly is specified for 3300mA constant current input and its operating voltage falls within the 34-56V CC range. This driver is built for constant current operation at 160W, so it is not the right choice for fixtures that expect a constant voltage source.
Would the XBG-160-AB-C work for outdoor or exposed signage lighting?
It is suited to exposed environments because the housing is rated IP67 waterproof and the operating temperature range is -40°C to +90°C. Electrically, it should only be used where the signage modules are a 3300mA constant current load within the 34-56V operating range.
Is this a good match for a compact high-power LED array?
It can be, provided the array is intended for constant current operation at 3300mA and the total forward voltage stays in the 34-56V CC window. The 160W rating gives more headroom than the 100W XBG versions, while still staying below the 240W models in the same family.
What should I check before pairing the XBG-160-AB-C with an LED load?
Check that the load is a constant current LED system rated for 3300mA and that its total forward voltage is inside the 34-56V constant current range. The number of LEDs cannot be stated as a fixed count because it depends on the forward voltage of each LED in the string.
Can the XBG-160-AB-C be used in hot or cold environments?
Yes, this model is rated for operation from -40°C to +90°C and carries an IP67 waterproof rating. That makes it a stronger fit for demanding indoor or outdoor environments than a driver intended only for dry indoor locations.
