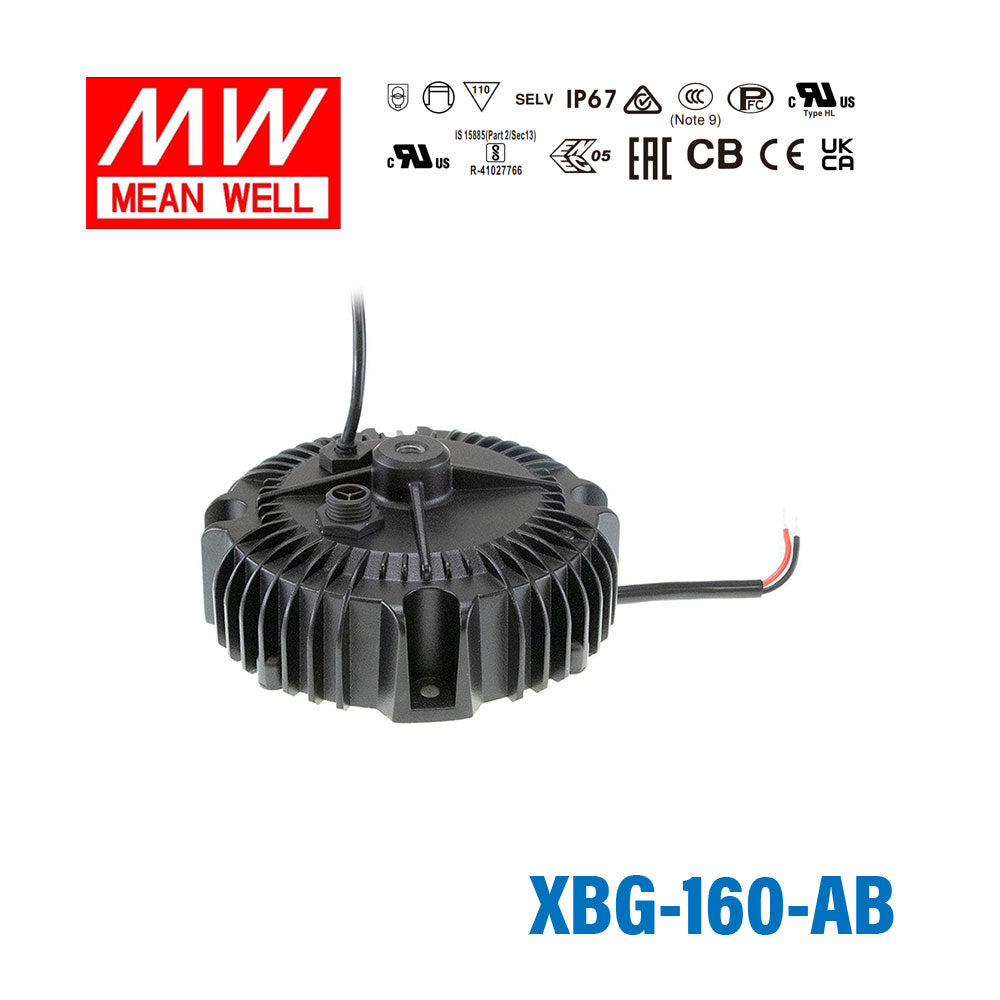

Mean Well XBG-160-AB Power Supply 160W - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XBG-160-AB Power Supply 160W - Adjustable
The XBG-160 is a 160W Mean Well AC-DC constant current LED driver (input: 90~305VAC, output: 60V, operating temperature: -40~+90°C).
Key Features
- ✓ Input voltage: 90~305VAC
- ✓ Output voltage (max): 60V
- ✓ Rated output current: 3300mA
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+90°C
- ✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesMeanWell XBG Seroes
-
Power Rating160 Watt
-
Output Voltage60 Volt
-
Rated Current3.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length5.96 in
-
Width5.96 in
-
Height2.36 in
-
Weight2.76 lb
::specification::
Frequently Asked Questions
Can I use the XBG-160-AB for LED downlights that need a constant current driver?
Yes, if the downlight array is designed for a constant current driver at 3300mA and operates within the 34-56V constant current range. This is a 160W constant current model, not a constant voltage power supply, so it should be matched to downlights built for CC operation rather than fixed-voltage LED strips or bars.
Is the XBG-160-AB suitable for powering signage LED modules?
It can be suitable for signage modules when the module string is a constant current load rated for 3300mA and its total forward voltage stays within 34-56V. Because this driver is IP67 waterproof and accepts 90-305VAC input, it fits signage projects where environmental exposure and wide AC input range matter.
Can this driver run a small LED array for high-output lighting?
Yes, if the LED array is specified for constant current operation at 3300mA and the array voltage falls inside the 34-56V CC window. With 160W output and a maximum output voltage of 60V, it is intended for higher-power LED arrays rather than low-power constant voltage lighting products.
How do I know if my LED load is compatible with the XBG-160-AB?
The key check is whether your LED load is a constant current design that requires 3300mA and operates within the 34-56V constant current output range. The number of LEDs depends on each LED's forward voltage, so compatibility is determined by the total forward voltage of the array, not by a fixed LED count.
How does the XBG-160-AB compare with other XBG series siblings?
Within this group, the 100W models are XBG-100-A, XBG-100-A-C, XBG-100-AB, and XBG-100-AB-C, each with a 27-56V CC range. The 160W models are XBG-160-A, XBG-160-A-C, XBG-160-AB, and XBG-160-AB-C, each with a 34-56V CC range, while the 240W models are XBG-240-A, XBG-240-A-C, XBG-240-AB, and XBG-240-AB-C, each with a 30-60V CC range.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other XBG-160 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well XBG-160-AB-C Power Supply 160W - Adjustable | 160W | 60V | 3.3A | IP67 | $87.98 | View |
| Mean Well XBG-160-A-C Power Supply 160W - Adjustable | 160W | 60V | 3.3A | IP67 | $82.27 | View |
| Mean Well XBG-160-A Power Supply 160W - Adjustable | 160W | 60V | 3.3A | IP67 | $60.63 | View |
