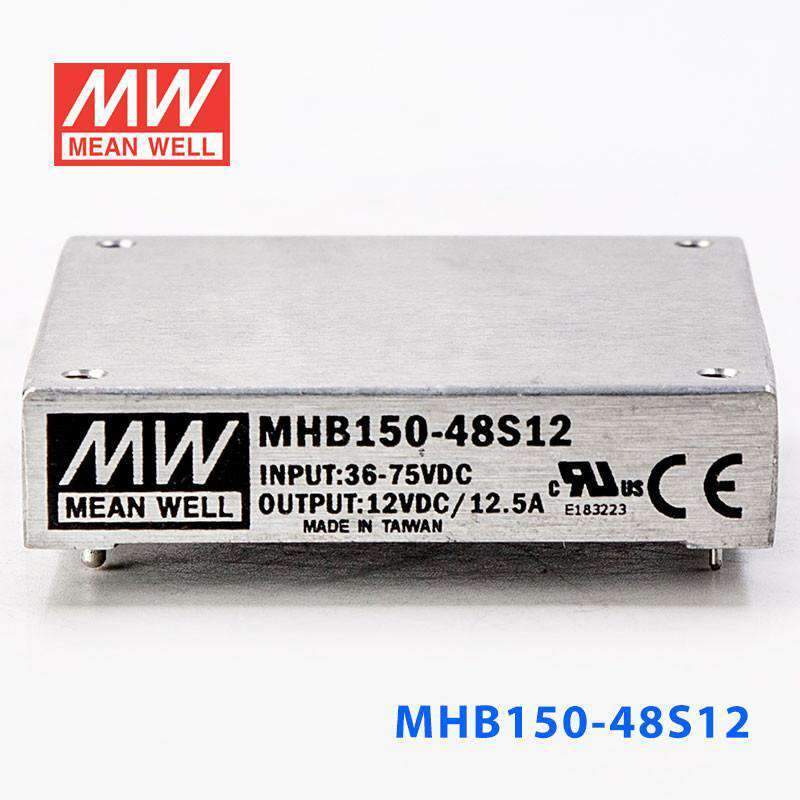

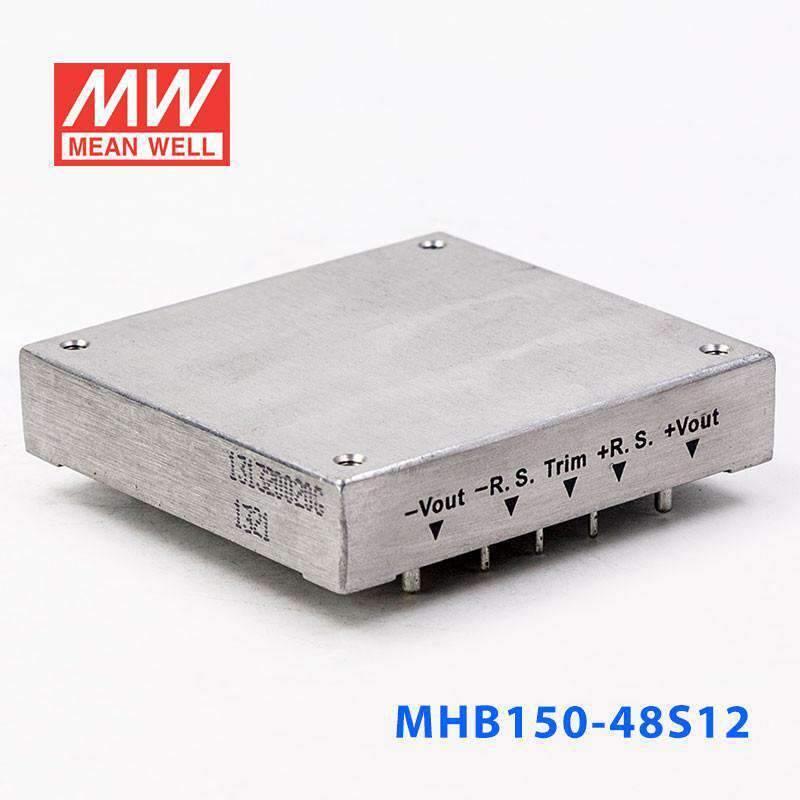

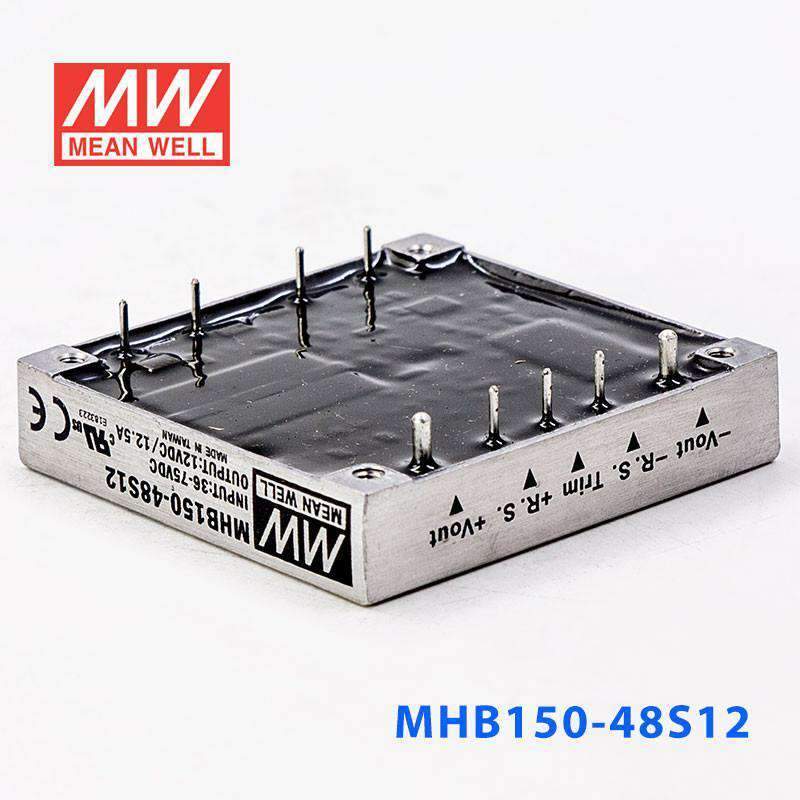

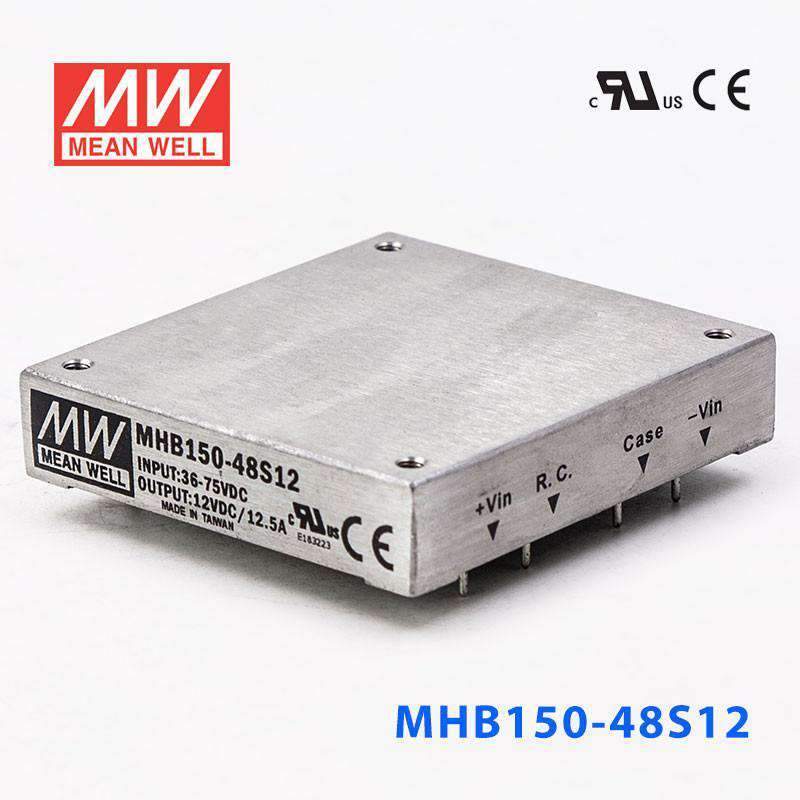

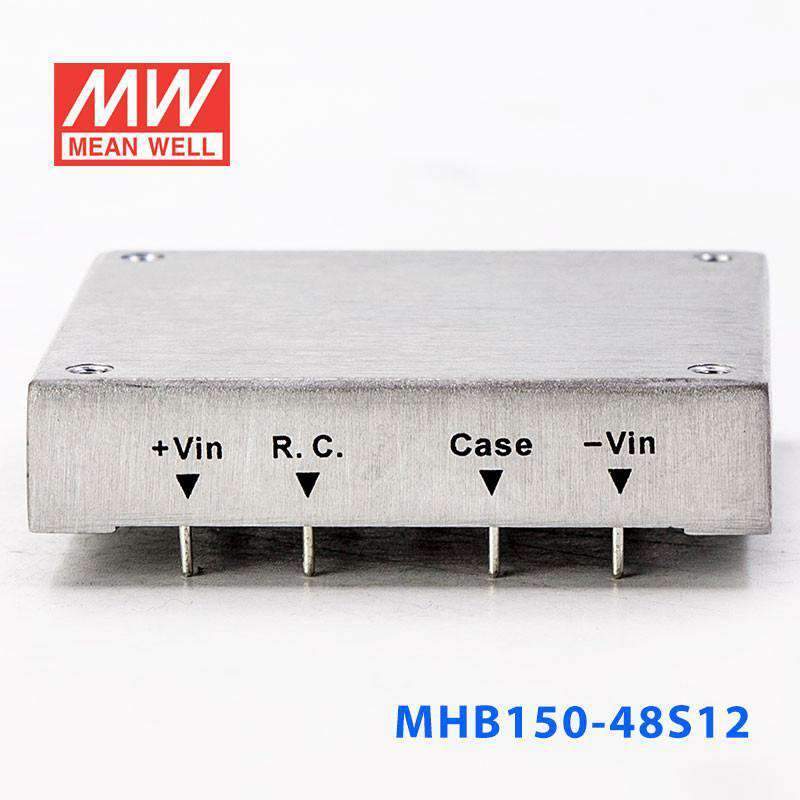

Mean Well MHB150-48S12 DC-DC Converter - 150W - 36~75V in 12V out
The MHB150 is a 150W Mean Well power converter (input range: 36~75VDC).
Key Features
- ✓ Input voltage range: 36~75VDC
- ✓ Protections: Short circuit / Over voltage / Over temperature / Under voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1 EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMHB Series
-
Power Rating150 Watt
-
Output Voltage12 Volt
-
Rated Current8.3 Ampere
-
Input Voltage36V~75V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~105°C
-
Warranty3 Year
-
Length2.4 in
-
Width2.28 in
-
Height0.5 in
-
Weight0.22 lb
::specification::
Frequently Asked Questions
Can I use the MHB150-48S12 to run 12V industrial control equipment from a 48V-class power source?
This converter accepts 36-75V input and provides a constant 12V output, which matches systems stepping down from a 48V-class bus. It is rated for 150W total output with up to 8.3A available at 12V.
Is this a good fit for 12V automation accessories inside a compact machine enclosure?
The 61.0 × 57.9 × 12.7 mm size supports use where board area and height are limited. On the electrical side, it delivers constant 12V output up to 8.3A with a 150W rating.
Can the MHB150-48S12 power 12V embedded or industrial PC peripherals in harsh temperature conditions?
The specified operating temperature range is -55°C to +105°C, so the unit is rated for very wide-temperature operation. It also provides a constant 12V output with up to 8.3A available from a 36-75V input source.
Would this converter work for 12V instrumentation or monitoring modules on a 36-75V DC system?
It is intended for 36-75V input systems that need a regulated 12V rail. With 150W capacity and 8.3A output current, it fits 12V instrumentation or monitoring loads that stay within those limits.
Is this model suitable for outdoor or washdown installations?
The provided data lists an operating temperature range of -55°C to +105°C, but it does not list an IP rating. Based on the stated specs, temperature capability is defined, while exposure to water, dust, or washdown is not specified.
