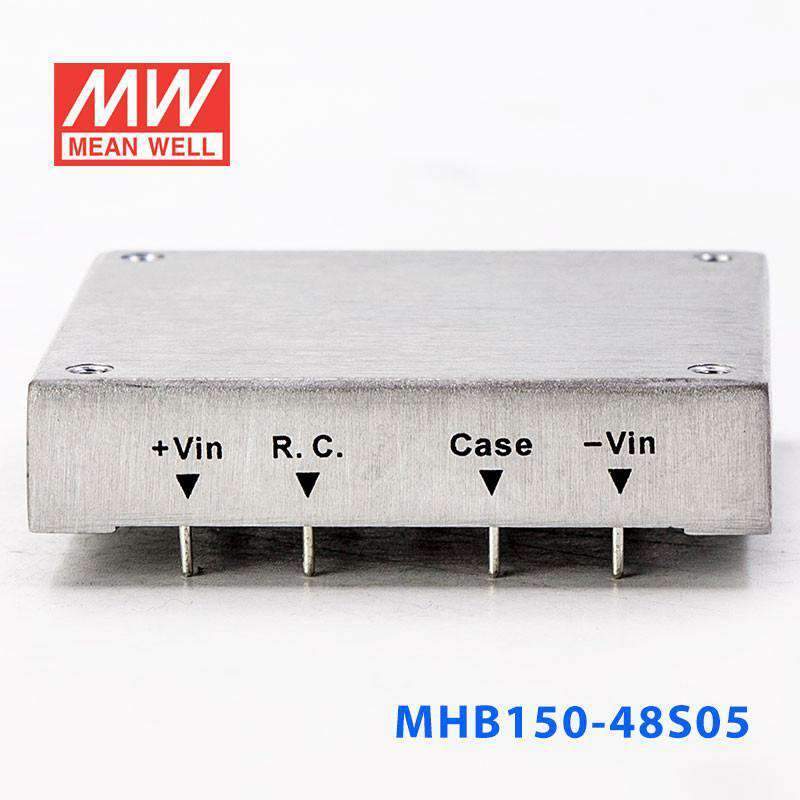

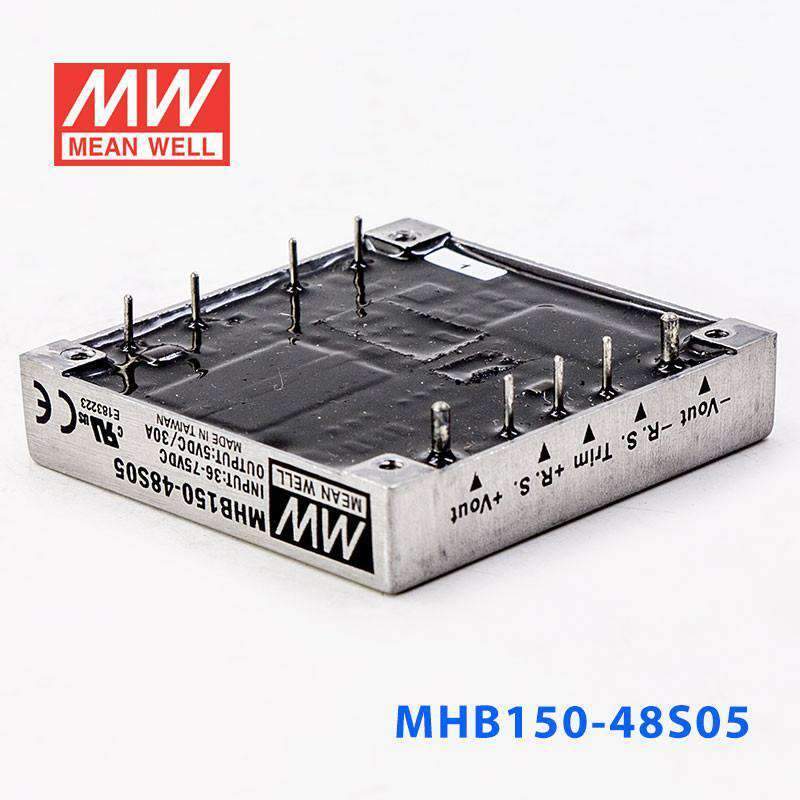

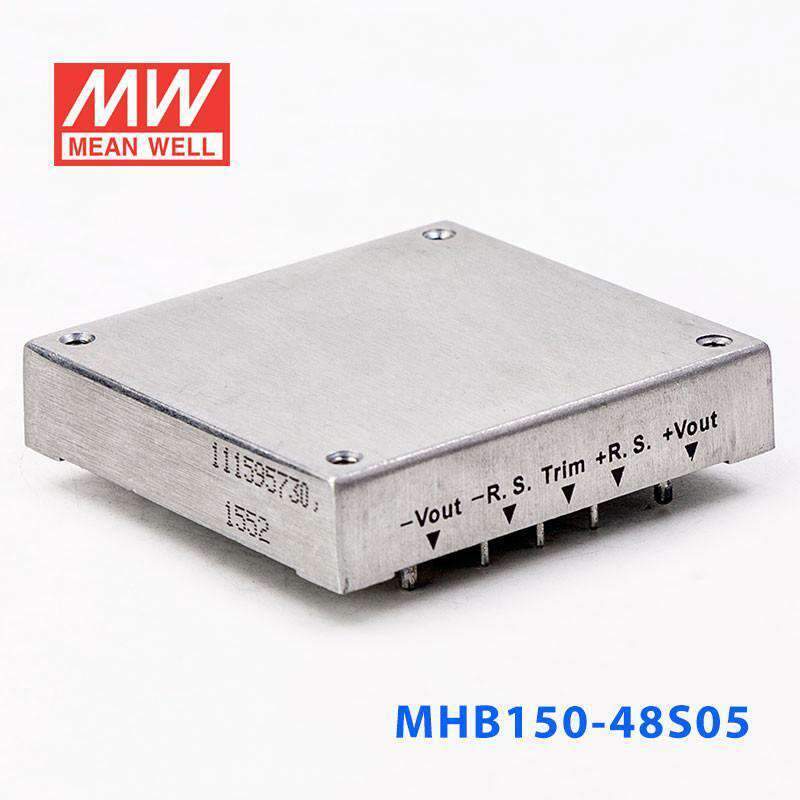

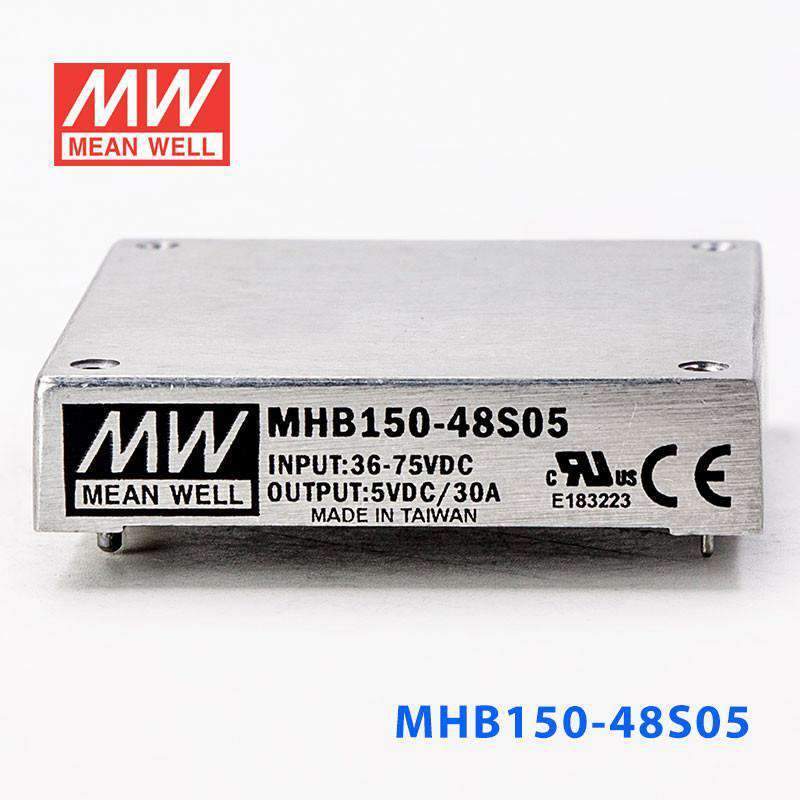

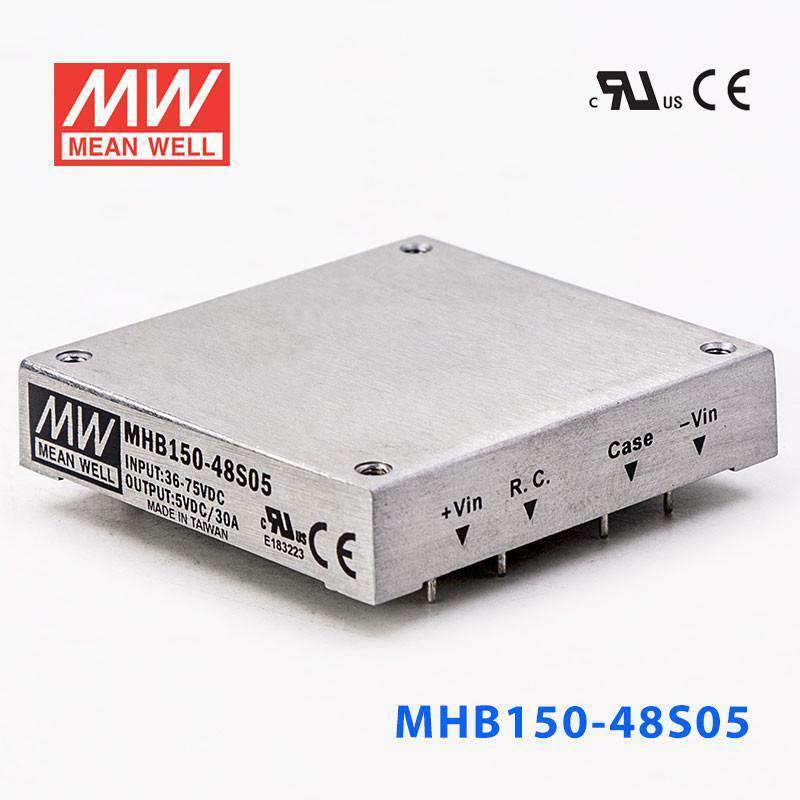

Mean Well MHB150-48S05 DC-DC Converter - 150W - 36~75V in 5V out

SKU:

MHB150-48S05

$98.08 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Half-brick size (2.28" 2.4" 0.5") with industry standard pin out

2:1 wide input range

Protections: Short circuit / Over current / Over voltage / Over temperature

High efficiency up to 89%

1500VDC I/O isolation

Built-in remote ON/OFF control

Built-in remote sense function

Trimming output ±10%

Five-sided shield metal case

Optional heat sinks for extended operating temperature

Output 2.5V/3.3V/15V available

Approvals: UL / CUL / CE

3 years warranty

General Specification

Over current protection	110%~140% rated output power; Protection type: over current limiting, recovers automatically after fault condition is removed
Over temperature protection	Case temperature 100°C±5°C, Over temperature protection enabled
Over voltage protection	115%~140%; Protection mode: Output Voltage clamping by zener diode
Withstand voltage	I/P-O/P:1500VDC,I/P-Case:1500VDC,O/P-Case:1500VDC
Working temperature	-40~100°C; Thermal shutdown at 100°C±5°C of case temperature(Please refer to Thermal Curve)
Safety standards	UL60950-1 approved
EMC standards	With external components Compliance to EN55022 Class A(Please refer to ¨¹EMC Suggestion Circuit¨¹)
Dimension (LxWxH)(mm)	57.9 x 61 x 12.7 mm

Specifications

Brand

Mean Well
Series

MHB Series
Power Rating

150 Watt
Output Voltage

5 Volt
Rated Current

20 Ampere
Input Voltage

36V~75V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,EMC,RCM,TUV
Operation Mode

Constant Voltage
Operating Temperature

-55°C~105°C
Warranty

3 Year
Length

2.4 in
Width

2.28 in
Height

0.5 in
Weight

0.22 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the MHB150-48S05 to power 5V industrial controllers from a nominal 48V DC bus?

This model is designed for systems with a 36-75V input range and provides a constant 5V output. It can supply up to 20A with a 150W power rating, which fits 5V control electronics that need regulated low-voltage output from a 48V-class source.

Is this DC-DC converter suitable for 5V embedded computing or edge devices in automation cabinets?

It is a fit for embedded or industrial computing loads that require constant 5V power within a 150W budget. The unit delivers up to 20A at 5V and uses a compact 61.0 × 57.9 × 12.7 mm form factor for space-constrained equipment.

Can this converter support 5V I/O modules or sensor hubs in a wide-temperature industrial system?

The operating temperature range is -55°C to +105°C, which supports use in equipment exposed to very low or very high ambient temperatures. Electrically, it provides constant 5V output up to 20A and accepts 36-75V input.

Is the MHB150-48S05 appropriate for telecom or embedded platforms built around a 36-75V power architecture?

Yes, its stated input range is 36-75V, so it aligns with equipment that distributes power in that range and needs a constant 5V rail. The converter is rated for 150W and 20A output, which suits higher-current 5V subsystems.

Can I use this converter outdoors or in exposed environments?

The listed specs confirm an operating temperature range of -55°C to +105°C, but no IP rating is provided. That means the temperature range is defined, while weather or water exposure suitability is not specified in the provided data.
