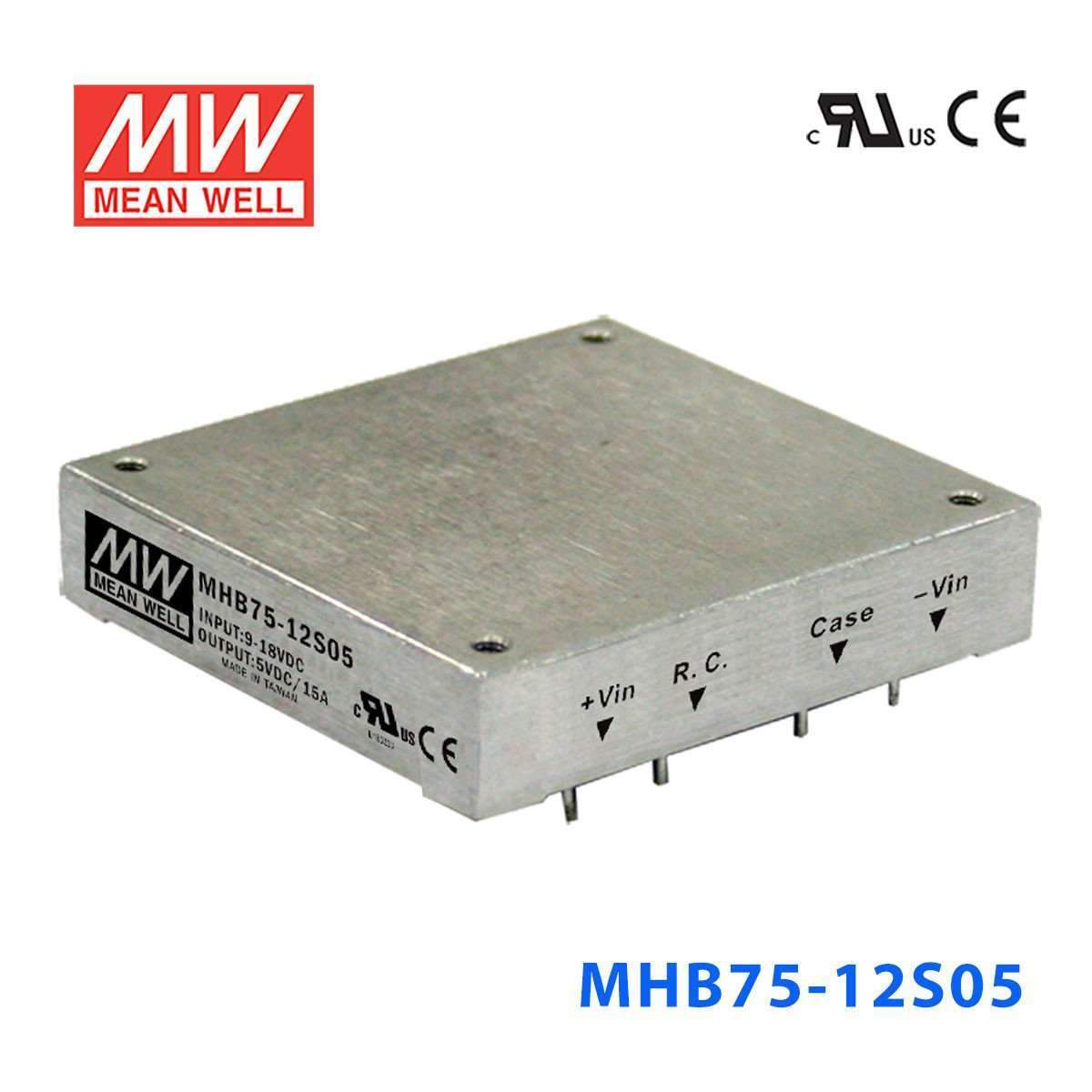

Mean Well MHB75-12S05 DC-DC Converter - 75W - 9~18V in 5V out
The MHB75 is a 75W Mean Well power converter (input range: 9~18VDC).
Key Features
- ✓ Input voltage range: 9~18VDC
- ✓ Protections: Short circuit / Over voltage / Over temperature / Under voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1 EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMHB Series
-
Power Rating75 Watt
-
Output Voltage5 Volt
-
Rated Current15 Ampere
-
Input Voltage9V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~105°C
-
Warranty3 Year
-
Length2.4 in
-
Width2.28 in
-
Height0.5 in
-
Weight0.2 lb
::specification::
Frequently Asked Questions
Can I use the MHB75-12S05 to derive 5V power from a 12V battery-based industrial system?
This converter is designed for a 9-18V input range and provides constant 5V output, which matches 12V-class source systems. It is rated for 75W total power and up to 15A output current.
Is this model suitable for powering 5V embedded processors or control boards in mobile equipment?
It fits 5V electronics that need a regulated supply from a 9-18V source. The converter can deliver up to 15A at 5V with a total power rating of 75W.
Can the MHB75-12S05 support 5V sensor aggregation or industrial I/O logic from a 12V-class bus?
Yes, it accepts 9-18V input and outputs constant 5V for low-voltage control or sensing electronics. The output rating is 15A, with 75W total available power.
Would this converter be appropriate for compact embedded systems where board space is limited?
Its dimensions are 61.0 × 57.9 × 12.7 mm and its weight is 0.092 kg, so it is relatively compact for enclosed equipment. Electrically, it provides constant 5V output up to 15A from a 9-18V input.
Is the MHB75-12S05 suitable for outdoor use?
The operating temperature range is specified as -55°C to +105°C, but no IP rating is listed in the provided specs. That means the temperature limits are defined, while resistance to rain, dust, or direct exposure is not specified.
