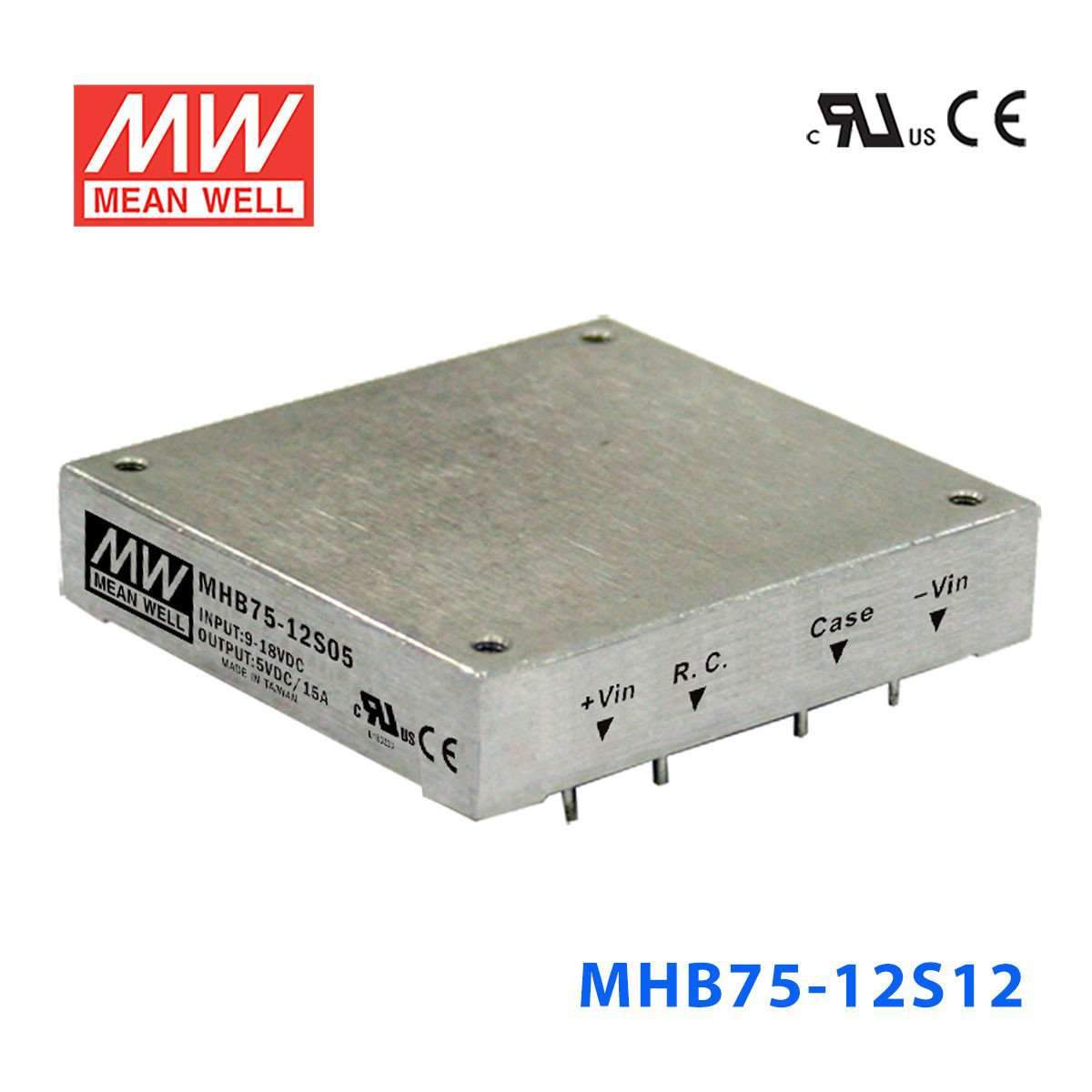

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well MHB75-12S12 DC-DC Converter - 75W - 9~18V in 12V out

SKU:

MHB75-12S12

$69.27 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Half-brick size (2.28" 2.4" 0.5") with industry standard pin out

2:1 wide input range

Protections: Short circuit / Over current / Over voltage / Over temperature

High efficiency up to 89%

1500VDC I/O isolation

Built-in remote ON/OFF control

Built-in remote sense function

Trimming output ±10%

Five-sided shield metal case

Optional heat sinks for extended operating temperature

Output 2.5V/3.3V/15V available

Approvals: UL / CUL / CE

3 years warranty

General Specification

Over current protection	110%~150% rated output power; Protection type: over current limiting, recovers automatically after fault condition is removed
Over temperature protection	Case temperature 100°C±5°C, Over temperature protection enabled
Over voltage protection	115%~140%; Protection mode: Output Voltage clamping by zener diode
Withstand voltage	I/P-O/P:1500VDC,I/P-Case:1500VDC,O/P-Case:1500VDC
Working temperature	-40~100°C; Thermal shutdown at 100°C±5°C of case temperature(Please refer to Thermal Curve)
Safety standards	UL60950-1 approved
EMC standards	With external components Compliance to EN55022 Class A(Please refer to ¨¹EMC Suggestion Circuit¨¹)
Dimension (LxWxH)(mm)	57.9 x 61 x 12.7 mm

Specifications

Brand

Mean Well
Series

MHB Series
Power Rating

75 Watt
Output Voltage

12 Volt
Rated Current

6.25 Ampere
Input Voltage

9V~18V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,EMC,RCM,TUV
Operation Mode

Constant Voltage
Operating Temperature

-55°C~105°C
Warranty

3 Year
Length

2.4 in
Width

2.28 in
Height

0.5 in
Weight

0.2 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the MHB75-12S12 to power 12V automation devices from a 12V battery or DC source?

This unit accepts 9-18V input and provides a constant 12V output, which fits 12V-class DC systems that need regulated output. It is rated for 75W and can supply up to 6.25A at 12V.

Is this converter a fit for 12V embedded control hardware in industrial or vehicle-mounted equipment?

It is suitable for 12V electronics that operate within a 75W load envelope and need constant-voltage output. The converter provides up to 6.25A at 12V from a 9-18V input range.

Can the MHB75-12S12 be used for 12V instrumentation or monitoring modules in harsh temperature environments?

The stated operating temperature range is -55°C to +105°C, so it is rated for very wide-temperature operation. It also provides constant 12V output with up to 6.25A available.

Would this work for compact 12V subsystems where size and weight matter?

The unit measures 61.0 × 57.9 × 12.7 mm and weighs 0.092 kg, which supports use in compact equipment. Its electrical rating is 75W with constant 12V output up to 6.25A from a 9-18V input.

Can I use this converter in an outdoor or exposed location?

The specs list an operating range of -55°C to +105°C, but they do not include an IP rating. Based on the provided data, temperature capability is specified, while exposed outdoor suitability is not.
