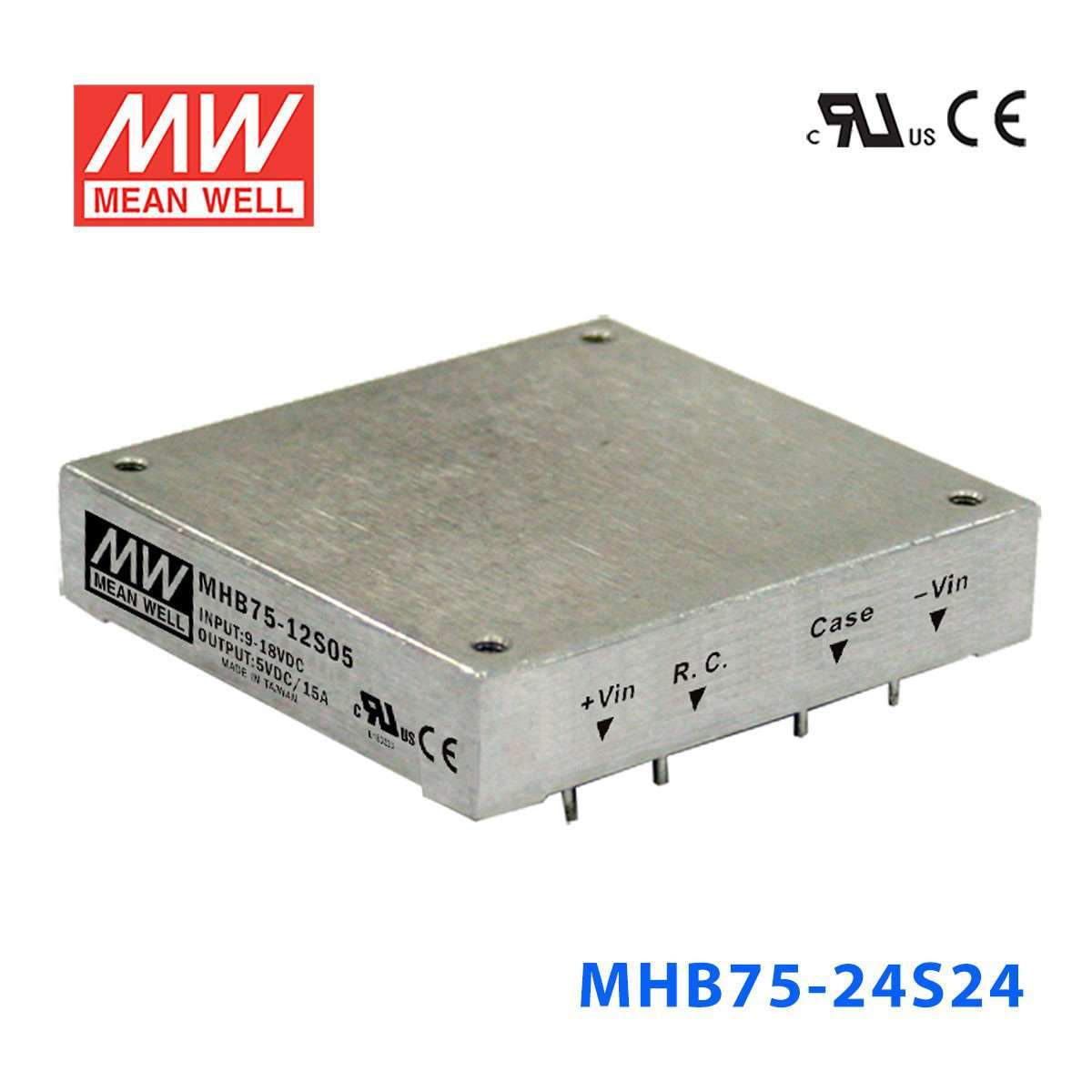

Mean Well MHB75-24S24 DC-DC Converter - 75W - 18~36V in 24V out
Description
Description
Features
| Half-brick size (2.28" 2.4" 0.5") with industry standard pin out |
| 2:1 wide input range |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| High efficiency up to 89% |
| 1500VDC I/O isolation |
| Built-in remote ON/OFF control |
| Built-in remote sense function |
| Trimming output ±10% |
| Five-sided shield metal case |
| Optional heat sinks for extended operating temperature |
| Output 2.5V/3.3V/15V available |
| Approvals: UL / CUL / CE |
| 3 years warranty |
General Specification
| Over current protection | 110%~150% rated output power; Protection type: over current limiting, recovers automatically after fault condition is removed |
| Over temperature protection | Case temperature 100°C±5°C, Over temperature protection enabled |
| Over voltage protection | 115%~140%; Protection mode: Output Voltage clamping by zener diode |
| Withstand voltage | I/P-O/P:1500VDC,I/P-Case:1500VDC,O/P-Case:1500VDC |
| Working temperature | -40~100°C; Thermal shutdown at 100°C±5°C of case temperature(Please refer to Thermal Curve) |
| Safety standards | UL60950-1 approved |
| EMC standards | With external components Compliance to EN55022 Class A(Please refer to ¨¹EMC Suggestion Circuit¨¹) |
| Dimension (LxWxH)(mm) | 57.9 x 61 x 12.7 mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesMHB Series
-
Power Rating75 Watt
-
Output Voltage24 Volt
-
Rated Current3.13 Ampere
-
Input Voltage18V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~105°C
-
Warranty3 Year
-
Length2.4 in
-
Width2.28 in
-
Height0.5 in
-
Weight0.2 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MHB75-24S24 for 24V industrial automation devices?
Yes, it is intended for 24V constant-voltage loads up to 3.13A and 75W. That makes it suitable for industrial automation devices, control electronics, or embedded systems that require a regulated 24V DC output from an 18-36VAC input range.
Is this converter appropriate for 24V monitoring or control modules in compact equipment?
It can fit compact equipment because the housing measures 61.0 × 57.9 × 12.7 mm and weighs 0.092 kg. Electrically, it provides a 24V constant-voltage output with up to 3.13A available.
Can the MHB75-24S24 be used in equipment exposed to very hot or very cold operating conditions?
The specified operating temperature range is -55°C to +105°C, so it is built for applications that see significant temperature variation. For 24V loads within 75W and 3.13A, that wide temperature range is a strong fit indicator for demanding industrial environments.
Is the MHB75-24S24 rated for outdoor installation?
The specs confirm a temperature range of -55°C to +105°C, but they do not include an IP rating. Without an IP rating in the published data, outdoor exposure or wet-location suitability cannot be confirmed here.
What separates the MHB75-24S24 from the other models in this family?
This version uses an 18-36VAC input range and provides 24V at 3.13A, all within the common 75W family rating. The sibling models cover the same 75W platform in three output levels, 5V 15A, 12V 6.25A, and 24V 3.13A, repeated across 9-18VAC, 18-36VAC, and 36-72VAC input groups.
