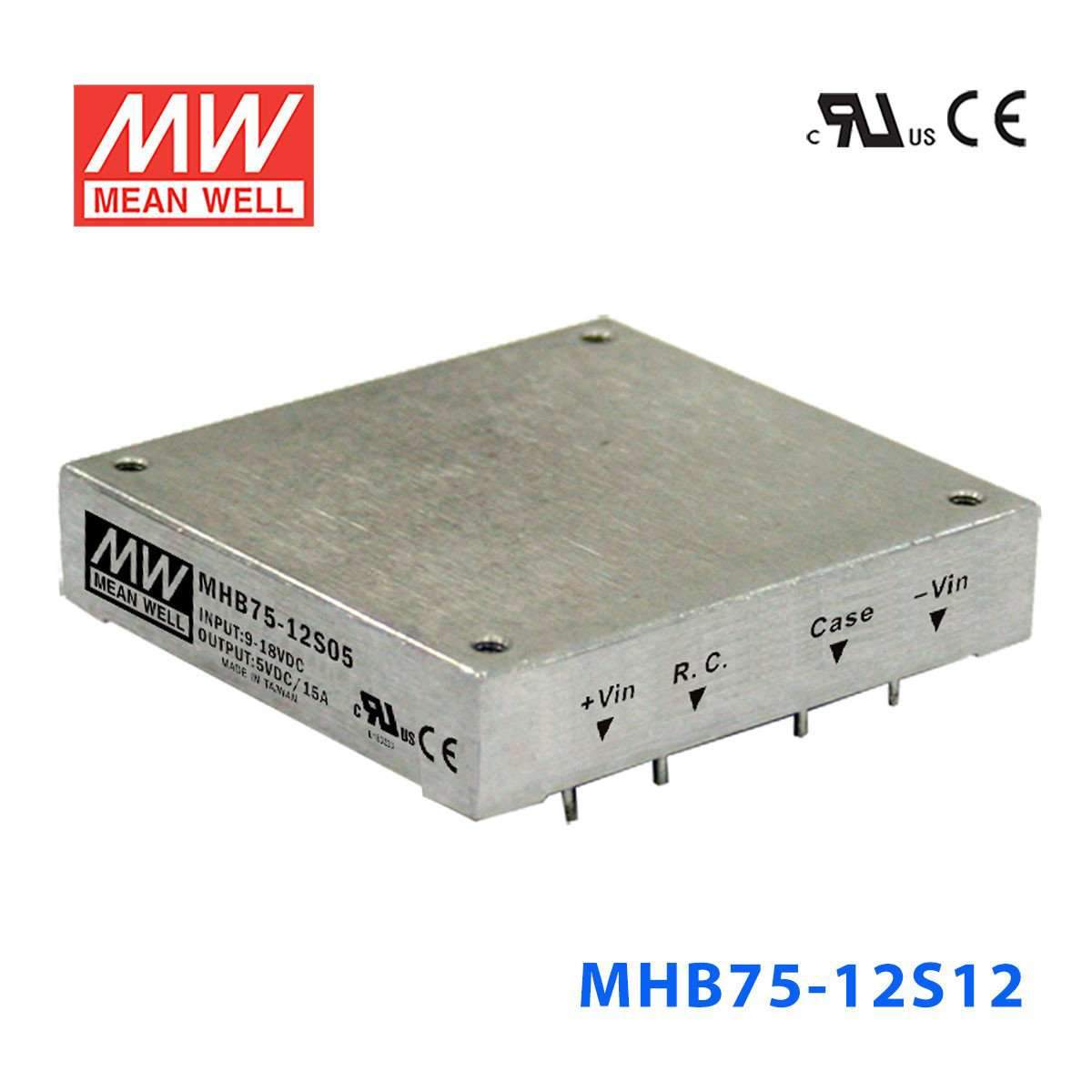

Mean Well MHB75-12S12 DC-DC Converter - 75W - 9~18V in 12V out
The MHB75 is a 75W Mean Well power converter (input range: 9~18VDC).
Key Features
- ✓ Input voltage range: 9~18VDC
- ✓ Protections: Short circuit / Over voltage / Over temperature / Under voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1 EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMHB Series
-
Power Rating75 Watt
-
Output Voltage12 Volt
-
Rated Current6.25 Ampere
-
Input Voltage9V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~105°C
-
Warranty3 Year
-
Length2.4 in
-
Width2.28 in
-
Height0.5 in
-
Weight0.2 lb
::specification::
Frequently Asked Questions
Can I use the MHB75-12S12 to power 12V automation devices from a 12V battery or DC source?
This unit accepts 9-18V input and provides a constant 12V output, which fits 12V-class DC systems that need regulated output. It is rated for 75W and can supply up to 6.25A at 12V.
Is this converter a fit for 12V embedded control hardware in industrial or vehicle-mounted equipment?
It is suitable for 12V electronics that operate within a 75W load envelope and need constant-voltage output. The converter provides up to 6.25A at 12V from a 9-18V input range.
Can the MHB75-12S12 be used for 12V instrumentation or monitoring modules in harsh temperature environments?
The stated operating temperature range is -55°C to +105°C, so it is rated for very wide-temperature operation. It also provides constant 12V output with up to 6.25A available.
Would this work for compact 12V subsystems where size and weight matter?
The unit measures 61.0 × 57.9 × 12.7 mm and weighs 0.092 kg, which supports use in compact equipment. Its electrical rating is 75W with constant 12V output up to 6.25A from a 9-18V input.
Can I use this converter in an outdoor or exposed location?
The specs list an operating range of -55°C to +105°C, but they do not include an IP rating. Based on the provided data, temperature capability is specified, while exposed outdoor suitability is not.
