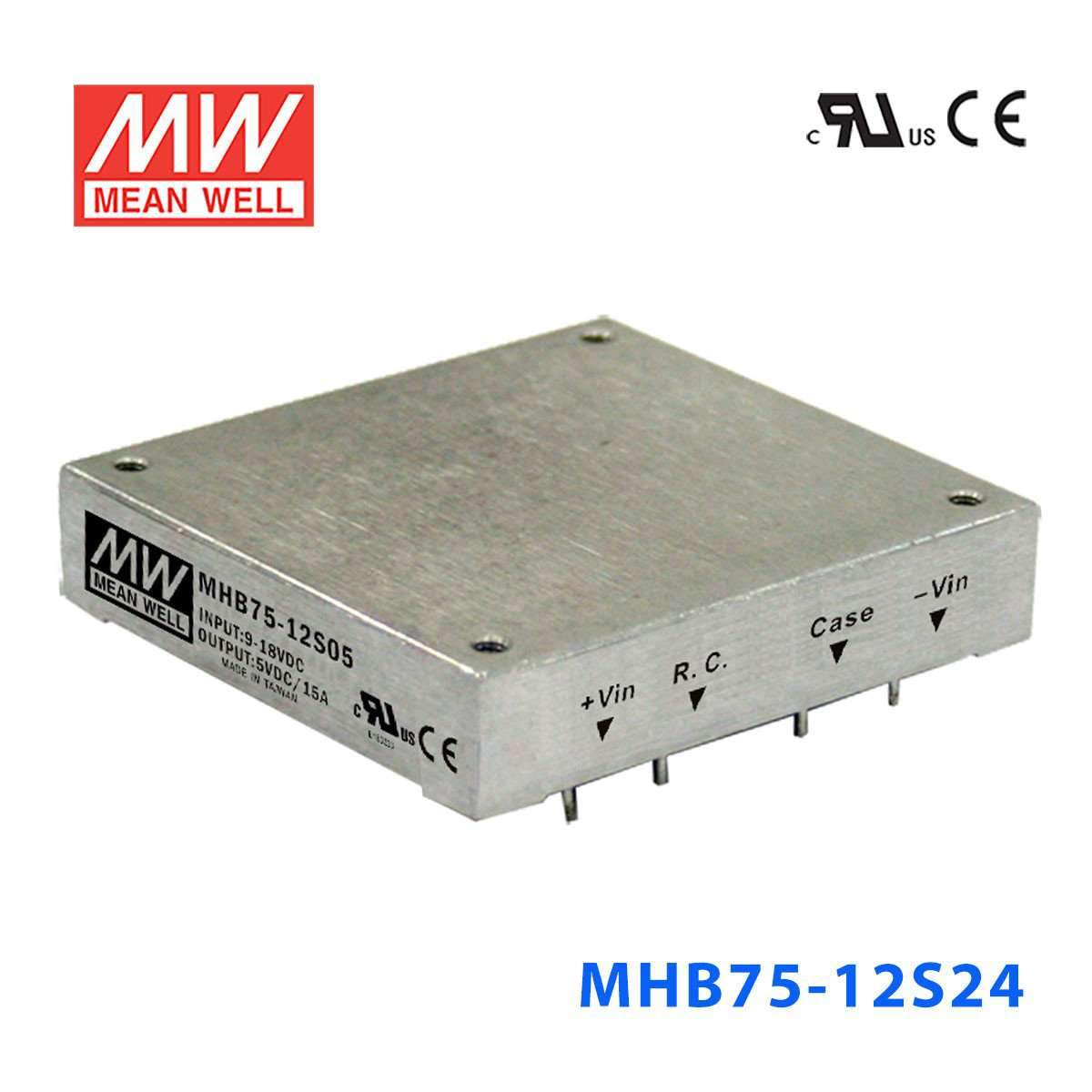

Mean Well MHB75-12S24 DC-DC Converter - 75W - 9~18V in 24V out
The MHB75 is a 75W Mean Well power converter (input range: 9~18VDC).
Key Features
- ✓ Input voltage range: 9~18VDC
- ✓ Protections: Short circuit / Over voltage / Over temperature / Under voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1 EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMHB Series
-
Power Rating75 Watt
-
Output Voltage24 Volt
-
Rated Current3.13 Ampere
-
Input Voltage9V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~105°C
-
Warranty3 Year
-
Length2.4 in
-
Width2.28 in
-
Height0.5 in
-
Weight0.2 lb
::specification::
Frequently Asked Questions
Can I use the MHB75-12S24 for 24V industrial control circuits?
It is suited to 24V constant-voltage equipment that fits within its 75W output and 3.13A output current rating. That makes it a reasonable match for compact industrial control or automation devices that require 24V DC from a 9-18VAC input range.
Is this converter a fit for embedded 24V systems in low-voltage equipment?
This model provides a regulated 24V constant-voltage output at up to 3.13A, so it fits embedded systems designed around a 24V DC rail. Its compact 61.0 × 57.9 × 12.7 mm size also helps where board-space or enclosure space is limited.
Can the MHB75-12S24 be used in automation equipment that needs a wide operating temperature range?
Yes, the specified operating temperature range is -55°C to +105°C, which is unusually broad for industrial electronics. For automation hardware exposed to very low or very high ambient temperatures, that range is a key suitability point in addition to the 24V, 75W constant-voltage output.
Is the MHB75-12S24 suitable for outdoor or washdown environments?
The provided specs list an operating temperature range of -55°C to +105°C, but they do not list an IP rating. Because no ingress-protection rating is provided here, outdoor or washdown suitability cannot be confirmed from these specs alone.
How does the MHB75-12S24 compare with the other MHB75 series models?
All listed MHB75 siblings are 75W converters, but they differ by input range and output voltage/current. The 12-input group includes MHB75-12S05 at 5V 15A, MHB75-12S12 at 12V 6.25A, and MHB75-12S24 at 24V 3.13A; the 24-input group includes MHB75-24S05, MHB75-24S12, and MHB75-24S24 with the same three outputs; the 48-input group includes MHB75-48S05, MHB75-48S12, and MHB75-48S24 with the same three outputs.
