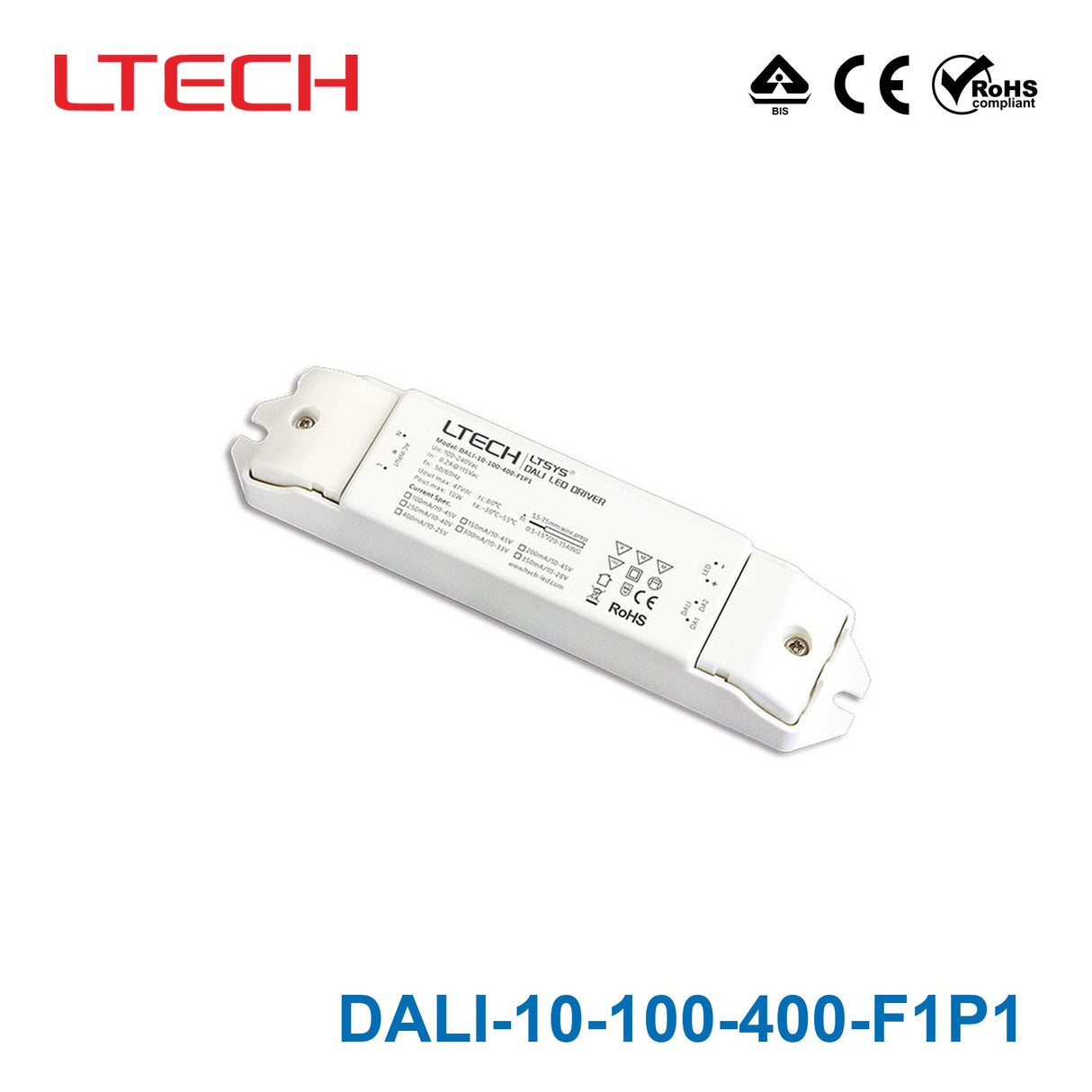

LTECH DALI-10-100-400-F1P1 10W 100mA ~ 400mA CC Dali LED Driver - S...
$53.45 USD
Unit price /
Unavailable
| Model: | DALI-10-100-400-F1P1 |
| Dimming interface: | DALI |
| Dimming range: | 0-100%, LED Startup Current<0.1% |
| Input voltage: | 100-240Vac |
| Efficiency: | >79% |
| Output voltage: | 10-45Vdc |
| Current Accuracy: | ±3% |
| working temperature: | -30℃～55℃ |
| Dimension: | 135x30x20mm(LxWxH) |
| Package Size: | 140x24x23mm(LxWxH) |
-
BrandLtech
-
SeriesLtech DALI Series
-
Power Rating10 Watt
-
Output Voltage47 Volt
-
Rated Current0.1 Ampere
-
Input Voltage100V~240V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Current
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length5.32 in
-
Width1.18 in
-
Height0.79 in
-
Weight1.76 lb
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other DALI-10 Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| LTECH DALI-10-350-700-F1P1 10W 350mA ~ 700mA CC Dali LED Driver - Selectable Output | 10W | 26V | 0.35A | Indoor | $53.45 | View |
