Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

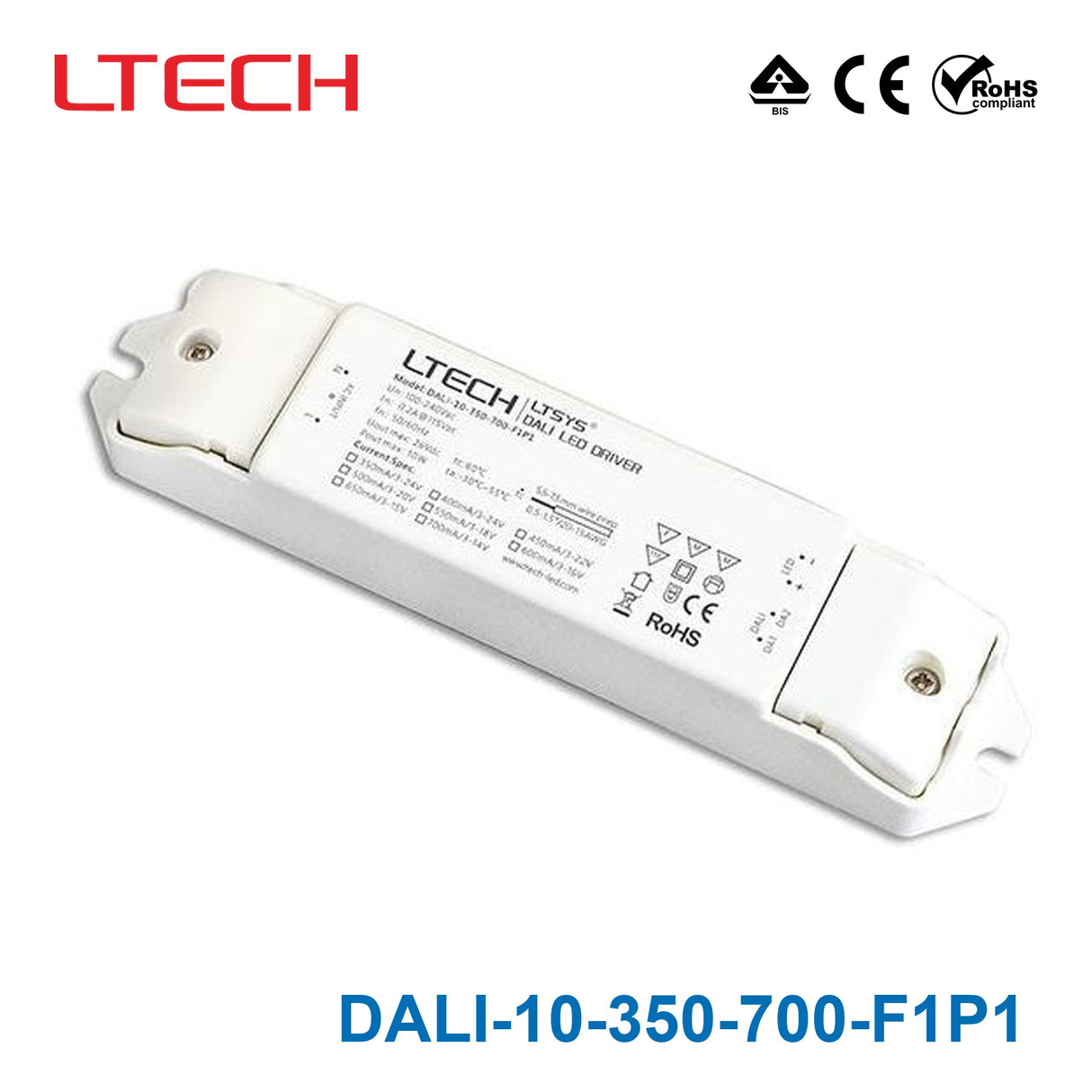

LTECH DALI-10-350-700-F1P1 10W 350mA ~ 700mA CC Dali LED Driver - S...
$53.45 USD
Unit price /
Unavailable
Description
Description
- Dimming interface: DALI
- T-PWM digital dimming
- present a perfect visual experience
- Dimming range: 0~100%
- LED start at 0.01% possible.
- Flicker-free (IEEE 1789)
- achieve the level of exemption assessment.
- Innovative thermal management technology
- intelligent power life protection.
- DALI dimming curve can be either linear or logarithmic.
- Non-load output voltage 0V to prevent damages to LED caused by poor contact
- Over load/Over heat
- short circuit protection
- Class 2 power supply. Full protective plastic housing
- DALI bus standard: IEC62386-101
- 102
- 207
- Compliant with Safety Extra Low Voltage standard.
- Suitable for internal lights application for I/II/III
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DALI Series
-
Power Rating10 Watt
-
Output Voltage26 Volt
-
Rated Current0.35 Ampere
-
Input Voltage100V~240V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Current
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length5.32 in
-
Width1.18 in
-
Height0.79 in
-
Weight1.76 lb
