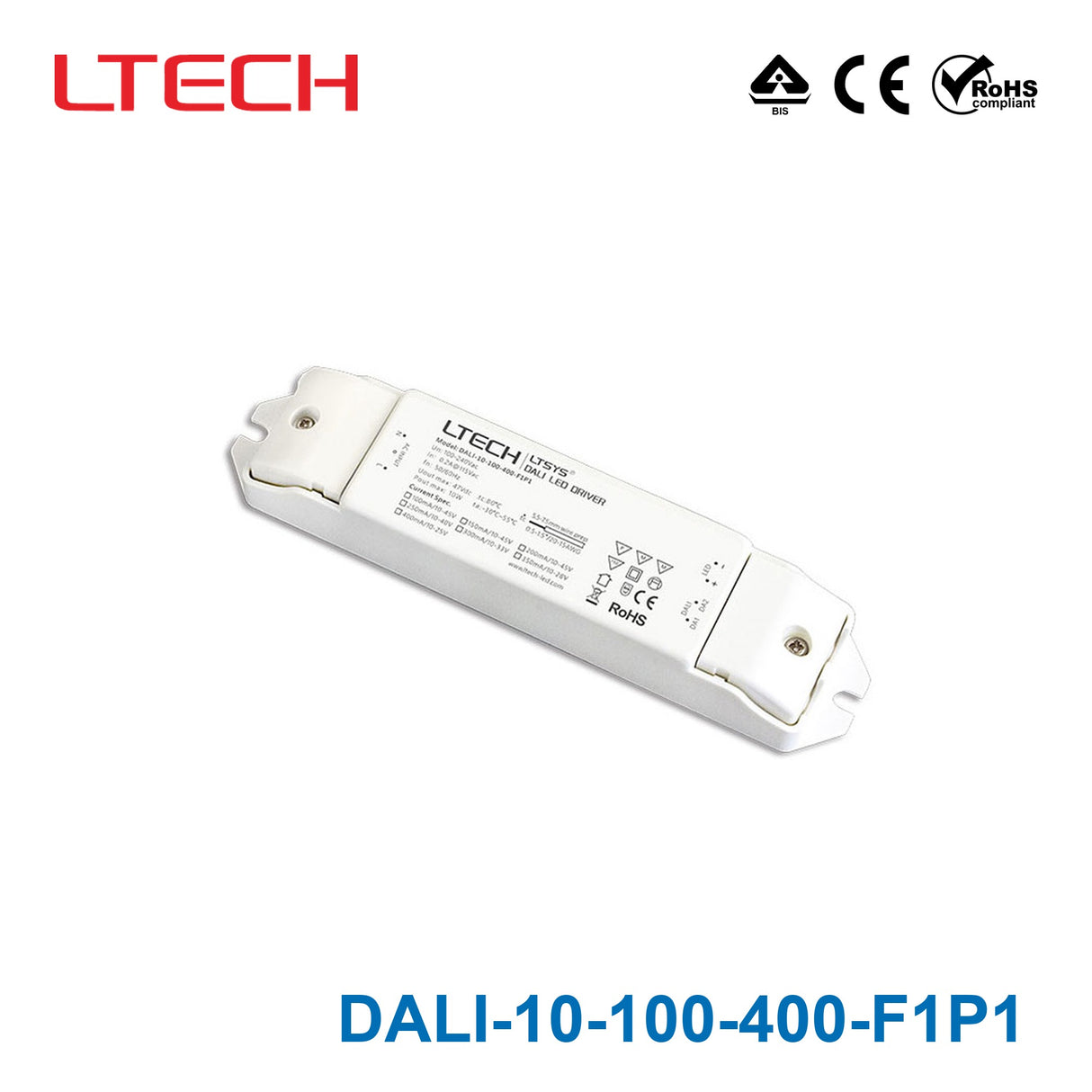

LTECH DALI-10-100-400-F1P1 10W 100mA ~ 400mA CC Dali LED Driver - Selectable Output

SKU:
DALI-10-100-400-F1P1

$53.45 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Model: DALI-10-100-400-F1P1
Dimming interface:  DALI
Dimming range: 0-100%,  LED Startup Current<0.1%
Input voltage:  100-240Vac
Efficiency: >79%
Output voltage: 10-45Vdc
Current Accuracy: ±3%
working temperature: -30℃~55℃
Dimension: 135x30x20mm(LxWxH)
Package Size: 140x24x23mm(LxWxH)

Specifications

  • Brand
    Ltech
  • Series
    Ltech DALI Series
  • Power Rating
    10 Watt
  • Output Voltage
    47 Volt
  • Rated Current
    0.1 Ampere
  • Input Voltage
    100V~240V
  • No of Output
    1
  • Dimming Control
    DALI
  • Standards Met
    BIS,CE,ROHS
  • Operation Mode
    Constant Current
  • Operating Temperature
    -30°C~55°C
  • Warranty
    5 Year
  • Length
    5.32 in
  • Width
    1.18 in
  • Height
    0.79 in
  • Weight
    1.76 lb
