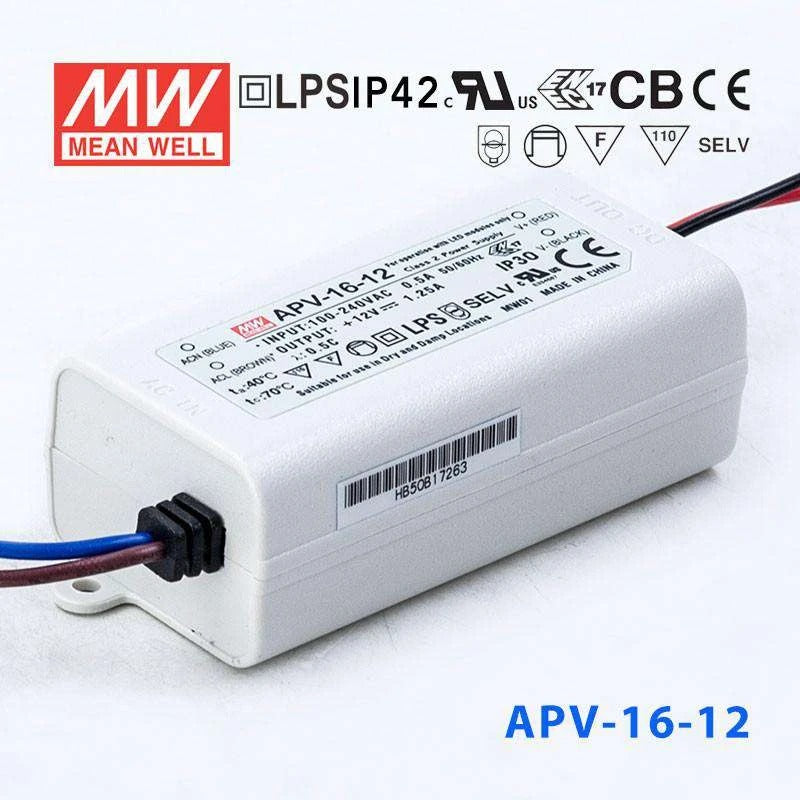

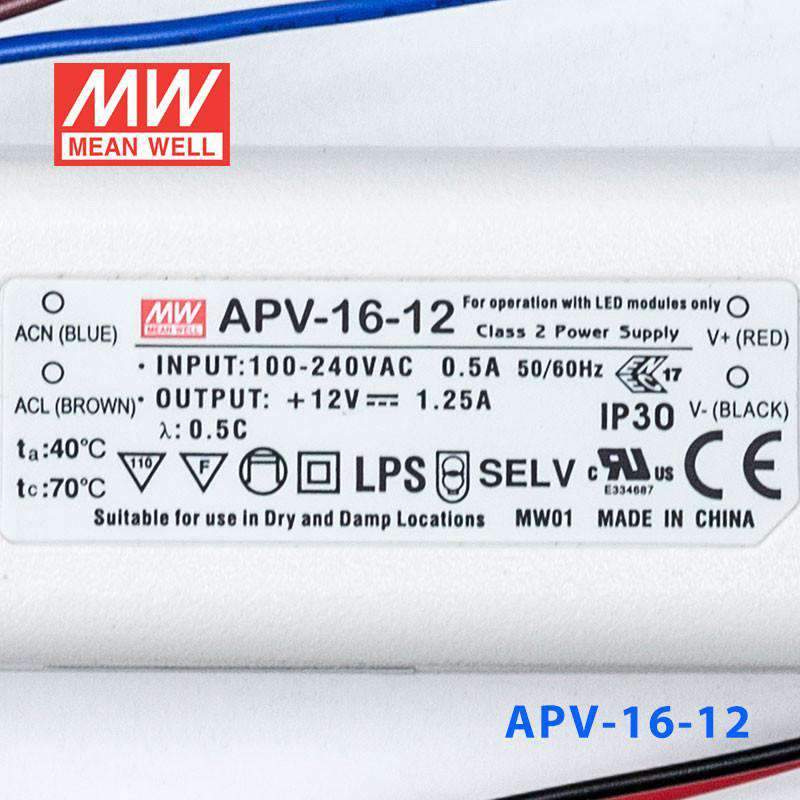

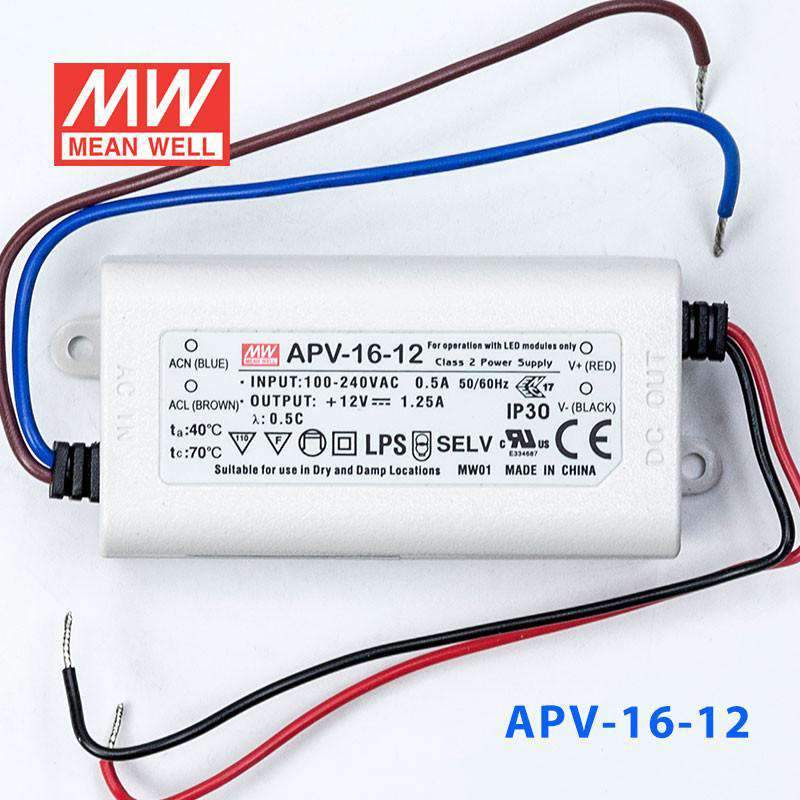

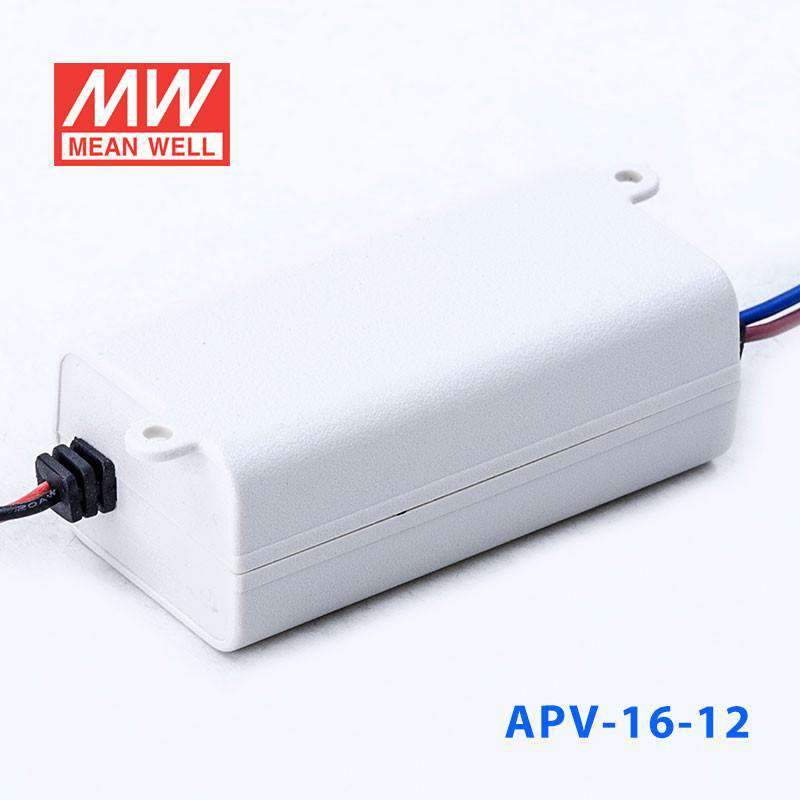

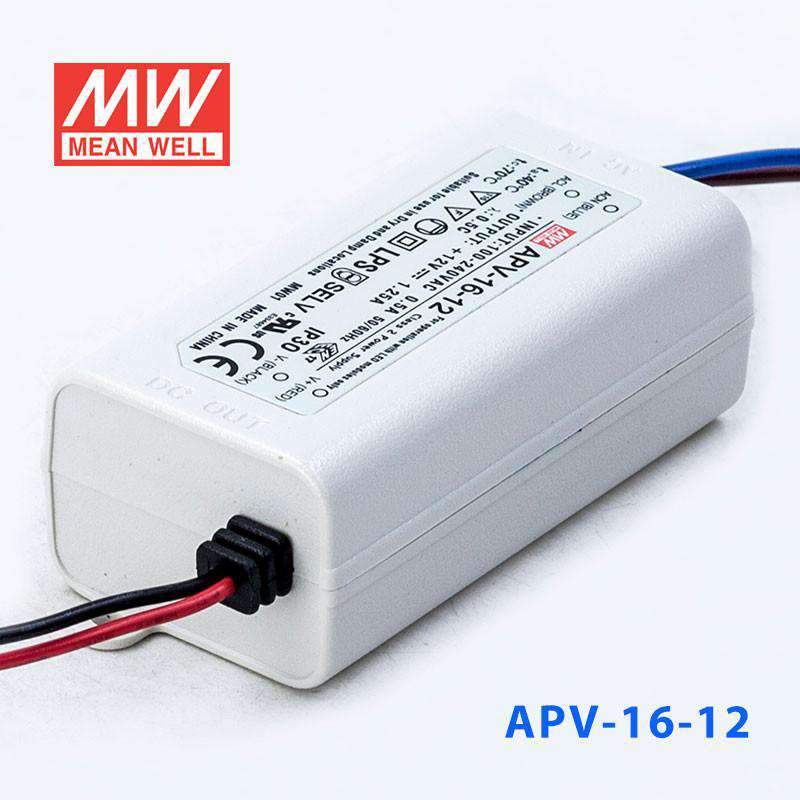

Mean Well APV-16-12 Power Supply 15W 12V
The APV-16 is a 16W Mean Well. power converter. and an input range of 90~264VAC.
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: Note.8 UL8750,CSA C22.2 No.250.0-08, NEC E EN61347-1,EN61347-2-13,EN62384 Independent,IP 42
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesAPV Series
-
Power Rating15 Watt
-
Output Voltage12 Volt
-
Rated Current1.25 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length3.03 in
-
Width1.57 in
-
Height1.14 in
-
Weight0.22 lb
::specification::
Frequently Asked Questions
What 12V LED lighting tasks is the APV-16-12 suited to?
The APV-16-12 outputs 12V at 1.25A for a maximum of 15W. It suits 12V LED strip runs in display cases, retail shelving, under-cabinet fixtures, and small illuminated signage where the total load does not exceed 15W.
How many meters of 12V LED strip can the APV-16-12 power?
The APV-16-12 delivers 15W at 12V. At a strip rated 4.8 W/m, that supports approximately 3.1 m. Divide 15W by your strip's rated power per meter to find your maximum run, and check your strip's rated power per meter before finalizing the design.
How does the APV-16-12 compare to the APV-12-12 and APV-25-12 at 12V?
All three output 12V. The APV-12-12 provides 12W at 1A in a 77.0 × 40.0 × 29.0 mm housing. The APV-16-12 provides 15W at 1.25A in the same size enclosure. The APV-25-12 provides 25.2W at 2.1A in a larger 84.0 × 57.0 × 29.5 mm housing. Select based on your total wattage requirement.
Is the APV-16-12 appropriate for a damp indoor environment?
The APV-16-12 is rated IP42, which guards against solid objects larger than 1 mm and dripping water at up to 15° from vertical. It is suitable for clean, dry to lightly damp indoor locations but not for outdoor, rain-exposed, or splashing environments. Wet-location LED installations require a driver rated IP65 or higher.
