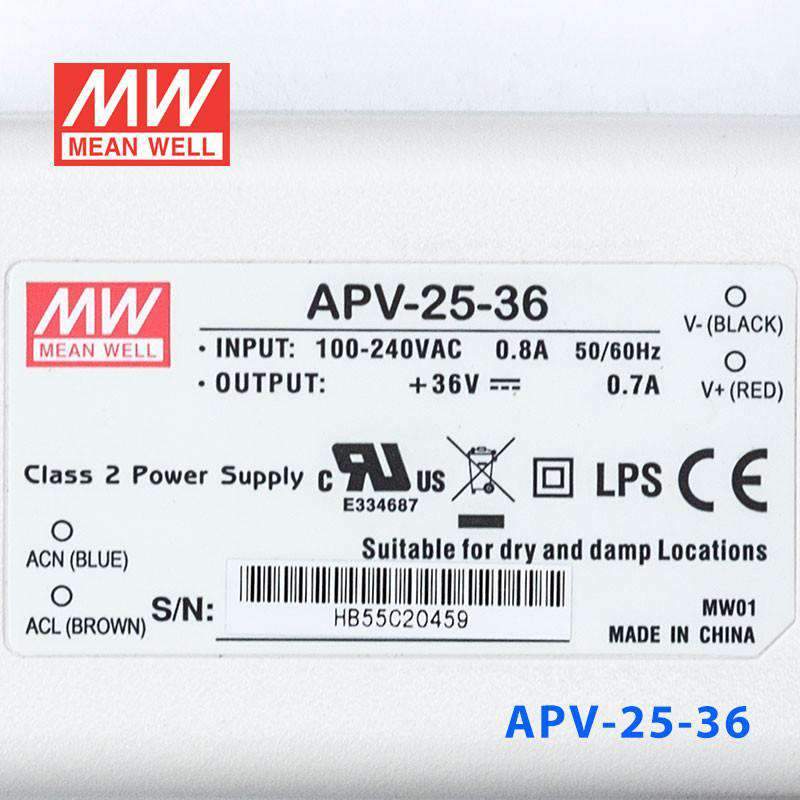

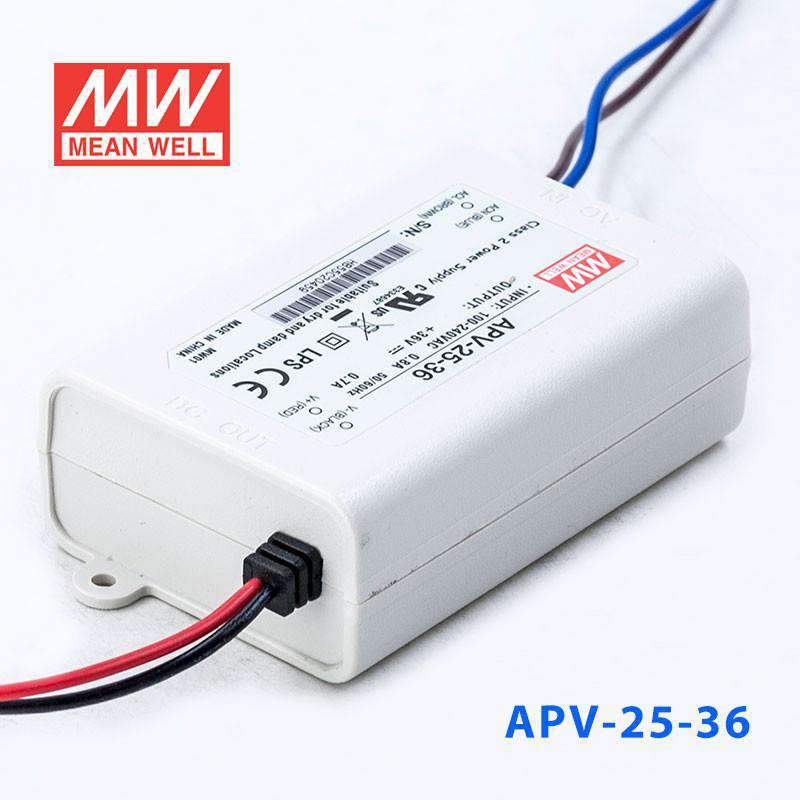

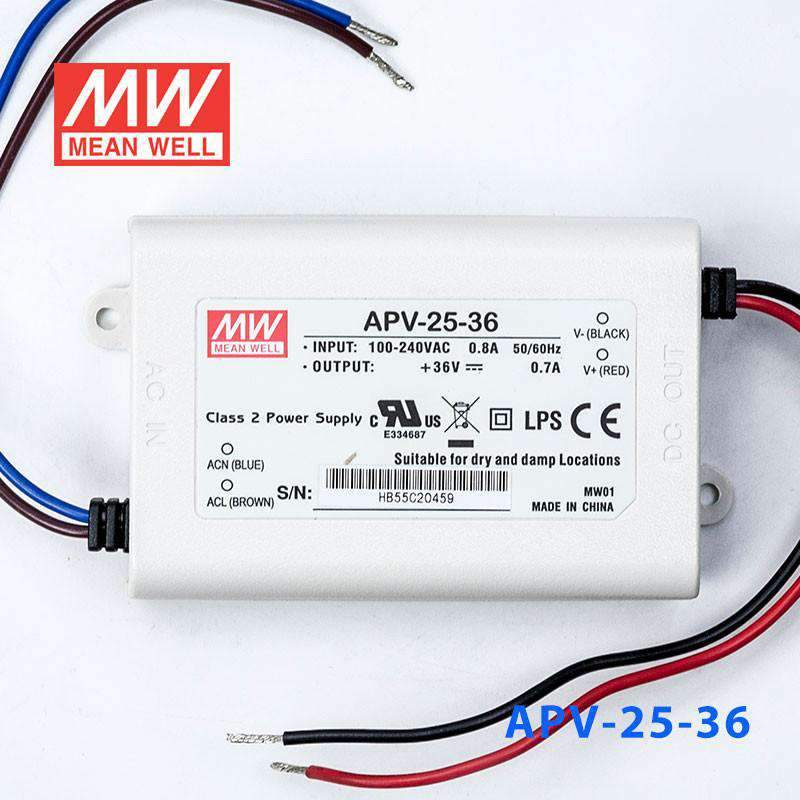

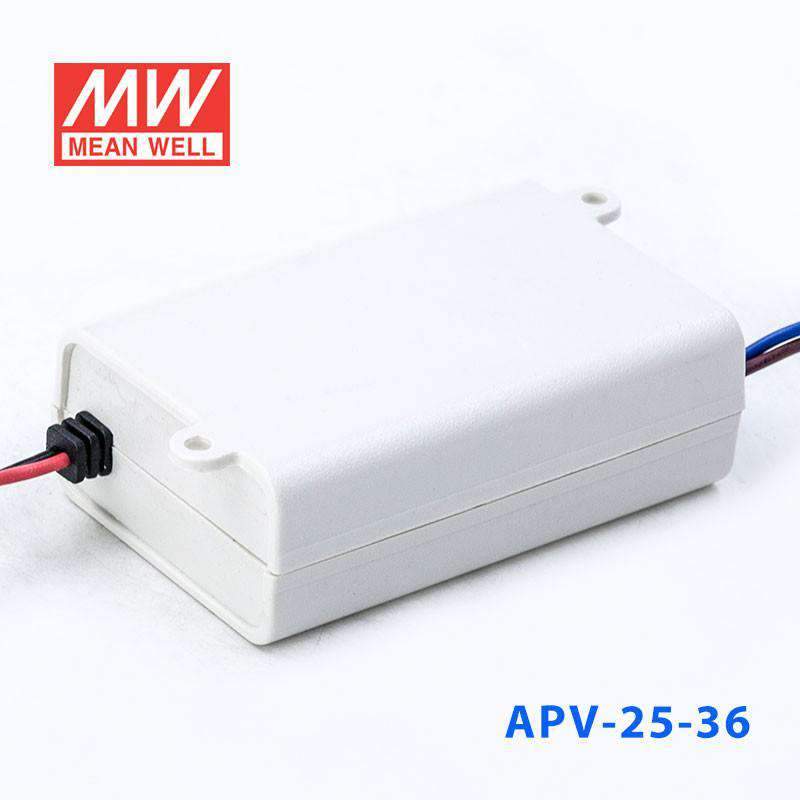

Mean Well APV-25-36 Power Supply 25W 36V
The APV-25 is a 25W Mean Well. power converter. and an input range of 90~264VAC.
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: UL8750 , CSA-C22.2 No. 250.0-13, IP42
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesAPV Series
-
Power Rating25.2 Watt
-
Output Voltage36 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length3.31 in
-
Width2.24 in
-
Height1.16 in
-
Weight0.29 lb
::specification::
Frequently Asked Questions
What LED lighting systems operate at 36V and would use the APV-25-36?
The APV-25-36 outputs 36V at 0.7A for a maximum of 25.2W. It suits 36V LED strip products, some LED module arrays designed for 36V nominal supply, and specialty LED signage components rated at 36V. Always verify your LED product's nominal voltage is 36V before selecting this driver.

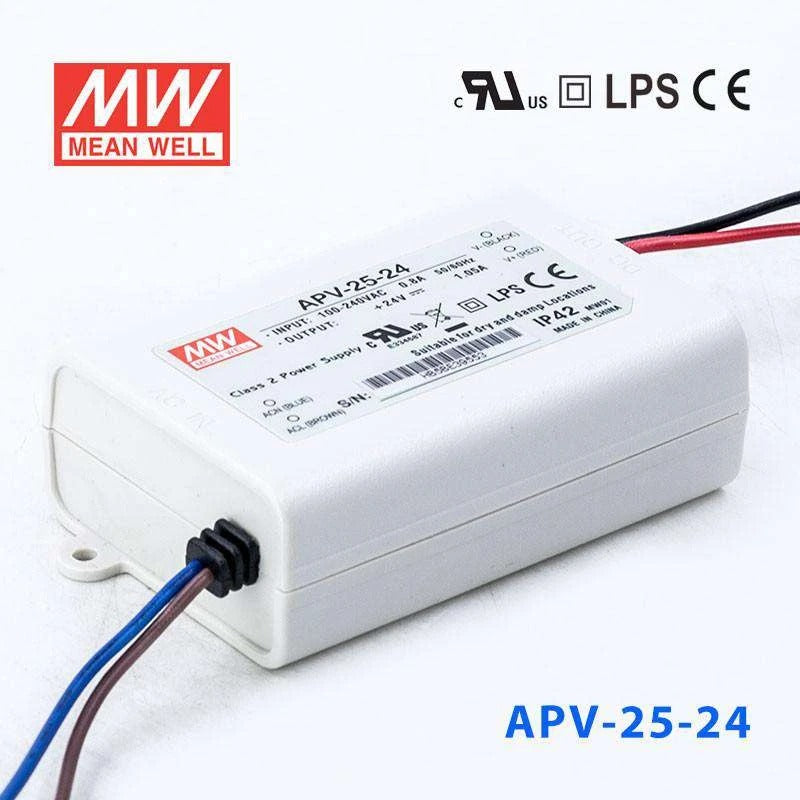

How does the APV-25-36 differ from the APV-25-24 and APV-25-12 in the same wattage class?
All three APV-25 variants provide approximately 25.2W from the same 84.0 × 57.0 × 29.5 mm housing and 90–264VAC input. The APV-25-12 outputs 12V at 2.1A; the APV-25-24 outputs 24V at 1.05A; the APV-25-36 outputs 36V at 0.7A. The output voltage determines which load voltage they match — wattage and form factor are identical.
How much 36V LED strip can the APV-25-36 support?
The APV-25-36 delivers 25.2W at 36V. At a 36V strip rated 7.2 W/m, the maximum length is approximately 3.5 m. Divide 25.2W by your strip's rated power per meter to calculate your specific maximum, and check your strip's rated power per meter before purchasing.
Is the APV-25-36 suitable for outdoor LED signage?
The APV-25-36 carries an IP42 rating, which protects against solid objects larger than 1 mm and light dripping water only. It is not rated for outdoor, rain, or splash environments. For outdoor 36V LED signage, the driver must be installed in a sealed IP65 or higher rated enclosure, or a driver with higher native IP protection must be selected.
