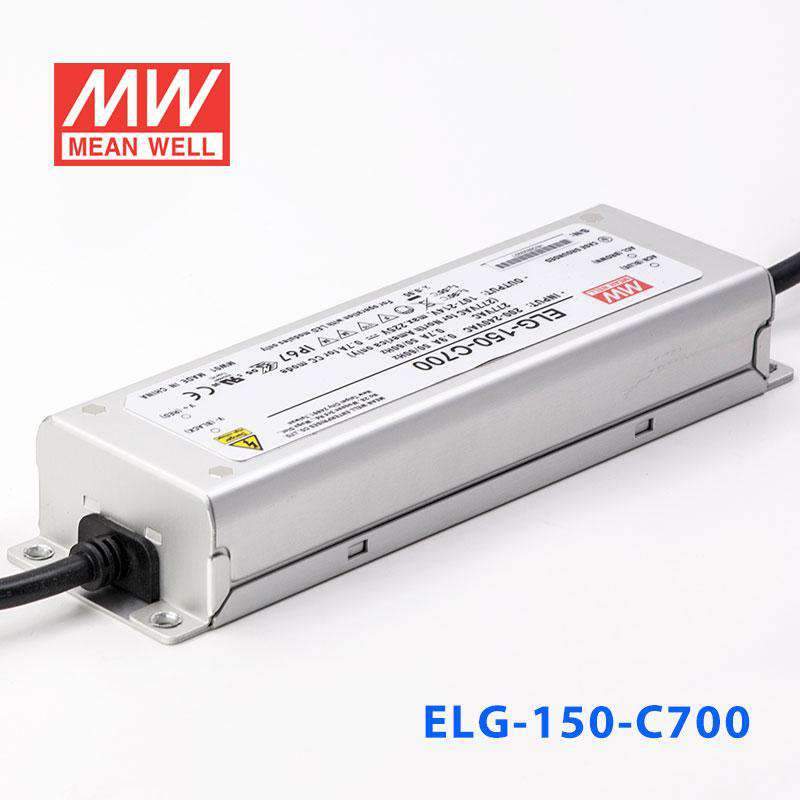

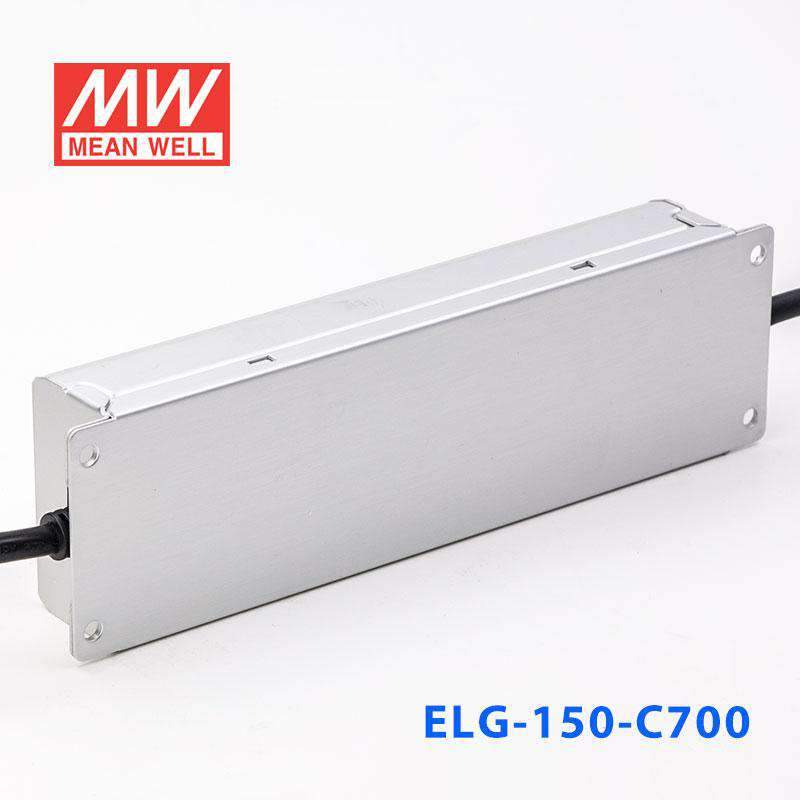

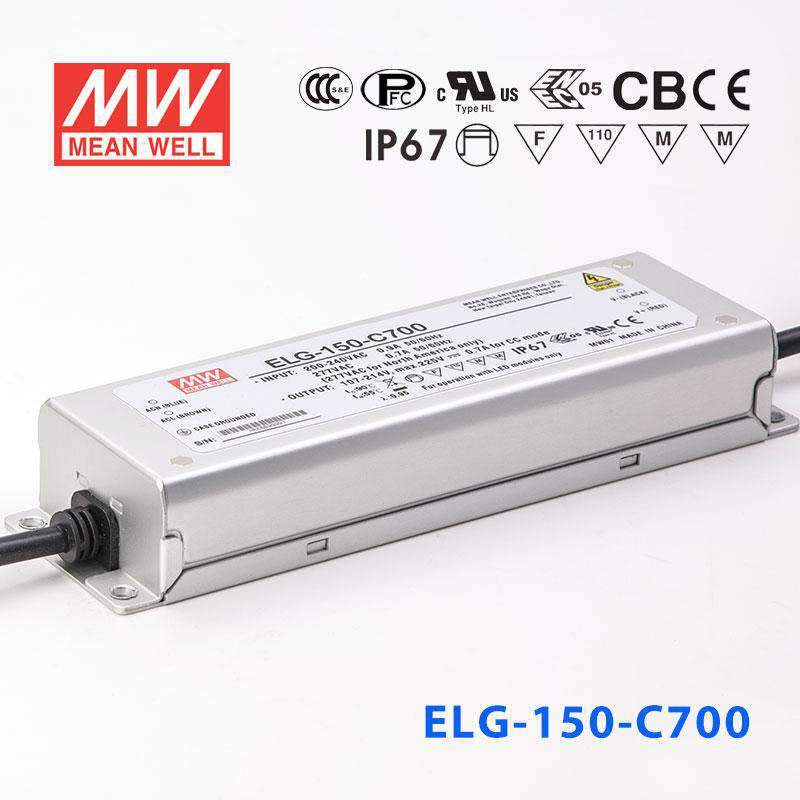

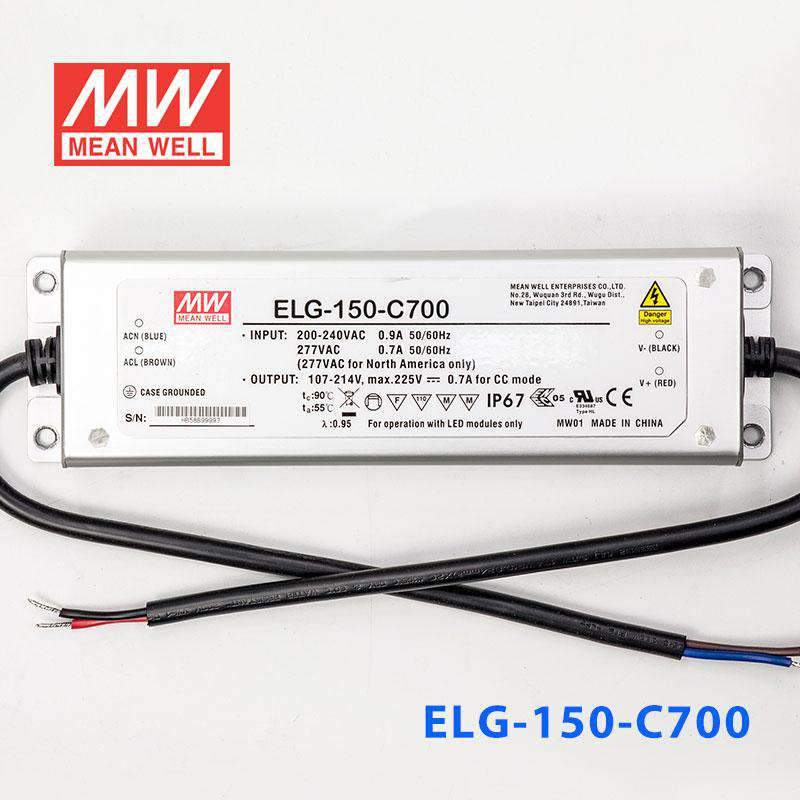

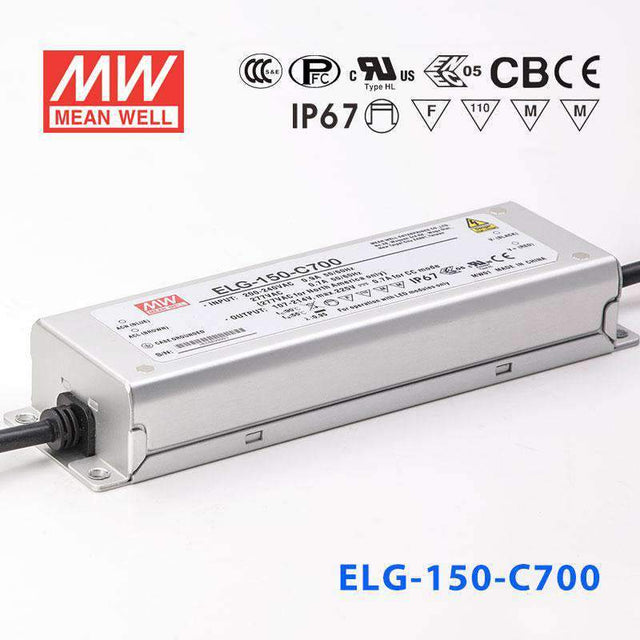

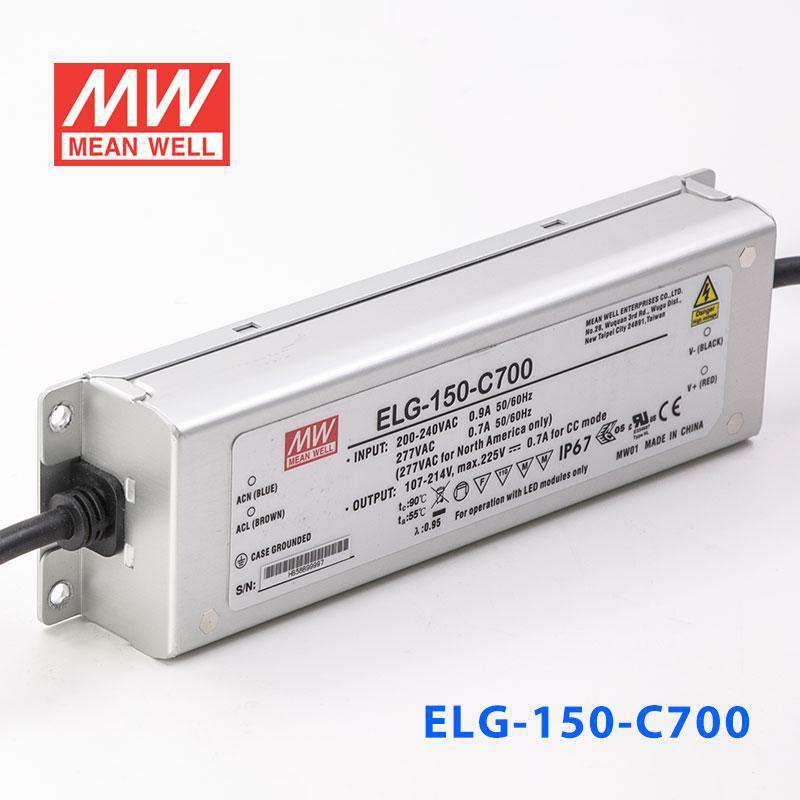

Mean Well ELG-150-C700 Power Supply 150W 700mA
The ELG-150 is a 150W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating149.8 Watt
-
Output Voltage225 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
Can the ELG-150-C700 drive high-voltage LED downlight arrays in commercial ceiling fixtures?
Yes. The ELG-150-C700 operates as a constant current driver at 700mA with a CC voltage range of 107–214V, making it well matched to series-connected LED downlight arrays that operate in that voltage band. At 149.8W, it can sustain a substantial number of series LEDs depending on each LED's forward voltage.
Is the ELG-150-C700 suitable for outdoor LED signage modules?
Yes. The ELG-150-C700 is rated IP67, meaning it is fully sealed against dust and temporary water immersion. It can be mounted inside outdoor sign cabinets or raceway enclosures exposed to rain without additional weatherproofing, and its -40°C to +90°C operating range handles broad temperature swings.
Can I use this driver to power an LED street light or parking lot fixture?
Yes. The IP67 waterproof rating and wide operating temperature range of -40°C to +90°C make the ELG-150-C700 appropriate for outdoor luminaire applications such as street and area lighting. The constant current output at 700mA maintains stable LED brightness regardless of ambient temperature variation.
How many LEDs can the ELG-150-C700 drive in a series string?
The ELG-150-C700 operates over a CC voltage range of 107–214V at 700mA. The number of LEDs in the series string depends on each LED's forward voltage — divide the operating voltage by the individual LED forward voltage to estimate string length. Do not exceed the 214V upper limit of the CC range.
Does the ELG-150-C700 work with 277V commercial electrical systems?
Yes. The ELG-150-C700 accepts input voltages from 100 to 305VAC, which covers standard 277V commercial single-phase circuits used in North American commercial buildings. This makes it suitable for direct installation in commercial lighting projects without a step-down transformer.
What is the difference between the ELG-150-C700 and the ELG-150-C700B?
Both models share identical output specs — 149.8W, 700mA, CC voltage range 107–214V — and the same IP67 waterproof rating, dimensions, and operating temperature range. The ELG-150-C700B adds built-in dimming capability via the B suffix, while the ELG-150-C700 is a fixed-output driver with no dimming control.
Can the ELG-150-C700 be installed in an unventilated outdoor enclosure?
The ELG-150-C700 is rated for operation up to +90°C ambient temperature with its metal case providing passive heat dissipation. For sealed enclosures, ensure that the ambient temperature inside the enclosure does not exceed this threshold, as sustained overtemperature will reduce driver lifespan.
