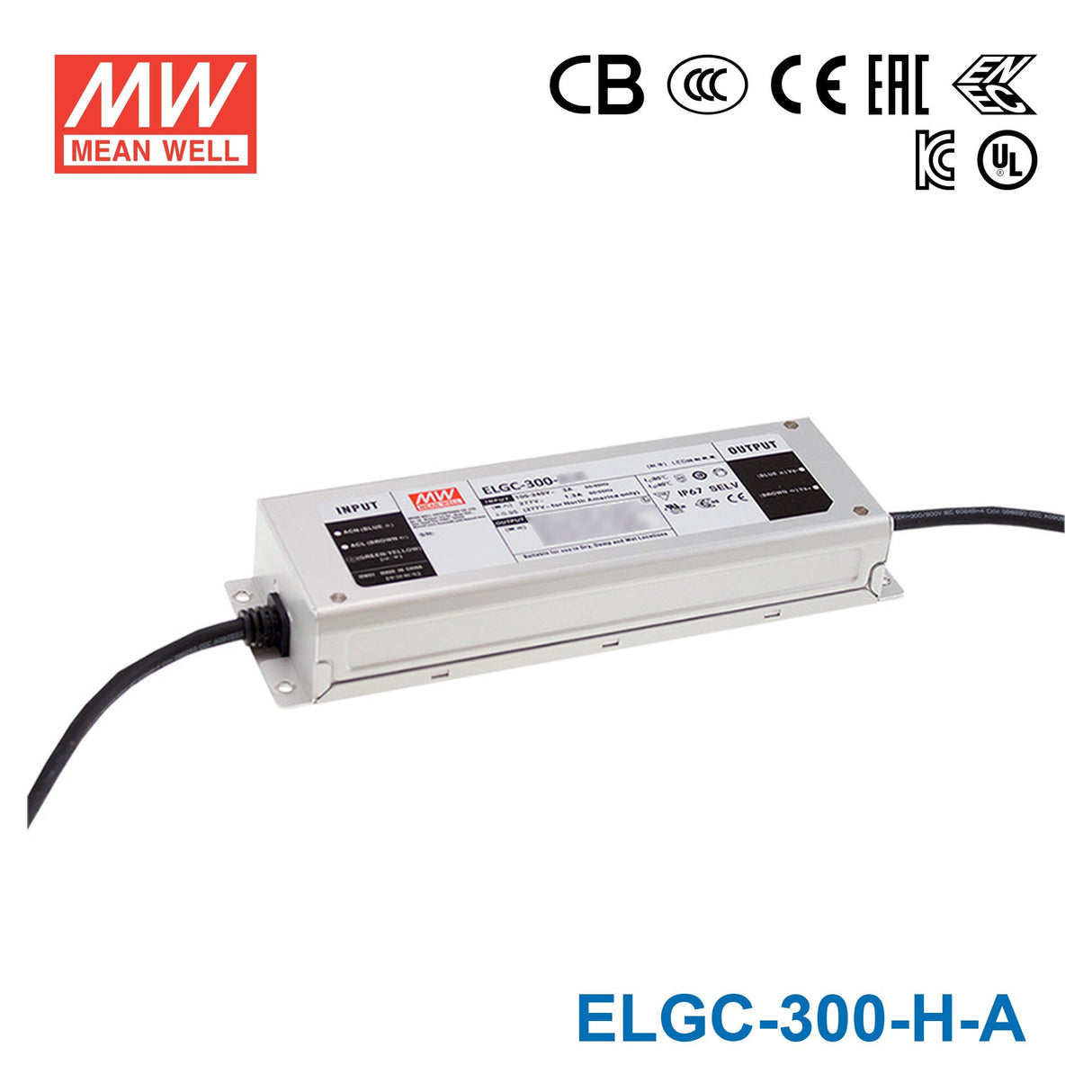

Mean Well ELGC-300-H-A Power Supply 300W 5600mA - Adjustable
The ELGC-300-H is a 300W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELGC-H Series
-
Power Rating301 Watt
-
Output Voltage62 Volt
-
Rated Current5.6 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,KC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.69 in
-
Width3.03 in
-
Height1.56 in
-
Weight3.2 lb
::specification::
Frequently Asked Questions
Can I use the ELGC-300-H-A for high-output LED downlights?
Yes, if the downlight requires a constant-current driver at 5600mA and the LED load operates within the 29-58V constant-current range. With 301W output, this model is intended for high-power LED assemblies rather than small constant-voltage fixtures.
Is the ELGC-300-H-A suitable for powering larger signage LED modules?
It can be used for signage modules when the lighting system is built as a constant-current load at 5600mA. It is not a constant-voltage supply, so it is not the right choice for signage modules that require a fixed-voltage input.
Can this driver run a high-power small LED array for commercial lighting?
Yes, if the LED array is specified for 5600mA constant current and its total forward voltage stays within 29-58V. The 301W power rating supports much larger LED arrays than lower-wattage drivers in the same general category.
Is the ELGC-300-H-A appropriate for damp or outdoor environments?
This model has an IP65 water-resistant rating and an operating temperature range of -40°C to +85°C. That makes it suitable for demanding environments where a sealed driver is needed, but its listed protection level is IP65 rather than IP67.
What is the difference between the ELGC-300-H-A and the other ELGC-300 current ranges?
The ELGC-300 family is split by output current and constant-current range: ELGC-300-H models are 5600A with 29-58V and 301W, ELGC-300-M models are 2800A with 58-116V and 301W, and ELGC-300-L models are 1400A with 116-232V and 301W. The ELGC-300-H-A is the high-current, lower-voltage version in that 300W family.
