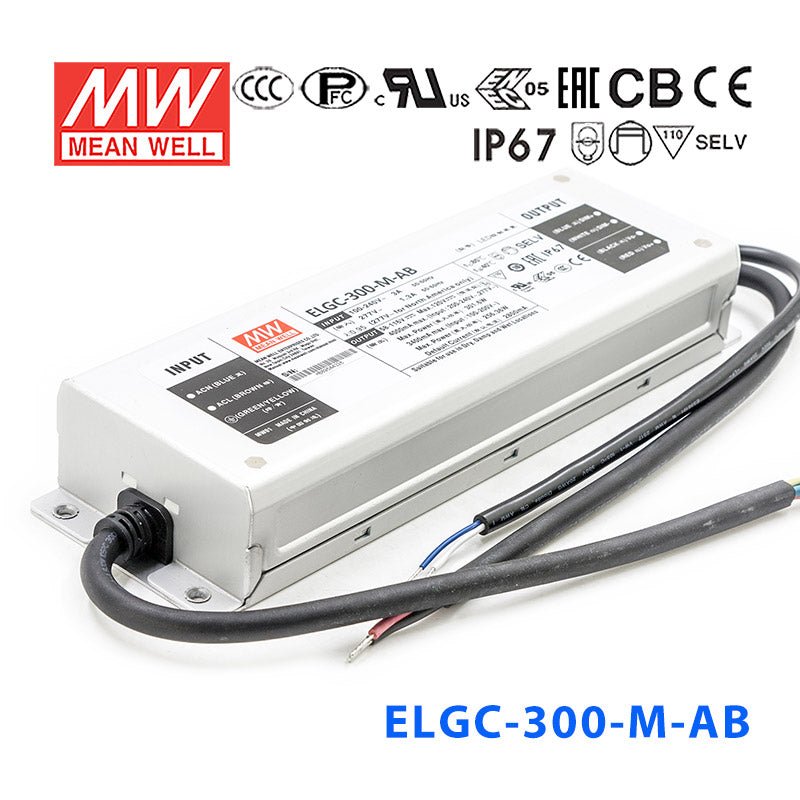

Mean Well ELGC-300-H-A Power Supply 300W 5600mA - Adjustable

Name: Mean Well ELGC-300-H-A Power Supply 300W 5600mA - Adjustable
Brand: Mean Well
SKU: ELGC-300-H-A
Price: 78.1 USD
Availability: InStock

SKU ELGC-300-H-A

$78.10 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

ELGC-300-H-A is the model of this series: typical efficiency 92.5%.

ELGC-300 series is a 300W LED AC/DC driver featuring the constant power mode and high voltage output. ELGC-300 operates from 100~305VAC and offers models with different rated current ranging between 1300mA and 8000mA. Thanks to the high efficiency up to 94.5%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. ELGC-300 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Full power at 65~100% operation(Constant Power )
Protection Functions: OCP,SCP,OVP,OTP
IP67 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; DALI-2 dimming
Typical lifetiem>50000 hours and 5 years warranty
Surge protection with 6KV/4KV
Latest safety requriirements of IEC61347/GB/T19510 and UL8750

Specifications

ELGC-300-H-ASpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

DEFAULT CURRENT: 5600mA
RATED POWER (200 ~ 305VAC): 301
RATED POWER (100 ~ 180VAC): 256W
CONSTANT CURRENT REGION: 29 ~ 58V
FULL POWER CURRENT RANGE: 5200~8000mA
OPEN CIRCUIT VOLTAGE (max.): 62V
CURRENT ADJ. RANGE (200 ~ 305VAC): 2600~8000mA
CURRENT ADJ. RANGE (100 ~ 180VAC): 2600~6800mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.9: 500ms/230VAC, 500ms/115VAC

INPUT

VOLTAGE RANGE^Note.2: 100 ~ 305VAC 142VDC ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" ang “ DRIVING METHODS OF LED MODULE"section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97 / 115VAC, PF≧0.95 / 230VAC, PF≧0.92 / 277VAC at full load (Please refer to "Power Factor Characteristic" section)
TOTAL HARMONIC DISTORTION: THD< 10% (@ load≧50% at 115VAC/230VAC ,@load≧75% at 277VAC) Please refer to “TOTAL HARMONIC DISTORTION (THD)” section
EFFICIENCY (Typ.): 92.5%
AC CURRENT (Typ.): 3A / 115VAC 1.6A / 230VAC 1.3A / 277VAC
INRUSH CURRENT(Typ.): COLD START 45A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
STANDBY POWER CONSUMPTION^Note.5: Standby power consumption <0.5W for AB / ADA-Type(Dimming OFF)

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 61 ~ 78V Shut down output voltage, re-power on to recovery
OVER TEMPERATURE: Tcase>85℃±5℃,derate power automatically by 6%/℃ max

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;GB/T19510.1,GB/T19510.213; IP67;KC61347-1,KC61347-2-13 approved; Designed refer to AS/NZS 61347 & AS/NZS 60598
DALI STANDARDS: Compliance to IEC62386-101,102,207 for ADA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%); BS EN/EN61000-3-3;GB/T 17743,GB17625.1;KN15
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV);KN61547

OTHERS

MTBF: 1637.5K hrs min. Telcordia SR-332 (Bellcore) ;170.1K hrs min. MIL-HDBK-217F (25℃)
LIFETIME^Note.4: 50000 hrs min.
DIMENSION: 246*77*39.5mm (L*W*H)
PACKING: 1.45Kg;9pcs/14Kg/0.76CUFT

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
4. This series meets the typical life expectancy >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is 70℃ or less.
5. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED driver can only be used behind a switch without permanently connected to the mains.
6. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
9. Based on IEC 62386-101/102 DALI power on timing and interruption regulations, the set up time needs to test with a DALI controller which can support for DALI power on function, otherwise the set up time will be higher than 0.5 second for DA type.
10. RCM is on a voluntary basis. Non IC classification Independent LED control gear is not suitable for residential installations.
11. Products sourced from the Americas regions may not have the ENEC/BIS/CCC/KC logo. Please contact your MEAN WELL sales for more information.
12. For A/AB/ADA type need to consider build in using to comply with Type HL application

Technical drawings

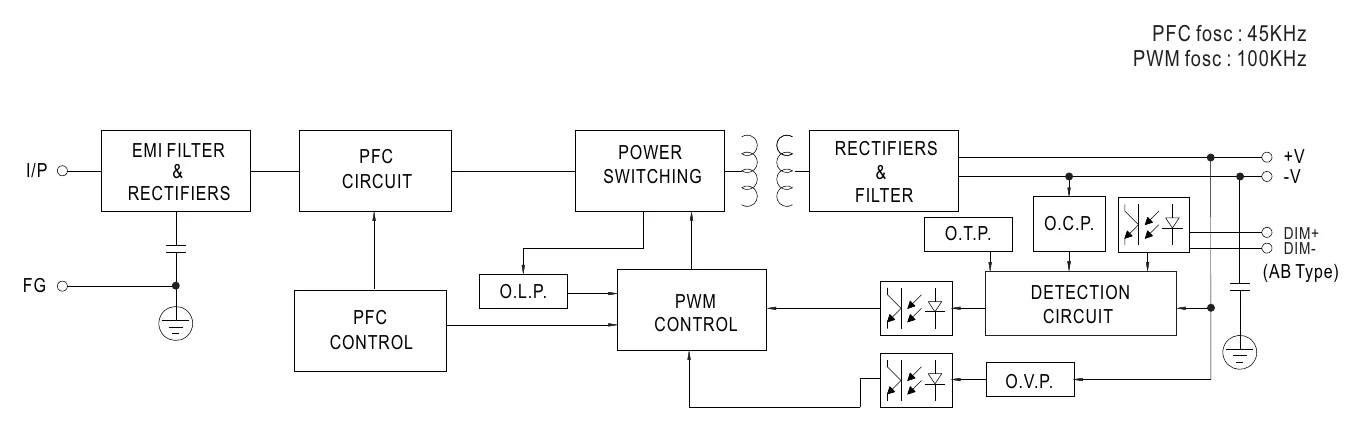

ELGC-300-H-A BLOCK DIAGRAM — BLOCK DIAGRAM

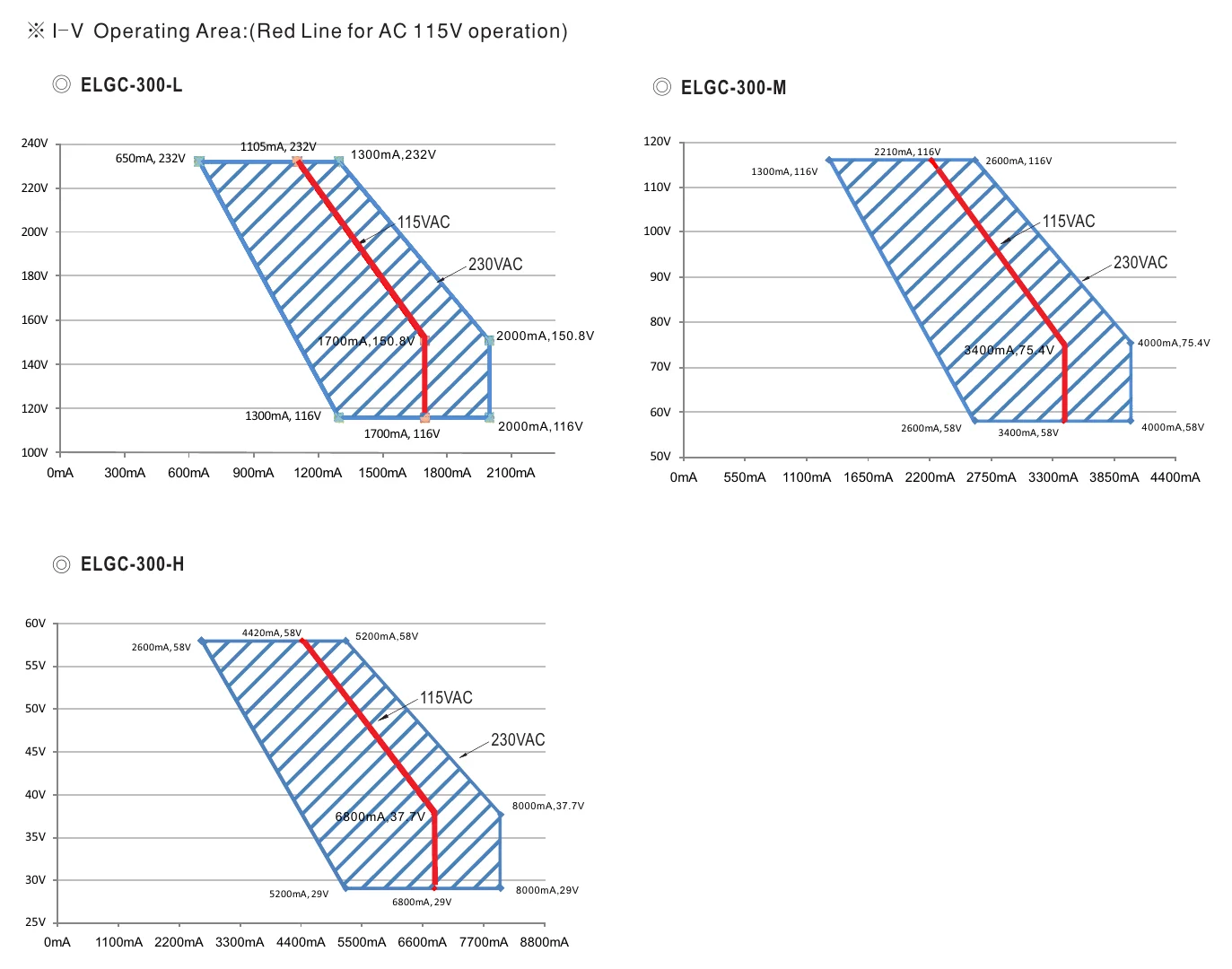

ELGC-300-H-A DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

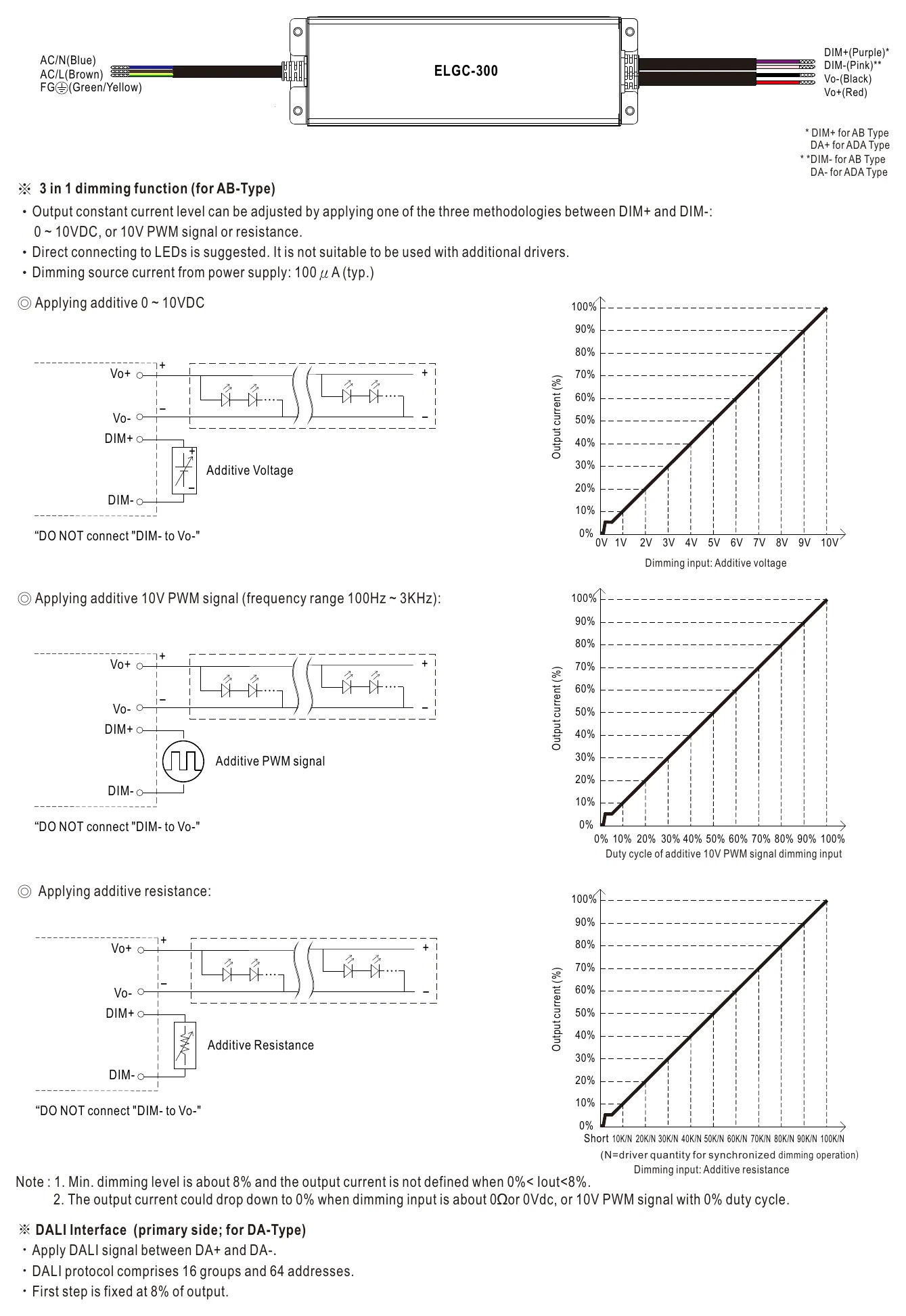

ELGC-300-H-A DIMMING OPERATION — DIMMING OPERATION

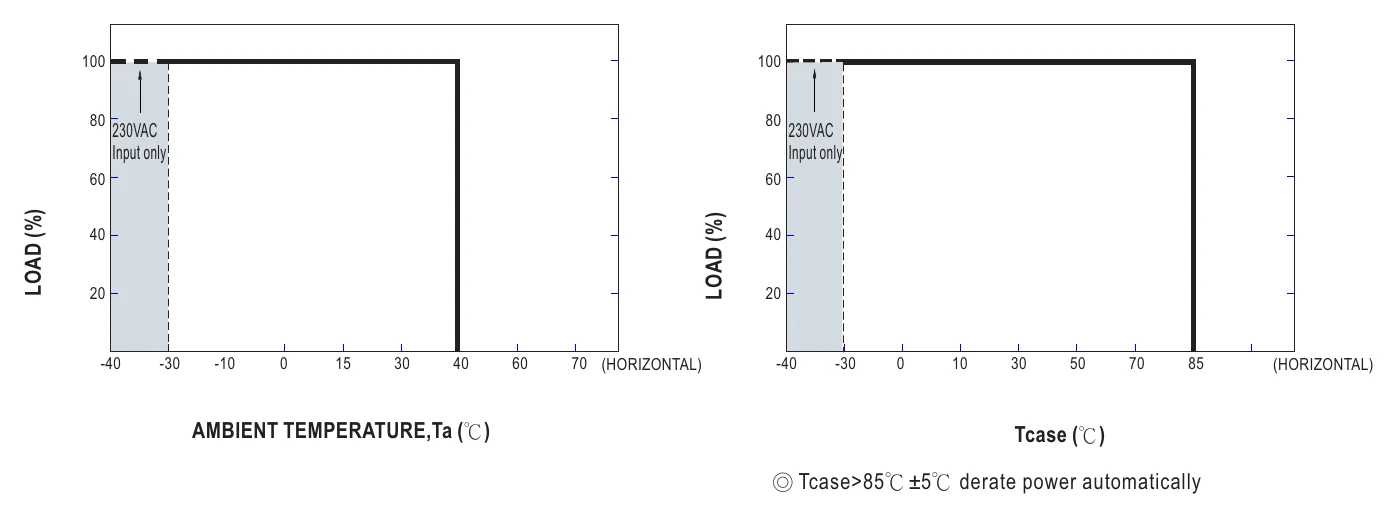

ELGC-300-H-A OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

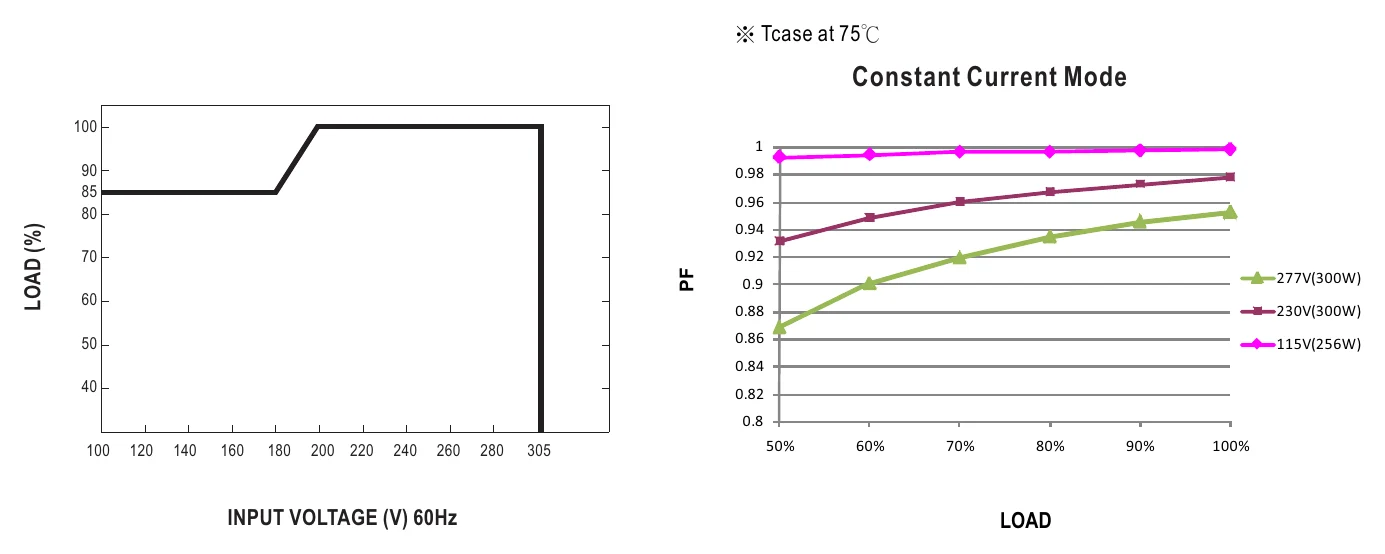

ELGC-300-H-A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

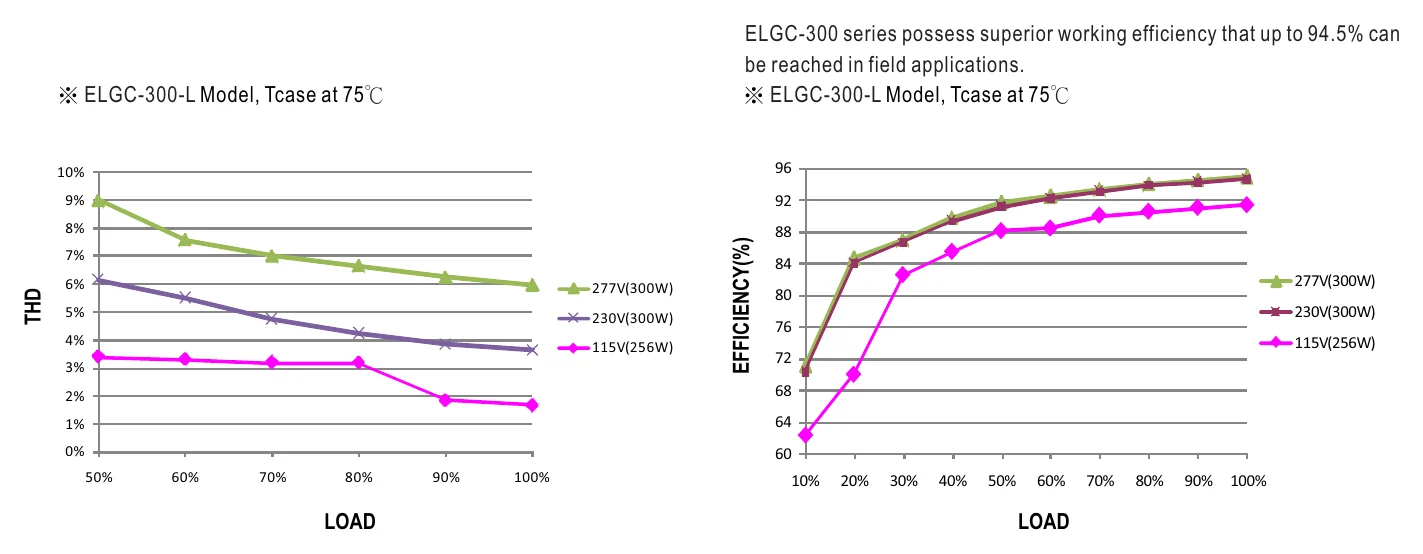

ELGC-300-H-A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

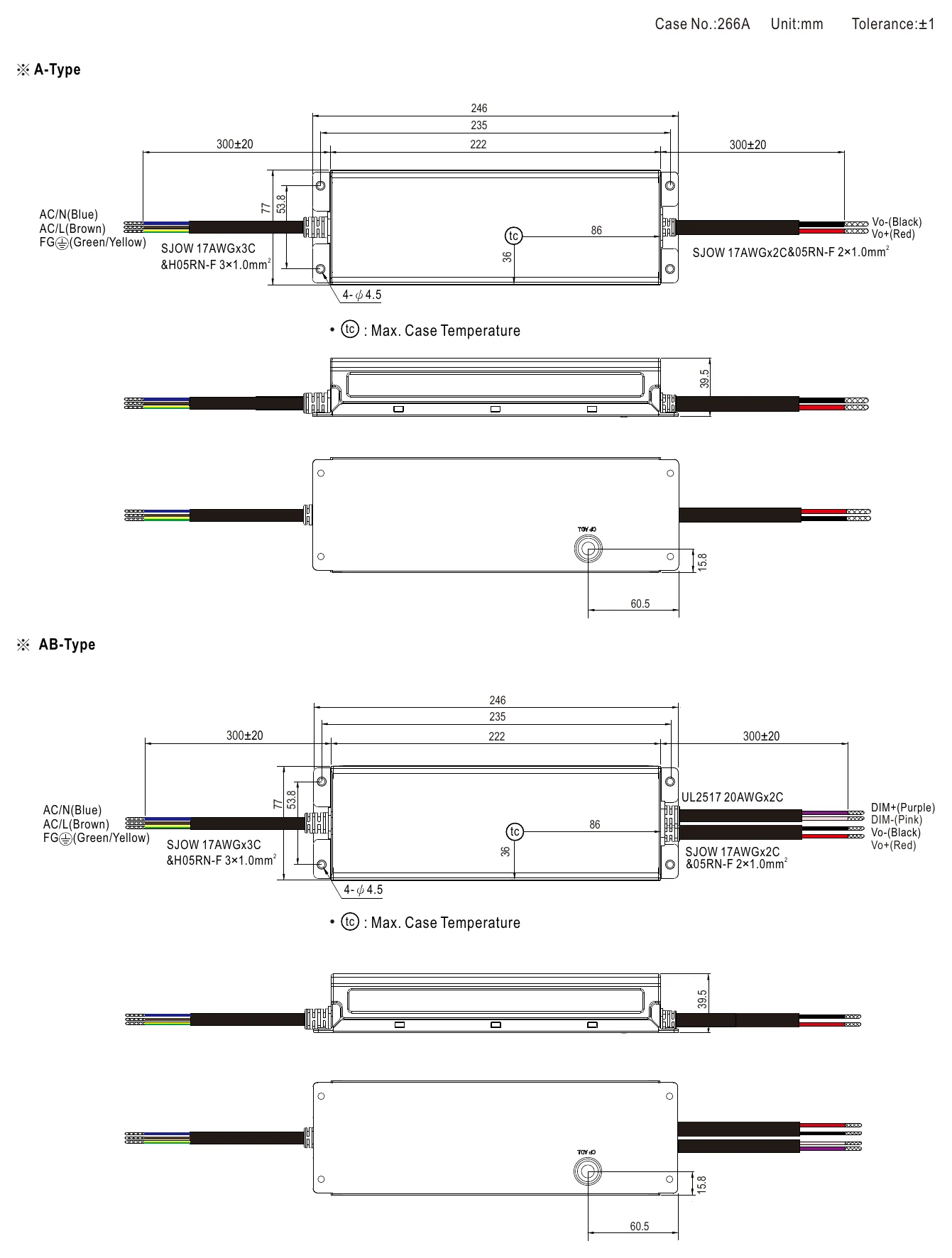

ELGC-300-H-A MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

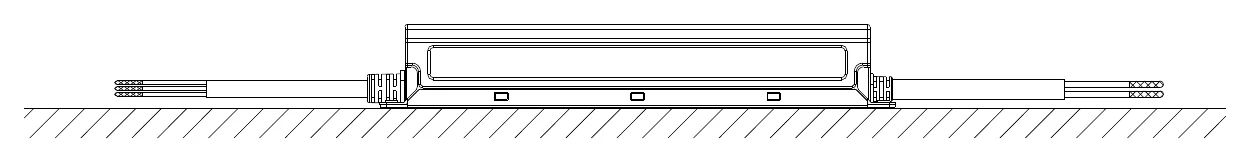

ELGC-300-H-A Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

Downloads

Certificates9

Mean Well ELGC-300 CCC Certificate PDF Download

Mean Well ELGC-300 ENEC Certificate PDF Download

Mean Well ELGC-300 CB Certificate PDF Download

Mean Well ELGC-300 EMC Certificate PDF Download

Mean Well ELGC-300 CE Certificate PDF Download

Mean Well ELGC-300 KC Certificate PDF Download

Mean Well ELGC-300 UK Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well ELGC-300-H Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the ELGC-300-H-A for high-output LED downlights?

Yes, if the downlight requires a constant-current driver at 5600mA and the LED load operates within the 29-58V constant-current range. With 301W output, this model is intended for high-power LED assemblies rather than small constant-voltage fixtures.

Is the ELGC-300-H-A suitable for powering larger signage LED modules?

It can be used for signage modules when the lighting system is built as a constant-current load at 5600mA. It is not a constant-voltage supply, so it is not the right choice for signage modules that require a fixed-voltage input.

Can this driver run a high-power small LED array for commercial lighting?

Yes, if the LED array is specified for 5600mA constant current and its total forward voltage stays within 29-58V. The 301W power rating supports much larger LED arrays than lower-wattage drivers in the same general category.

Is the ELGC-300-H-A appropriate for damp or outdoor environments?

This model has an IP67 waterproof rating and a working case temperature (Tcase) range of -40°C to +85°C. That makes it suitable for demanding damp or outdoor environments where a sealed, waterproof driver is needed.

What is the difference between the ELGC-300-H-A and the other ELGC-300 current ranges?

The ELGC-300 family is split by output current and constant-current range: ELGC-300-H models are 5600mA with 29-58V and 301W, ELGC-300-M models are 2800mA with 58-116V and 301W, and ELGC-300-L models are 1400mA with 116-232V and 301W. The ELGC-300-H-A is the high-current, lower-voltage version in that 300W family.
