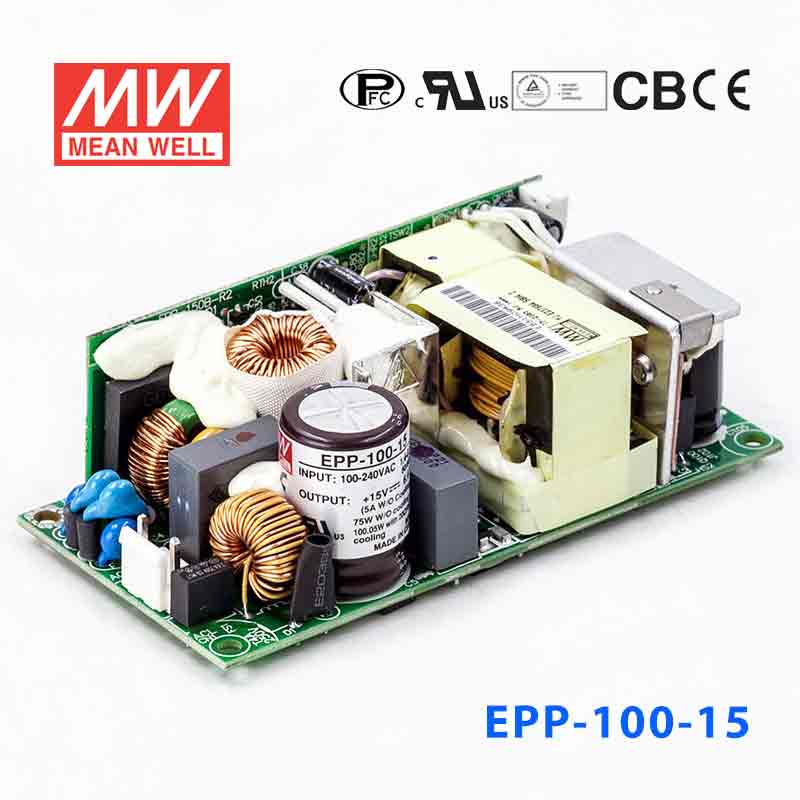

Mean Well EPP-100-15 Power Supply 75W 15V
<2mA/264VAC
Key Features
- ✓✓4"x2" compact size
- ✓✓Universal AC input / Full range
- ✓✓Built-in active PFC function
- ✓✓High efficiency up to 92.5%
- ✓✓Protections: Short circuit/Overload/Over voltage/Over temperature
- ✓✓75W free air convection, 100W with 20CFM forced air
- ✓✓LED indicator for power on
- ✓✓No-load power consumption<0.5W
- ✓✓Built-in 12V/0.3A auxiliary output
- ✓✓3 years warranty
-
BrandMean Well
-
SeriesEPP Series
-
Power Rating75 Watt
-
Output Voltage15 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.44 lb
::specification::
Frequently Asked Questions
Can I use the EPP-100-15 for a 15V industrial control or instrumentation load?
Yes, if the equipment needs constant 15V and the load stays within 75W and 5A. It fits 15V control electronics, instrumentation modules, and other industrial devices built around a fixed 15V rail.
Is the EPP-100-15 appropriate for embedded systems that require a regulated 15V supply?
It can be used for embedded and OEM electronics that need a constant 15V output up to 5A. The 101.6 x 50.8 x 29.0 mm size can also help in compact equipment designs.
Can this 15V power supply run automation interfaces, signal conditioners, or control modules?
It is suitable for 15V automation and control loads when the total demand does not exceed 75W. The maximum output current is 5A, so grouped loads need to be sized against that limit.
Would the EPP-100-15 make sense for a 15V lab fixture or equipment subassembly?
Yes, where the subassembly requires a constant 15V source and fits within the 75W, 5A rating. Its 90-264VAC input allows the same unit to be used across a broad AC input range.
Is the EPP-100-15 rated for hot, cold, or outdoor conditions?
The specified operating temperature range is -30C to +70C. No IP rating is listed, so the temperature range is known, but indoor versus outdoor enclosure suitability is not defined in the provided specs.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other EPP-100 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well EPP-100-48 Power Supply 76W 48V | 76.8W | 48V | 1.6A | Indoor | $41.23 | View |
| Mean Well EPP-100-27 Power Supply 75W 27V | 75.6W | 27V | 2.8A | Indoor | $41.23 | View |
| Mean Well EPP-100-24 Power Supply 76W 24V | 76.8W | 24V | 3.2A | Indoor | $41.12 | View |
| Mean Well EPP-100-12 Power Supply 75W 12V | 75.6W | 12V | 6.3A | Indoor | $41.23 | View |
