Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

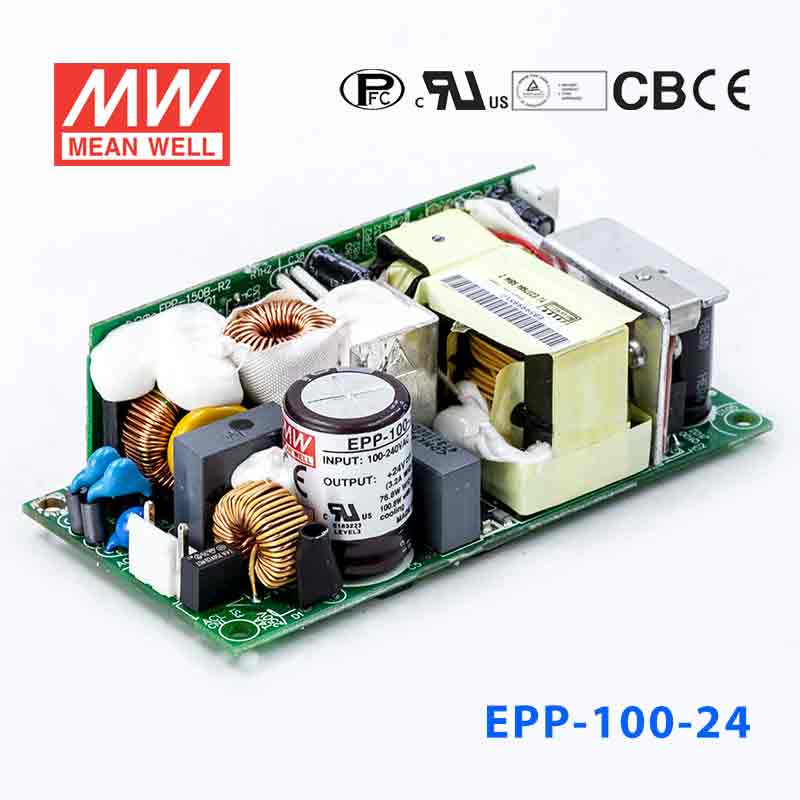

Mean Well EPP-100-24 Power Supply 76W 24V

4" x 2", high efficiency up to 92%, economical PFC, no load power consumption
$41.12 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

4"x2" compact size
Universal AC input / Full range
Built-in active PFC function
High efficiency up to 92.5%
Protections: Short circuit/Overload/Over voltage/Over temperature
75W free air convection, 100W with 20CFM forced air
LED indicator for power on
No-load power consumption<0.5W
Built-in 12V/0.3A auxiliary output
3 years warranty

General Specification

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current Cold start 70A/230VAC
Leakage current

<2mA/264VAC

Overload protection 105 ~ 145% rated output power
Over-voltage protection 110%~130% rated output voltage
Setup, rise, hold up time 1000ms, 30ms, 16ms
Withstand voltage I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
Working temperature -30~+70°C
Vibration 10~500Hz, 2G 10min./1 cycle, the period for 60min. Each along X, Y, Z axes
Safety standards UL,TUV BS EN62368-1
EMC standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
Connection I/P: 3 Pin JST B3P-VH, O/P: 4 Pin JST B4P-VH
Dimension (LxWxH) 101.6x50.8x29
Packing 72pcs / 15.4kg

Specifications

  • Brand
    Mean Well
  • Series
    EPP Series
  • Power Rating
    76.8 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    3.2 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    4 in
  • Width
    2 in
  • Height
    1.14 in
  • Weight
    0.44 lb

File Downloads

::specification::
