Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

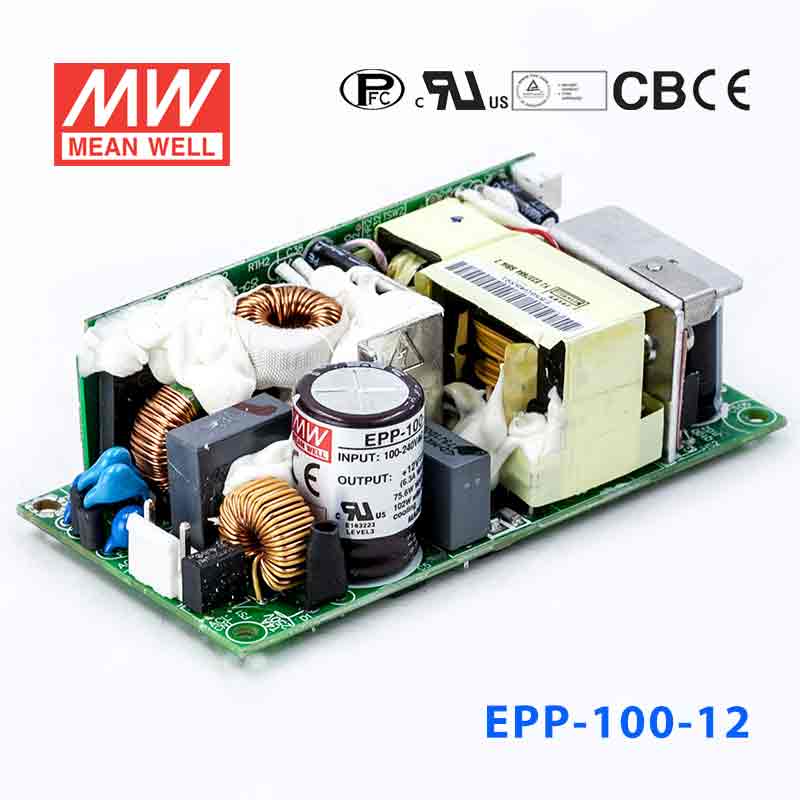

Mean Well EPP-100-12 Power Supply 75W 12V

Q: Can I use the EPP-100-12 for a 12V industrial control panel or automation subsystem?

Yes, if the load requires constant 12V and stays within 75.6W and 6.3A. That suits many 12V control, relay, and interface loads used in industrial and automation equipment.

Q: Is the EPP-100-12 suitable for powering a 12V HMI, gateway, or embedded system?

It can be used for 12V embedded or interface equipment when the total draw does not exceed 6.3A. The compact 101.6 x 50.8 x 29.0 mm form factor is also useful where board-space is limited.

Q: Can this model power multiple 12V sensors and low-power actuators from one supply?

It can support grouped 12V automation loads from one constant-voltage source as long as the combined demand remains within 75.6W. Buyers should size the total current against the 6.3A output rating.

Q: Would the EPP-100-12 work for a 12V test bench or embedded development fixture?

Yes, for bench or fixture use where the system needs a regulated 12V output and the load is at or below 75.6W and 6.3A. The 90-264VAC input can also simplify use in different AC power environments.

Q: Can the EPP-100-12 be used outdoors or in unprotected areas?

The operating temperature range is -30C to +70C, but no IP rating is provided in the listed specs. That means thermal range is specified, while outdoor or water-exposed use is not established by this data.

4" x 2", high efficiency up to 92%, economical PFC, no load power consumption

SKU:

EPP-100-12

$41.23 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

4"x2" compact size

Universal AC input / Full range

Built-in active PFC function

High efficiency up to 92.5%

Protections: Short circuit/Overload/Over voltage/Over temperature

75W free air convection, 100W with 20CFM forced air

LED indicator for power on

No-load power consumption<0.5W

Built-in 12V/0.3A auxiliary output

3 years warranty

General Specification

AC input voltage range	90~264VAC; 127~370VDC
AC inrush current	Cold start 70A/230VAC
Leakage current	<2mA/264VAC
Overload protection	105 ~ 145% rated output power
Over-voltage protection	110%~130% rated output voltage
Setup, rise, hold up time	1000ms, 30ms, 16ms
Withstand voltage	I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
Working temperature	-30~+70°C
Vibration	10~500Hz, 2G 10min./1 cycle, the period for 60min. Each along X, Y, Z axes
Safety standards	UL,TUV BS EN62368-1
EMC standards	UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
Connection	I/P: 3 Pin JST B3P-VH, O/P: 4 Pin JST B4P-VH
Dimension (LxWxH)	101.6x50.8x29
Packing	72pcs / 15.4kg

Specifications

Brand

Mean Well
Series

EPP Series
Power Rating

75.6 Watt
Output Voltage

12 Volt
Rated Current

6.3 Ampere
Input Voltage

90V~264V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

4 in
Width

2 in
Height

1.14 in
Weight

0.44 lb

File Downloads

::specification::
