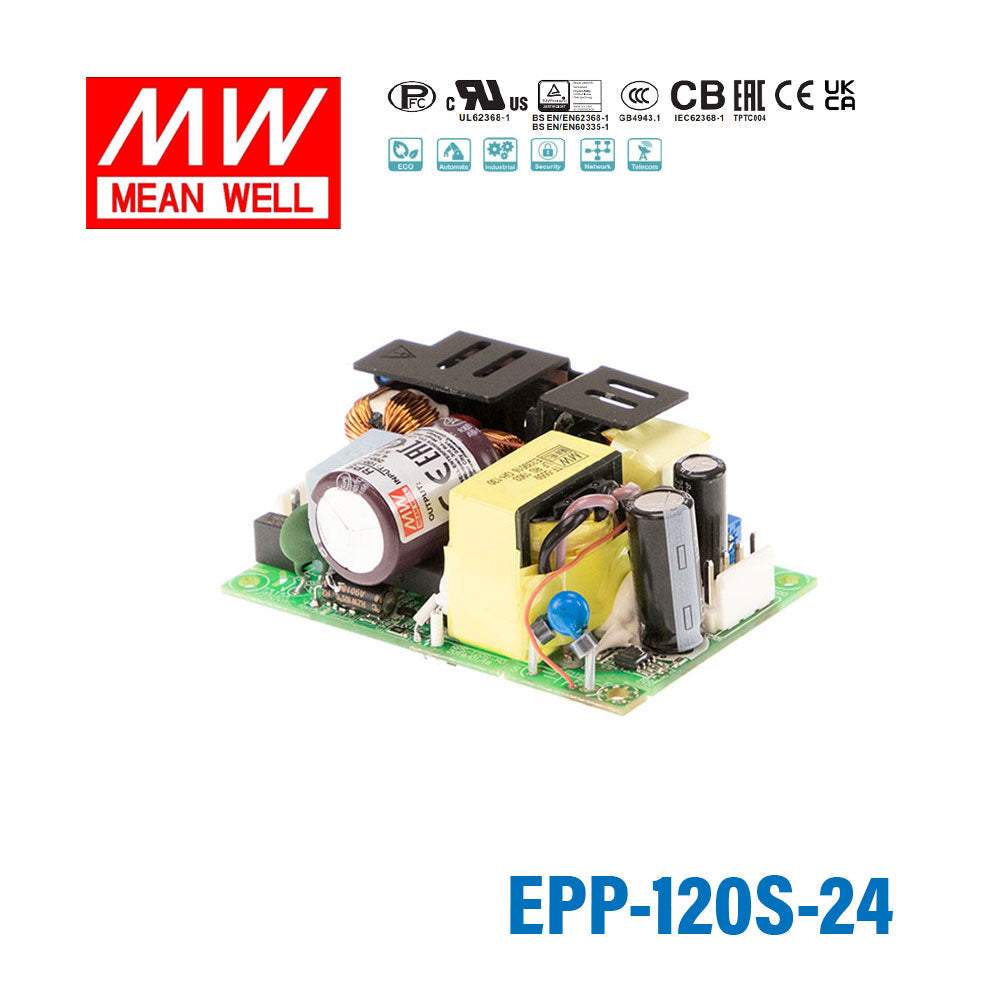

Mean Well EPP-120S-24 Power Supply 120W 24V
<0.75mA/240VAC
Key Features
- ✓✓3"x2" compact size
- ✓✓120W convection, 150W peak (10sec)
- ✓✓Built-in active PFC function
- ✓✓EMI for both Class I & Class II configuration
- ✓✓-30 + 85°C wide range operating temperature
- ✓✓No-load power consumption<0.5W
- ✓✓High efficiency up to 94%
- ✓✓Protections: Short circuit/Overload/Over voltage/Over temperature
- ✓✓Operating altitude up to 5000 meters (Note.5)
- ✓✓3 years warranty
-
BrandMean Well
-
SeriesEPP Series
-
Power Rating120 Watt
-
Output Voltage24 Volt
-
Rated Current5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height1.1 in
-
Weight0.29 lb
::specification::
Frequently Asked Questions
Can I use the EPP-120S-24 for 24V PLC or automation equipment?
Yes, it supplies constant-voltage 24V output with up to 5A and 120W available. That makes it suitable for 24V automation or industrial electronics that are specified for 24V DC and remain within the 5A and 120W limits.
Is the EPP-120S-24 suitable for 24V sensors, controllers, or industrial subsystems?
It can be used where the subsystem requires 24V constant-voltage power and the total load does not exceed 5A. The 80-264VAC input range is also useful for machines or panels deployed in different AC power environments.
Can this power supply run a 24V embedded control assembly?
Yes, if the assembly is designed for 24V DC and needs no more than 120W total output power. Its 24V, 5A rating fits many mid-power industrial control and embedded applications that use 24V as a standard DC bus.
Can the EPP-120S-24 be used outdoors?
The specified operating temperature range is -30°C to +85°C, so the temperature capability is broad. But there is no IP rating listed, so it is best used in protected indoor equipment or within an enclosure rather than in exposed outdoor conditions.
How does the EPP-120S-24 compare with other 24V EPP models?
For 24V versions, the family includes EPP-100-24 at 76.8W and 3.2A, EPP-120S-24 at 120W and 5A, EPP-150-24 at 100.8W and 4.2A, EPP-200-24 at 141.6W and 5.9A, EPP-300-24 at 199.9W and 8.33A, EPP-400-24 at 252W and 10.5A, and EPP-500-24 at 321W and 13.4A. This model is the 120W, 5A option in the 3" x 2" platform with 76.2 × 50.8 × 28.0 mm dimensions.
