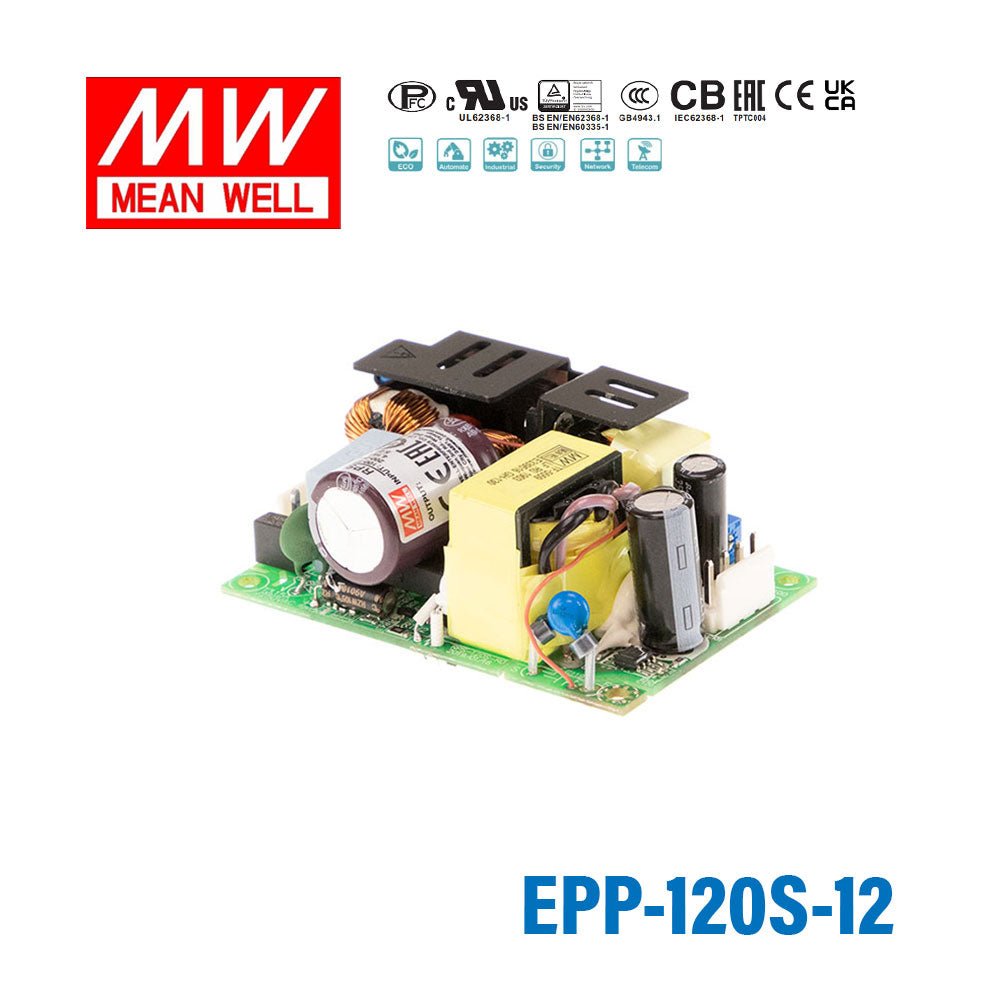

Mean Well EPP-120S-12 Power Supply 114W 12V 9.5A
Overview
EPP-120S-12 is the 12V output model of this series: typical efficiency 91%.
EPP-120S is a 120W highly reliable green PCB type power supply with a high power density on the 3" by 2" footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 48V. The working efficiency is up to 94% and the extremely low no load power consumption is down below 0.3W.EPP-120S is able to be used for both ClassⅠ(with FG) and ClassⅡ(no FG) system design. EPP-120S has the complete protection functions; it is complied with the international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1, UL62368-1 and IEC62368-1. EPP-120S series serves as a high price-to-performance power supply solution for various industrial applications.
Features
- 3"×2" Compact Size
- 120W convection,150W peak (10sec.)
- EMI for both ClassⅠ& Class Ⅱ configuration
- -30~+85℃ wide range operating temperature
- No load power consumption<0.3W
- High efficiency up to 94%
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Operating altitude up to 5000 meters (Note.5)
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 12V
- CURRENT Peak(10 sec.)
- 11.8A
- CURRENT Convection
- 9.5A
- RATED POWER Peak(10 sec.)
- 141.6W
- RATED POWER Convection
- 114W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- VOLTAGE ADJ. RANGE
- 11.4~12.6V
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 600ms, 30ms/230VAC 600ms, 30ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 15ms/230VAC 15ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.4
- 80 ~ 264VAC 113 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF>0.94/230VAC PF>0.98/115VAC at full load
- EFFICIENCY (Typ.)
- 91%
- AC CURRENT (Typ.)
- 2.3A/115VAC 1.1A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 30A/115VAC 60A/230VAC
- LEAKAGE CURRENT
- <0.75mA / 240VAC
PROTECTION
- OVERLOAD
- 130~160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 13.2 ~ 15.6V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Protection type : Hiccup mode, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +85℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP.
- -40 ~ +85℃
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
- OPERATING ALTITUDENote.5
- 5000 meters
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, IEC62368-1, CCC GB4943.1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
GB9254.1 Class B,GB17625 Class A
Parameter Standard Test Level Conducted emission BS EN/EN55032 (CISPR32) Class B Radiated emission BS EN/EN55032 (CISPR32) ClassⅠ: Class B , Class Ⅱ: Class A Harmonic current BS EN/EN61000-3-2 Class A Voltage flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/EN55035, BS EN/EN61000-6-2
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 3, 4KV contact RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) EFT bursts BS EN/EN61000-4-4 Level 3, 2KV Surge susceptibility BS EN/EN61000-4-5 Level 4, 4KV/Line-FG; 2KV/Line-Line Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m Voltage dip, interruption BS EN/EN61000-4-11 95% dip 0.5 periods, 30% dip 25 periods, 95% interruptions 250 periods
OTHERS
- MTBF
- 4071.1K hrs min. Telcordia SR-332 (Bellcore) ; 470.2K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 76.2*50.8*28mm (L*W*H) or 3" * 2" *1.1" inch
- PACKING
- 0.13Kg; 100pcs/14Kg/1.13CUFT
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltages. Please check the derating curve for more details.
- 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
Technical drawings
Typical applications
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- Electronic instruments, equipments or apparatus
Downloads
Datasheet1
Certificates9
Test reports1
Catalogues1
FAQ
Can I use the EPP-120S-12 for 12V industrial control equipment?
Yes, this is a constant-voltage 12V supply rated for 9.5A and 114W. It fits 12V industrial or embedded equipment that needs higher current while staying within the 9.5A and 114W output limits.
Is the EPP-120S-12 suitable for 12V automation accessories or panel devices?
It can be used where the connected automation accessory is designed for 12V DC and the total load does not exceed 9.5A. The 80-264VAC input range also makes it practical for equipment used across different AC mains conditions.
Can this model power 12V embedded systems that need more than basic current capacity?
Yes, this model delivers up to 114W and 9.5A at 12V continuously, with 141.6W and 11.8A available as a 10-second peak. That makes it useful for denser 12V embedded assemblies, industrial electronics, or test fixtures that need more headroom at 12V.
Is the EPP-120S-12 intended for outdoor use?
Its operating temperature range is -30°C to +85°C, with the load derated at higher ambient temperatures according to the derating curve. But no IP rating is listed, so it should be used in protected indoor equipment or a suitable enclosure rather than exposed outdoor conditions.
How does the EPP-120S-12 compare with other 12V options in the EPP family?
This datasheet covers only the EPP-120S series, in which the EPP-120S-12 is the only 12V model: 114W at 9.5A convection-cooled, 141.6W and 11.8A peak for 10 seconds, and 91% typical efficiency. It has a 3" x 2" form factor with 76.2 × 50.8 × 28 mm dimensions; other EPP families are not specified on this sheet, so check their own datasheets.
