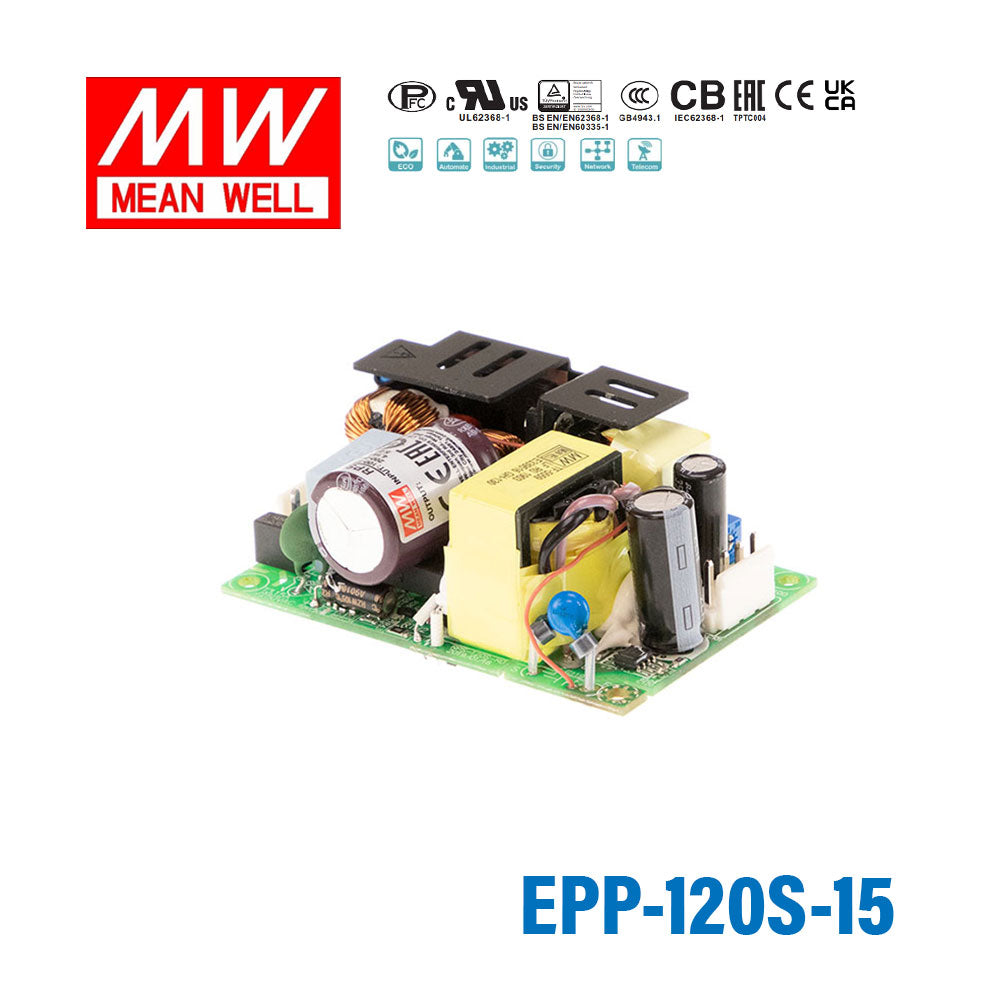

Mean Well EPP-120S-15 Power Supply 114W 15V 7.6A
Overview
EPP-120S-15 is the 15V output model of this series: typical efficiency 92%.
EPP-120S is a 120W highly reliable green PCB type power supply with a high power density on the 3" by 2" footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 48V. The working efficiency is up to 94% and the extremely low no load power consumption is down below 0.3W.EPP-120S is able to be used for both ClassⅠ(with FG) and ClassⅡ(no FG) system design. EPP-120S has the complete protection functions; it is complied with the international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1, UL62368-1 and IEC62368-1. EPP-120S series serves as a high price-to-performance power supply solution for various industrial applications.
Features
- 3"×2" Compact Size
- 120W convection,150W peak (10sec.)
- EMI for both ClassⅠ& Class Ⅱ configuration
- -30~+85℃ wide range operating temperature
- No load power consumption<0.3W
- High efficiency up to 94%
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Operating altitude up to 5000 meters (Note.5)
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 15V
- CURRENT Peak(10 sec.)
- 9.5A
- CURRENT Convection
- 7.6A
- RATED POWER Peak(10 sec.)
- 142.5W
- RATED POWER Convection
- 114W
- RIPPLE & NOISE (max.)Note.2
- 120mVp-p
- VOLTAGE ADJ. RANGE
- 14.3~15.8V
- VOLTAGE TOLERANCENote.3
- ±2%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 600ms, 30ms/230VAC 600ms, 30ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 15ms/230VAC 15ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.4
- 80 ~ 264VAC 113 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF>0.94/230VAC PF>0.98/115VAC at full load
- EFFICIENCY (Typ.)
- 92%
- AC CURRENT (Typ.)
- 2.3A/115VAC 1.1A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 30A/115VAC 60A/230VAC
- LEAKAGE CURRENT
- <0.75mA / 240VAC
PROTECTION
- OVERLOAD
- 130~160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 16.5 ~ 19.5V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Protection type : Hiccup mode, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +85℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP.
- -40 ~ +85℃
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
- OPERATING ALTITUDENote.5
- 5000 meters
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, IEC62368-1, CCC GB4943.1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
GB9254.1 Class B,GB17625 Class A
Parameter Standard Test Level Conducted emission BS EN/EN55032 (CISPR32) Class B Radiated emission BS EN/EN55032 (CISPR32) ClassⅠ: Class B , Class Ⅱ: Class A Harmonic current BS EN/EN61000-3-2 Class A Voltage flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/EN55035, BS EN/EN61000-6-2
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 3, 4KV contact RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) EFT bursts BS EN/EN61000-4-4 Level 3, 2KV Surge susceptibility BS EN/EN61000-4-5 Level 4, 4KV/Line-FG; 2KV/Line-Line Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m Voltage dip, interruption BS EN/EN61000-4-11 95% dip 0.5 periods, 30% dip 25 periods, 95% interruptions 250 periods
OTHERS
- MTBF
- 4071.1K hrs min. Telcordia SR-332 (Bellcore) ; 470.2K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 76.2*50.8*28mm (L*W*H) or 3" * 2" *1.1" inch
- PACKING
- 0.13Kg; 100pcs/14Kg/1.13CUFT
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltages. Please check the derating curve for more details.
- 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
Technical drawings
Typical applications
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- Electronic instruments, equipments or apparatus
Downloads
Datasheet1
Certificates9
Test reports1
Catalogues1
FAQ
Can I use the EPP-120S-15 for 15V industrial electronics or control assemblies?
Yes, this unit provides constant-voltage 15V output with up to 7.6A and 114W available. It is suitable for industrial or embedded equipment that is specifically designed for 15V DC and stays within those output limits.
Is the EPP-120S-15 a fit for 15V test and measurement equipment?
It can be, provided the equipment requires 15V constant-voltage input and draws no more than 7.6A. The 114W rating applies continuously, with 142.5W and 9.5A available as a 10-second peak.
Can this 15V model support embedded systems inside industrial equipment?
Yes, for embedded systems that call for 15V DC and need up to 114W total power. Its 80-264VAC input range also supports use in equipment intended for a wide range of AC input conditions.
Is the EPP-120S-15 appropriate for outdoor or exposed use?
The operating temperature range is -30°C to +85°C, with the load derated at higher ambient temperatures per the derating curve. Since no IP rating is listed, it is better suited to protected indoor assemblies or enclosed systems than to direct outdoor exposure.
How does the EPP-120S-15 compare with other 15V models in the series?
In the EPP-120S series covered by this datasheet, the EPP-120S-15 is the only 15V model: 114W at 7.6A convection-cooled, 142.5W and 9.5A peak for 10 seconds, and 92% typical efficiency. It combines this output with a 3" x 2" size and 76.2 × 50.8 × 28 mm dimensions; other EPP families are not specified on this sheet.
