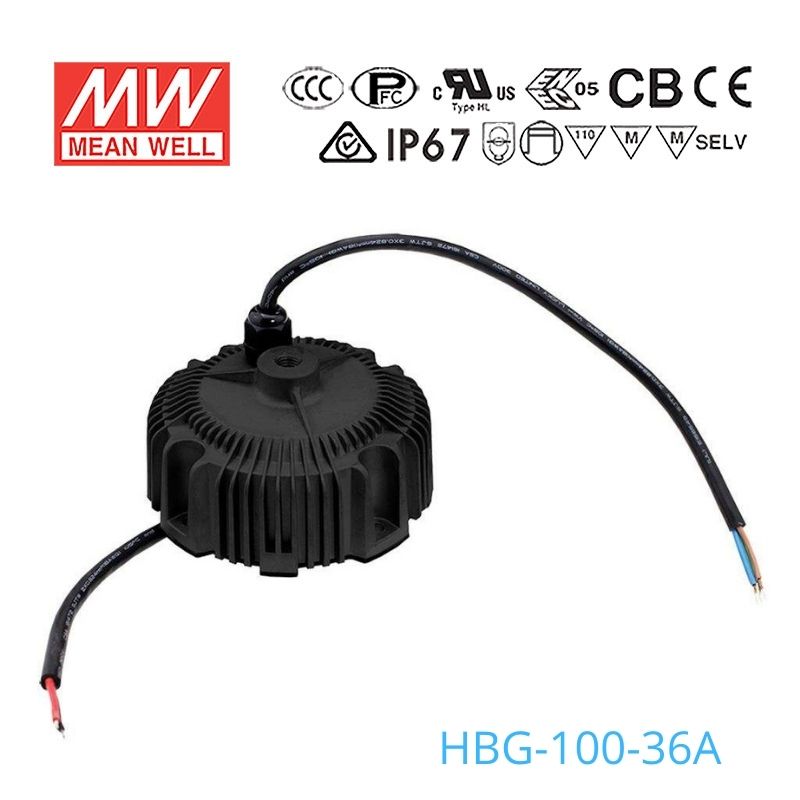

Mean Well HBG-100-36A Power Supply 100W 36V - Adjustable
The HBG-100 is a 100W Mean Well power converter (input range: 14.4~24V).
Key Features
- ✓ Input voltage range: 14.4~24V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: DALI STANDARDS SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating97.2 Watt
-
Output Voltage37 Volt
-
Rated Current2.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.12 in
-
Width5.12 in
-
Height2.62 in
-
Weight2.6 lb
::specification::
Frequently Asked Questions
Is the HBG-100-36A a fit for a constant current LED downlight assembly?
Yes, if the downlight assembly is designed for constant current drive and its LED load operates within the 21-36V CC range. It should not be treated as a constant voltage 36V supply for fixed-voltage LED products.
Can this model be used for a compact LED array in a high-bay or low-bay fixture?
Yes, that matches the product's stated high/low bay lighting use as long as the LED array is a constant current load within 21-36V and within the 97.2W rating. The circular housing can also suit round fixture designs.
Would the HBG-100-36A work for a custom signage light engine?
It can work for a custom signage engine if the LEDs are arranged as a constant current load within the 21-36V CC range. For standard constant voltage signage modules, a constant voltage driver would be the better match.
Is the HBG-100-36A suitable for damp or partially exposed locations?
It is rated IP65 water-resistant, so it is intended for environments with dust protection and resistance to water spray. It is less sealed than the IP67 versions, even though it shares the same -40°C to +85°C operating temperature range.
How many LEDs can the HBG-100-36A support?
That depends on the forward voltage of each LED in the load. The key requirement is that the total LED forward voltage stays within the 21-36V constant current range, rather than targeting a specific LED count.
What electrical differences separate the HBG-100-36A from other HBG-100 voltage classes?
The 36V class is 97.2W with 2.7mA output current and a 21-36V CC range. By comparison, the 24V class is 96W with 4mA and 14-24V, the 48V class is 96W with 2mA and 28-48V, and the 60V class is 96W with 1.6mA and 36-60V.
