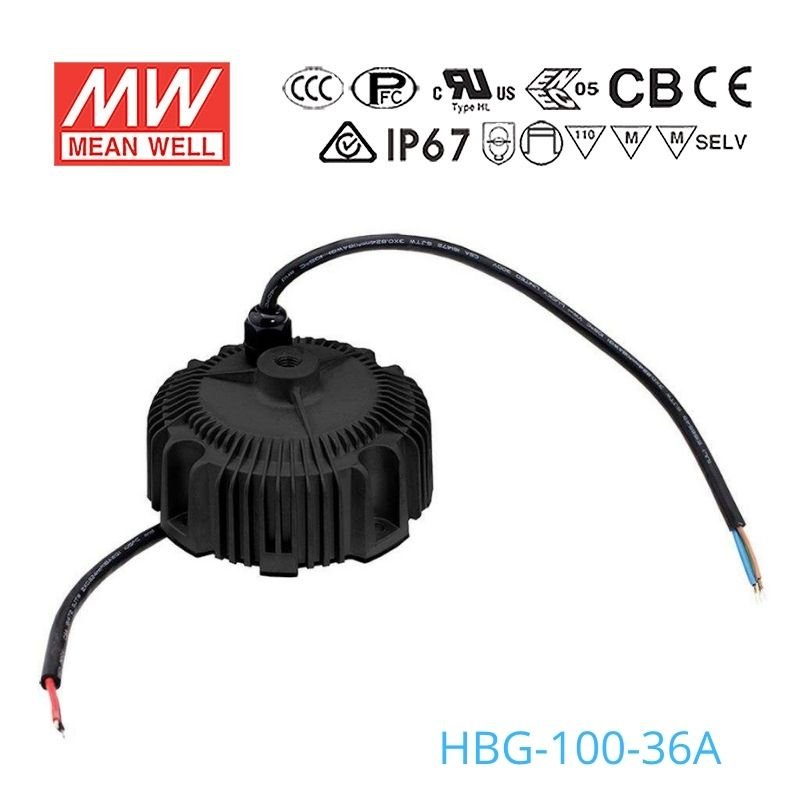

Mean Well HBG-100-36A Power Supply 100W 36V - Adjustable
Overview
HBG-100-36A is the model of this series: rated current 2.7A, rated power 97.2W, typical efficiency 91%. Type A: Io adjustable through built-in potentiometer (IP65).
HBG-100 series is a 100W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 91.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HBG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant current mode output
- Circular metal housing with classⅠdesign
- Built-in active PFC function
- IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 2.7A
- RATED POWER
- 97.2W
- CONSTANT CURRENT REGIONNote.2
- 21.6 ~ 36V
- OPEN CIRCUIT VOLTAGE(max.)
- 37V
- CURRENT ADJ. RANGE
- Adjustable for A/AB-Type (via built-in potentiometer) 1.62 ~ 2.7A
- CURRENT RIPPLE
- 5.0% max. @rated current
- CURRENT TOLERANCE
- ±5.0%
- SETUP TIMENote.4
- 2000ms / 115VAC 500ms / 230VAC
INPUT
- VOLTAGE RANGENote.3
- 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
- EFFICIENCY (Typ.)Note.5
- 91%
- AC CURRENT (Typ.)
- 1.1A / 115VAC 0.5A / 230VAC 0.45A / 277VAC
- INRUSH CURRENT (Typ.)
- COLD START 60A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- OVER CURRENT
- 95 ~ 108% Constant current limiting
- OVER VOLTAGE
- 41 ~ 49V Shut down o/p voltage re-power on to recovery
- OVER TEMPERATURE
- Shut down o/p voltage re-power on to recovery
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
- MAX. CASE TEMP.
- Tcase=+85℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type”HL”),CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213, BIS IS15885(for 36A,48A,60A only), EAC TP TC 004,IP65 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743 ,GB17625.1, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020
OTHERS
- MTBF
- 2433.4K hrs min. Telcordia SR-332 (Bellcore) ;299.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- ψ130mm *66.5mm (D * H)
- PACKING
- 1.18Kg; 12pcs/15.7Kg/1.43CUFT(Blank/A/B Type),1.89CUFT(E Type)
MODEL ENCODING
- Blank
- Io fixed; IP67
- A (this model)
- Io adjustable through built-in potentiometer; IP65
- B
- 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
- AB
- Io adjustable through built-in potentiometer with 3 in 1 dimming function; IP65
- DA
- DALI control technology; IP67
Test conditions and notes10
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 4. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
- 6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 7. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 11. For A/AB type need to consider build-in using or filling the Io adjusting hole with the potting compound to comply with Type HL application.
Technical drawings
Typical applications
- LED bay lighting
- LED stage lighting
- LED spot lighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified) location.
Downloads
Datasheet1
Certificates9
Test reports1
FAQ
Is the HBG-100-36A a fit for a constant current LED downlight assembly?
Yes, if the downlight assembly is designed for constant current drive and its LED load operates within the 21.6-36V CC range. It should not be treated as a constant voltage 36V supply for fixed-voltage LED products.
Can this model be used for a compact LED array in a high-bay or low-bay fixture?
Yes, that matches the product's stated high/low bay lighting use as long as the LED array is a constant current load within 21.6-36V and within the 97.2W rating. The circular housing can also suit round fixture designs.
Would the HBG-100-36A work for a custom signage light engine?
It can work for a custom signage engine if the LEDs are arranged as a constant current load within the 21.6-36V CC range. For standard constant voltage signage modules, a constant voltage driver would be the better match.
Is the HBG-100-36A suitable for damp or partially exposed locations?
The HBG-100 series is IP65 or IP67 approved, so it is intended for environments that need dust protection and resistance to water. It is specified for a -40°C to +85°C case temperature (Tcase) range.
How many LEDs can the HBG-100-36A support?
That depends on the forward voltage of each LED in the load. The key requirement is that the total LED forward voltage stays within the 21.6-36V constant current range, rather than targeting a specific LED count.
What electrical differences separate the HBG-100-36A from other HBG-100 voltage classes?
The 36V class is 97.2W with 2.7A output current and a 21.6-36V CC range. By comparison, the 24V class is 96W with 4A and 14.4-24V, the 48V class is 96W with 2A and 28.8-48V, and the 60V class is 96W with 1.6A and 36-60V.
