Can I use the HEP-480-24A for a high-current 24V control cabinet?

Yes, if the cabinet uses 24V constant-voltage equipment and the total demand stays within 480W and 20A. That makes it suitable for larger industrial control, automation, or embedded systems built around a 24V DC rail.

Is the HEP-480-24A a fit for 24V embedded or industrial computing equipment?

It can be, because it provides a constant 24V output with up to 20A available current. For application fit, the connected 24V equipment needs to stay at or below the 480W maximum output.

Can this power supply support 24V automation hardware in vibration-prone equipment?

Yes, for 24V loads that fit within the 20A and 480W rating. The product features a fanless design and is specified to withstand 10G vibration, which is relevant for harsher industrial or mobile equipment conditions.

Is the HEP-480-24A suitable for outdoor use?

This model is rated IP65 Water-Resistant, so it is intended for demanding environments but is not the IP68 version. It is specified for operation from -55°C to +65°C, which supports broad temperature exposure when the enclosure and application match an IP65 environment.

What are the main 24V alternatives to the HEP-480-24A in the same series?

The listed 24V models are HEP-100-24 at 96W and 4A, HEP-150-24 at 151.2W and 6.3A, HEP-185-24 at 187.2W and 7.8A, HEP-240-24 at 240W and 10A, HEP-320-24 at 320.16W and 13.34A, HEP-480-24 at 480W and 20A, HEP-600-24 at 600W and 25A, HEP-1000-24 at 1008W and 42A, and HEP-600C-24 at 600W with 28.8V and 21A. The HEP-480-24A is the 24V, 480W, 20A option in that progression.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

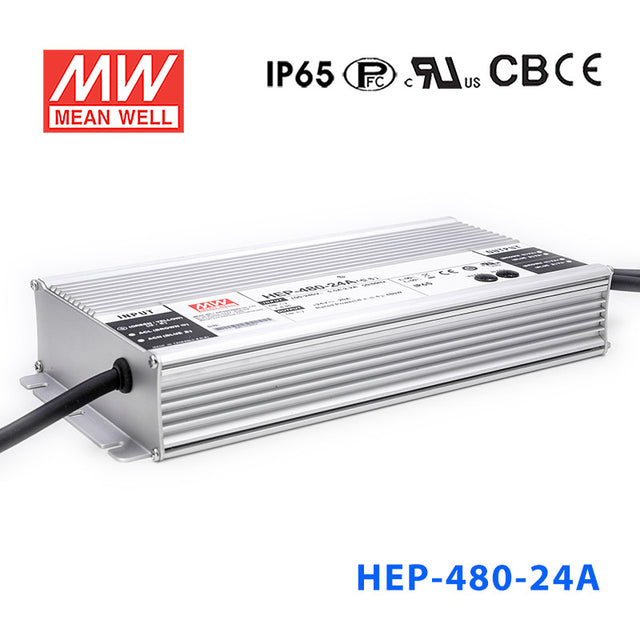

Mean Well HEP-480-24A Power Supply 320.16W 24V

Name: Mean Well HEP-480-24A Power Supply 320.16W 24V
Brand: Mean Well
SKU: HEP-480-24A
Price: 198.47 USD
Availability: InStock

fanless designhigh efficiency up to 96%rugged metal case with IP65 design(IP68 option available)withstand 10G vibrationsuitable for harsh environment

SKU:

HEP-480-24A

$198.47 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The HEP-480 is a 480W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.7 UL62368-1 ,IEC/EN62368-1, IP65 (or IP68 for HEP-480 Blank-Type), EAC TP TC 004
✓ 3 years warranty

Brand

Mean Well
Series

HEP Series
Power Rating

480 Watt
Output Voltage

24 Volt
Rated Current

20 Ampere
Input Voltage

90V~305V
No of Output

1
Standards Met

CB,CE,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-55°C~65°C
Warranty

6 Year
Length

10.32 in
Width

4.92 in
Height

1.72 in
Weight

6.17 lb

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well HEP-480-54A Power Supply 321.3W 54V	480.6W	54V	8.9A	IP65	$212.57	View
Mean Well HEP-480-54 Power Supply 321.3W 54V	480.6W	54V	8.9A	IP68	$221.43	View
Mean Well HEP-480-48A Power Supply 321.6W 48V	480W	48V	10A	IP65	$211.76	View
Mean Well HEP-480-48 Power Supply 321.6W 48V	480W	48V	10A	IP68	$221.43	View
Mean Well HEP-480-36A Power Supply 320.4W 36V	478.8W	36V	13.3A	IP65	$212.57	View
Mean Well HEP-480-36 Power Supply 320.4W 36V	478.8W	36V	13.3A	IP68	$221.43	View
Mean Well HEP-480-24 Power Supply 320.16W 24V	480W	24V	20A	IP68	$221.43	View
