Can I use the HEP-480-36A for 36V industrial LED lighting systems?

Yes, if the lighting system is designed for constant-voltage 36V DC input. This model provides 36V output at up to 13.3A with 478.8W total power, so it fits higher-load 36V lighting assemblies rather than small low-power runs.

Is the HEP-480-36A suitable for 36V automation or control cabinets?

It can be a fit for automation equipment that requires a regulated 36V DC bus and stays within 13.3A. The wide 90-305VAC input also makes it practical where the incoming AC supply may vary across industrial sites.

Can this power supply support embedded or OEM equipment that runs on 36V DC?

Yes, for embedded systems or OEM assemblies that need constant-voltage 36V power and draw no more than 478.8W. The fanless design and high efficiency up to 96% are useful where low-maintenance and sealed power conversion matter.

Is the HEP-480-36A appropriate for harsh indoor or outdoor environments?

It is built for demanding conditions with an IP65 water-resistant enclosure and an operating range of -55°C to +65°C. The rugged metal case, fanless design, and 10G vibration resistance make it more suitable for exposed industrial locations than standard open-frame supplies.

How does the HEP-480-36A compare with other HEP-480 models?

Within the HEP-480 range, the 24V models are 480W at 20A, the 36V models are 478.8W at 13.3A, the 48V models are 480W at 10A, and the 54V models are 480.6W at 8.9A. The main selection difference is output voltage and corresponding current, while all are high-power constant-voltage units in the same series class.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

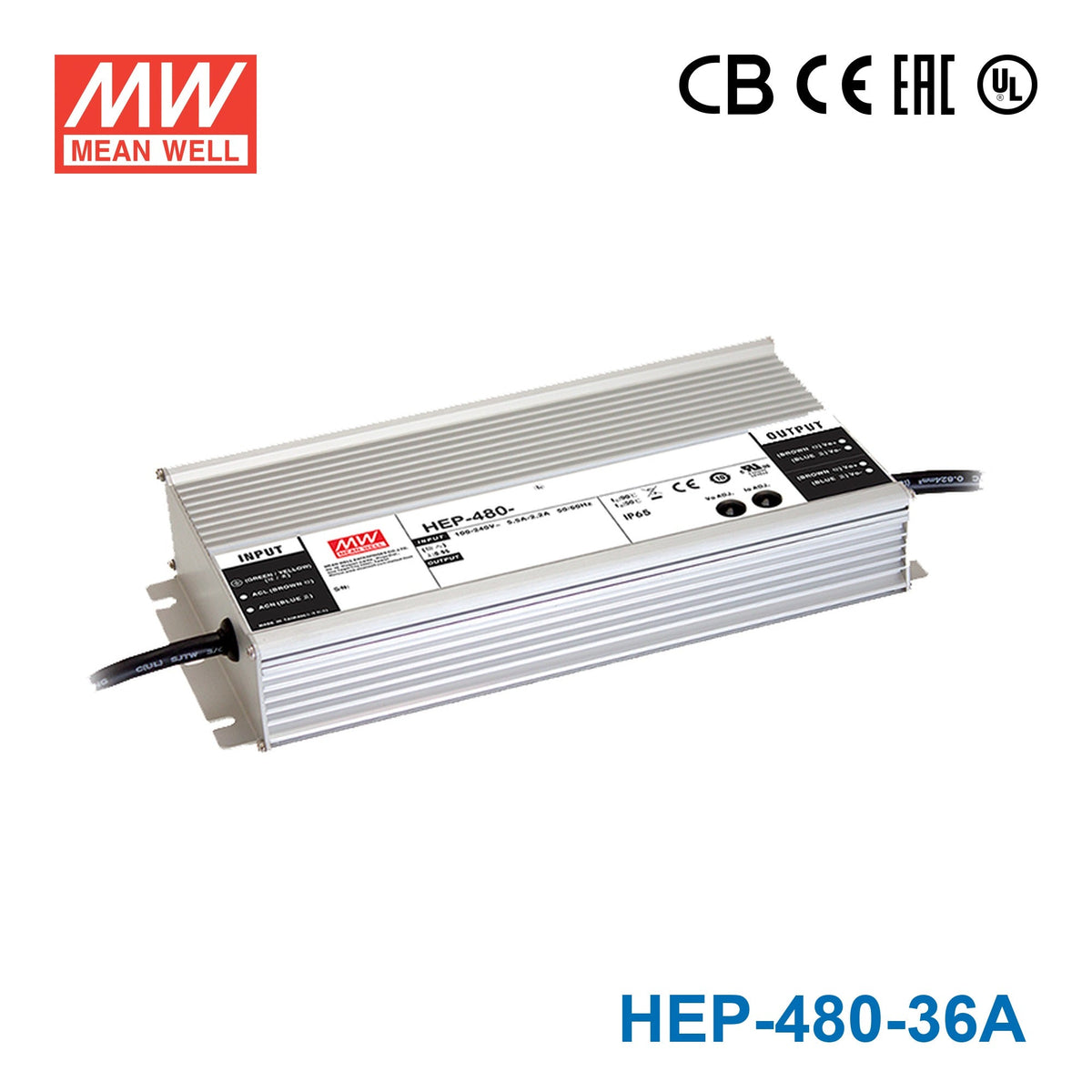

Mean Well HEP-480-36A Power Supply 320.4W 36V

Name: Mean Well HEP-480-36A Power Supply 320.4W 36V
Brand: Mean Well
SKU: HEP-480-36A
Price: 212.57 USD
Availability: InStock

fanless designhigh efficiency up to 96%rugged metal case with IP65 design(IP68 option available)withstand 10G vibrationsuitable for harsh environment

SKU:

HEP-480-36A

$212.57 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The HEP-480 is a 480W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.7 UL62368-1 ,IEC/EN62368-1, IP65 (or IP68 for HEP-480 Blank-Type), EAC TP TC 004
✓ 3 years warranty

Brand

Mean Well
Series

HEP Series
Power Rating

478.8 Watt
Output Voltage

36 Volt
Rated Current

13.3 Ampere
Input Voltage

90V~305V
No of Output

1
Standards Met

CB,CE,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-55°C~65°C
Warranty

6 Year
Length

10.32 in
Width

4.92 in
Height

1.72 in
Weight

6.17 lb

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well HEP-480-54A Power Supply 321.3W 54V	480.6W	54V	8.9A	IP65	$212.57	View
Mean Well HEP-480-54 Power Supply 321.3W 54V	480.6W	54V	8.9A	IP68	$221.43	View
Mean Well HEP-480-48A Power Supply 321.6W 48V	480W	48V	10A	IP65	$211.76	View
Mean Well HEP-480-48 Power Supply 321.6W 48V	480W	48V	10A	IP68	$221.43	View
Mean Well HEP-480-36 Power Supply 320.4W 36V	478.8W	36V	13.3A	IP68	$221.43	View
Mean Well HEP-480-24A Power Supply 320.16W 24V	480W	24V	20A	IP65	$198.47	View
Mean Well HEP-480-24 Power Supply 320.16W 24V	480W	24V	20A	IP68	$221.43	View
