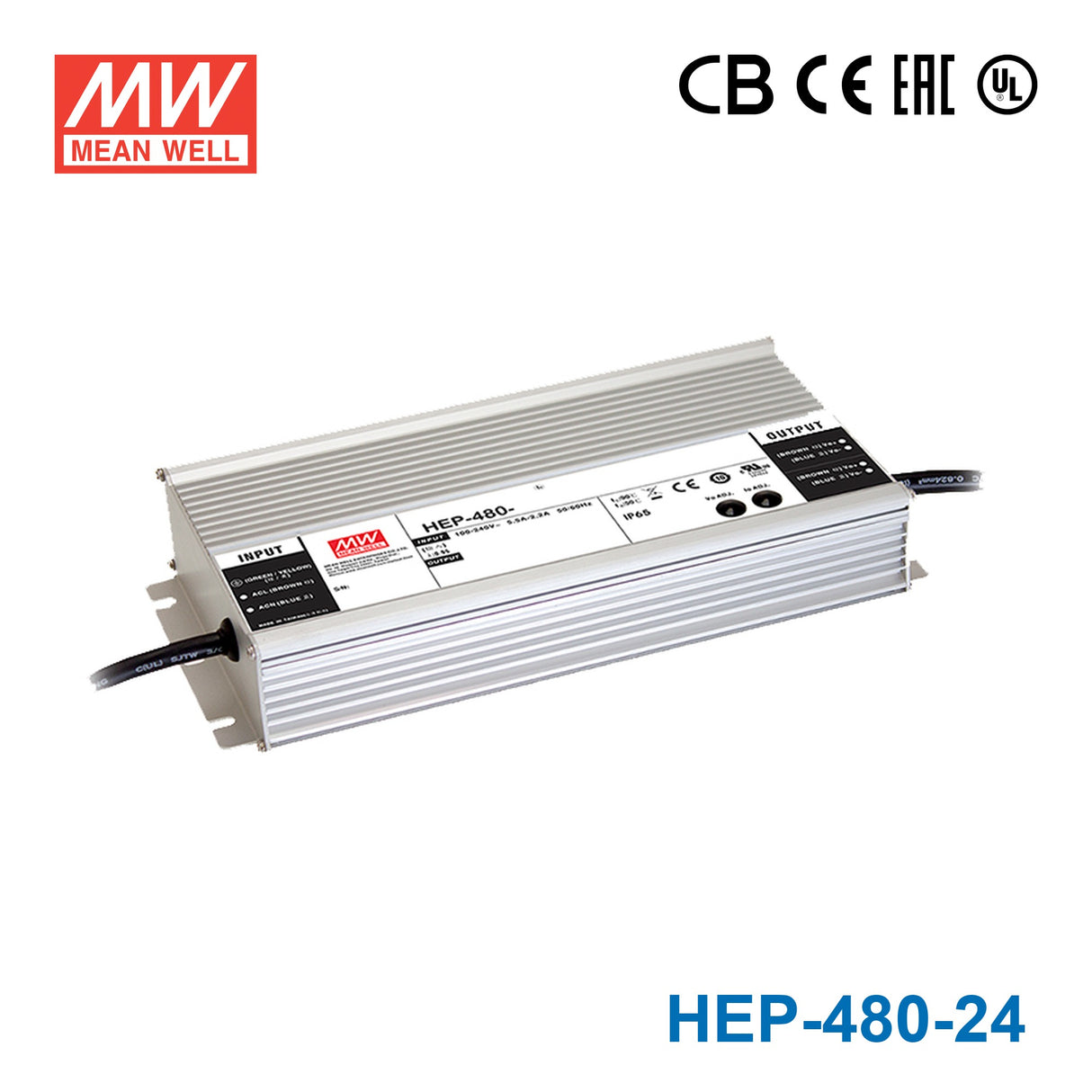

Mean Well HEP-480-24 Power Supply 320.16W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-480-24 Power Supply 320.16W 24V
The HEP-480 is a 480W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL62368-1 ,IEC/EN62368-1, IP65 (or IP68 for HEP-480 Blank-Type), EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating480 Watt
-
Output Voltage24 Volt
-
Rated Current20 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~65°C
-
Warranty6 Year
-
Length10.32 in
-
Width4.92 in
-
Height1.72 in
-
Weight6.17 lb
::specification::
Frequently Asked Questions
Can I use the HEP-480-24 for a 24V industrial automation system?
Yes, this is a constant-voltage 24V supply rated for up to 480W and 20A. It fits industrial automation, control, or embedded 24V equipment that is designed for a fixed 24V DC source and remains within those limits.
Is the HEP-480-24 suitable for powering multiple 24V DC loads in one system?
It can be used where the combined 24V load does not exceed 20A or 480W. That makes it relevant for larger 24V control systems, distributed embedded electronics, or industrial subsystems that need higher current capacity at 24V.
Can this model be used for 24V sensors, controllers, and communications hardware in harsh-duty equipment?
Yes, if those 24V loads fit within the supply's 480W and 20A output rating. The fanless design, 10G vibration tolerance, and -55°C to +65°C operating range support use in harsher industrial or mobile-equipment environments.
Is the HEP-480-24 appropriate for outdoor exposure or wet industrial areas?
This version is rated IP68, so it is the more sealed option in the pair. It is also specified for operation from -55°C to +65°C, which supports outdoor or washdown-adjacent conditions when the rest of the system is designed to the same environmental level.
How does the HEP-480-24 compare with other 24V models in the HEP family?
The listed 24V siblings are HEP-100-24 at 96W and 4A, HEP-150-24 at 151.2W and 6.3A, HEP-185-24 at 187.2W and 7.8A, HEP-240-24 at 240W and 10A, HEP-320-24 at 320.16W and 13.34A, HEP-480-24A at 480W and 20A, HEP-600-24 at 600W and 25A, HEP-1000-24 at 1008W and 42A, and HEP-600C-24 at 600W and 28.8V with 21A. The HEP-480-24 sits near the upper middle of the 24V constant-voltage range at 480W and 20A.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HEP-480 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HEP-480-54A Power Supply 321.3W 54V | 480.6W | 54V | 8.9A | IP65 | $212.57 | View |
| Mean Well HEP-480-54 Power Supply 321.3W 54V | 480.6W | 54V | 8.9A | IP68 | $221.43 | View |
| Mean Well HEP-480-48A Power Supply 321.6W 48V | 480W | 48V | 10A | IP65 | $211.76 | View |
| Mean Well HEP-480-48 Power Supply 321.6W 48V | 480W | 48V | 10A | IP68 | $221.43 | View |
| Mean Well HEP-480-36A Power Supply 320.4W 36V | 478.8W | 36V | 13.3A | IP65 | $212.57 | View |
| Mean Well HEP-480-36 Power Supply 320.4W 36V | 478.8W | 36V | 13.3A | IP68 | $221.43 | View |
| Mean Well HEP-480-24A Power Supply 320.16W 24V | 480W | 24V | 20A | IP65 | $198.47 | View |
