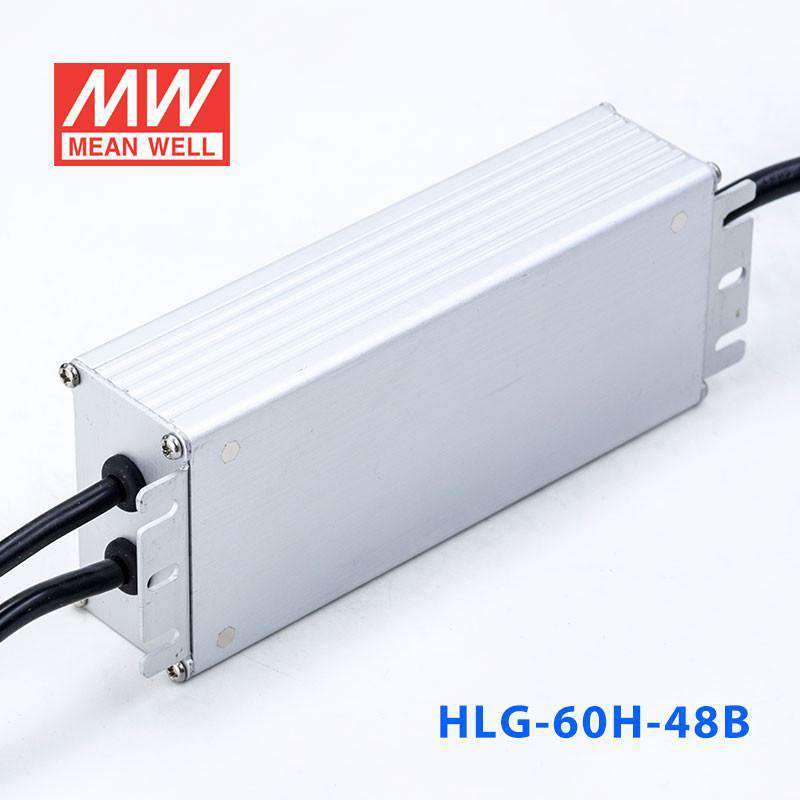

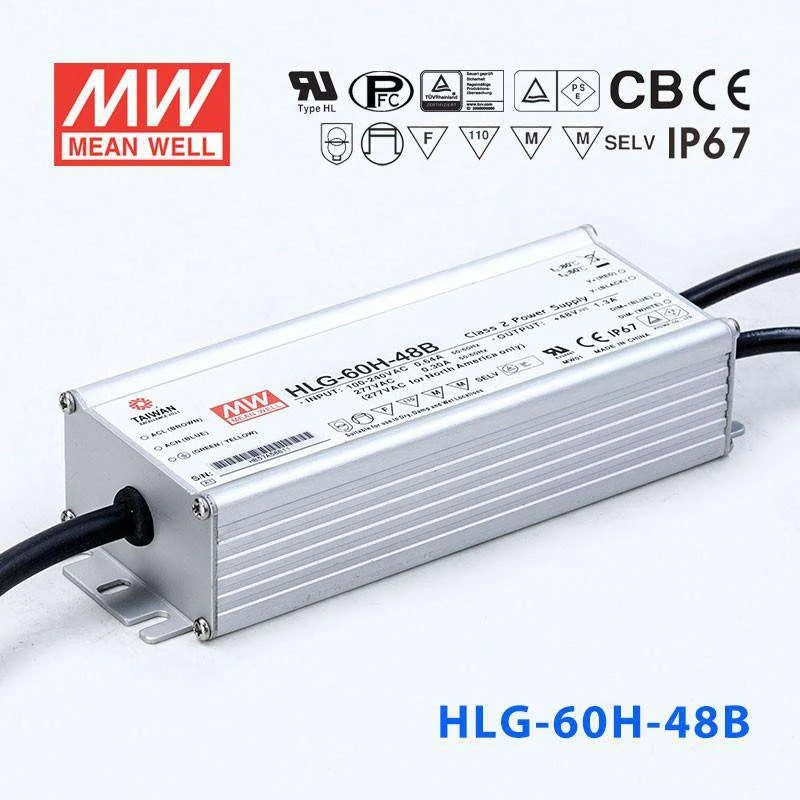

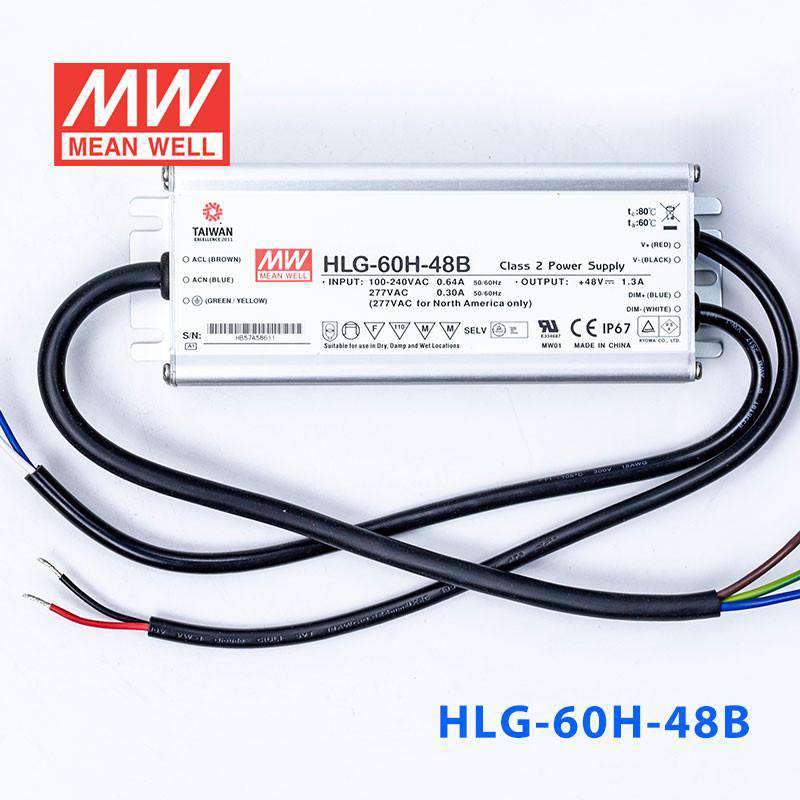

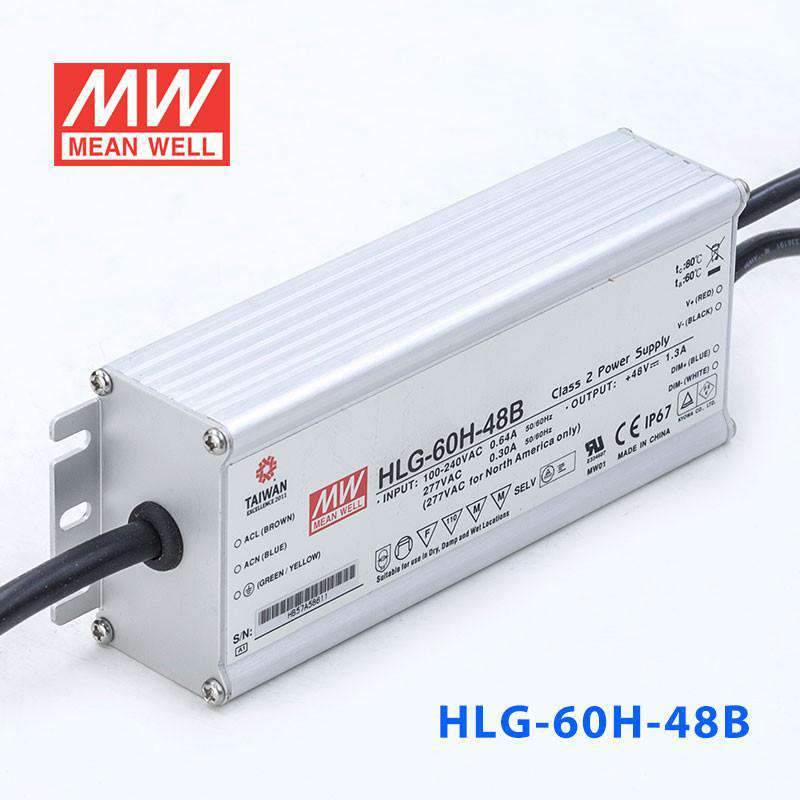

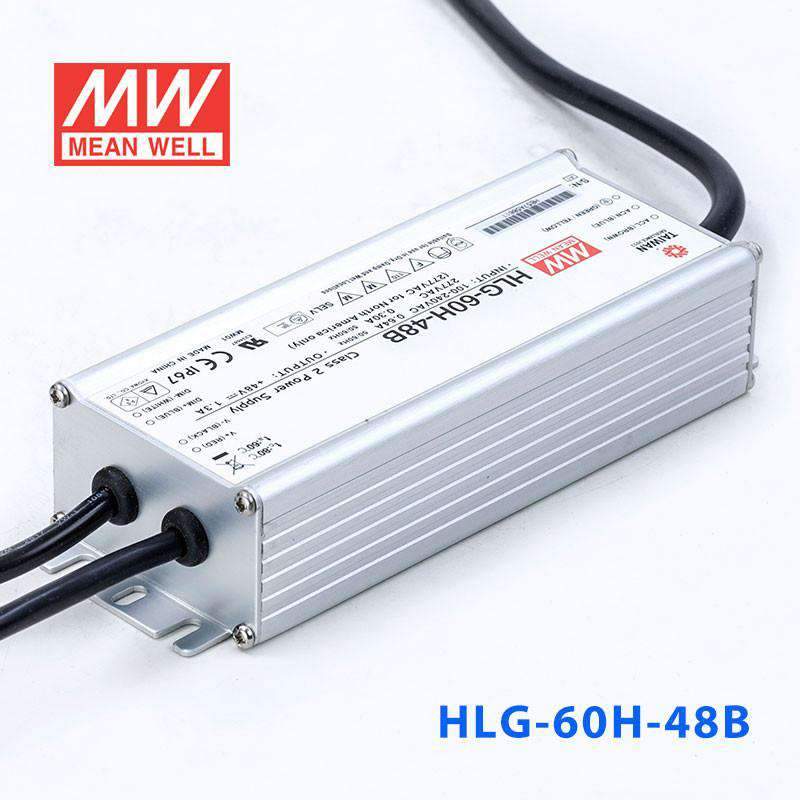

Mean Well HLG-60H-48B Power Supply 60W 48V - Dimmable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| High efficiency up to 90.5% |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| IP67 / IP65 design for indoor or outdoor installations |
| Class 2 power unit |
| Output current adjustable through output cable or internal potentiometer |
| Cooling by free air convection |
| Suitable for dry, damp and wet location |
| Suitable for LED lighting and street lighting applications |
| Meet 4kV surge immunity level (IEC61000-4-5) |
| Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details. |
| 7 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 55A at 230VAC |
| DC adjustment range | ±10% rated output voltage (A-Type only) |
| Current adjustment range | 60%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 109%~145% rated output voltage |
| Setup, rise, hold up time | 1000ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL60950-1, EN60950-1, EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx3C (30cm) |
| Connection Output | A/D/Blank-Type: SVT 18AWGx2C (30cm); B-Type: SVT 18AWGx2C (30cm)+UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 171x 61.5x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current1.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length6.73 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.61 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-60H-48B for outdoor 48V LED pathway lighting with dimming?
Yes. The HLG-60H-48B delivers 48V at up to 1.3A (60W) with a 1-10V/PWM dimming input, and its IP67 waterproof rating protects against rain, dust, and temporary submersion. It is well suited for fully exposed pathway or garden lighting installations where brightness scheduling is desired.
Is the HLG-60H-48B suitable for dimmable 48V LED fixtures in a car wash?
Yes. The IP67 rating means the enclosure can handle high-pressure water spray and temporary water immersion. Combined with the -40°C to +80°C operating range and aluminium casing, it is robust enough for wet, chemically aggressive environments like car wash bays. The dimming input allows brightness reduction during off-peak hours.
Can the HLG-60H-48B power 48V LED flood lights for a building facade?
Yes, provided the total load stays within 60W. The HLG-60H-48B is IP67 waterproof and handles extreme temperatures from -40°C to +80°C, making it reliable for permanent outdoor facade lighting. The dimming input lets you program nighttime brightness reduction for energy savings.
How many meters of 48V LED strip can the HLG-60H-48B drive?
It depends on your strip's wattage per meter. The HLG-60H-48B provides 60W at 48V. A strip rated at 10W/m would allow 6 meters (60W / 10W per meter = 6m). A 15W/m strip would allow 4 meters. Check your strip's rated power per meter and stay within 60W total.
Can the HLG-60H-48B survive being buried in an underground junction box?
Yes. IP67 certification means the unit withstands temporary immersion up to 1 meter for 30 minutes, and it is completely dust-tight. It is suitable for underground vaults, in-grade junction boxes, or below-deck marine installations. The aluminium casing resists corrosion in damp conditions.
