Mean Well HLG-60H-48B Power Supply 60W 48V - Dimmable 1.3A

Name: Mean Well HLG-60H-48B Power Supply 60W 48V - Dimmable 1.3A
Brand: Mean Well
SKU: HLG-60H-48B
Price: 29.5 USD
Availability: InStock
Rating: 5.0 (4 reviews)

5.0 (4 reviews)

premium quality7 years warrantyaluminium casinghigh efficiency

SKU HLG-60H-48B

$29.50 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

HLG-60H-48B is the 48V output model of this series: rated current 1.3A, rated power 62.4W, typical efficiency 90.5%.

HLG-60H series is a 60W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-60H operates from 90～305VAC and offers models with different rated voltage ranging between 15V and 54V. Thanks to the high efficiency up to 90.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-60H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
Built-in active PFC function
Class 2 power unit
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer dimming
Typical lifetime > 62000 hours
7 years warranty

Specifications

HLG-60H-48BSpecifications from the official datasheet (2025-02-04 edition)

OUTPUT

DC VOLTAGE: 48V
CONSTANT CURRENT REGION^Note.4: 28.8 ~ 48V
RATED CURRENT: 1.3A
RATED POWER: 62.4W
RIPPLE & NOISE (max.)^Note.2: 300mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 44 ~ 53V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 0.78 ~ 1.3A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 500ms,80ms/115VAC 500ms,80ms/230VAC
HOLD UP TIME (Typ.): 16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
EFFICIENCY (Typ.): 90.5%
AC CURRENT (Typ.): 0.64A / 115VAC 0.32A / 230VAC 0.3A / 277VAC
INRUSH CURRENT(Typ.): COLD START 55A(twidth=265μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 9 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT^Note.4: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 54 ~ 65V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750(type"HL"), CSA C22.2 No. 250.0-08, BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, GB/T19510.1,GB/T19510.213,EAC TP TC 004,KC61347-1,KC61347-2-13 (except for AB-type), IP65 or IP67 approved ; J61347-1, J61347-2-13 ; design refer to BS EN/EN60335-1(by request)
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, KS C 9815, KS C 9547, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),KS C 9815, KS C 9547, EAC TP TC 020

OTHERS

MTBF: 3396.9K hrs min. Telcordia SR-332 (Bellcore) ;345.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 171*61.5*36.8mm (L*W*H)
PACKING: 0.73Kg; 20pcs/15.6Kg/0.9CUFT

Test conditions and notes14

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.

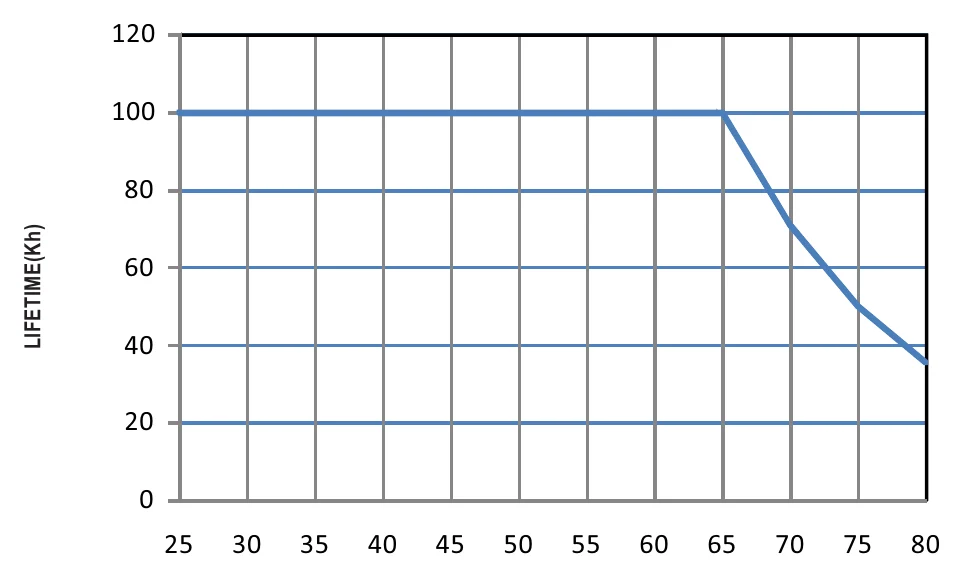

9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
13. For A/AB type need to consider build in using to comply with Type HL application.
14. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

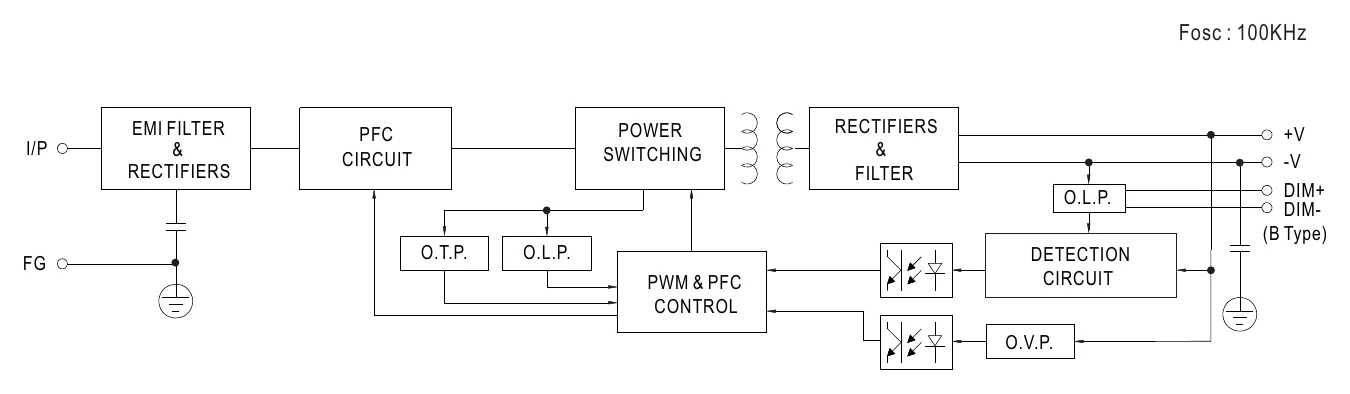

HLG-60H-48B BLOCK DIAGRAM — BLOCK DIAGRAM

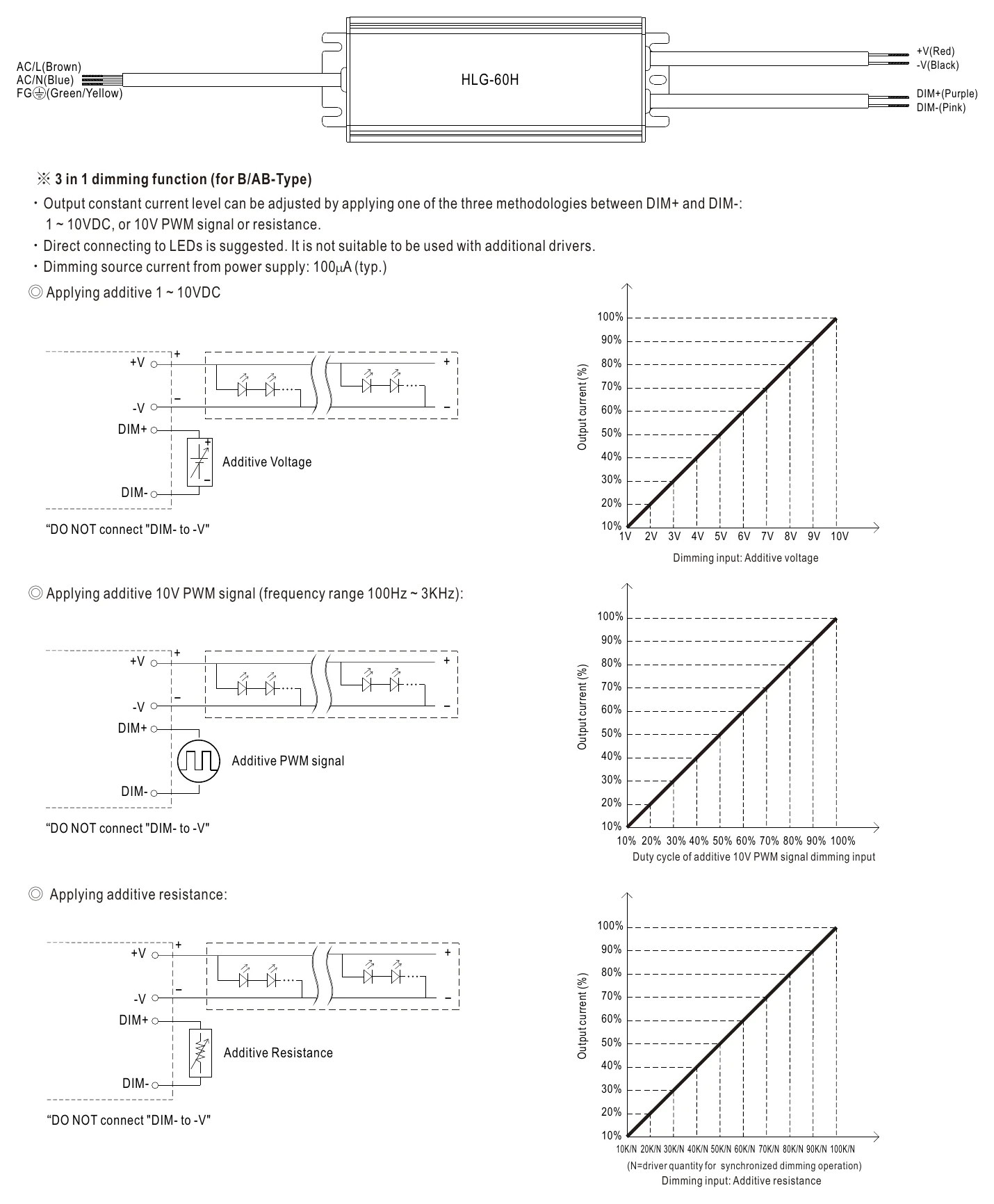

HLG-60H-48B DIMMING OPERATION — DIMMING OPERATION

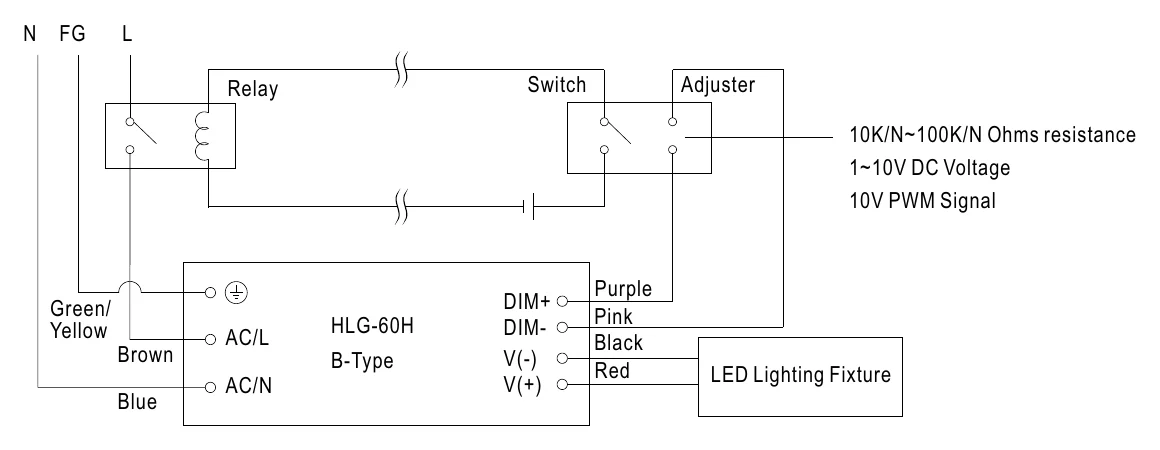

HLG-60H-48B Illustration (page 5) — Illustration (page 5)

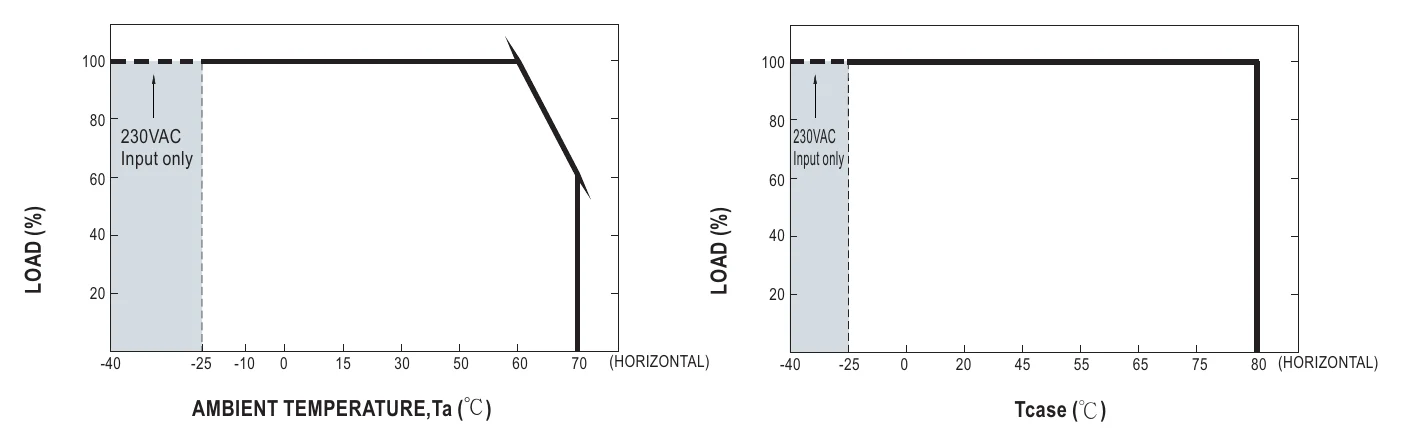

HLG-60H-48B OUTPUT LOAD vs TEMPERATURE(Note.10) — OUTPUT LOAD vs TEMPERATURE(Note.10)

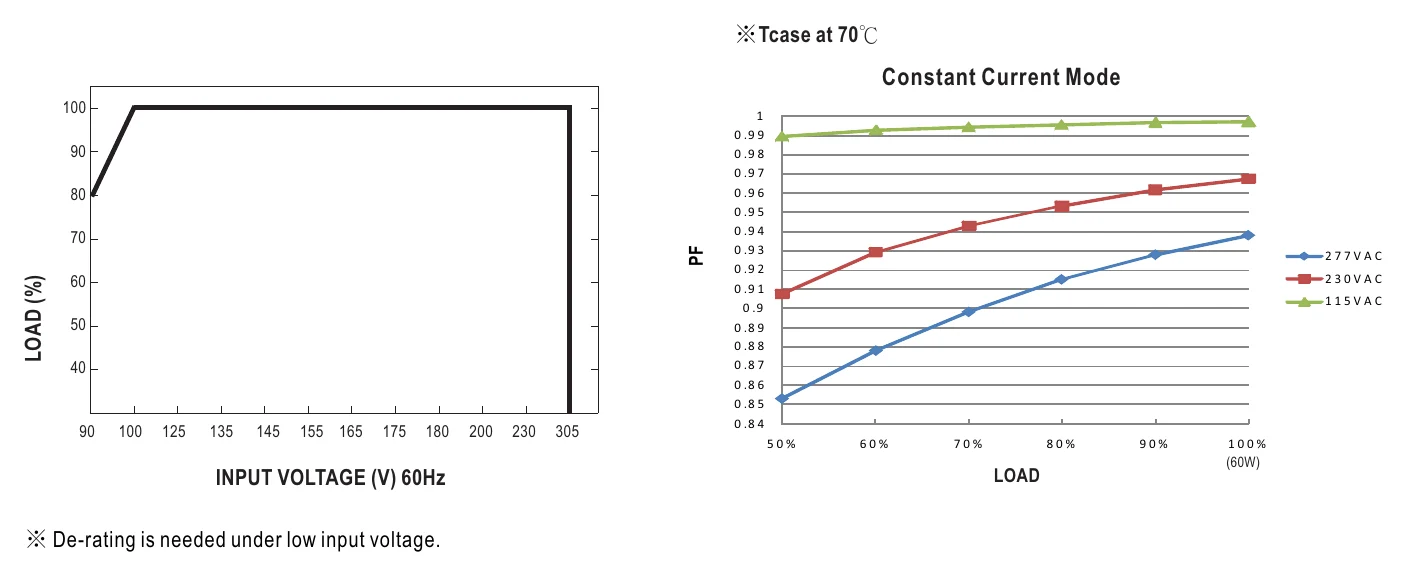

HLG-60H-48B STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

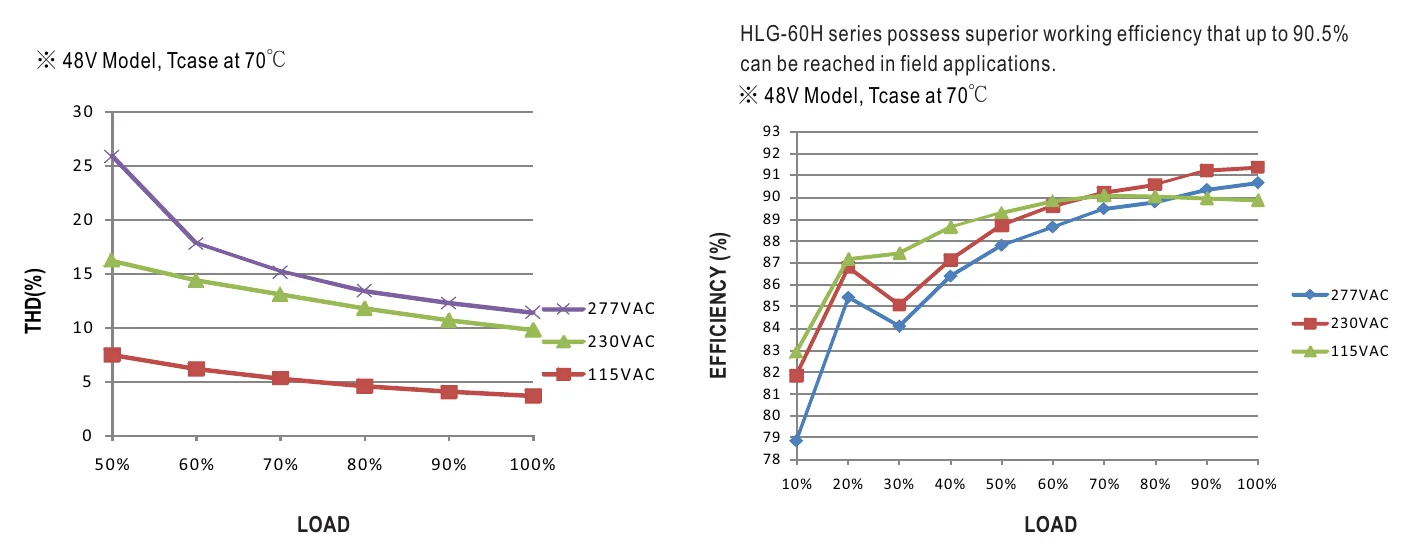

HLG-60H-48B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

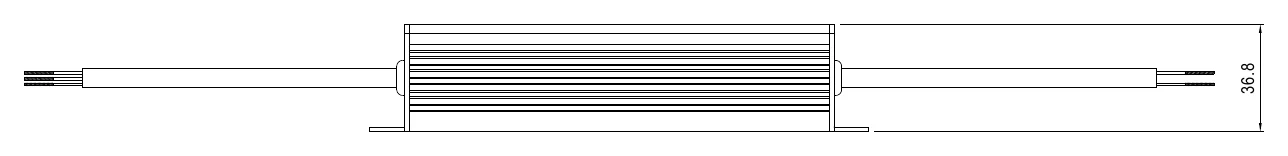

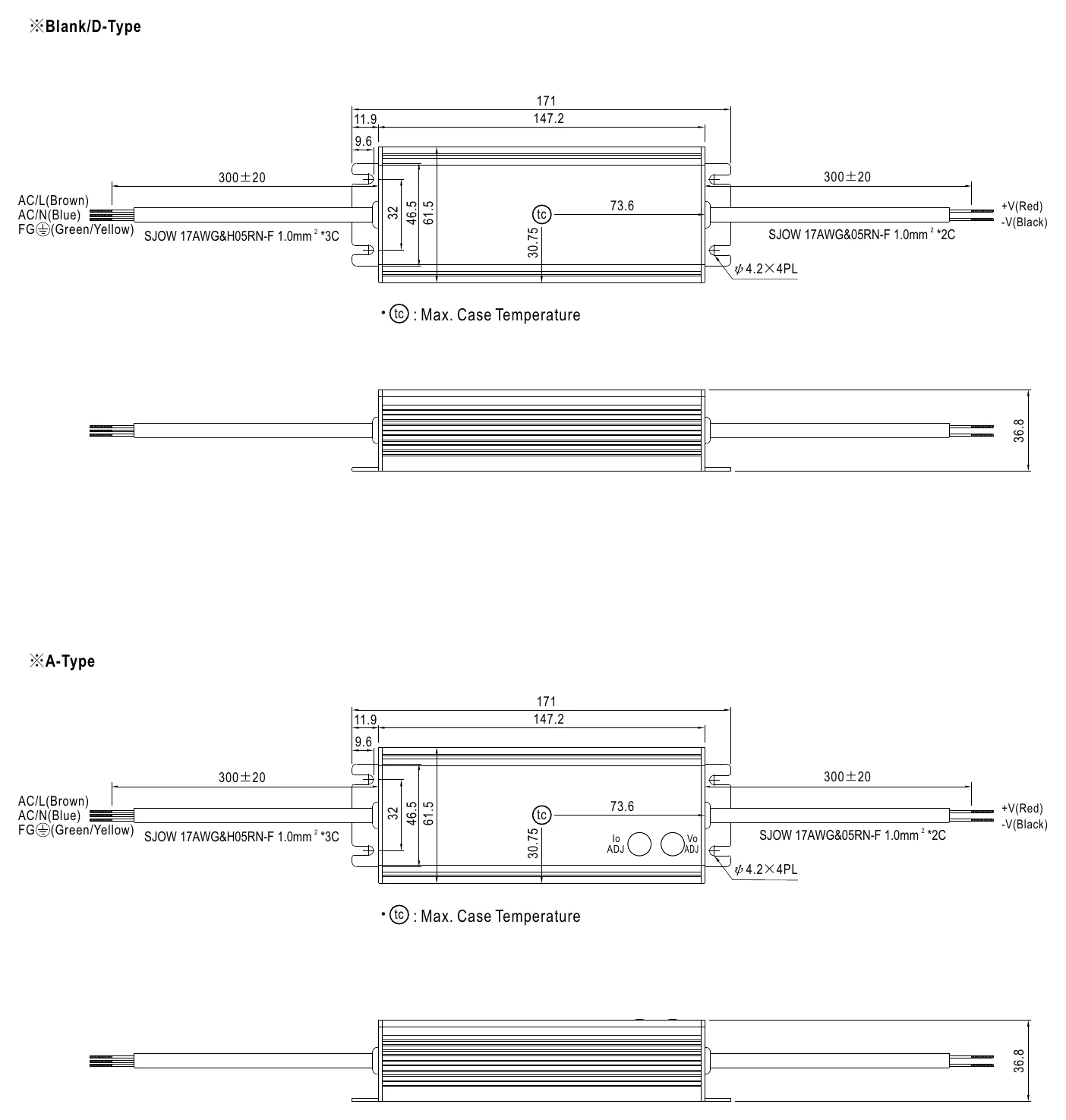

HLG-60H-48B MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

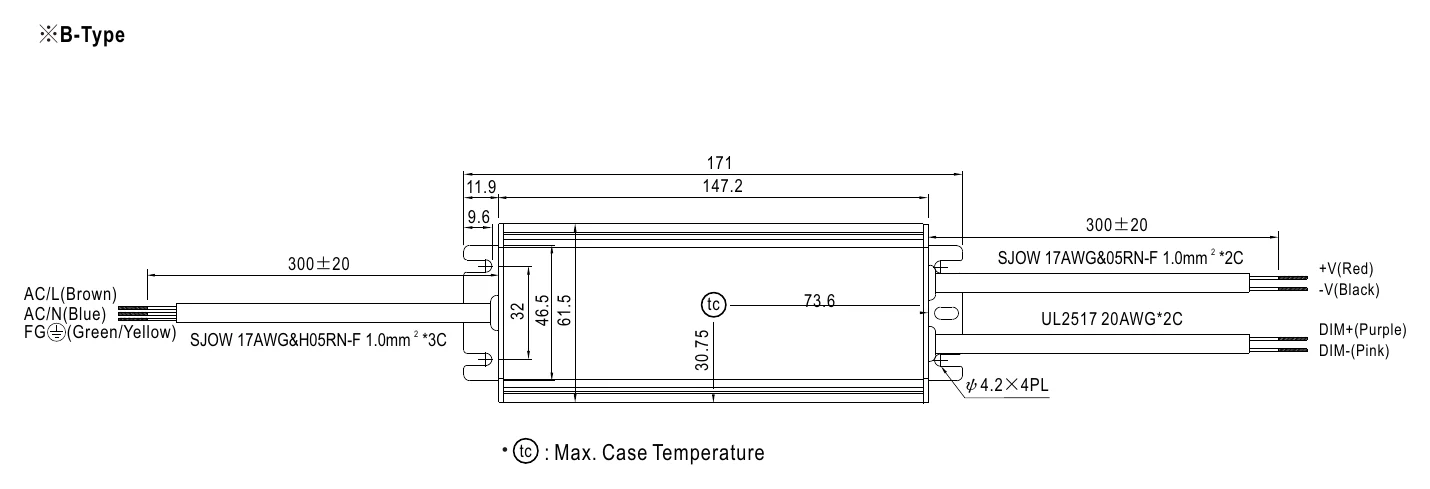

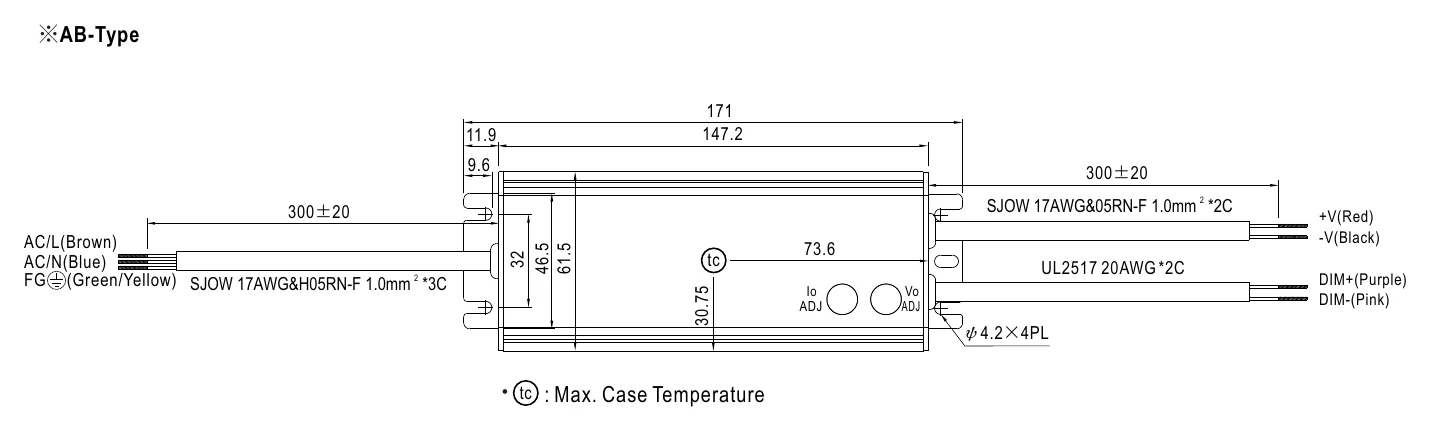

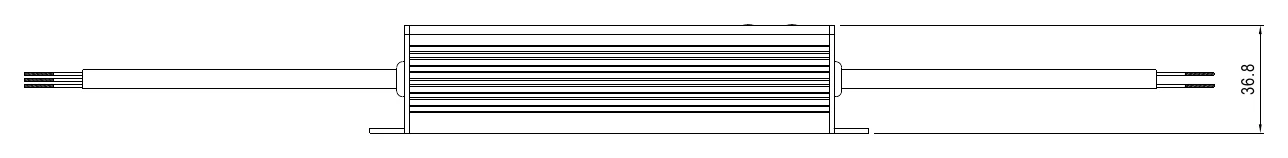

HLG-60H-48B Dimensions (mm) — Dimensions (mm)

HLG-60H-48B H L G - 6 0 H series — H L G - 6 0 H series

HLG-60H-48B H L G - 6 0 H series (2) — H L G - 6 0 H series (2)

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Certificates4

UL Certificate (HLG-60H)(EN) PDF Download

TUV Certificate (HLG-60H)(EN) PDF Download

EMC Certificate (HLG-60H)(EN) PDF Download

PSE Certificate(HLG-60H)(EN) PDF Download

Test reports1

Test Report(HLG-60H-48)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-60H-48B for outdoor 48V LED pathway lighting with dimming?

Yes. The HLG-60H-48B delivers 48V at up to 1.3A (62.4W) with a 1-10V/PWM dimming input, and its IP67 waterproof rating protects against rain and dust. It is well suited for fully exposed pathway or garden lighting installations where brightness scheduling is desired.

Is the HLG-60H-48B suitable for dimmable 48V LED fixtures in a car wash?

Only with care. The IP67 rating protects against dust and water, but the datasheet makes no claim for high-pressure spray or chemical resistance, so mount the driver away from direct wash spray and chemicals. It operates at a -40°C to +80°C case temperature (Tcase), and the dimming input allows brightness reduction during off-peak hours.

Can the HLG-60H-48B power 48V LED flood lights for a building facade?

Yes, provided the total load stays within 62.4W. The HLG-60H-48B is IP67 waterproof and operates at a case temperature (Tcase) of -40°C to +80°C, making it reliable for permanent outdoor facade lighting. The dimming input lets you program nighttime brightness reduction for energy savings.

How many meters of 48V LED strip can the HLG-60H-48B drive?

It depends on your strip's wattage per meter. The HLG-60H-48B is rated 62.4W at 48V. A strip rated at 10W/m would allow about 6.2 meters (62.4W / 10W per meter). A 15W/m strip would allow about 4.1 meters. Check your strip's rated power per meter and stay within 62.4W total.

Can the HLG-60H-48B survive being buried in an underground junction box?

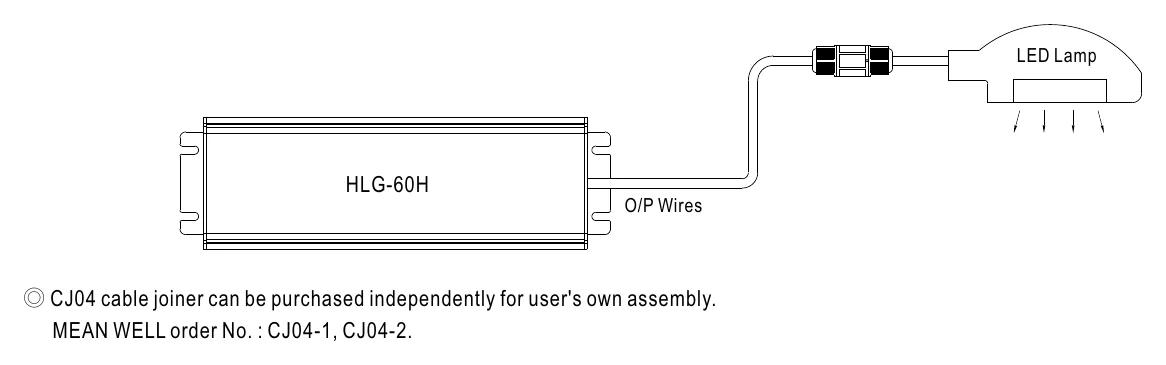

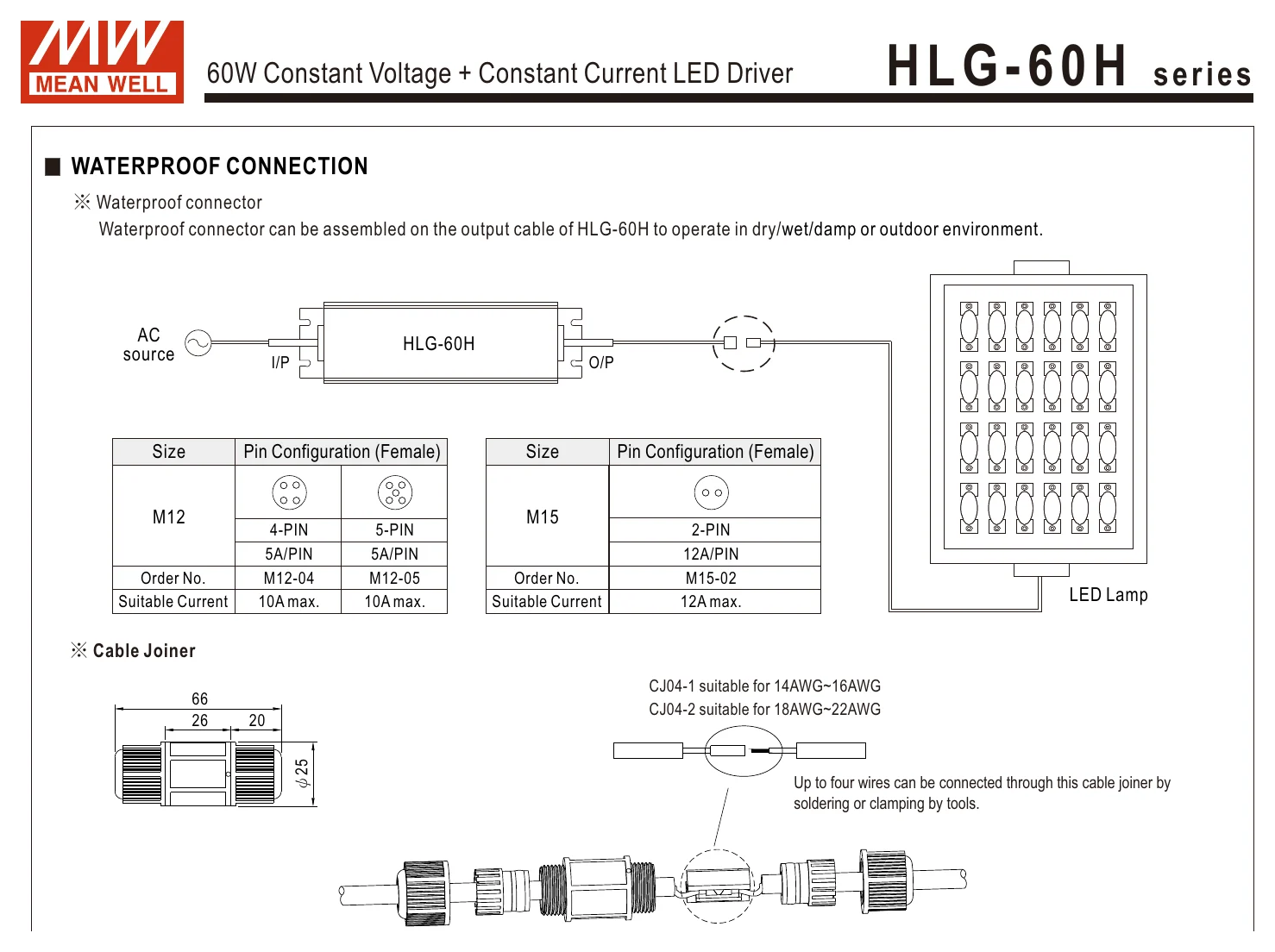

It should not be buried directly. IP67 makes the housing dust-tight and water-resistant, but the datasheet does not rate it for burial or submersion. In an in-grade junction box, fit waterproof connectors (MEAN WELL M12/M15) or the CJ04 cable joiner to the cables and follow the IP installation cautions in MEAN WELL's user manual.
