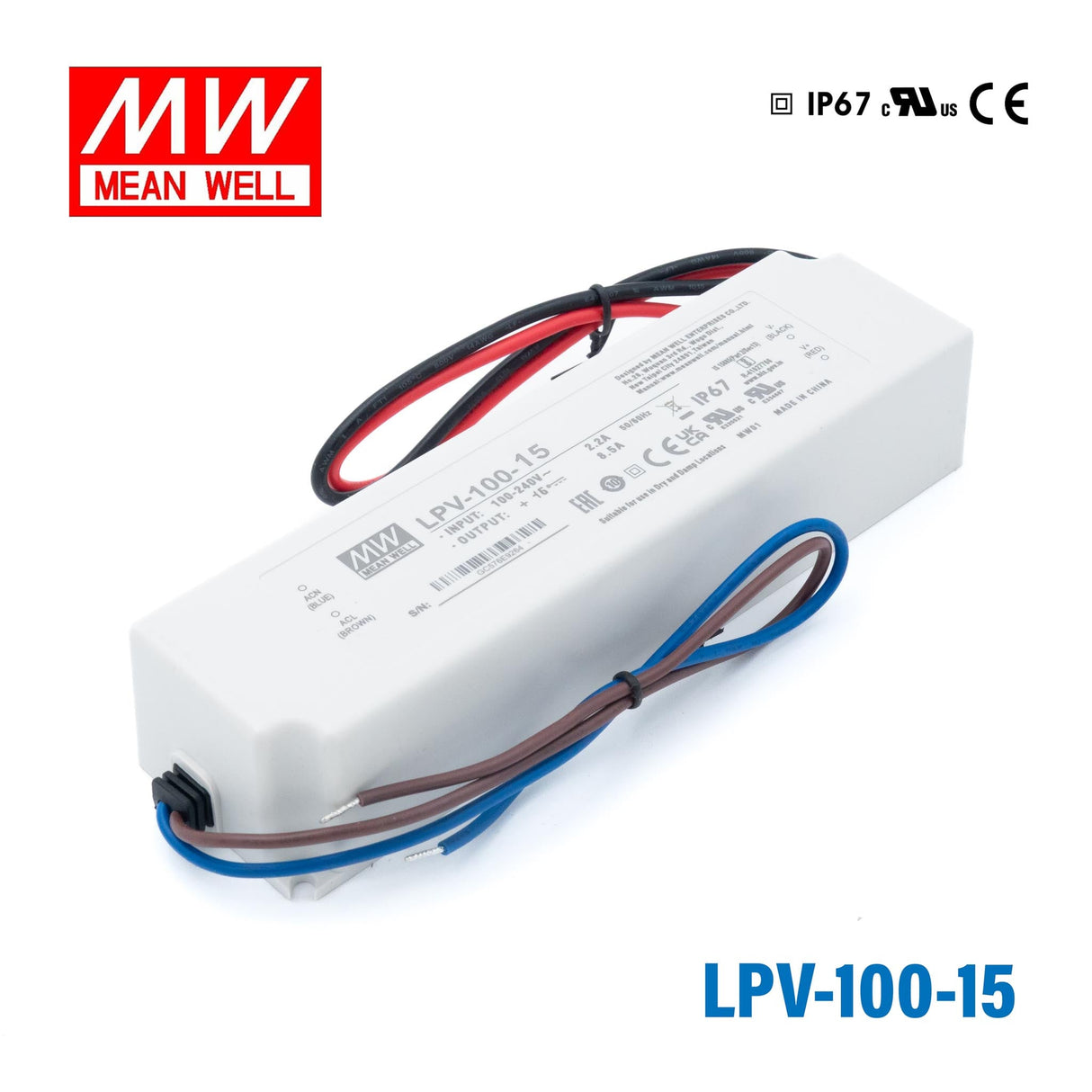

Mean Well LPV-100-15 LED Driver — 100.5W 15V 6.7A IP67 Waterproof

The Mean Well LPV-100-15 is a 100.5W, 15V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 15V DC output at up to 6.7A and carries CE, EAC, UL certifications for global compliance.

Accepting 90-264VAC universal AC input, the LPV-100-15 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -25°C to +70°C making it suitable for outdoor and harsh-environment installations.

Key Features

• ✓Constant voltage output: 15V DC at up to 6.7A (100.5W max)
• ✓IP67 waterproof and dustproof — suitable for outdoor installations
• ✓Universal AC input: 90-264VAC
• ✓Certifications: CE, EAC, UL
• ✓Wide operating temperature: -25°C to +70°C
• ✓Built-in protections: short circuit, overload, over-voltage
• ✓Compact, lightweight enclosure: 190.0 × 52.0 × 37.0 mm, 0.61 kg
• ✓2-year Mean Well warranty

• Brand
  Mean Well
• Series
  LP Series
• Power Rating
  100.5 Watt
• Output Voltage
  15 Volt
• Rated Current
  6.7 Ampere
• Input Voltage
  90V~264V
• No of Output
  1
• Dimming Control
  None
• Standards Met
  CE,EAC,UL
• Operation Mode
  Constant Voltage
• Operating Temperature
  -25°C~70°C
• Warranty
  2 Year
• Length
  7.48 in
• Width
  2.05 in
• Height
  1.46 in
• Weight
  1.34 lb
