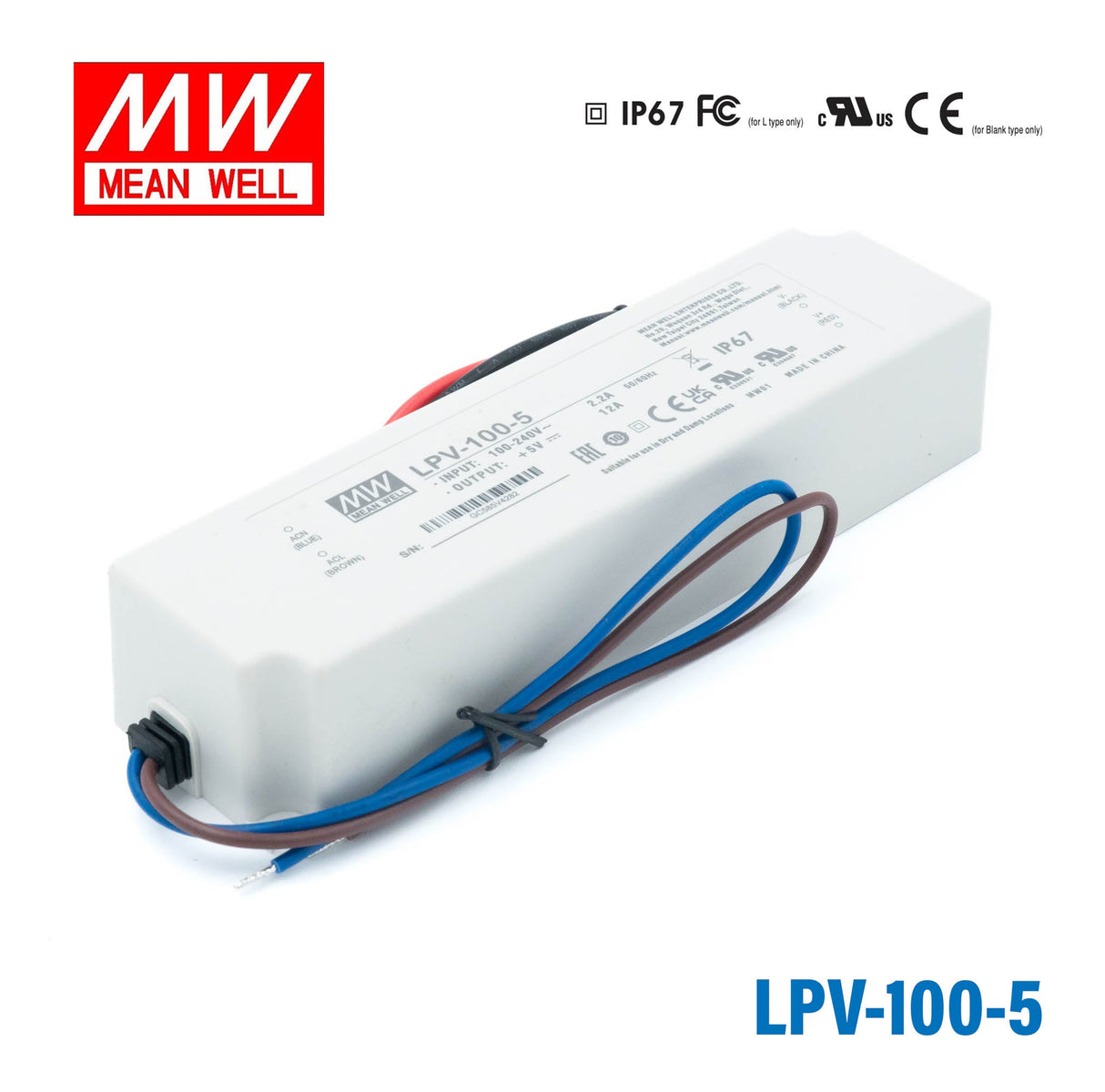

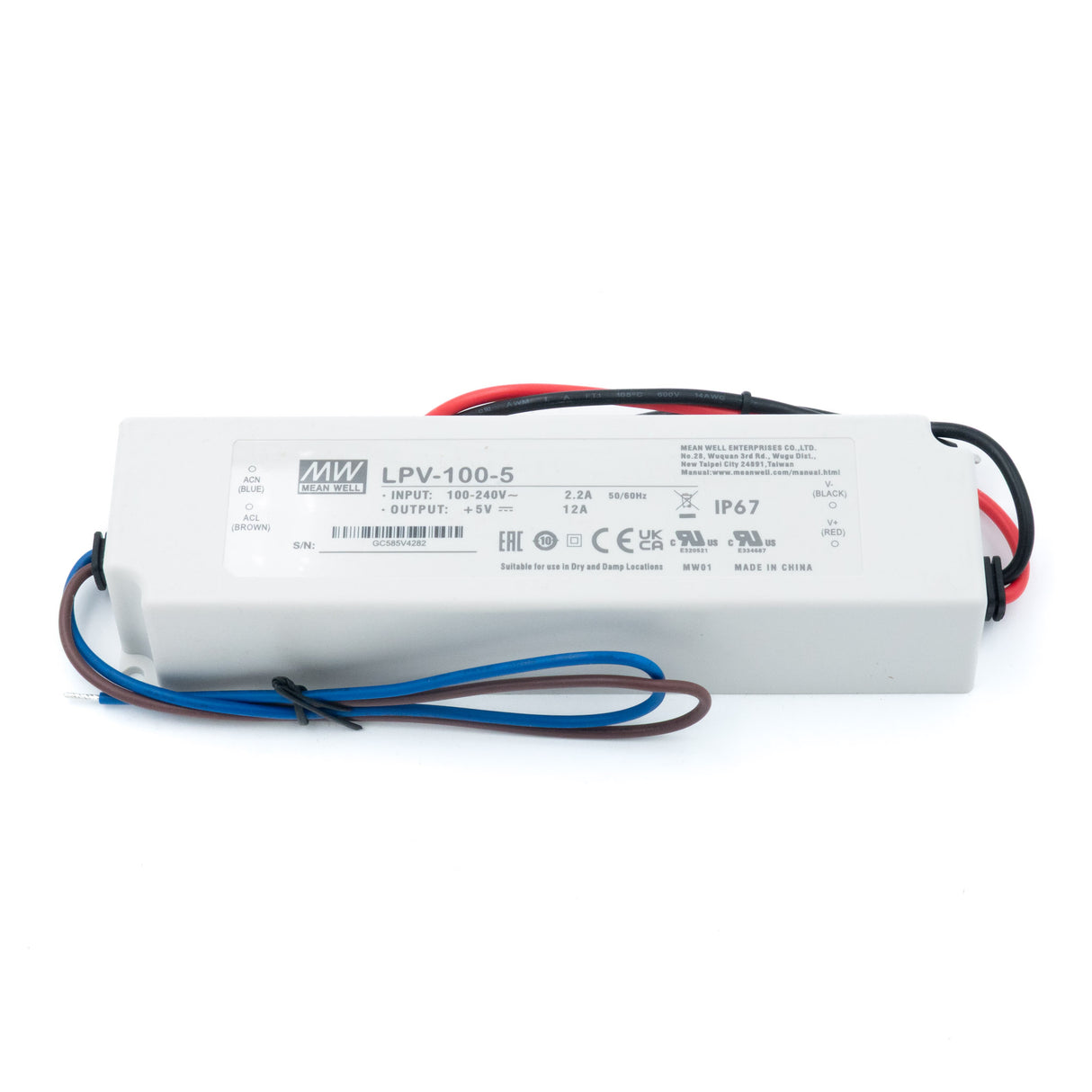

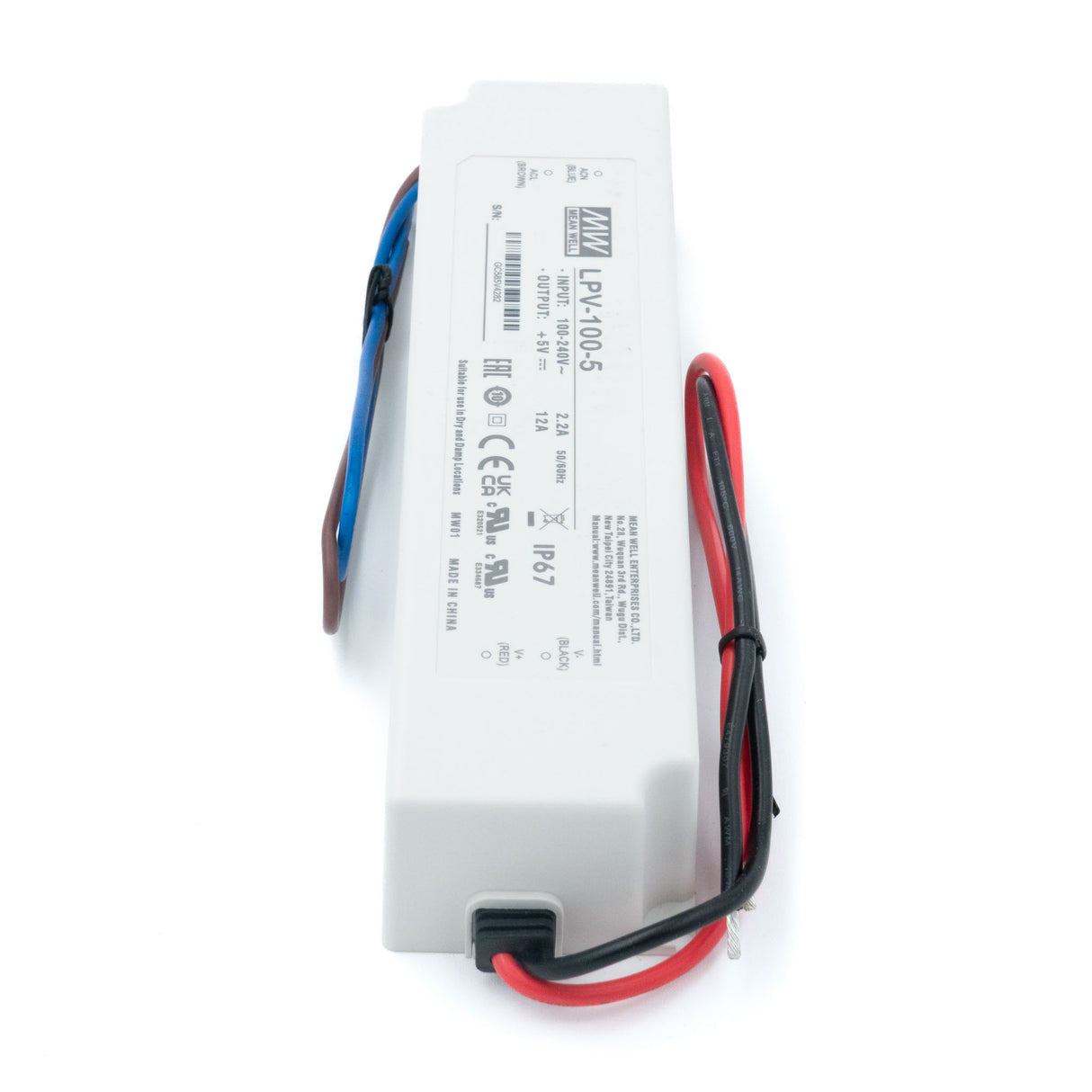

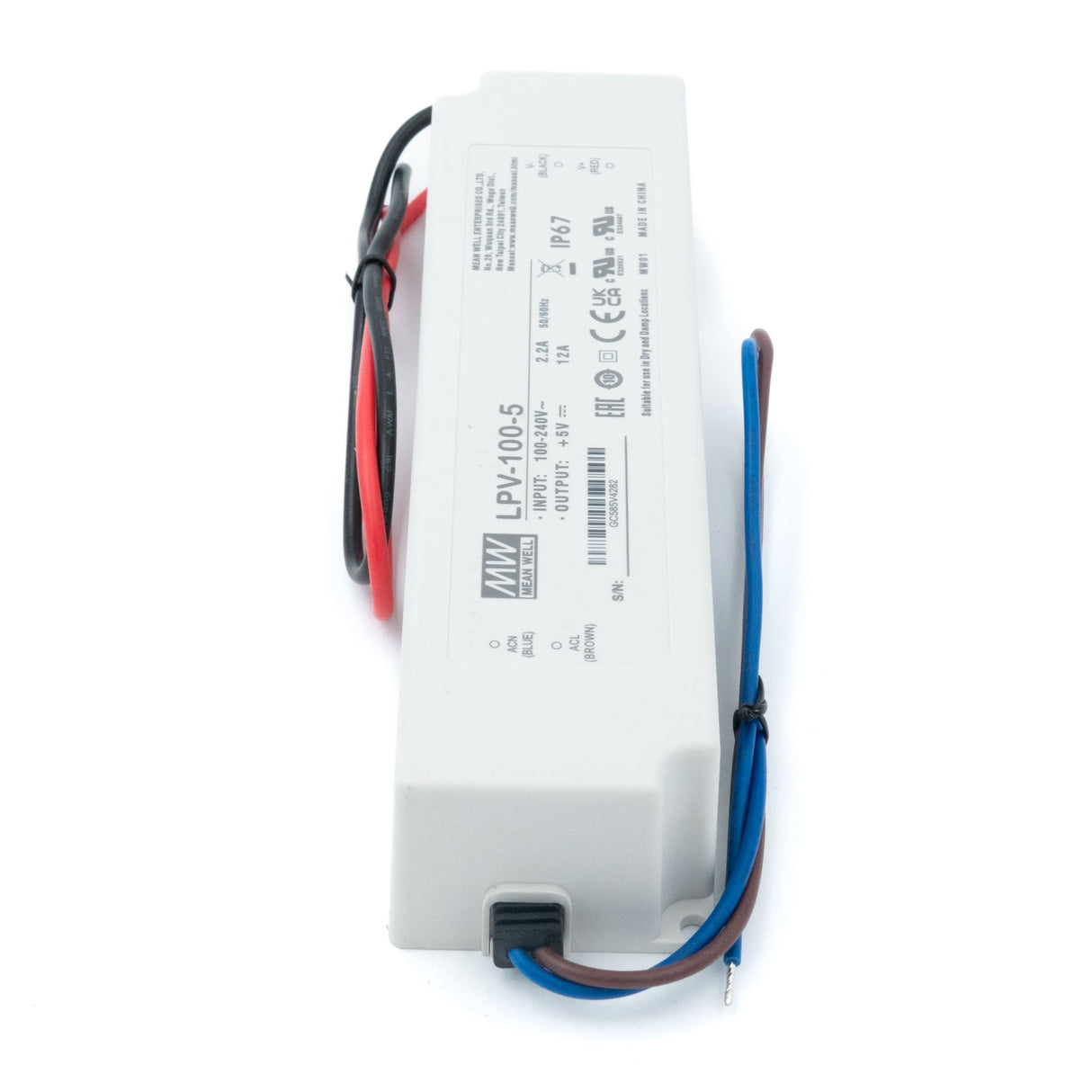

Mean Well LPV-100-5 LED Driver — 60W 5V 12A IP67 Waterproof
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPV-100-5 LED Driver — 60W 5V 12A IP67 Waterproof
The Mean Well LPV-100-5 is a 60W, 5V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 5V DC output at up to 12A and carries CE, EAC, UL certifications for global compliance.
Accepting 90-264VAC universal AC input, the LPV-100-5 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -25°C to +70°C making it suitable for outdoor and harsh-environment installations.
Key Features
- ✓Constant voltage output: 5V DC at up to 12A (60W max)
- ✓IP67 waterproof and dustproof — suitable for outdoor installations
- ✓Universal AC input: 90-264VAC
- ✓Certifications: CE, EAC, UL
- ✓Wide operating temperature: -25°C to +70°C
- ✓Built-in protections: short circuit, overload, over-voltage
- ✓Compact, lightweight enclosure: 190.0 × 52.0 × 37.0 mm, 0.61 kg
- ✓2-year Mean Well warranty
-
BrandMean Well
-
SeriesLP Series
-
Power Rating60 Watt
-
Output Voltage5 Volt
-
Rated Current12 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty2 Year
-
Length7.48 in
-
Width2.05 in
-
Height1.46 in
-
Weight1.34 lb
::specification::
Frequently Asked Questions
What LED applications use a 5V DC supply?
The LPV-100-5 outputs 5V DC at up to 12A (60W), which is the standard supply voltage for addressable/digital LED strips such as WS2812B and SK6812 types commonly used in decorative displays, indoor signage, and pixel-mapped installations. Ensure your total strip load does not exceed 60W.
How many meters of 5V addressable LED strip can the LPV-100-5 support?
The LPV-100-5 provides 60W at 5V. Divide 60W by your strip's wattage per meter — a 5V strip at 9W/m (e.g., 30 LEDs/m at full white) allows roughly 6.6 meters, while a strip at 6W/m supports about 10 meters. Always verify the rated power per meter for your specific strip at full brightness.
Is the LPV-100-5 suitable for outdoor pixel displays or exterior decorative installations?
Yes. The IP67 rating provides full dust protection and temporary-immersion resistance, so the driver can be installed in covered outdoor sign boxes or weatherproof enclosures supporting exterior 5V LED pixel displays. The operating range of -25°C to +70°C also accommodates most outdoor climates.
Why does the LPV-100-5 show only 60W when the series family is nominally 100W?
The LPV-100 series is named for its form factor, not a fixed 100W output at every voltage. At 5V the maximum deliverable power is 60W (5V × 12A), because the output current is capped at 12A — which is the limit of the design at this lower voltage. Other members of the LPV-100 series at higher voltages deliver up to 102W.
Does the LPV-100-5 accept 120V and 240V mains without modification?
Yes. The universal input range of 90–264 VAC means the LPV-100-5 operates on both 120V North American and 230–240V international mains with no jumpers or switches to change.
