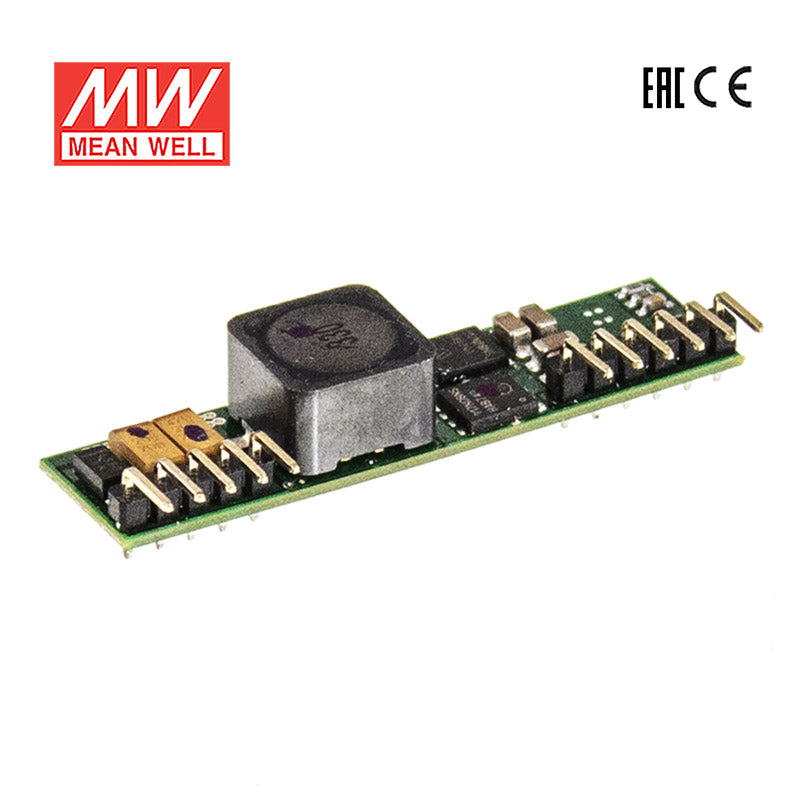

Mean Well NID35-5 DC-DC Converter - 17.5W - 10.5~53V in 5V out
Trimming output (optional)
3 years warranty
Key Features
- ✓Economical open frame design
- ✓Wide input range
- ✓High efficiency up to 96%
- ✓Remote ON/OFF control
- ✓Compact size 2.0"x0.512"x0.433"(SIP package)
- ✓Protection: Short circuit/Overload/Over voltage
- ✓-30~+85℃ wide working temperature
- ✓Cooling by free air convection
- ✓Comply to BS EN/EN55032 Class A without additional components
- ✓Trimming output (optional)
- ✓3 years warranty
-
BrandMean Well
-
SeriesNID Series
-
Power Rating17.5 Watt
-
Output Voltage5 Volt
-
Rated Current3.5 Ampere
-
Input Voltage10.5V~53V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length2 in
-
Width0.51 in
-
Height0.43 in
-
Weight0.02 lb
::specification::
Frequently Asked Questions
Can I use the NID35-5 to power 5V microcontrollers, logic boards, or embedded modules?
Yes, this converter provides a constant 5V output rated at 17.5W and 3.5A. That makes it suitable for smaller 5V embedded electronics when the total load remains within 17.5W and 3.5A. It is a lower-power option than the larger 5V model in the NID100 family.
Is the NID35-5 suitable for 5V communication modules or compact automation electronics?
It can be a fit for 5V communication and control electronics that need a regulated 5V rail and stay within 3.5A output current. With 17.5W available, it is better suited to compact low-power assemblies than larger 5V device groups. The output mode is constant voltage, which matches standard 5V electronics.
Can the NID35-5 support several low-power 5V devices on the same rail?
It can if the combined load does not exceed 17.5W or 3.5A. That is often useful for small groups of 5V embedded or logic devices sharing one regulated supply. The total load still needs to be sized to the converter's 5V, 17.5W, and 3.5A ratings.
How does the NID35-5 compare with the other NID35 models?
The NID35-5 is the 5V member of the NID35 series and is rated 17.5W at 3.5A. The other versions are NID35-12 at 34.8W, 12V, 2.9A; NID35-15 at 36W, 15V, 2.4A; and NID35-24 at 36W, 24V, 1.5A. The key differences are output voltage, current, and available wattage.
Can this converter be used in wide-temperature environments, and is it outdoor-rated?
Its operating temperature range is -30°C to +85°C, which supports use in demanding temperature conditions. The listed specifications do not provide an IP rating. Based on the provided data, temperature capability is defined, but outdoor exposure protection is not.
