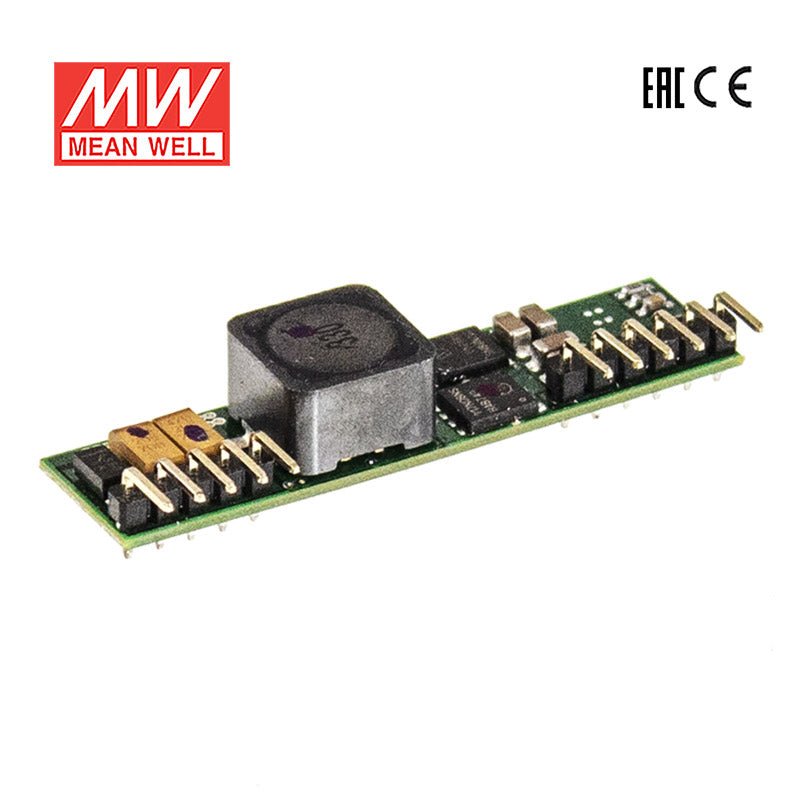

Mean Well NID35-12 DC-DC Converter - 34.8W - 20~53V in 12V out 2.9A
Trimming output (optional)
3 years warranty
Key Features
- ✓Economical open frame design
- ✓Wide input range
- ✓High efficiency up to 96%
- ✓Remote ON/OFF control
- ✓Compact size 2.0"x0.512"x0.433"(SIP package)
- ✓Protection: Short circuit/Overload/Over voltage
- ✓-30~+85℃ wide working temperature
- ✓Cooling by free air convection
- ✓Comply to BS EN/EN55032 Class A without additional components
- ✓Trimming output (optional)
- ✓3 years warranty
-
BrandMean Well
-
SeriesNID Series
-
Power Rating34.8 Watt
-
Output Voltage12 Volt
-
Rated Current2.9 Ampere
-
Input Voltage20V~53V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length2 in
-
Width0.51 in
-
Height0.43 in
-
Weight0.02 lb
::specification::
Frequently Asked Questions
Can I use the NID35-12 for 12V PLC accessories or small automation control loads?
Yes, it is intended for constant-voltage 12V output and is rated for 34.8W with up to 2.9A. That makes it suitable for smaller 12V control loads where the total requirement stays within 34.8W and 2.9A. It is better matched to low-power automation electronics than larger 12V assemblies.
Is the NID35-12 a fit for 12V industrial sensors, relays, or interface modules?
It can be used for 12V devices that need a regulated constant-voltage supply and stay within 2.9A output current. With a 34.8W rating, it is aligned with lower-power sensor, relay, and interface sections rather than heavier 12V equipment. The 20 to 53V input range is useful where the source voltage varies within that window.
Can this model support a compact 12V embedded or edge-control subsystem?
For compact 12V embedded loads, the NID35-12 can be appropriate when the total draw remains within 34.8W and 2.9A. Its small 50.8 × 13.0 × 11.0 mm size also suits space-constrained electronics. The output mode is constant voltage, so it is meant for 12V electronics rather than current-driven loads.
What is the difference between the NID35-12 and the other NID35 converters?
The NID35-12 is rated 34.8W at 12V and 2.9A. Other NID35 models are NID35-15 at 36W, 15V, 2.4A; NID35-24 at 36W, 24V, 1.5A; and NID35-5 at 17.5W, 5V, 3.5A. Selection comes down to the required output voltage and the matching current and wattage.
Can the NID35-12 be used in hot or cold environments, and is it outdoor-rated?
The operating temperature range is -30°C to +85°C, so the temperature spec supports both cold and high-heat environments. The listed specifications do not include an IP rating. That means the temperature range is defined, but weather or water exposure suitability is not stated here.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other NID35 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NID35-5 DC-DC Converter - 17.5W - 10.5~53V in 5V out 3.5A | 17.5W | 5V | 3.5A | Indoor | $11.65 | View |
| Mean Well NID35-24 DC-DC Converter - 36W - 30~53V in 24V out 1.5A | 36W | 24V | 1.5A | Indoor | $11.65 | View |
| Mean Well NID35-15 DC-DC Converter - 36W - 20~53V in 15V out 2.4A | 36W | 15V | 2.4A | Indoor | $11.65 | View |
